Summary of Contents for Ronix RH-4980

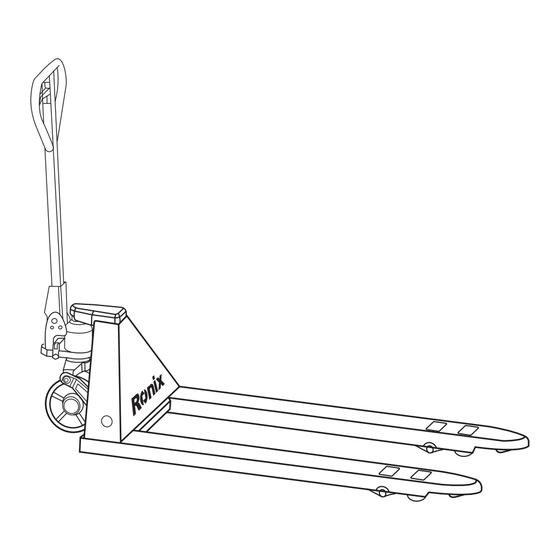

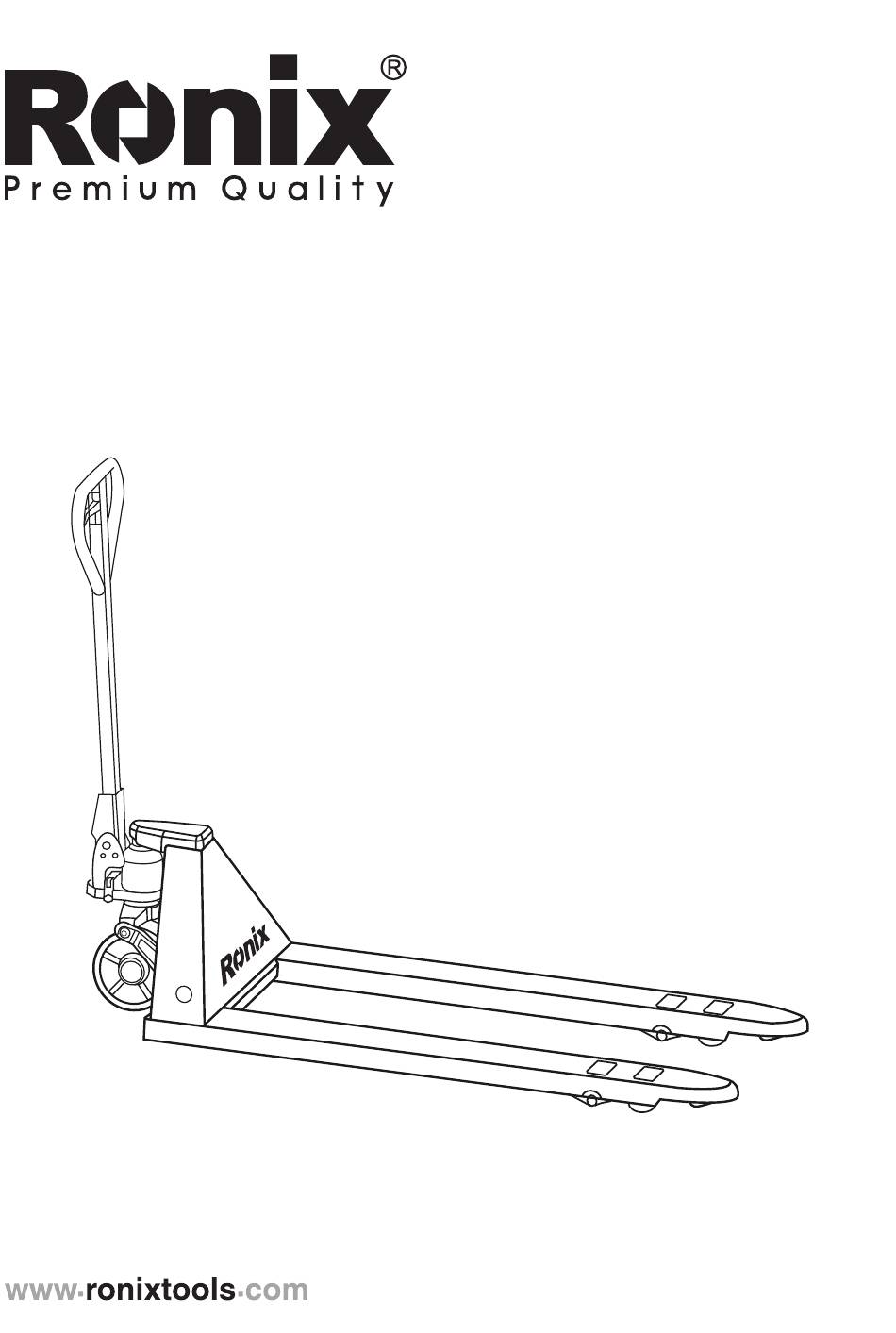

- Page 1 PALLET TRUCK RH-4980...
-
Page 3: Technical Specification
TECHNICAL SPECIFICATION Model RH-4980 Capacity 3000Kg Min Fork Height 75mm Max Fork Height 190mm Size Of Fork 150×50mm Fork Width 550mm Fork Length 1150mm Wheel Diameter 74mm/180mm Fok Material Q235 3.5mm Body Material Q235 3.5mm Wheel Material NYLON Length Of Handle... -
Page 4: Range Of Application
WARNING! The use of the pallet truck, maintenance and repair must be done in accordance with the requirements of the manufacturers. Prohibits any modification or installed on attachments, to ensure that the pallet truck is safe. RANGE OF APPLICATION - Pallet truck have steady lifting, manipulation of portable, safe and reliable, etc. -
Page 5: Safety Warnings
- To lower forks, pull lever handle to DOWN position (upper part of slot). - To freely move the handle, set lever in Neutral (center notch of slot). - The cam nut is properly adjusted when pumping the handle in NEUTRAL position causes no movement of the hydraulic ram. - Page 6 for other purposes, factory, disclaims any real or implied warranty and holds itself harmless from any injury that may result from that use. - Do not place hands or feet under the pallet truck at any time. - Do not operate a loaded pallet truck on ramps orinclines. - Do not tip load pallet truck forks.
-
Page 7: Waste Disposal
TROUBLESHOOTING THE WDFE SERIES PALLET TRUCKS SYMPTOM POSSIBLE CAUSE CORRECTION 1- Oil low in tank. Hydraulic unit does Hydraulic unit does 2- Air in pump. not lift . not lift . 3- Worn O ring in cylinder. 1- Refer to Cleaning Release Valve.
