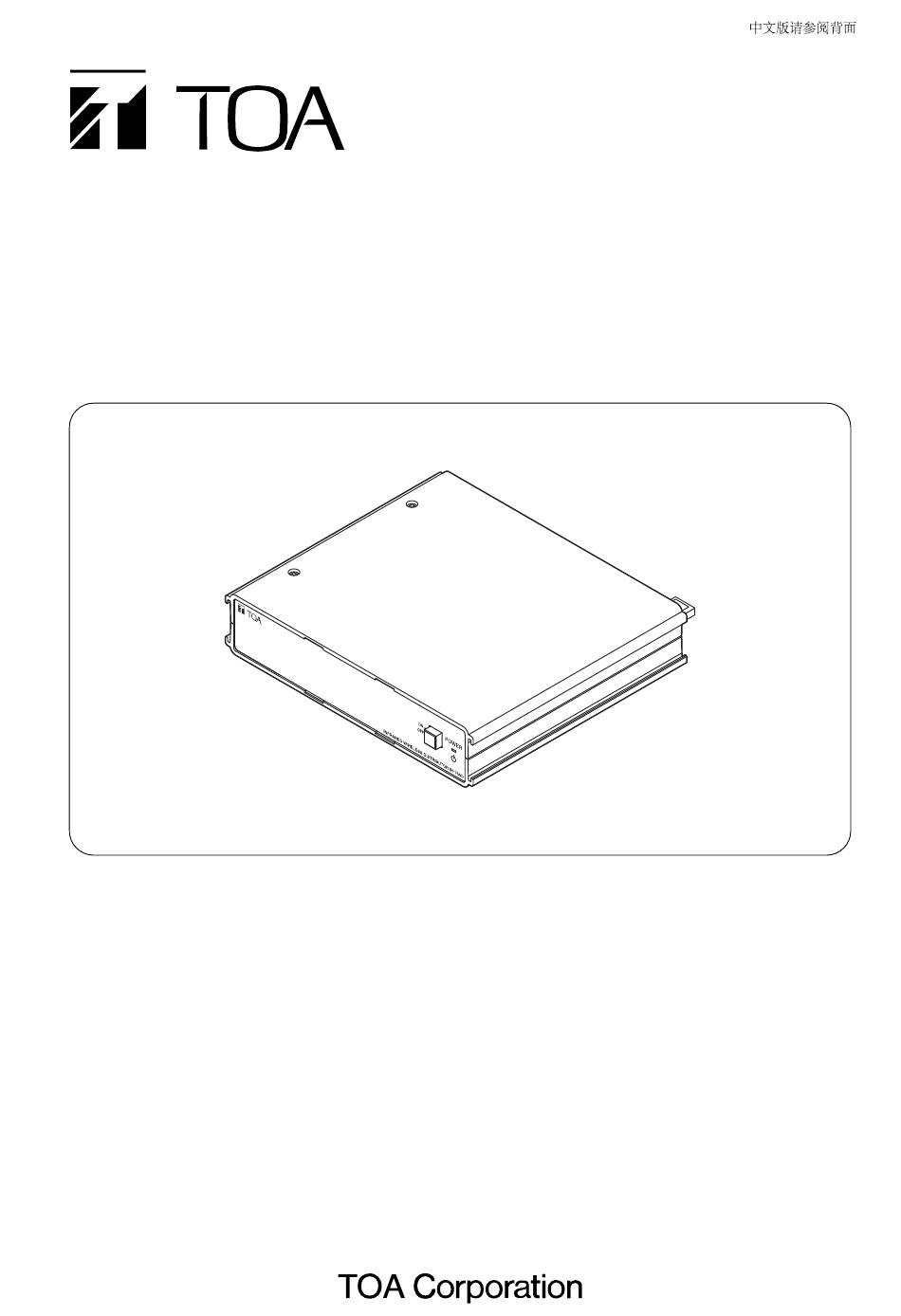

OPERATING INSTRUCTIONS
INFRARED WIRELESS DISTRIBUTOR
IR-700D
Thank you for purchasing TOA's Infrared Wireless Distributor.
Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.
133-07-276-9C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IR-700D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Toa IR-700D

Summary of Contents for Toa IR-700D

  • Page 1 OPERATING INSTRUCTIONS INFRARED WIRELESS DISTRIBUTOR IR-700D Thank you for purchasing TOA's Infrared Wireless Distributor. Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment. 133-07-276-9C...

  • Page 2: Table Of Contents

    (2) this device must accept any interference received, including interference that may cause undesired operation. Any modifications made to this device that are not approved by TOA Corporation may void the authority granted the user by the FCC to operate this equipment.

  • Page 3: Safety Precautions

    AC outlet and heaters, or in locations generating sooty smoke or contact your nearest TOA dealer. Make no further steam as doing otherwise may result in fire or attempt to operate the unit in this condition as this electric shock.

  • Page 4: General Description

    The IR-700D is a receiver distributor used in the TOA’s infrared wireless microphone system. It employs 4 receiver mixing inputs and 2 distribution outputs. By using the IR-700D in conjunction with the IR-702T Infrared Wireless Tuner, up to 16 infrared wireless receivers can be connected to the IR-702T.

  • Page 5: System Configuration Example

    Infrared Wireless Microphone IR-200M Infrared Wireless Microphone Infrared Wireless Distributor IR-300M IR-700D Note Avoid connecting more than one IR-700D Infrared Wireless Distributor to a single system. Failure to observe this warning could cause excessive gain output, possibly disabling the system’s correct operation.

  • Page 6: Connection Example

    6. CONNECTION EXAMPLE Combining the IR-700D with the IR-702T tuner allows the number of the infrared wireless receivers connected to the IR-702T to be increased. The connection example shown below is a system having 5 or more receivers to be connected to the IR-702T tuner.

  • Page 7: Installation

    7. INSTALLATION 7.1. Mounting a Single Unit in an Equipment Rack Use the optional MB-WT3 Mounting Bracket to mount a single IR-700D unit. Note: For the mounting bracket installation, refer to the instruction manual attached to the MB-WT3. Component parts of the MB-WT3...

  • Page 8: Wiring To Infrared Wireless Receiver

    However, the reception level could decrease if the signals are out of phase. • To match signal phases, make each corresponding cable the following length: Cable length from each infrared wireless receiver to the IR-700D : M1 + N1 = M2 + N2 where M1, N1, M2, and N2 are: M1: Length between Infrared wireless receiver (A or A’) and YW-1022/1024 Distributor (1)

  • Page 9: Wiring Examples

    (cable length between receiver and distributor YW-1022/1024) equal. Notes • To facilitate unification of coaxial cable lengths, it is recommended that wiring from the IR-700D to the distributor YW-1022/1024 should be performed using a single cable. • The use of coaxial cables cut to an even length that is slightly longer than required easily makes all "M"...

  • Page 10: Supplementary Remarks

    9. SUPPLEMENTARY REMARKS (How to find a maximum cable length from IR-700D to receiver) Cable distance values here are provided merely as a guide, since such values differ depending on the structure of buildings and environmental conditions of the infrared wireless receiver.
  • Page 11 Attenuation = 3.3 dB x (25 m / 100 m) = 0.825 dB. Since loss of 8.5 dB results from the YW-1024, the maximum permissible loss from the IR-700D to the YW- 1024 stands at 2.675 dB (12 dB – 0.825 dB – 8.5 dB).

  • Page 12: Specifications

    * Not supplied with the IR-702T KR. For the usable power supply cord and AC adapter, contact your nearest TOA dealer. Traceability Information for Europe (EMC directive 2004/108/EC) Manufacturer: Authorized representative: TOA Corporation TOA Electronics Europe GmbH 7-2-1, Minatojima Nakamachi, Chuo-ku, Kobe, Hyogo, Suederstrasse 282, 20537 Hamburg, Japan Germany URL: http://www.toa.jp/...
