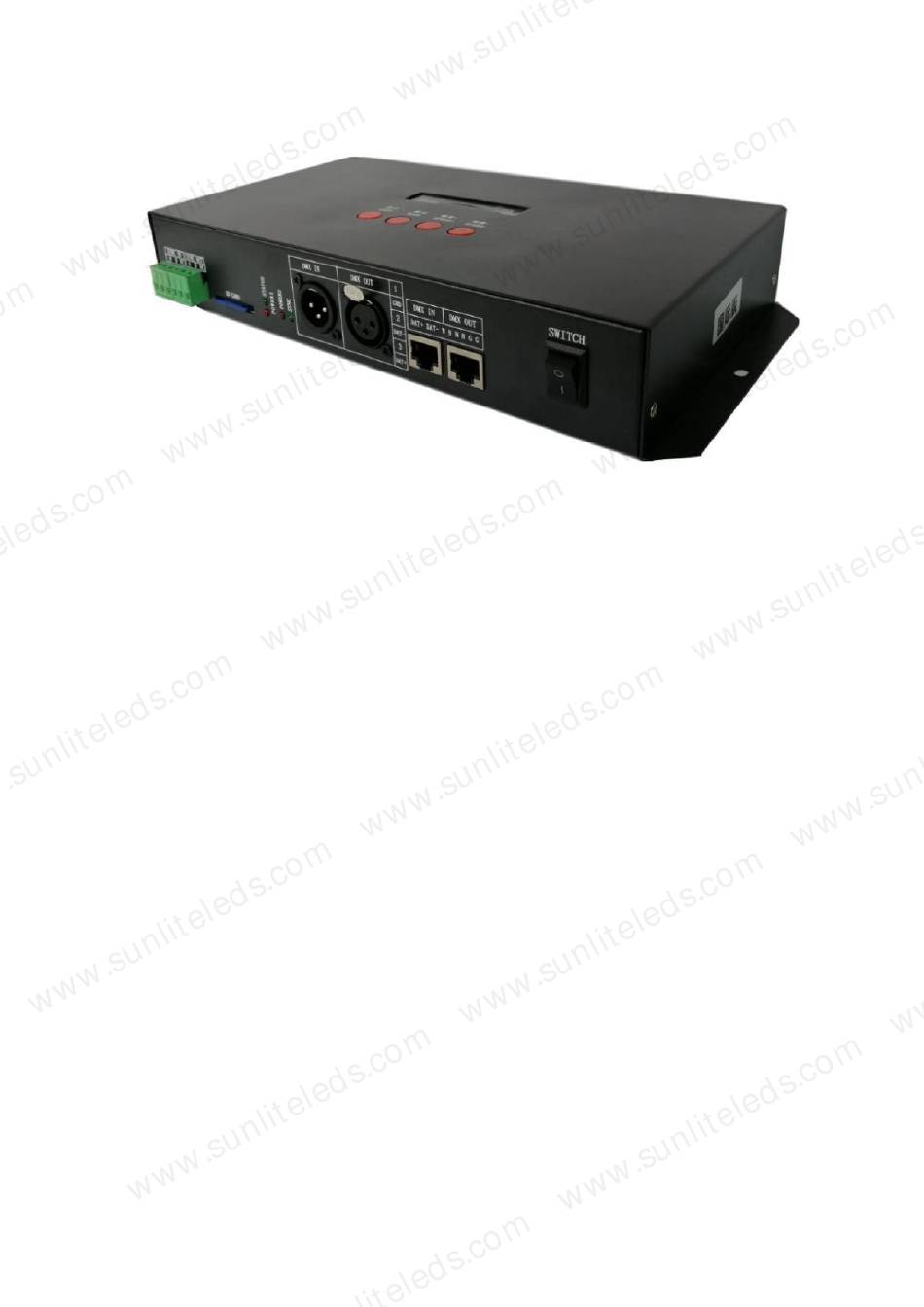

S-8000L(RGB) Instruction Manual
I. Features of S-8000L system:
1. The S-8000L controller can control 32-65536-level grayscale, and process it with software Gamma
correction.
2. The S-8000L controller supports various point, line and area light sources, and supports various rules
and special-shaped processing.
3. The S-8000L controller has 8 port outputs, each port can carry a maximum of 512/1024 lamps (DMX
lamps have a maximum of 512 pixels), and enhance TTL and 485 differential (DMX) signal output.
4. The content played by the S-8000L controller can be stored in the SD card, and the SD card can store up
to 32 effect programs.
5. The S-8000L controller supports 32 SD effects (only supports three-channel effects), and supports a
variety of lighting control chips to work.
6. The DMX512 console is connected to the S-8000L controller through the XLR head cable or the
network cable, and the console sends commands to control-controller mode, speed, lamp color change, etc.
7. The S-8000L controller can be used alone or in cascade. The cascade adopts the photoelectric isolation
method: anti-interference and better stability.
Remarks: 1. The speed of 512 points of lights on the controller can reach 30 frames/second, the speed of
768 points can reach 25 frames/second, and the speed of 1024 points can reach 22 frames/second
(The above parameters take 1903 protocol IC data as an example, there will be differences between
different ICs)
2. The international standard DMX512 (1990 protocol) has a maximum load of 512 pixels. When the tape
load is the international standard 170 pixels, the speed can reach 30 frames/second, the speed of 340 pixels
is about 20 frames/second, and the speed of 512 pixels is about 12 frames/second.
1
www.sunliteleds.com
sales@suntechleds.com
Advertisement
Summary of Contents for Sunlite S-8000L RGB
- Page 1 S-8000L(RGB) Instruction Manual I. Features of S-8000L system: 1. The S-8000L controller can control 32-65536-level grayscale, and process it with software Gamma correction. 2. The S-8000L controller supports various point, line and area light sources, and supports various rules and special-shaped processing. 3.
- Page 2 II. Support chip (the host computer software chooses K-8000-L-RGB): 00: UCS1903,1909,1912,2903,2904，2909,2912；TM1803,1804,1809,1812；SM16703，16709,16712； WS2811；INK1003；LX3203,1603,1103；GS8205, 8206；SK6812（Maximum with light 1024*8=8192 pixels） 01：SM16716,16726 （Maximum with light 1024*8=8192 pixels） 02：P9813（Maximum with light 1024*8=8192 pixels） 03：LPD6803（Maximum with light 1024*8=8192 pixels） 04：LX1003,1203（Maximum with light 1024*8=8192 pixels） 05：WS2801（Maximum with light 1024*8=8192 pixels） 06：LPD1886（Maximum with light 1024*8=8192 pixels）...
- Page 3 III. Appearance picture of the controller: Front ： Side 1： Side 2： Serial Indicator Number Serial Indicator Serial Indicator Number Number display function button Cascade port INA/B OUTA/B SD card slot indicator light Console head interface Console network cable switch Power outlet interface Light signal port OUT 1-8...
-
Page 4: Function Explanation
Function explanation 1. Key Meaning Console Normal Mode Special Functio Control Mode Indicato One button One button function Power-on button function function Press "Chip" switch chip CHIP "Speed-" at the same time Long press "Mode" to enter to power on, then enter the switch one-key address... - Page 5 negative ADDR address line 4. List of built-in effects List of built-in effects Red-green-blue-white-black red and white yellow shift White light single jump transition point scanning single white long bright red goes cyan shift red-green-blue transition colorful gradient green shift purple goes seven colors Overall scan...
- Page 6 VI. Controller - wiring diagram of light signal output port ①. Conventional Lighting Wiring Diagram ②. DMX512 differential signal line wiring diagram ③. DMX512 single-line signal line wiring diagram ④. DMX512 differential signal line wiring diagram VII. The controller writes the DMX address of the light and tests -- (operate before connecting to the console)
- Page 7 3. Press the "Chip" key to select "WRITE ADDRESS" to enter the address writing mode interface, as shown below: ①. START CH: start channel （The starting address is set in the range of 0-512, usually 001） ②. CH MODE: spacer channel （Interval channel setting in the range of 0-255）...
- Page 8 adjust the pixel points (long press "Speed+" or "Speed-" to quickly increase or decrease), the lamps point one by one On; the controller displays as shown below: 9. If the test is unsuccessful, press "Chip" to exit the channel test; return to the address writing interface, and reset the writing address.
- Page 9 9. Press the "Mode" key for the second time to switch the test channel options (1-99) 10. Press the "MODE" key to switch the test channel options (1-99); Press the "SET" key to switch between the manual channel test mode "MC" and the automatic channel test mode "AC";...
- Page 10 Interval channel input (picture: step 2) The interval channel is input according to the actual number of the fixture, and the number is the number of channels occupied by a DMX512 IC to control the pixel point of the fixture. Chip model selection (as shown in the figure: Step 3) Click the drop-down button to select the chip model corresponding to the DMX512 IC loaded by the lamp.
- Page 11 3. Press the "Chip" key to confirm the selection, and the following display indicates that the setting is successful 4. Restart the controller, the power-on detection will display the controller address code. 5. Connect the console to the controller. 6. After activation, the console can perform control operations. XI.
- Page 12 Definition model speed green blue total on/off play / overall Pause brightness 01-32 active state inactive state 2. Channel description show aisle Definition 01-32 Channel 1 Mode (levels 1-32) N or S Channel 2 Speed (levels 1-16) 0 or R Channel 3 R (red) (level 1-255) 0 or G...
- Page 13 XIV. Common problem handling: Question 1: After power on, it is found that SD Error is displayed on the screen of the controller, and there is no effect output A: The screen displays SD Error, which proves that the controller does not read the card correctly. The possible problems are: ①...
- Page 14 Question 5: After the console is connected to the controller, there is no response to the lighting control by the console. Answer: ① First, confirm whether the connection between the console and the controller is correct. ②The controller displays whether each channel is normally activated. ③...
