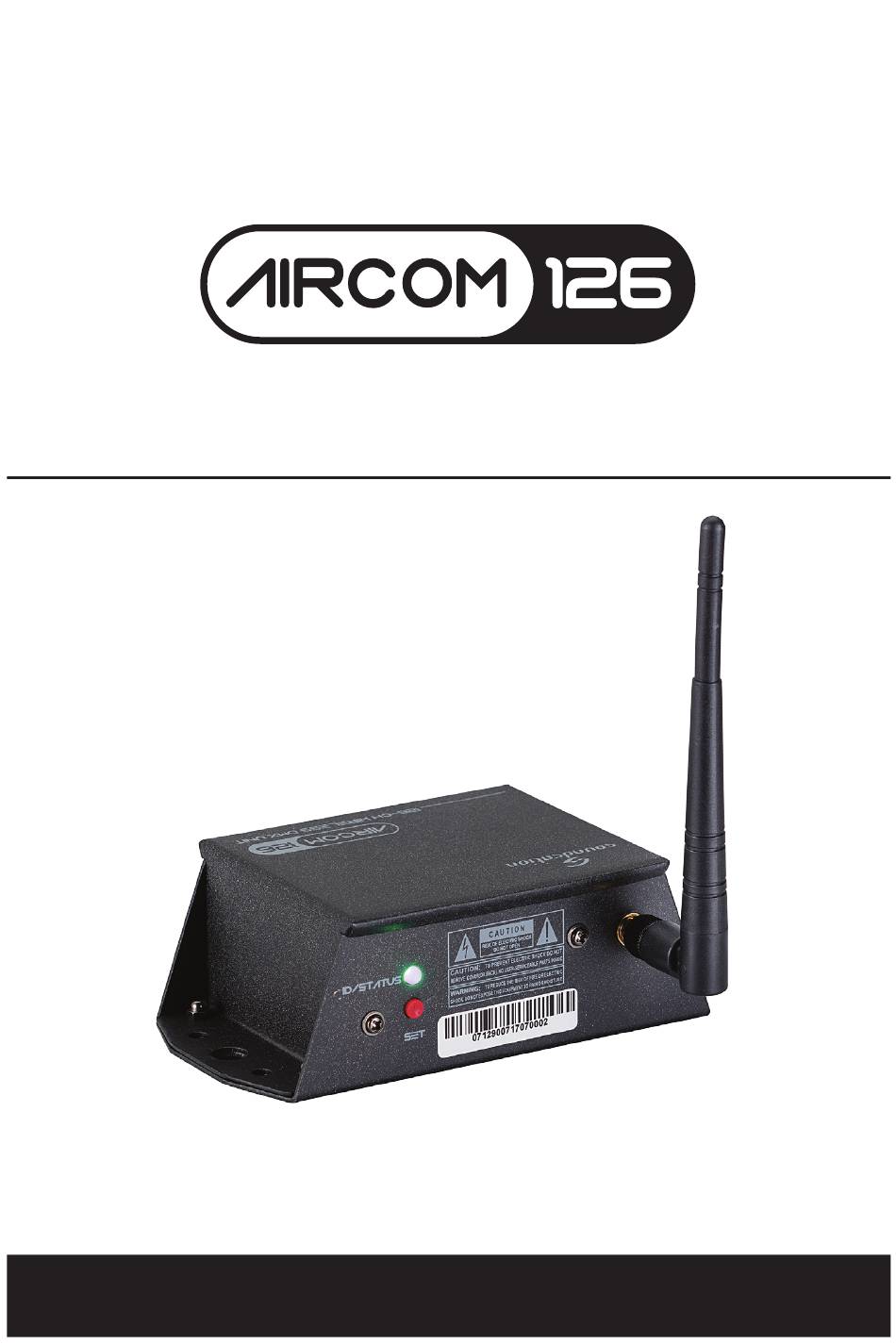

- Page 1 126 Channel Wireless DMX Unit USER MANUAL Please read this manual carefully and proper take care of this manual.
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. 1. INTRODUCTION ....................6 1.1. Unpacking .................................6 1.2. Accessories ................................7 2. FRONT & REAR PANEL....................7 2.1. ID code and LED Color Correspondence ......................8 3. MAINS CONNECTIONS .....................8 4. OPERATING INSTRUCTIONS ..................8 4.1. ID Setting ..................................8 4.2. Working condition ..............................8 4.3. - Page 3 ENGLISH Aircom 126 User manual IMPORTANT SAFETY SYMBOLS The symbol is used to indicate that some hazardous live terminals are involved within this apparatus, even under the normal operating con- ditions, which may be sufficient to constitute the risk of electric shock or death.
- Page 4 ENGLISH Aircom 126 User manual install according to the manufacturer’s instructions. Object and Liquid Entry Objects do not fall into and liquids are not spilled into the inside of the apparatus for safety. Power Cord and Plug Protect power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
-
Page 5: Introduction
ENGLISH Aircom 126 User manual 1. INTRODUCTION Thank you for purchasing our AIRCOM 126. You now own a professional 126 Channel Wireless DMX interface with following features: f Both Transmitting and Receiving operation within same unit f One transmitter can manage more receivers at the same time... -
Page 6: Accessories
ENGLISH Aircom 126 User manual f This User manual ATTENTION: Packaging bag is not a toy! Keep out of reach of children!!! Keep in a safe place the original packaging material for future use. 1.2. Accessories SOUNDSATION can supply a wide range of quality accessories that you can use with your DMX unit, like Cables, Controllers, Splitters, Stands, and a wide range fixtures. -
Page 7: Id Code And Led Color Correspondence
ENGLISH Aircom 126 User manual 2.1. ID code and LED Color Correspondence DMX data communication occurs only if transmitter an receiver are both under same ID code. Each ID has a different assigned color as shown in next table. COLOR... -
Page 8: Establishing Communication
DMX connector used. The unit to which the DMX output of a control unit or other controller is connected to the DMX input of the AIRCOM 126 will work as a transmitter; the one to which a moving head or other fixture DMX input is connected to the AIRCOM 126 DMX out will work as a receiver. -
Page 9: Dmx Connection
ENGLISH Aircom 126 User manual NOTE: If two transmitters are activated simultaneously on same ID value, al- though there is no risk of damage to the equipment, it is good to know that only the first activated transmitter will effectively control the devices in the network, and the second will be completely ignored. -
Page 10: Dmx Terminator
ENGLISH Aircom 126 User manual Connect fixtures using shielded 2-conductor twisted pair cable with 3-pin XLR male to female connectors. The shield connection is pin 1, while pin 2 is Data Negative (S-), and pin 3 is Data positive (S+). -
Page 11: Specifications
ENGLISH Aircom 126 User manual 6. SPECIFICATIONS Frequency Band 2.4GHz ISM Modulation Type GFSK Modulation Frequency range 24,000 ~ 24,835 GHz Channel Frequencies 126 jumping frequencies Communication Distance 300 m Receiver Sensibility -106 dBm Transmission Power 20 DBM Antenna 100 mm helical SMA antenna... -
Page 12: Warranty And Service
ENGLISH Aircom 126 User manual 9. DECLARATION OF CONFORMITY TO: whom it may concer EU DECLARATION OF CONFORMITY We, FRENEXPORT SPA, Via Enzo Ferrari, 10 – 62017 Porto Recanati (MC) Italy Declare under our sole responsibility that following products: Models: SOUNDSATION AIRCOM 126 Description: Wireless DMX512 Transceiver conform to the essential requirements of: • Directive on the general safety of product 2001/95/EU • European Low Voltage Directive 2014/35/EU • European EMC Directive 2014/30/EU • European Radio Equipment Directive (RED) 2014/53/EU comply with the following standards: • EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 • ETSI EN 301 489-1 V1.9.2 (2011-09) • ETSI EN 301 489-17 V2.2.1 (2012-09) • ETSI EN 300 328-1 V1.8.1 (2012-06) conform to RoHS directive 2011/65/EC and related amendments. Porto Recanati, 08/08/2017 Position: _______________________...
