Summary of Contents for nexstyle 4SHH001WHI

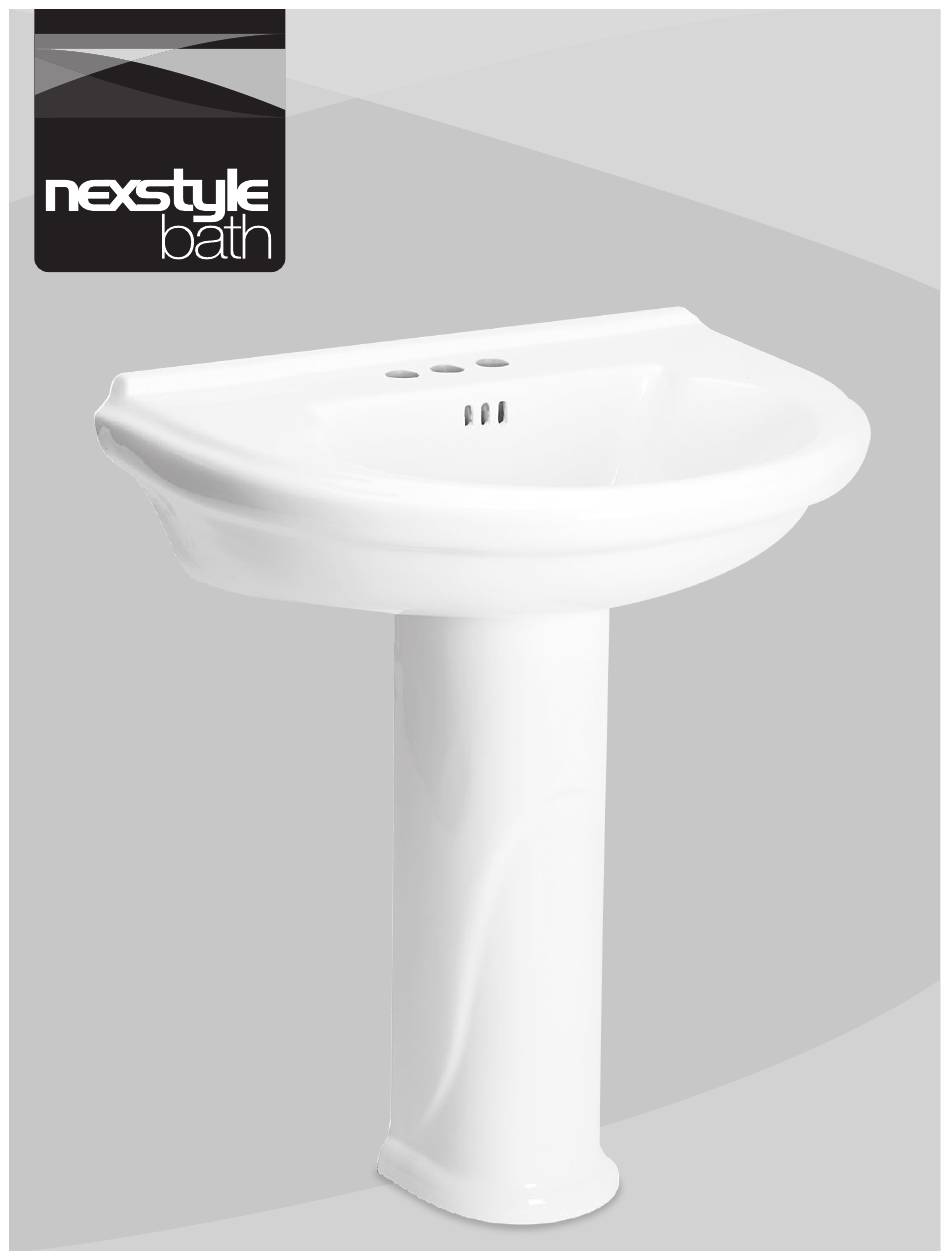

- Page 1 Deluxe CeramiC PeDestal sink installation GuiDe anD user manual itm./art. 734290 model no. 4sHH001WHi (QCSHH7001/7002)
-
Page 2: Before You Begin
attention Before Beginning installation, read all instructions first. save these instructions for future use. carefullY checK the Product and its coMPonents for daMage Prior to installation. if there is anY daMage or if You are Missing Parts, Please call custoMer service toll free at 1-800-459-4409 (MondaY to fridaY, 8:30 aM to 5:00 PM, est). -
Page 3: Specifications
sPeCifiCations 4.02 in. (102 mm) 8.66 in. 5.9 in. (220 mm) (150 mm) 20.47 in. (520 mm) 27.56 in. (700 mm) 7.28 in. (185 mm) 2.98 in. (76 mm) 2.76 in. 9.65 in. 11.8 in. (70 mm) (245 mm) (300 mm) 5.51 in. -
Page 4: Installation
installation FIG. 1A SINK MOUNTING HOLES SINK MOUNTING HOLES 1. Choose an appropriate position for the SINK SINK pedestal sink in your bathroom. Make sure that you have access to plumbing and drain fittings. See Fig. 1A and Specifications on page 3. 2. - Page 5 5. Drill holes in the wall where marked, using FIG. 2A the appropriate method depending on whether you are drilling into a wall stud or into sheet rock. drilling into a Wall stud SINK a. Use a stud finder at the location of the pencil marks to see if there are wall studs before drilling holes into the wall.
-
Page 6: Care And Cleaning
6. Insert the two floor mounting screws [E] into FIG. 3 the pedestal base and tighten. See Fig. 3. 7. Apply a layer of caulking in the area where FIG. 4 CAULKING the sink meets the pedestal, where the pedestal meets the floor and where the sink meets the wall, as shown in Fig. -
Page 7: Replacement Parts
rePlaCement Parts To order replacement parts, please contact our customer service department at 1-800-459-4409 (Monday to Friday, 8:30 am to 5:00 pm, EST) or email us at custsupport@qualitycraft.ca. Part Part nuMBer iMage asseMBlY Kit shh001 Toggle bolts Lag screws Lag screw anchors Metal washers Rubber washers Hex nuts... -
Page 8: Warranty
Warranty This product is warranted to the original purchaser to be free of defects in material and workmanship for twenty (20) years from the date of purchase. This non-transferable guarantee applies only to the original purchaser and proof of purchase is required for all claims. exclusions Any failure of the unit that is not traceable to a defect in material or workmanship is not covered by this warranty.
