Summary of Contents for Safex FLAME JETTT

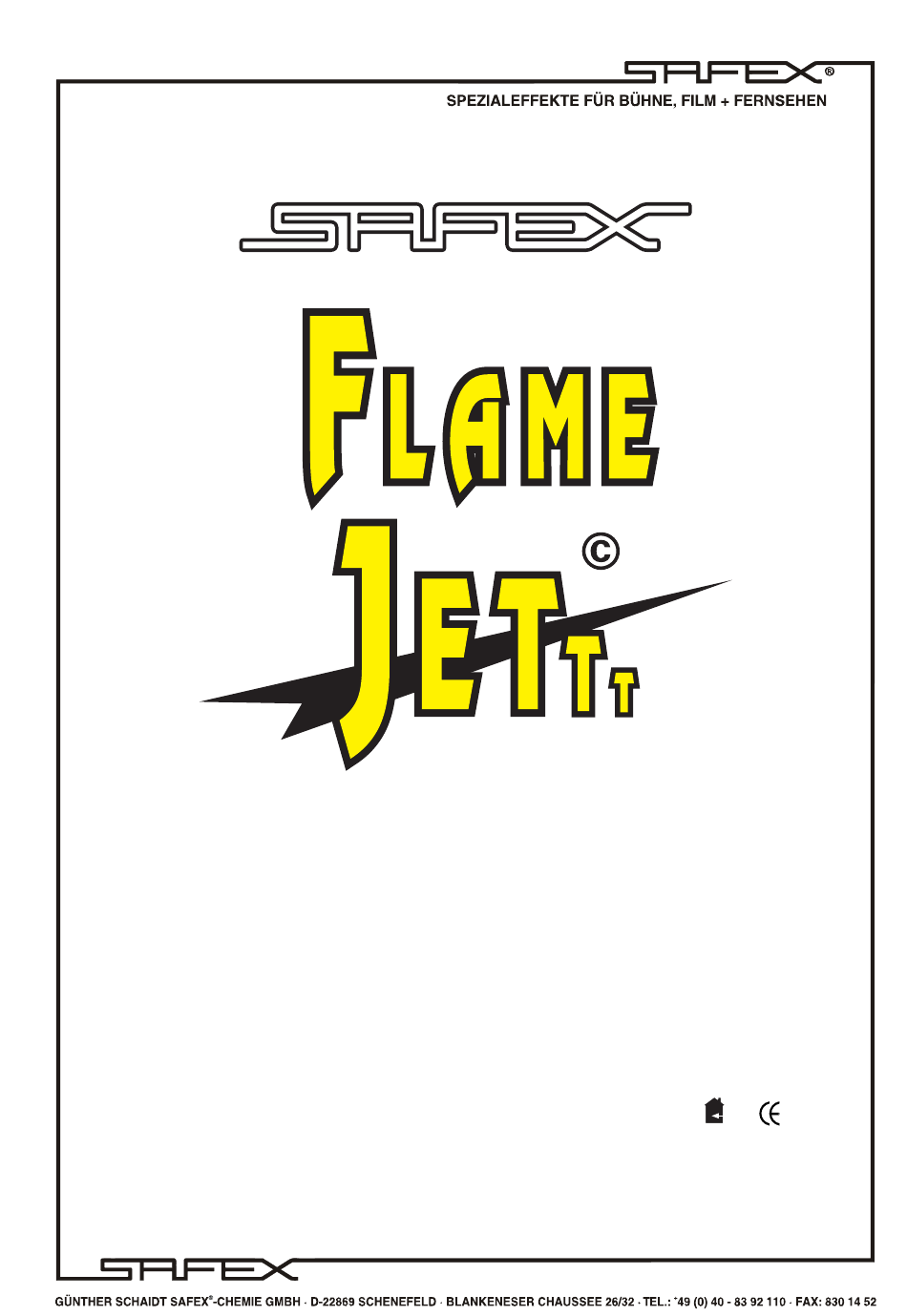

- Page 1 Version 3.5 DMX FLAME EFFECT GENERATOR INSTRUCTION MANUAL...
- Page 2 Instruction manual SAFEX- 2/35 LAME ETTT Textversion 3.52 INSTRUCTION MANUAL SAFEX-FLAMEJETTT ® (version 3.50) Fig. A – View of "operation side" Flame outlet tube Sensor protective housing...
- Page 3 Instruction manual SAFEX- 3/35 LAME ETTT Textversion 3.52 Fig. B – View of: Maintenance status "servicing of nozzle and electrodes" Flame sensor New electrode arrangement! Correct and wrong positioning of the FLAMMEJETTT’s for slanted flame production (s. page 29)
- Page 4 Additionally the apparatus now warns in case of an interrupted self test (e.g. by disconnecting the mains). This warning is also persistent in case of disconnection of the mains. SAFEX tries hard to approach its goal to produce the best and safest flame-effect-device. For inspira- tion and improvement-suggestions we are always grateful.
-
Page 5: Table Of Contents
Instruction manual SAFEX- 5/35 LAME ETTT Textversion 3.52 • Table of contents page In one word (preliminary comment) ................6 General description .......................6 Operation using the DMX control system ..............7 Setting/programming the apparatus ................8 Programming mode ......................8 Setting the display language....................9 Setting the remote control input sockets................ -
Page 6: In One Word (Preliminary Comment)
(Only adult, professional users should act as operators) ® If you have even the smallest doubts, then please consult an expert. At SAFEX we are happy to answer your questions at any time. -
Page 7: Operation Using The Dmx Control System
Instruction manual SAFEX- 7/35 LAME ETTT Textversion 3.52 The apparatus itself has different settings permitting easy pre-programming of attractive fire ef- fect sequences using the keys and the display. The effect programme that has been set is then easily started or stopped using a remote control and the length and type of flame, as well as the interludes, are fully automatic. -
Page 8: Setting/Programming The Apparatus
Instruction manual SAFEX- 8/35 LAME ETTT Textversion 3.52 Finally the display shows the chosen remote control sockets: In case of a connected remote control which is different to the selected remote control system an error message occurs instead: The apparatus then checks the internal pressure, (even with an empty or no aerosol cartridge the sys- tem can still have pressure!). -
Page 9: Setting The Display Language
The device is factory set for the use with DMX remote control; that is for the use of the standard- compliant 5-pole sockets on the left side at the operating side. ® User witch want to operate the SAFEX-FLAMEJETTT with low voltage- (LV) remote control e. g. with ®... -
Page 10: Setting Dmx Addresses
Instruction manual SAFEX- 10/35 LAME ETTT Textversion 3.52 The desired option must be chosen with the arrow keys and confirmed with OK. (The chosen option can be displayed at any time, too in the normal mode by using the arrow keys.) -
Page 11: Automatic Setting On/Off
Instruction manual SAFEX- 11/35 LAME ETTT Textversion 3.52 The display then shows the successfully set addresses once again: and returns then automatically into the programming mode for further option-settings. Automatic Setting ON/OFF The automatic return to the options mode now allows you to switch the "AUTOMATIC" MODE for the flame effects on or off. -
Page 12: Setting The Interval
(Type 4S13.xx). These contain a special combustible fuel mixture and have a release valve that is technically not identical to usual ® gas cartridges. Gas cartridges not only produce no effect with the SAFEX-FLAMEJETTT , but can also be ®... -
Page 13: Test For Gas-Tightness
Instruction manual SAFEX- 13/35 LAME ETTT Textversion 3.52 Fig. 1 Fig. 2 Several turns are required to screw the cartridge in and while it should be hand-tightened, it must be screwed in to the point where there is substantial resistance. As a rule, no fuel/gas mixture es- capes during this procedure. -
Page 14: Dmx Connection Indicator
O.K. button. Afterwards the system confirms: ® (In Version 3.5 the new developed SAFEX -SUPER-FLAMEJETTT-CARTRIDGE with approx. 1l combustible fuel mixture is already taken to account. It will be available in the second half of 2008, prospectively.) The apparatus can then use this information to gauge the approximate level or consumption of the fuel mixture and this is indicated continuously on the display. -
Page 15: Producing The Flame Effects
Instruction manual SAFEX- 15/35 LAME ETTT Textversion 3.52 If an ARMING signal is transmitted illegally/ accidentally already during connection to the mains (e.g. if another DMX device is activated that has the same address like the preset arm address) immediately... -
Page 16: Triggering Of Flames With Automatic System Turned Off
Instruction manual SAFEX- 16/35 LAME ETTT Textversion 3.52 ® In cases where a pause value of 1 to 10 has been set during programming for FLAMEJETTT , the flame effect is repeated for as long as a (DMX) firing signal is queued. -
Page 17: User-Determined Dmx-Effect Programming (Automatic Off)
This interval must be monitored by the operator. ® The arming address is to be set digitally on the SAFEX-FLAMEJETTT display as described in section “SETTING / PROGRAMMING THE APPARATUS” and can be valid for one or more apparatuses. (Set... -
Page 18: Firing Channel
Textversion 3.52 Firing Channel: ® The firing-Address is to be set digitally on the SAFEX-FLAMEJETTT display as described in section “SETTING / PROGRAMMING THE APPARATUS” and can be valid for one but also for more appara- tuses. For activation a signal level of at least 70 % is required. -
Page 19: Safety Instructions And Equipment
® 3. Operation is only permitted using the SAFEX-FLAMEJETTT -Cartridges / aerosol cartridges (type 4S13.xx) specifically developed for the purpose. For this cartridges the standard nozzle nr. 3 is in- tended. -
Page 20: Tilt Sensor
Instruction manual SAFEX- 20/35 LAME ETTT Textversion 3.52 down. Careful securing using gaffer tape may also be sufficient as long as the operator is sure that the apparatus cannot be shifted from its position by, e.g., moving stage installations or people. -
Page 21: Operation In Conjunction With Ground Fog
SAFEX-FLAMEJETTT -Cartridges 4S13.xx represents an inappropriate and highly negligent behav- iour. Simple gas cartridges not only result in useless effects, but also represent a hazard, as the SAFEX- ® FLAMEJETTT cartridge release valves are constructed in a technically different manner. The SAFEX- ®... -
Page 22: Safety Check List
® 1. The apparatus is used with the permitted fuel supply, the SAFEX-FLAMEJETTT -CARTRIDGE (aerosol cartridge). (Gas cartridges produced by other manufacturers are unsuitable and represent inappropriate and hazardous use). -
Page 23: Cleaning The Ignition Chamber And The Igniting Electrodes
If the ducts inside is severely corroded and not sufficient reflective, there must be af- fixed a reflective metallic foil which can be requested free of costs from SAFEX. (Alternatively can be ordered the sensor protective housing with the duct made from stainless steel as a spare part, completely in- and outside metallic blank). -
Page 24: Manual Safety Test
® 3. Check the cartridge contents and if necessary insert a SAFEX-FLAMEJETTT aerosol cartridge that is filled to a minimum of approx. 20%. -
Page 25: Use Of The Gas Detection Device
Instruction manual SAFEX- 25/35 LAME ETTT Textversion 3.52 4. Make the apparatus operational (power connection and remote control) and select the manual safety test on the apparatus using the programming mode (press ESC and O.K. keys for 3 sec.). At a safe distance, start the manual safety test by arming the apparatus within 2 minutes and then 7 seconds later through a continuous firing impulse of 3 seconds in duration, ensuring that no unau- thorized persons enter into the danger area around the apparatus. -
Page 26: Emergency Shutdown / Malfunction Reports
-CARTRIDGE should be checked with this device or something similar and the en- tire apparatus should occasionally also be checked, e.g., after "rough usage or transport". 1. This check should not be carried out any earlier than 3 to 5 minutes after a new SAFEX- ®... -
Page 27: Failure Indications
Instruction manual SAFEX- 27/35 LAME ETTT Textversion 3.52 An error report can be deleted after maintenance or repair or after net interruption by pressing the O.K. key each time after the following queries. If the error report is annulled with an actually present malfunction, however without the problem being remedied, of course the error report will be shown again, if the device notices the error again after re- newed putting into operation. - Page 28 Instruction manual SAFEX- 28/35 LAME ETTT Textversion 3.52 Temporary shutdown if the apparatus falls over or is no longer firmly placed on a base. The ap- paratus is fitted with a switching facility that immediately switches it off if it threatens to fall over or is not properly fixed to a base.
-
Page 29: Special Uses
-Logo)*. ® In a certain scope slanted flames can be produced as an original effect with the SAFEX-FLAMEJETTT in that the device is inclined side-ways. This is made possible now due to the improved igniting elec- trodes. The possibility of the slanting position is, however, limited by physical qualities of aerosol-cans also of the flames itself. -
Page 30: Mounting On Trusses Or Operation In An Elevated Position
Mounting on Trusses or Operation in an elevated Position. ® The SAFEX-FLAMEJETTT can basically also be operated in an elevated position so long as the safety distance above it is adhered to. A mounting plate with suitable tube clamps is required for mounting of the apparatus on a truss. The apparatus can be screwed onto the panel using the attachment plates. -
Page 31: Lv (Analogue) Remote Controls
Slave cables that are used for user's own remote controls in accordance with Figs. 8, 8a or 9 or in con- ® nection with the SAFEX-FLAMEJETTT -REMOTE CONTROL type CFS must, however, to be con- tacted in accordance with Fig. 8 or 9, and should be used only for the connection of SAFEX-FLAME- ® JETTT’s OTHER DIGITAL REMOTE CONTROLS:... -
Page 32: Changing Nozzles
CHANGING NOZZLES ® The SAFEX-FLAMEJETTT is fitted with a replaceable nozzle. Nozzle no. 3 (manufacturer's standard) is best suited to standard operation with the SAFEX-FLAME- ® ® JETTT -Cartridge type 4S13.xx. However, SAFEX can supply changeable nozzles with a smaller di- ameter (number 1) if flame height is to be reduced or restricted. -
Page 33: Storage Of The Aerosol Cans
20 m² is dependent only on the height of the stack and can, for example, amount to several 1000 units if shelving is used. ® A detailed overview of the regulations can be obtained upon request from SAFEX or can be downloaded from the ®... - Page 34 Instruction manual SAFEX- 34/35 LAME ETTT Textversion 3.52 organized such that they can be safely and rapidly vacated in the case of danger (emergency exits must be accessible). A fire extinguisher filled with at least six kilos of extinguisher must be located next to each door, in sales rooms and in the vicinity of each sales stand.
-
Page 35: Technical Data
Instruction manual SAFEX- 35/35 LAME ETTT Textversion 3.52 Technical data: (version 3.5) Manufacturer's settings: Remote control sockets: DMX 5-pol. Automatic: Flame: Interval: DMX arming address: DMX firing address: DMX flame duration address: 0 = OFF Nozzle: no. 3 Language: German...
