Summary of Contents for MakeKit Airbit

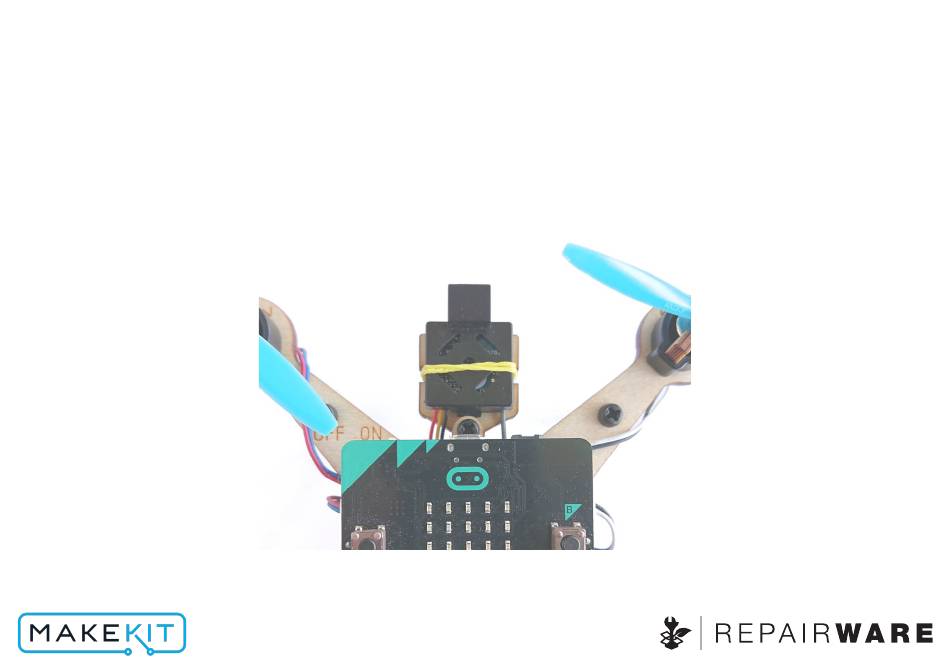

- Page 1 Air:bit Wifi Camera RepairWare Logo/Symbol www.repairware.org...
- Page 2 Parts Camera Camera Nylon screw m3x10 Nylon nut Rubber band Camera bracket module cover...
-
Page 3: Assembly - Part
Assembly - part 1 Rubber band Place camera (1) and Place camera module circuit board (2) carefully and cover as above. in place in the cover. Kamera bracket Put the camera module on the bracket and mount with rubber band. Loop the rubber band twice if you need to. - Page 4 Assembly - part 2 Tools: Phillips screw driver, optional If the Air:bit control board unit is wrench (5.5 mm or nose pliers). already mounted, unscrew the two nuts (1) Lift the board unit (1) and insert the nylon screw (2). Attatch the camera module (3) under the drone frame.
- Page 5 Last bits… The drone is ready for use! Note: The battery should be mounted under Using propeller protection and camera at the the rubber band as usual. same time is not recommended because of the Place it slightly behind the center of the excessive weight.
- Page 6 To use your mobile phone as a camera screen: Start the camera by connecting the battery in the quadcopter Check which wifi network appears when the battery is connected. * If the name is WIFI_Camera_xxx, download the XA UFO app * If the name is WIFI_UFO_xxx, download the WIFI UFO app * If the name is HDFPV_xxx, download the HDFPV app * You can find the apps in App store, or Google play (iOS/Android)
- Page 7 For those of you who use the XA UFO app: To change the language, press the gear, scroll down and select “english” The app can be used to see the image, but you can also control the drone directly. Calibrate Start Se opptak...
-
Page 8: Extended Menu
Extended menu Flip the image See pictures Capture photo Record video... - Page 9 Contact: Get tips and help in our Facebook community: www.facebook.com/groups/goairbit/ www.makekit.no support@makekit.no makekit gomakekit (also twitter)
