Summary of Contents for Urbanworx UX200DCAC

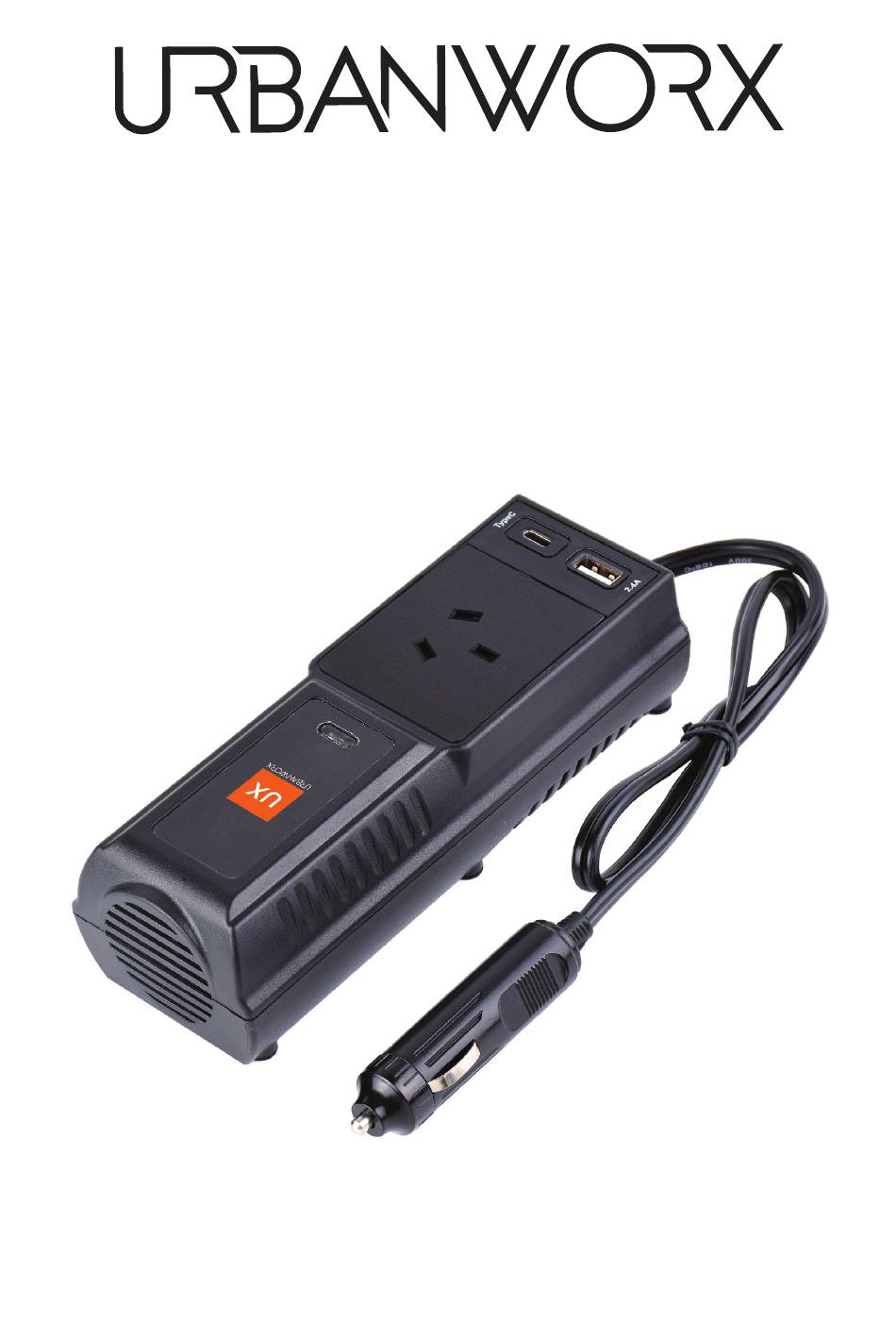

- Page 1 200W DC TO AC POWER INVERTER UX200DCAC INSTRUCTION MANUAL Please read this manual carefully before using, and keep it for future reference.
-
Page 3: Table Of Contents
CONTENTS GENERAL SAFETY PRODUCT OVERVIEW OPERATION Before using the Inverter Resetting the Inverter How to use Using the inverter to operate TV or Audio device PROTECTIVE FEATURES TROUBLESHOOTING SPECIFICATION Last Page CUSTOMER SUPPORT Last Page... -
Page 4: General Safety
GENERAL SAFETY Read this manual thoroughly before you start using the product. Store this manual, the completed warranty card, your receipt and the product packaging. The safety precautions instructions reduces the risk of fire, electric shock and injury when correctly complied to. Please follow all instructions and take notice of all warnings. - Page 5 GENERAL SAFETY (CONT.) • Use the product properly to avoid electric shock. • Keep the product away from high temperature, high humidity, high salinity and corrosive environments. • Do not expose the product to direct sunlight. • Do not dispose of the product in fire. •...
- Page 6 GENERAL SAFETY (CONT.) Before first use • Unpack the product and accessories and ensure all parts of the product are undamaged and in good working order. • Plastic wrapping can be a suffocation hazard for babies and young children, so ensure all packaging materials are out of their reach and disposed of safely.
-
Page 7: Product Overview
PRODUCT OVERVIEW... -
Page 8: Operation
OPERATION This product has 1x AC Output 220V-240V ~ 50Hz, 200W Max. RATING: DC 12-13.8V AC OUTPUT: 220-240V ~ 50Hz, 200W Max. DC Output: USB-A: DC 5V 2.4A, USB-C: DC 5V/3A, DC 9V/1.5A, DC 12V/1A BEFORE USING THE POWER INVERTER DETERMINE YOUR EQUIPMENT’S TOTAL WATTS! Do not connect more watt than the output power •... -
Page 9: How To Use
OPERATION (CONT.) HOW TO USE: 1. Plug in the inverter. A red LED light will turn on indicator that the inverter is receiving power. Turn off the Inverter - unplug the product. When you have confirmed that the appliace is to be operated is turned off, plug an appliance cord into one of the 230V AC outlets on the front panel of the product. -
Page 10: Protective Features
PROTECTIVE FEATURES: LOW VOLTAGE ALARM (RED LED ON INVERTER) This state is not harmful to the inverter, but could damage the power source. The inverter shuts off when the input voltage drops to 10.2 volts and the LED will turn to a red colour at the same time. When ample power is supplied, the Inverter may then be turned back on. -
Page 11: Troubleshooting
TROUBLESHOOTING Troubleshooting If your products stops working, contact our call centre at info@ayonz.com. Do not attempt to open and repair the unit yourself. -
Page 12: Specification
SPECIFICATIONS INPUT VOLTAGE (DC) 12-13.8VDC PERMANENT CURRENT INPUT CURRENT MAX 200W (maximum, continuously), OUTPUT POWER 400W (peak) OUTPUT VOLTAGE USB 5V, on USB A and up to 12V on USB C (DC) OUTPUT VOLTAGE (AC) 220-240V ~ 50Hz, 200W / AC FREQUENCY OUTPUT WAVEFORM MSW [Modified Sine Wave] NOMINAL LOAD EFFI-...
