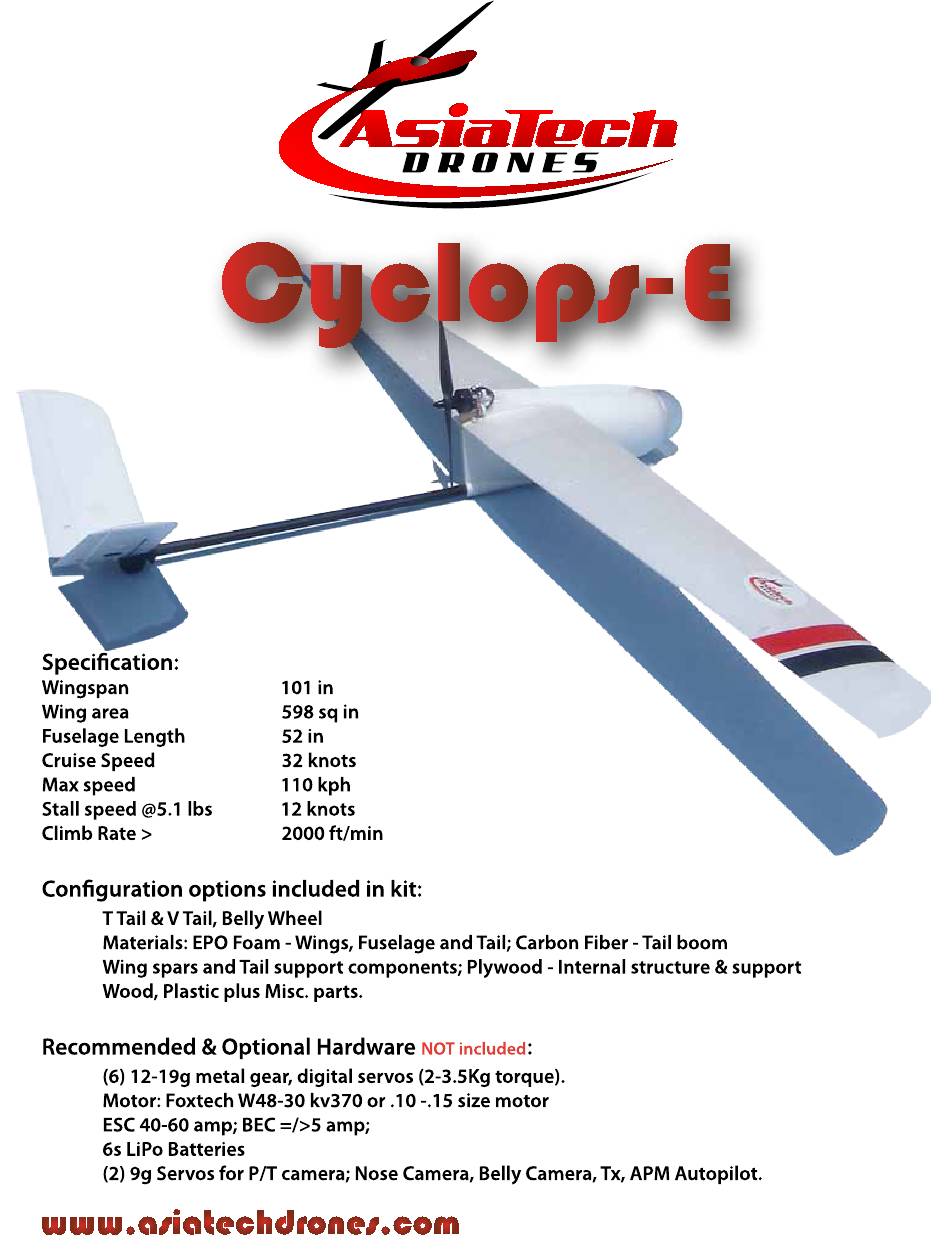

- Page 2 Cyclops-E UAV/FPV model. This manual is designed to insure an easy steep by step construction. Ever effort has been made to insure you can construct a model that will give you many years of enjoyment.
- Page 3 Fig 1 Center Wing former assembly: 1. Center Wing EPO foam 2. 12MM x 650MM Carbon Tube 3. 4MM x 650MM Carbon tube 2 pieces 4. 3MM Plywood Lateral Former 5. 3MM Plywood Rear Former 6. 3MM Carbon Tube braces. Assemble the parts and start by building the main fuse former section.
- Page 4 Center Wing Assembly Trial Fit Fig 3 Remove the wing center section from the plastic bag. With the section laying flat bottom side up remove the center forward and rear tube covers and place aside. You need to cut the slot for the assembly to mount to the foam center wing.
- Page 5 Place front and back canopy mounts in there Fig 5 slots. Install the landing wheel and set the whole assembly set aside DO NOT GLUE. Assemble the center wing section with the lateral former and carbon tubes. Align the lateral former so that the motor mount slots are even.
- Page 6 Glue the two main motor mount pieces Fig 8 together, place the 4 Socket head screws through the inside holes and stack the 4 extension pieces on the screws. You may need to widen the center holes to allow free movement of the motor shaft.
- Page 7 Cut your tube covers to fit. Place 2 12 inch Fig 10 extensions on each side remove foam as needed to insure that the extensions slide as the wings wires are fixed. Remove foam as needed and glue your covers in place. See FIG 12 Install your motor mount with motor attached and route the wires thru the slot in the center wing.
- Page 8 making sure there is no Glue in the clamp or on the tube Main wings Trial fit and final assembly where it slides into the center wing tube. Weight down the carbon tubes and the wing clamp area and insure Assemble the parts needed for this you are properly aligned and let dry.
- Page 9 Once dry install servos in there predetermined Fig 15 slots. NOTE: if you are going to use Y connections for the Ailerons and flaps you will need to reverse one of the flap servos so that this can be accomplished. Make 4 10MM x 20MM pieces form the 1/16 or 2MM plywood for the control horns.
- Page 10 VTAIL Trial fit and assembly Fig 19 1. VTAIL halves 2. VTAIL connector 3. 2- 4MM x 235MM carbon Rods 4. 3MM x 15MM Screw 5. 3MM Nut 6. 2 servos 7. 2 control horns 8. 2 Control rod connectors 9.
- Page 11 Make sure the two pieces are aligned the Fig 22 Vtail connector and the Vtail foam halves are keyed to insure this. Place aside in such a manner that the angles are maintained. See FIG. 22 Ttail trial fit and assembly 1.
- Page 12 Fig 24 Fig 25 Fuselage Final Assembly: Stock Fig 26 1. 2 Fuselage halfes 2. Center wing assembly 3. Middle former 4. Front former 5. 8 Plywood floor mount tabs 6. Front and rear floor 7. Canopy mounts front and rear. 8.
- Page 13 FuselageFinal Assembly removable TailTube Fig 27 This is a modification to enable further disassembly for transportation. 1/4 Plywood or 6MM not included 1/6 Aircraft ply 6/32 Socket Head Bolt. Start by laminating to pieces of 1/4 aircraft Ply running the grain opposite creating a 3 x 4 1/2 piece.
- Page 14 ATD. About AsiaTech Drones ATD is a wholly foreign owned company based in the Seychelles. ATD has teamed up with key manufacturing and engineering companies to design, produce and manufacture its’...
