Lithium-Ion Phosphate Energy Storage Battery

EVIA100LFP-48R User Manual

Version：1.0

Content

Note: Please read and understand all the contents of this Manual carefully before installation and

use of the product, and please keep this Manual properly for look-up at anytime.

Table of Contents

Need help?

Do you have a question about the EVIA100LFP-48R and is the answer not in the manual?

Questions and answers

Summary of Contents for EVI Power EVIA100LFP-48R

Page 1 Lithium-Ion Phosphate Energy Storage Battery EVIA100LFP-48R User Manual Version：1.0 Content Note: Please read and understand all the contents of this Manual carefully before installation and use of the product, and please keep this Manual properly for look-up at anytime.
Page 2: Table Of Contents
Content Safety Instruction ............................1 1.1. Precaution ............................1 1.2. Safety requirements before installation .................... 1 1.3. Safety requirements in using ......................2 1.4. Warnings ............................3 Product Introduction ............................. 5 2.1. Main features ............................ 5 2.2. Specifications ............................ 7 2.2.1.
Page 3 Installation Instruction ..........................16 3.1. Tools list ............................16 3.2. Personal protective equipment ....................... 17 3.3. Typical topology diagram ........................ 18 3.4. Connection schematic diagram(with hybrid inverter) ..............19 Battery Maintenance ..........................22 4.1. Regular maintenance items ......................22 4.2. Maintenance method ........................
Page 4 6.1. Leaking batteries ..........................29 On fire ............................. 29 6.2. 6.3. Wet batteries ........................... 29 6.4. Damaged batteries ......................... 30...
Page 5: Safety Instruction
1. Safety Instruction 1.1. Precaution 1).Before formally installing and operating this product, please read this manual carefully and strictly implement its contents. 2).During installation and use of this product, in order to prevent the personal injury and property loss and ensure the long-term usage of this product, the installation personnel and user shall abide by the articles and regulations of the relevant local laws and comply with all safety provisions and usage specifications of this Manual.
Page 6: Safety Requirements In Using
shall receive the corresponding training and obtain the qualification for installation and commissioning of the product. 3).Before installation, be sure to cut off inverter and make sure the battery is in the turned-off mode. 4).Wiring must be correct, do not mistake the positive and negative cables, and ensure no short circuit with the external device.
Page 7: Warnings
5).It is prohibited to disassemble the battery (QC tab removed or damaged). 6).In case of fire, only dry powder fire extinguisher can be used, liquid fire extinguishers are prohibited. 7).Please do not open, repair or disassemble the battery except staffs from EVI or authorized by EVI. We do not undertake any consequences or related responsibility which because of violation of safety operation or violating of design, production and equipment safety standards.
Page 8 such as good grounding, sun shading board, rain cabinet and dust screen, to avoid lightning, rain, snow, high temperature, dust damage battery module and impact battery life. 10).For being used in high temperature areas, the battery must be used in cabinets with corresponding heat dissipation equipment (fans or air conditioners).
Page 9: Product Introduction
Model EVIA100LFP-48R Battery Chemistry Lithium Iron Phosphate (LiFePO4) Cell string...
Page 10 Operating Voltage Range 42V-54V Recommended Charge/Discharge Current Max. Charge/Discharge Current (Peak) 100A Dimension (W*D*H) 442*480*150 mm(exclude handle) Weight(Kg) 46Kg Expansion Up to 8 units in parallel Communication RS485 Charge: 0° C ~ +55° C Operating Temperature Range Discharge: –20° C ~ +60° C –20 ~ +35°...
Page 11: Specifications
2.2. Specifications 2.2.1. Mechanic size...
Page 12: Interface Introduction

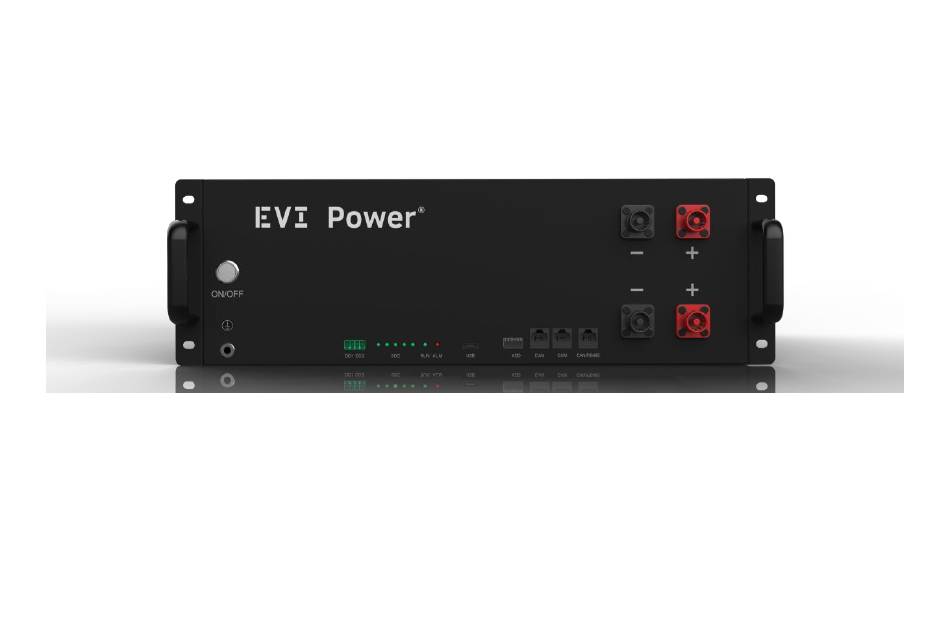

2.3. Interface introduction 9 10 11 Name Description ON/OFF button To turn on/off Battery Ground hole For battery grounding Dry Contact 2 way dry contact signal...
Page 13 Capacity indicator Battery capacity indicator: 5 green lamps, each light represent 20% capacity. RUN light To show the battery’s running status Alarm light To show the battery’s Alarm and Protection status USB port For connecting WIFI device(Only work when BMS support extended WIFI function) 4 bit dial switches to manually distribute the communication address of the each battery when parallel.
Page 14: Power Terminal
2.3.1. Power terminal +/- There are two pair of terminals with same function, one connect to equipment, the other one paralleling to other battery module for capacity expanding. For each single module, each terminal can achieve charging and discharging function. For power cables uses water-proofed AMPHENOL connectors. It must keep pressing this Lock Button during pulling out the power plug.
Page 15: Led Indicators Instructions
2.3.2. LED indicators instructions status indicator Capacity SOC Battery Operation Remark Status status ● ● ● ● ● ● ● ShutDown All off Indicates Sleep Mode, to save the Sleep Normal Flash2 power. Active Normal Indicate based on capacity Light Indicates active mode.
Page 16 SOC indicator LED1 LED2 LED3 LED4 LED5 Flashing 6~19 ON(Flashing when charging) 20~39 ON(Flashing when charging) 40~59 ON(Flashing when charging) 60~79 ON(Flashing when charging) 80~94 ON(Flashing when charging) 95~100...
Page 17: Definition Of Rj45 Port Pin
2.3.3. Definition of RJ45 port pin Pin No. COM1 COM2 COM3 CAN_H CAN_H CAN_L CAN_L RS485B RS485B RS485B RS485A RS485A RS485A...
Page 18: Address Configure Table For Parallel Connection
2.3.4. Address configure table for parallel connection 4 bit dial switches to manually distribute the communication address of the battery system. Nether position is OFF, means “0”. Upper position is ON, means “1”. Switch position(ON/OFF) Address...
Page 20: Installation Instruction
3. Installation Instruction 3.1. Tools list During installation of Battery, the following tools may be used: Leveling instrument Slotted screwdriver Wire clamp Flexible rule Trox screwdriver Torque wrench Wrench Hammer Churn drill Phillips screwdriver...
Page 21: Personal Protective Equipment
3.2. Personal protective equipment 1).The personal protective equipment must be worn during installation, use and maintenance of the product. 2).It’s recommended to wear the following personal protective equipment: --Insulated gloves: ensure the life safety of installers. --Safety shoes: ensure the safety in case of accidental falling of modules during installation.
Page 22: Typical Topology Diagram
3.3. Typical topology diagram...
Page 23: Connection Schematic Diagram(With Hybrid Inverter)
3.4. Connection schematic diagram(with hybrid inverter)
Page 24 Note: 1).The installation location should be completely water proof. 2). The ambient temperature should be within the range from -5° C to 45° C. The temperature and humidity should be maintained at a constant level. 3). The distance from air outlet of inverter is more than 0.5 meters. Do not cover or wrap the battery case or cabinet.
Page 25 Negative power cable, for connecting to Inverter. (*Need to be purchased separately, or specify separately when placing an order) Power cable, for parallel connection Communication cable, Battery to Battery RS485 port Communication cable, Inverter connect to Battery CAN port Grounding cable...
Page 26: Battery Maintenance
4. Battery Maintenance 4.1. Regular maintenance items 1).Battery maintenance must be carried out by professionals or under their guide. 2).When the battery is not used for a long time, discharge the battery to between 45% and 60% of the battery capacity, and disconnect the battery output to avoid the battery power being emptied.
Page 27: Maintenance Method
4.2. Maintenance method 4.2.1. Inspection 1). Fully clean the lithium battery on site, clean the heat dissipation channel to ensure no dust; 2).On-site check whether the BMS is working properly; 3).Check the alarm performance on site. Whether the wiring, switch, connecting point and contact device are in reliable contact;...
Page 28: Software Monitor
4.2.2. Software monitor The Battery information and history can be monitored and read by upper computer through RS485 communication. Using the software to check the operation status of the lithium battery on site, check the basic information of the lithium battery brand, model, capacity, quantity, online time, etc., if the input information of the SW is found to be inconsistent with the actual information on site, record and timely feedback to the regional distributor for deep analysis.
Page 29: Common Troubleshooting
4.3. Common troubleshooting 4.3.1. Fault diagnose based on 1).Whether the battery can be turned on or not; 2).If battery is turned on, check the red light is off, flashing or lighting; 3).If the red light is off, check whether the battery can be charged/discharged or not. 4.3.2.
Page 30: The Battery Cannot Be Charged Or Discharged
b).Current: If current is greater than 50A, battery protection will turn on. Solution: Check whether current is too large or not, if it is, to change the settings on power supply side. c).High Voltage: If charging voltage above 54V, battery protection will turn on. Solution: Check whether voltage is too high or not, if it is, to change the settings on power supply side.
Page 31: Fault Code
voltage is above 48V and still cannot discharge, turn off battery and contact EVI or its distributor. 4.4. Fault code When the product fault cannot be judged by direct observation, the hardware is detected to be free of faults,and the fault cannot be cleared after re-power-on and restart (i.e., shut down by pressing the button and start up by pressing the button), the fault information of the relevant equipment may be viewed through the fault code or monitoring website.The upper computer is connected by use of the 485 interface to obtain the fault code.
Page 32: Storage Requirements
5. Storage Requirements The storage temperature range of the battery is -10° C ~ +45° C. As for the battery with long-term storage, the routine maintenance is required. Please charge the battery to 40%SOC at a current of 0.2C according to the requirements in the table below.
Page 33: Emergency Situations
6. Emergency Situations 6.1. Leaking batteries If the battery pack leaks electrolyte, avoid contact with the leaking liquid or gas. If one is exposed to the leaked substance, immediately perform the actions described below. Inhalation: Evacuate the contaminated area, and seek medical attention.
Page 34 authorized dealer for technical support. 6.4. Damaged batteries Damaged batteries are dangerous and must be handled with the utmost care. They are not fit for use and may pose a danger to people or property. If the battery pack seems to be damaged, pack it in its original carton, and then return it to EVI or an authorized dealer.
Page 35 evi-power.com...
