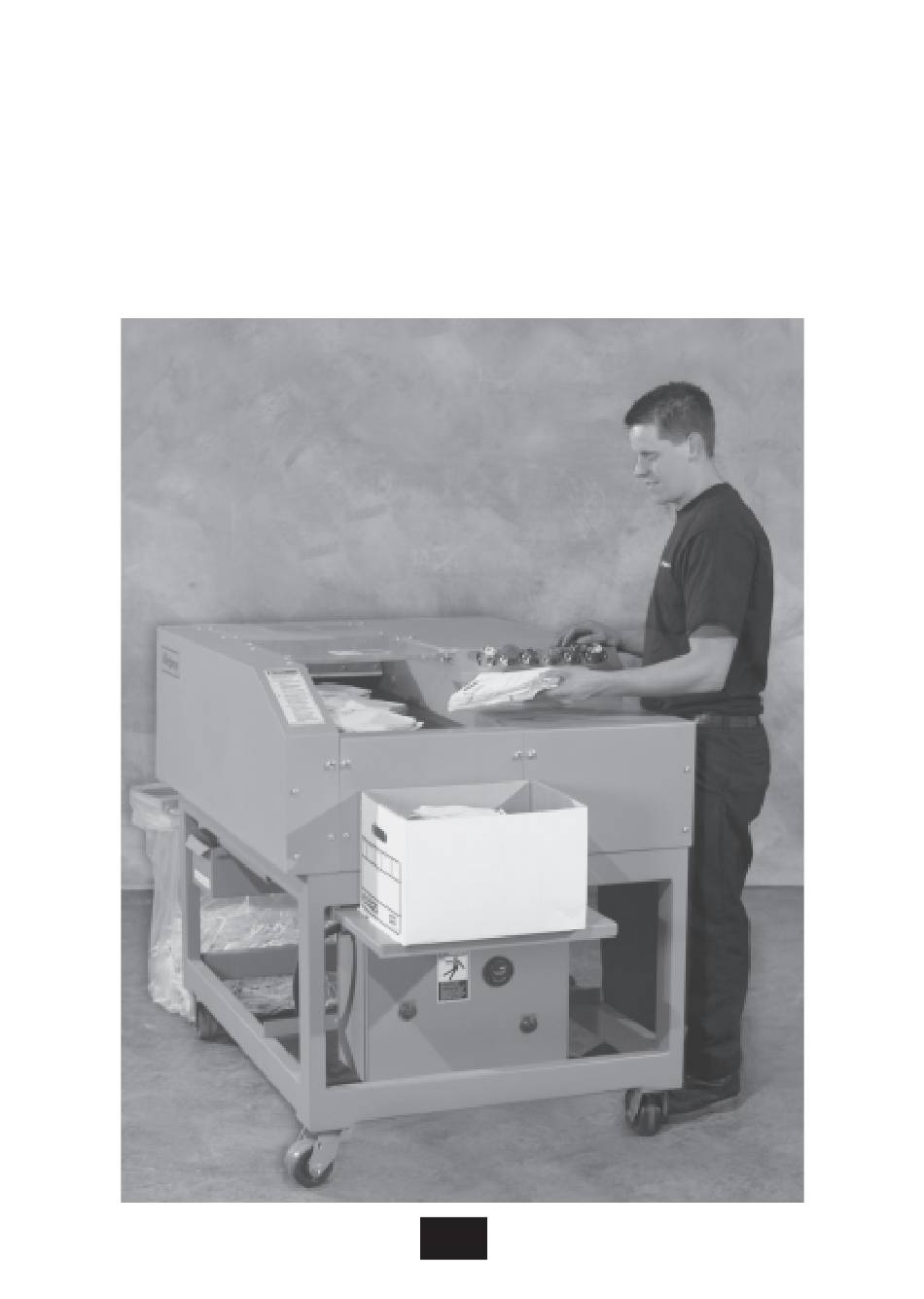

- Page 1 ALLE G H EN Y PA P ER S H RE D D ERS C OR P ORAT I 16-Series Shredders owner’s manual 16-S ◆ ◆ eries Versatile shredding power in a rugged, compact design...
-
Page 2: Safety Instructions
2. Replace all guards and safety covers before reconnecting machine to power supply. 3. For reasons of safety for yourself and others, use only service technicians authorized by Allegheny Paper Shredders Corporation. Be cautious while using this machine. Never operate it in a careless... -
Page 3: Installation
16-Series Shredder Your new Allegheny paper shredder is the product of more than 40 years of manufacturing excellence. Made in America and built to last, your Allegheny 16-Series Shredder will provide you with problem-free operation for many years to come. -
Page 4: Operation
Your paper shredder is equipped with a pull-out shelf for placement of material prior to shredding. Electrical We recommend that you have the electrical instal lation of your Allegheny 16-Series Shredder Figure 2 Figure 3 completed by a qualified electrician. The electrical... - Page 5 This allows time for the materials to return to the operator so the jam can The Allegheny 16-Series Shredder will shred be cleared. bound reports, file folders, stacks of computer printouts, type writer ribbons, audio cassettes, CDs, •...
- Page 6 You will gain the maximum return on your invest ment in an Allegheny paper shredder if you follow a program of regular preventive maintenance. NOTE: Maintenance timetable is computed for a 6-8 hour day, 5 days per week. If your paper...
-
Page 7: Once Every Three Months
1. Disconnect and lockout machine from the power sup ply before performing maintenance or service (see OSHA 1910.147). 2. Perform “Daily” preventive maintenance, steps #2 thru #7. 3. Before operating the paper shredder: a. Properly replace and fasten all safety covers that were removed for performing maintenance. -
Page 8: Troubleshooting Warning
To move the conveyor belt to the left, 3. Lubricate motor bearings via the two grease turn the tensioning nut on the right side fittings located on opposite ends of the motor. adjuster to extend the idler roller. NOTE: To prevent contaminants, be sure to One half turn per adjustment is all that is thoroughly clean each grease fitting before necessary. - Page 9 mal overload relay to cool to its proper ambient be readjusted. Do not allow the drive belt to temperature. become so loose that it slips (squeals). This will significantly reduce the life of the drive 4. Once you have reset the thermal overload relay, belt.
- Page 10 — call for Premium Grease Lubricant is for proper lubrication service. Contact your authorized Allegheny dealer or of the torque limiter chains on all Allegheny conveyor the Allegheny Factory Service Department at: fed shredders. Premium grease lubricant is also rec...
- Page 11 Diagram 1 parts description Diagram 2 parts description ©Copyright 2010 Allegheny Paper Shreddders Corporation Allegheny 16-Series Shredders Diagram 3...
- Page 12 Diagram 4 parts description Diagram 3 parts description ©Copyright 2010 Allegheny Paper Shreddders Corporation...
- Page 13 Old William Penn Highway East Delmont, PA 15626-0080 (800) • 245-2497 (724) 468-4300 Fax (724) 468-5919 • • solutions@alleghenyshredders.com www.alleghenyshredders.com PRINTED ON © Copyright 2010 Allegheny Paper Shredders Corporation RECYCLED PAPER...
