United Pacific 36105 Installation Manual

Installation Manual – LED STRIP LIGHTS
SOUND ATMOSPHERE LAMP
Item #36105
SUMMARIZATION
20key infrared Music LED controller adopts
the advanced micro control unit. It is used
for controlling a variety of LED lamps. For
instance, point-source light, flexible strip
light, wall washer light, glass curtain wall
light and so on; it has many advantages
such as low cost, convenient connection
and ease of use. Meanwhile you could adjust
brightness, static colors and color changing
e ects via infrared remote control. When it
is in sound-control mode, the colors will
change with the music rhythm.
TECHNICAL PARAMETERS
Working temperature: -20 C to 60 C
Output: 3 channels
External dimension: L63 X W35 X H22mm
Net weight: 50g
Static power consumption: <1W
Output power: <72W
Input voltage: DC12-24V
Connecting mode: Common anode
Packing size: L215 X W115 X H25mm
Gross weight: 66g
Output current: <2A(each channel)
Page 1

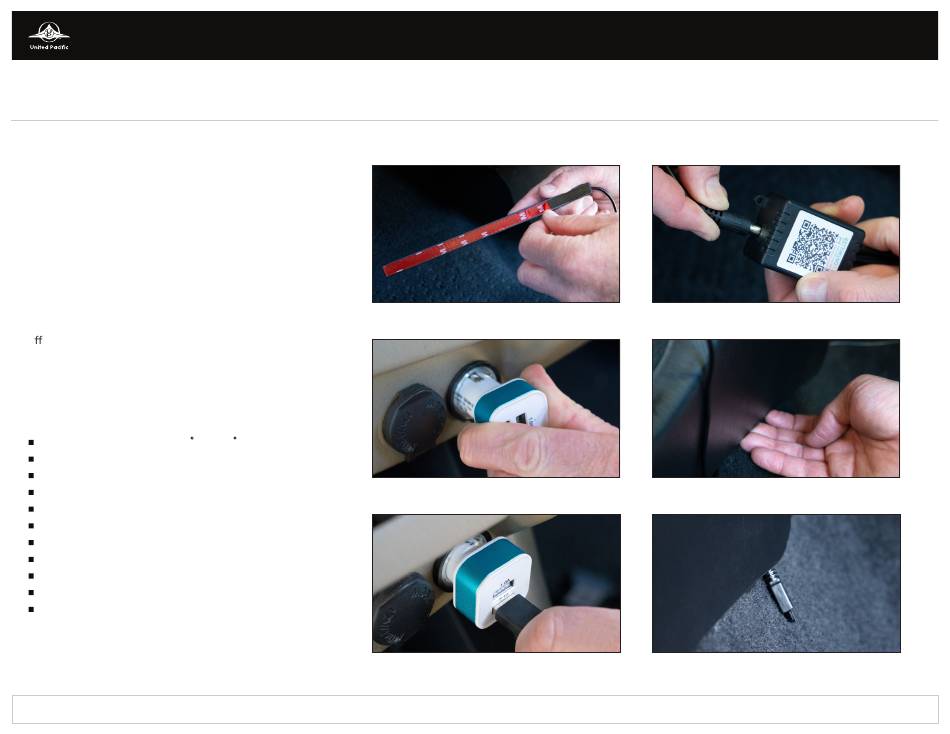

INSTRUCTIONS ON HOW TO INSTALL
Step 1: Remove backing from adhesive to mount the
LED strips within the cabin.
Step 3: Insert USB adapter into 12V DC socket in car.
Step 5: Connect the USB LEDs into USB adapter.
© 2024 United Pacific Industries. All rights reserved. Products not shown to scale.
Step 2: Plug-in the USB power cable into the lights.
Step 4: Ensure wires are routed and tucked away
safely from driver pedals or steering wheel.
Step 6: To change light settings, ensure IR Receiver is
not blocked when using the controller.
IM-35761-V1-090423
