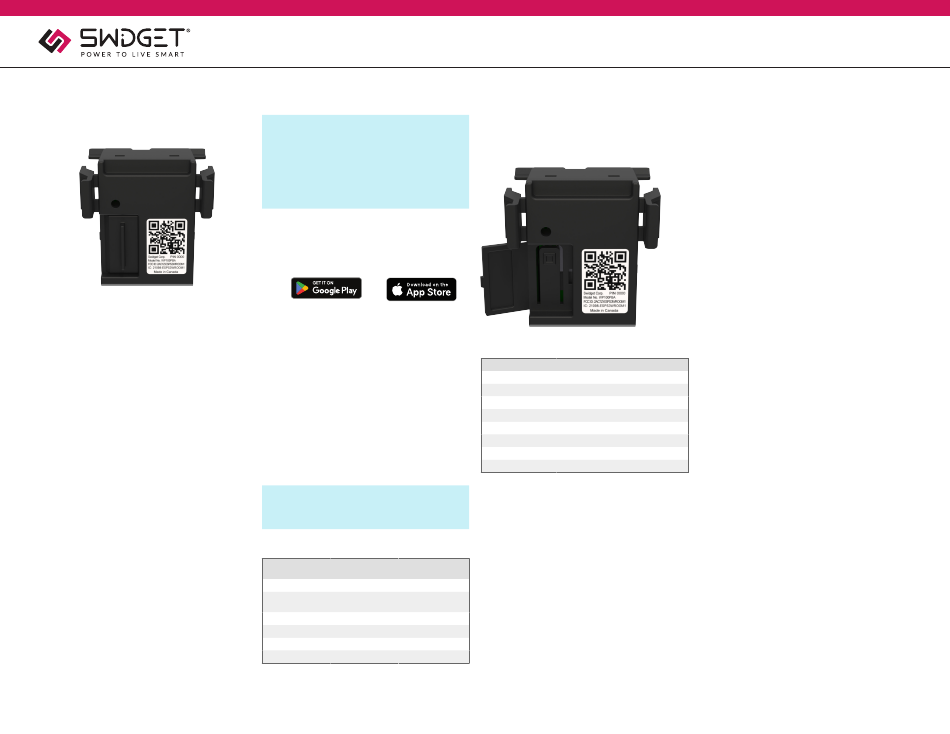

Swidget WP100PBA Instructions

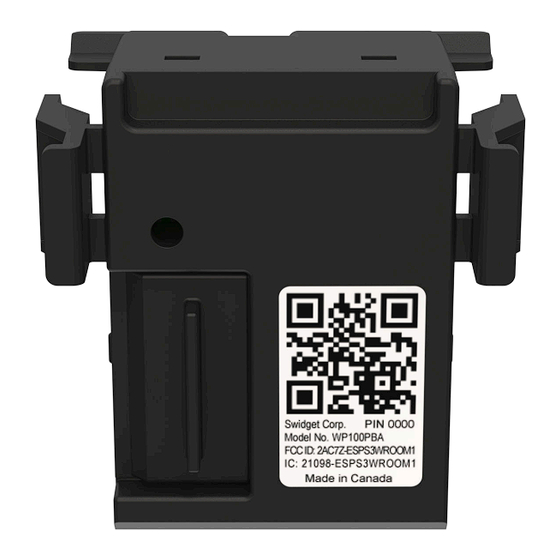

WI-FI CONTROL MODULE INSTRUCTIONS
Model Number: WP100PBA
Electrical Rating: 5VDC
Wi-Fi Control Module Features
• Wireless control module for Panasonic WhisperGreen
Select®, WhisperFresh Select®
• Connect and control Panasonic ventilation products
remotely with the Swidget iOS or Android app
through 2.4 GHz Wi-Fi
• Connect, group and balance Panasonic ventilation
products locally with the Swidget iOS or Android
application
Swidget App features
• Control the supply and exhaust air of all compatible
Panasonic ventilation products with an always-ON or
20-40-60 minute timer
• Control the light module and view the motion and
condensation module status of compatible Panasonic
WhisperGreen Select® models
• View the supply air and exhaust air CFM, temperature
and humidity of compatible Panasonic ventilation
products
• Receive notifications for faults, filter replacement and
filter cleaning for compatible Panasonic ventilation
products
• Monitor the energy consumption of compatible
Panasonic ventilation products
What's Included
• Swidget Wi-Fi Control Module WP100PBA x 1
• Instructions manual x 1
• Security Card x 1
• Packaging with Quick Start QR Code 1
1 ©2023 SWIDGET CORP. ALL RIGHTS RESERVED.
IMPORTANT SAFETY INSTRUCTIONS
WARNING
• For INDOOR use only: 0°C - 40°C (32°F - 104°F).
• Requires a wireless router and Internet connection for
device setup.
• Double check any external Wi-Fi settings for accuracy
before using them.
• Actual wireless performance in a home depends on the
numbers of walls/obstacles between the Module and
wireless router.
Module Operation
Wi-Fi Network Pairing/Joining
1. Download the Swidget app from the iOS App Store
or Google Play.
GET IT ON
2. Open the Swidget app and sign-in or create an
account. Tap the + icon on the top right and follow
the App's instructions to pair your Module using the
Bluetooth pairing method.
3. Ensure the Module is ready to pair. If the Module
is not in pairing mode, remove the Module from
the wiring device and re-install or perform a factory
reset.
Factory Reset
1. Lightly press Module push button and hold for
12-15 seconds until the LED turns SOLID RED, and
then release.
2. The LED on the Module will blink white for
approximately 30 seconds as the device prepares.
It will then blink green, for 5 minutes, indicating it's
ready for network pairing.
IMPORTANT
When a factory reset is performed, all of the Module's
information will be deleted, including settings and
automations.
Insert Button Actions
Button press and LED State Action
hold
Less than 1 sec No change None
1 - 5 sec Green ON or OFF Manual device
ON/OFF toggle
6 - 9 sec Blue ON Update network
9 - 12 sec White ON Restart device
12 - 15 sec Red ON Factory reset
More than 15 sec OFF None
Accessing The Button
The Wi-Fi Control Module's buttons are hidden behind a
cover. To use the button, open the cover and follow the
button action table to complete your desired function.
Insert LED Information
LED description Action
White blinking Updating firmware
White solid Initializing
Green blinking x 2 Ready to pair (Discovery Mode)
Red blinking x 2 Ready to pair (notify support)
Blue blinking x 1 Pairing
Orange blinking x 2 Reconnecting to router
Orange blinking x 3 Reconnecting to cloud services
Green solid a. Normal Operation (Power state is ON)
a. Can be disabled or inverted in Swidget App
FCC Compliance Statement
This device complies with part 15 of the FCC and ISED
Canada license-exempt RSS standard(s). Operation is
subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received,
including interference that may cause undesired
operation.
FCC Note
The manufacturer is not responsible for any radio or TV
interference caused by unauthorized modifications to
this equipment. Such modifications could void the user's
authority to operate the equipment.
Note:
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful
interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the
instructions may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio
or television reception, which can be determined by
turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV
technician for help.
Important Note:
To comply with the ISED Canada and FCC RF exposure
compliance requirements, no change to the antenna or
the device is permitted. Any change to the antenna
or the device could result in the device exceeding the
RF exposure requirements and void user's authority to
operate the device.
Swidget FCC/IC
Contains FCC ID: 2AC7Z-ESPS3WROOM1
Contains IC: 21098-ESPS3WROOM1
Warranty
After having been installed according to your local
electrical code and by a certified electrician when
applicable, and having been used within normal
operating conditions, Swidget Corp. will repair or
replace (at Swidget's discretion) any product that fails
due to manufacturing defects for a period of 5 years for
Swidget Host Devices and for a period of 2 years for
Swidget Inserts. Any repair or replacement of defective
products will extend the warranty by 90 days or the time
remaining on the original warranty, whichever is longer.
Post warranty repairs are not available.
Wi-Fi Control Module Instructions - DDS50N0214
