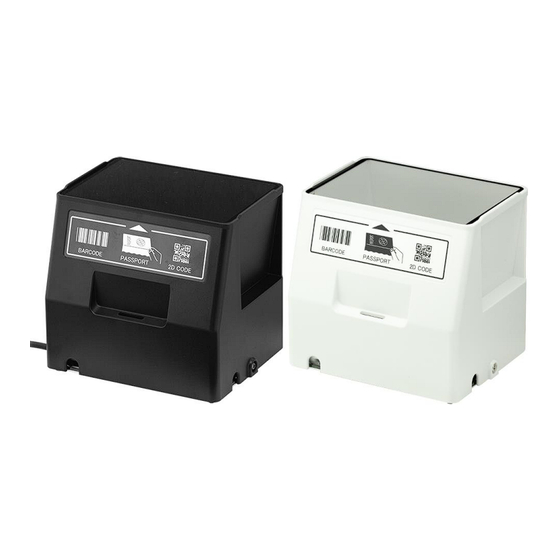

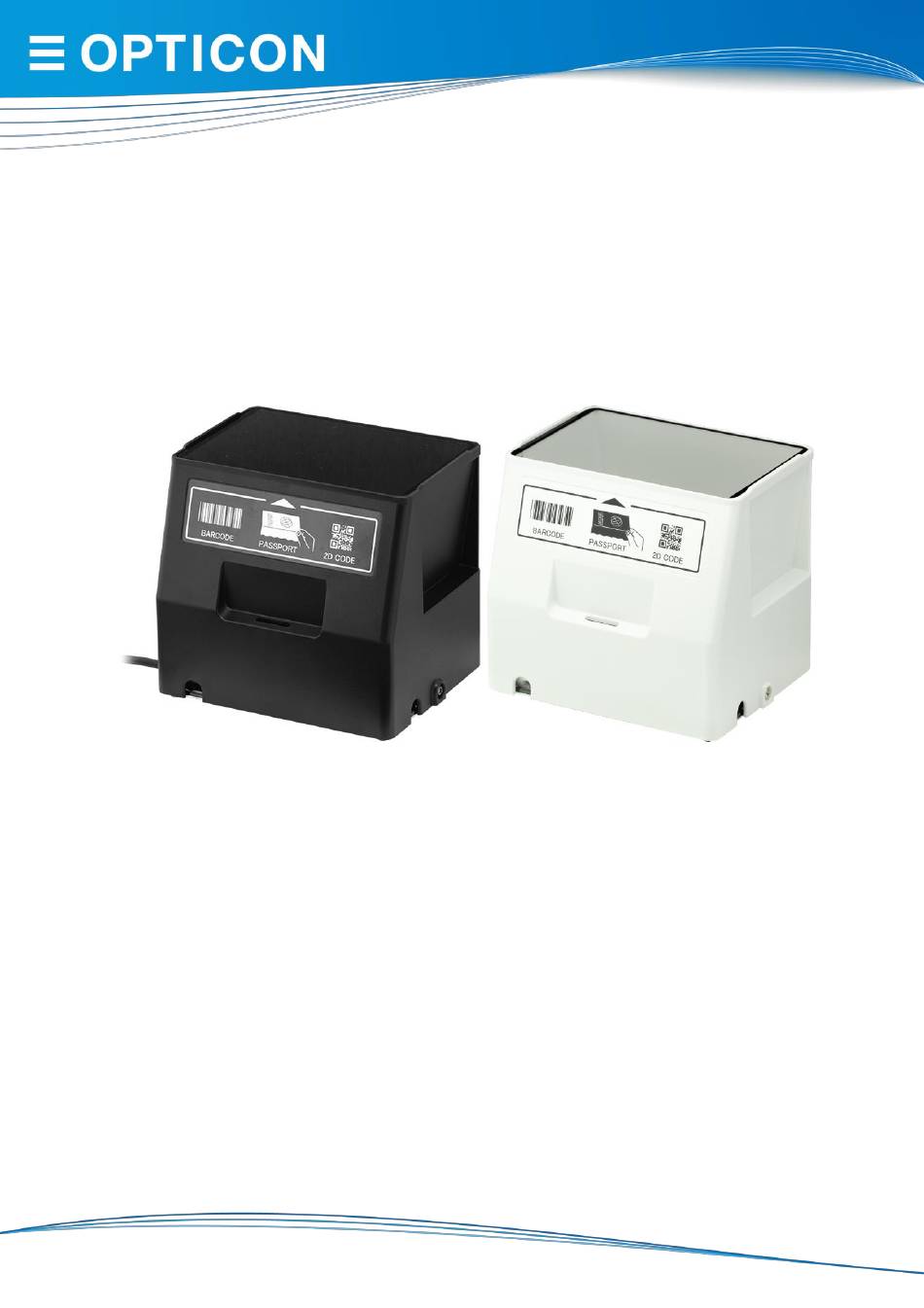

Page 1 PR-11 On/in-counter Passport Reader User's Manual...
Page 2 Please read this manual carefully before installing or using the product. Serial Number A serial number appears on all Opticon products. This official registration number is directly related to the device purchased. Do not remove the serial number from your Opticon device. Removing the serial number voids the warranty.
Page 3: Caution And Warning
・Do not swing the product around by the cable. It may cause injury or damage to the device. Cable handling ・Do not wrap PR-11 cable around a host device (PC, tablet etc.). It may cause breakage to the strain relief and the cable jacket, and could cause malfunction, overheating, smoke and fire.
Page 4 ( 1 ) this device may not cause harmful Interference, and ( 2 ) this device must accept any interference received, including interference that may cause undesired operation. VCCI クラス B この装置は、クラスＢ機器です。この装置は、住宅環境で使用することを目的としていますが、この装置がラジオやテレビジョン受信機に近接して使用されると、受信障害を引き起こすことがあります。取扱説明書に従って正しい取り扱いをして下さい。ＶＣＣＩ－Ｂ Disclaimer: OPTOELECTRONICS CO.,LTD. Will not bear any responsibility in case of malfunction, accident, repair and damage assurance. PR-11 User's Manual...
Page 5 Revision History Document Name : PR-11 User's Manual Edition Date Page Section Description of Changes 2019/10/31 Initial release PR-11 User's Manual...
Page 6: Table Of Contents
Various Interface Switching .................... 23 Basic Commands ........................24 3.3.1 Diagnostic Commands ....................24 3.3.2 ACK/NAK for Serial Commands ..................24 3.3.3 Enable/Disable 2D Menu Code ..................24 3.3.4 Disable Reading Operation .................... 24 3.3.5 Speaker and Indicator ..................... 25 PR-11 User's Manual...
Page 7 Handshaking (Flow Control) ................... 44 5.3.5 Inter Character Delay (RS-232C) ................... 49 5.3.6 Trouble Shooting (RS-232C) ..................49 Common Settings ........................50 5.4.1 Data Buffer Mode ......................50 Code Options ..........................51 Setting of Readable Codes ....................52 PR-11 User's Manual...
Page 8 Case Conversion ........................87 Prefix / Suffix (appending character function) ................ 88 7.2.1 Set Prefix / Suffix ......................90 7.2.2 Command List: Settings of the Prefix / Suffix ..............91 7.2.3 ASCII (Prefix / Suffix Values) ..................93 PR-11 User's Manual...
Page 9 Data Edit Function ......................98 Appendix ............................99 Code ID Table ........................100 9.1.1 Opticon Code ID prefix / suffix value ................100 9.1.2 Code Option AIM / ISO15424 Code ID prefix / Suffix value ......... 101 PR-11 Specification Overview ....................105 9.2.1...
Page 10: Abstract
Chapter-1 Abstract 1 Abstract This document provides the user’s manual for the PR-11 on-counter passport reader (hereafter called “reader”). 1.1 Feature of the Reader 1.2 Flow to Integrate PR-11 User's Manual...
Page 11: Features Of The Reader
Automatically detect the target by holding the target and then be scanned instantaneously. ● Flexible cable outlet PR-11 can select cable outlet in 4 directions. This improves usage at install conditions, and prevents cable damage due to bumping. ● Various interfaces / exchange cable The PR-11 and the host device supports multi-interface of USB (HID or COM) or RS-232C interface multi-interface.
Page 12: Flow To Integrate
Code Options ● → (Refer to 7) String Options ● → (Refer to 8) Read Options 4. Create Setting Menu Create a 2D menu code suitable for operation. ● → (Refer to 3.1.2) 2D menu code Integrate PR-11 User's Manual...
Page 13: Before Using
Following explains the items required before using. 2.1 Model Details 2.2 Package Contents 2.3 Detailed View 2.4 Connect to the Host 2.5 How to Read 2.6 Operation Transition 2.7 Function Key 2.8 Speaker and Status LED 2.9 Cable Desorption Method PR-11 User's Manual...
Page 14: Model Details
Chapter-2 Before Using Model Details The PR-11 model name is constructed by a combination of following. Optional Model name Housing color Interface AC Adapter -USB None -BLK PR-11 -USB-COM -WHT -RS232C 2.1.1 Standard The following specs are the standard products.
Page 15: Package Contents
Following items are packed to this product. Please check before using. USB-HID / USB-COM Interface Model Following are included to USB interface model.  PR-11 Quick Start Guide Reader with cable (1 copy) RS-232C Interface Model Following are packed to RS-232C interface model.
Page 16: Detailed View
Description Scan Window Light path of the imager, LED illumination and aiming. States LED turns on when in standby mode and indicates PR-11 is Status LEDs ready to read. Various lighting color can also be set. LED turns off when reading success and turns on again.
Page 17: Connect To The Host
D-Sub 9pin (female) specification Signal Signal Pin No. Notes Pin No. Notes Pin Assignment name Name Open Shield Connected to pin 4 (not connected) D-sub 9pin female Open Connected to pin 6 (NC) (not connected) Case Shield PR-11 User's Manual...
Page 18: How To Read
Automatically starts reading by holding a target to the scan window located on upper side of the reader. OCR fonts on passports can be read. 1D and 2D code on a paper and display on smart phone can also be read instantly. 1D Code 2D Code PR-11 User's Manual...
Page 19: Operation Transition
Default is invalid. Becomes effective by setting the transition time. Reading operation stop* Operation of the reader is stopped. * "Reading operation stop” is configured using commands. This cannot be done while using USB-HID interface. Operation current transition (USB-HID) Status Typ. Unit Reading Auto trigger standby PR-11 User's Manual...
Page 20: Operation Invalid Transition Diagram
For USB-COM and RS-232C, reader operation can be disabled by command’s serial communication. When disabled, auto trigger operation becomes invalid. Read operation enable command Read Operation Read Operation Enable Disable Read operation disable command Refer to 3.3.4 for setting command. PR-11 User's Manual...
Page 21: Function Key
3000Hz → → → → Frequency 800Hz 700Hz 900Hz 2500Hz(*) → → → Duration 75 ms 75 ms 75 ms 100 ms * Setting 3 is a continuous sound of 2 frequencies (high tone →low tone, 2 tones). PR-11 User's Manual...
Page 22: Speaker And Status Led
* Low: around 1000 Hz, Low middle: around 1000-2000 Hz, Middle low: around 2500 Hz, Middle: around 3000 Hz, Middle high: around 3500 Hz, High: around 4000Hz. * Refer to 4. Indicator for setting detail. * Above is the definition of the representative status and does not indicate all of the operations. PR-11 User's Manual...
Page 23: Cable Desorption Method
2.9.2 Remove/Attach Metal Bracket Remove/attach metal bracket as described below. Hole for function Key and product label Remove Function Key Attach Product Label PR-11 User's Manual...
Page 24: Change Cable Outlet
When changing interface, interface setting change is also required. Refer 3.2.4 for interface switching setting/menu. Step1 Step2 Clip Scanner side (without clip) Outside (with clip) Clip Insert Hold the root of the plug so that plug’s clip is on the Insert the cable slowly until it clicks. outside. PR-11 User's Manual...
Page 25 Chapter-2 Before Using PR-11 User's Manual...
Page 26: Configurations
Chapter-3 Configurations 3 Configurations This chapter explains the reader configuration, default setting and saving setting, and basic commands. 3.1 Configuring with Commands 3.2 Command Packet Sending Precautions 3.3 Basic Commands PR-11 User's Manual...
Page 27: Configuring With Commands
Enter command to the “command:” box of this utility with a character string* and click [Send] button to set the reader. * For UniversalConfig, enter with a character sting (not ASCII code). Command or commands entered in the “command:” box of this utility do not require <ESC> or <CR>. PR-11 User's Manual...
Page 28: Configuring With 2D Menu
(Separator) ← Multiple sets allowed “Any menu command” (U2 etc) “@” (Separator) “ZZ” (END menu) “@” (Separator) “OTPO_UNEM@” (Stop key) ● 2D menu code can be created at “UniversalConfig”. Print *Please contact sales offices for the tools. PR-11 User's Manual...
Page 29: Configuring With 1D Menu Code
* 1D Menu codes encode an ID consisting of two to five alphanumeric characters. 1D Menu codes are Code39 labels with modified start/stop characters and therefore the reader will not acknowledge a 1D menu code as a normal barcode. ● Menu barcode can be created at “UniversalConfig”. Print *Please contact sales offices for the tools. PR-11 User's Manual...
Page 30: Force Quit Start
- Function key should now be operational and the reader should be able to read barcodes. - Scan RS-232C interface setting menu code, and reboot before using. *In force quit start, no scan data will be output to the host device until the interface is configured. PR-11 User's Manual...
Page 31: Command Packet Sending Precautions
The Active Settings can be returned to the factory default settings. Set the command that corresponds to the interface being used. Item Command Interface Description Remark USB-HID Restore USB-HID to factory default settings Factory Default [C01 USB-COM Restore USB-COM to factory default settings Settings RS-232C Restore RS-232C to factory default settings PR-11 User's Manual...
Page 32: Save Settings
Menu Remark Change interface to [X.ZSU[X.ZZ2 Confirm cable USB-HID Switch to USB-COM Item Command Menu Remark Change interface to [X.Z[C01[X.ZZ2 Confirm cable USB-COM Switch to RS-232C Item Command Menu Remark Change interface to [X.ZU2[X.ZZ2 Confirm cable RS-232C PR-11 User's Manual...
Page 33: Basic Commands
Auto trigger become invalid by setting this disable reading. In this setting, menu codes cannot be read, only commands via serial communication are supported. Item Command Description Default Remark  [EAT Enable reader reading operation Command only Enable/Disable Reading operation [EAU Disable reader reading operation Command only PR-11 User's Manual...
Page 34: Speaker And Indicator
When a command requires additional numerical input, the commands below can be used. Use these in one packet together with the command that requires the numerical input. Item Command Description Remark Input in a Direct input specified numerical values format PR-11 User's Manual...
Page 35: Indicator Options
Chapter-4 Indicator Options 4 Indicator Options This chapter describes the options for Speaker and Status LED. 4.1 Speaker sound 4.2 Status LED 4.3 Indicator in General PR-11 User's Manual...
Page 36: Speaker
4-digit numerical command. Frequency range normally use is 2000 to 4000 Hz. The reader most resonance around 2750 Hz. Item Command Description Default Speaker tone Numerical setting of 2600 Hz speaker tone frequency frequency [DF0 (1-9999) setting (1000a+100b+10c+d)[Hz] PR-11 User's Manual...
Page 37: Start-Up Sound
When the good read sound is disabled, this setting will be forcibly disabled. Item Command Description Default Disable intermediate sound Intermediate sound [EBY  Enable intermediate sound * Intermediate sound frequency: 5000 Hz (5 KHz), duration: 10 ms PR-11 User's Manual...
Page 38: Status Led
3: 100% 0: OFF 0: OFF Color and command example of reading success Color Command Example Color Command Example White [EG2Q0Q2Q2Q2 [EG2Q0Q2Q0Q0 Green [EG2Q0Q0Q2Q0 Blue [EG2Q0Q0Q0Q2 Orange [EG2Q0Q3Q1Q0 Yellow [EG2Q0Q3Q2Q0 Cyan [EG2Q0Q0Q2Q2 Emerald [EG2Q0Q1Q3Q1 Pink [EG2Q0Q3Q1Q1 [EG2Q0Q0Q0Q0 PR-11 User's Manual...
Page 39: Status Led Lighting-Off Time
Common settings for each indicator are described below. 4.3.1 Indicator Timing The indicators can be activated after decoding a code and before or after transmitting the data. Item Command Description Default Remark soon after  Before data transmission decoding Indicator timing After data transmission PR-11 User's Manual...
Page 40: Interface
Chapter-5 Interface 5 Interface The reader support USB-HID, USB-COM and RS-232C interface. This chapter explains each interface in detail. 5.1 USB-HID 5.2 USB-COM 5.3 RS-232C 5.4 Common Settings PR-11 User's Manual...
Page 41: Usb-Hid
Interface USB-HID This chapter explains USB-HID interface settings. 5.1.1 USB-HID Basic Information 5.1.2 Connection Confirmation (USB-HID) 5.1.3 NumLock CapsLock control 5.1.4 Data Output Speed (USB-HID) 5.1.5 Inter Character Delay (USB-HID) 5.1.6 Keyboard Language 5.1.7 Trouble Shooting (USB-HID) PR-11 User's Manual...
Page 42: Usb-Hid Basic Information
Set according to the keyboard language. Initial value: English (USA) Set according to reading symbol encode Initial value: not use Character code data. character code Output mode Set when outputting Chinese-character. Initial value: output as it is PR-11 User's Manual...
Page 43: Connection Confirmation (Usb-Hid)
*2. When starting transmits, send CapsLock and invert status. Use when CapsLock is always ON. Return to CapsLock status when sending is completed. *3. Control CapsLock status to display as the original string. Return to original CapsLock status when transmit is complete. PR-11 User's Manual...
Page 44: Data Output Speed (Usb-Hid)
Default  No delay Delay = 1 Delay = 2 Delay = 3 Delay = 4 Inter character delay Delay = 5 Delay = 6 Delay = 7 Delay = 8 Delay = 9 Delay = 10 PR-11 User's Manual...
Page 45: Keyboard Language
Windows 1250 [BAY Hungarian Windows 1250 [BPJ Turkish Windows 1254 [EF4 Russian English Windows 1251 [EF5 Russian Cyrillic Windows 1251 [BAZ Brazilian Windows 1252 [E76 Chinese Windows 1252 [E77 Korean Windows 1252 [E78 Taiwanese Windows 1252 Japanese Shift-JIS PR-11 User's Manual...
Page 46: Trouble Shooting (Usb-Hid)
• Confirm USB port power supply capability. If using laptop or hub, supply Restart unexpectedly. capacity might insufficient. • Remove from USB port at once, and after a while, insert again. Error beep sounds and does not output by • Insert to different port. reading PR-11 User's Manual...
Page 47: Usb-Com
Chapter-5 Interface USB-COM This chapter explains USB-COM interface settings. 5.2.1 USB-COM Basic Information 5.2.2 Integration (USB driver) 5.2.3 Connection Confirmation (USB-COM) 5.2.4 Fixed UBS-COM Port 5.2.5 Connection Method 5.2.6 COM to HID Output 5.2.7 Trouble Shooting (USB-COM) PR-11 User's Manual...
Page 48: Usb-Com Basic Information
5.2.3 Connection Confirm USB-COM interface, confirm the connection by following procedure. For Windows 10 Install Opticon USB driver. 1. Connect the reader to the PC. 2. Right-click "Windows icon" and select "Device Manager". 3. Open "Ports (COM & LPT)". 5.2.4 Fixed USB-COM Port This option enables fixed USB-COM Port number.
Page 49: Connection Method
In case multi byte character is not output correctly with USB-HID, this can be solved by using WIME. Windows PC Reader Scanner Output to focused application Output to focused application USB - COM USB-COM as character information as character information Communication Communication PR-11 User's Manual...
Page 50: Trouble Shooting (Usb-Com)
Please refer to the tool help or manual. • Reboot the PC. • Confirm that code to be read matches to the character code of the Garbled characters communication tool. • Check the line-break setting of the communication tool. Line-break is doubled PR-11 User's Manual...
Page 51: Rs-232C
Chapter-5 Interface RS-232C This chapter explains RS-232C interface settings. 5.3.1 RS-232C Basic Information 5.3.2 Baud Rate (Transfer Speed) 5.3.3 Character Format 5.3.4 Handshaking (Flow Control) 5.3.5 Inter Character Delay (RS-232C) 5.3.6 Trouble Shooting (RS-232C) PR-11 User's Manual...
Page 52: Rs-232C Basic Information
Item Command Description Default Remark 300 bps 600 bps 1200 bps 2400 bps 4800 bps Enabled only with Baud rate “Z2”  9600 bps 19200 bps 38400 bps 57600 bps 115200 bps PR-11 User's Manual...
Page 53: Character Format
"Z2" (save command in non-volatile memory) needs be used after these commands to activate and save the new configuration. Item Command Description Default Remark  No handshake Busy/ready Enabled after sending “Z2” Handshaking Modem ACK/NAK ACK/NAK NO RESPONSE PR-11 User's Manual...
Page 54 CTS line to be tuned on. If the CTS line is not turned on within the time specified, the data transmission will be aborted. Reader Host System Cannot Receive Command Send Software Decode Wait to Send Wait to Buzzer Finish Send Send PR-11 User's Manual...
Page 55 RTS OFF. In response, the host should turn OFF the reader’s CTS. If, while RTS is ON, the CTS line is not ON for a certain configurable period, the reader will terminate the transmission with an error indication of the sound. PR-11 User's Manual...
Page 56 LabelB Read Finish Processing <ACK/NAK Flow chart> Start of transmission Transmit data Start 1 sec. timer As configured Response received Response = NAK Timer ended Response = ACK Response = DC1 ERROR Buzzer ERROR Buzzer GOOD READ Buzzer PR-11 User's Manual...
Page 57 If there is no response within 100 ms then the reader terminates transmission with the good read sound. <ACK/NAK No Response Flow Chart> Start of transmission Transmit data Start 100 ms. timer Response received Response = NAK Timer ended Response = ACK Response = DC1 GOOD READ Buzzer ERROR Buzzer GOOD READ Buzzer PR-11 User's Manual...
Page 58: Inter Character Delay (Rs-232C)
Set the 5.3.5 inter character delay according to the host PC’s processing Garbled characters speed. Confirm that code to be read matches to the character code of the communication tool. Line-break is  Check the line-break setting of the communication tool. doubled PR-11 User's Manual...
Page 59: Common Settings
The following menu codes / commands are provided for the data buffer mode setting. Item Command Description Default [D80 Data buffer disable Data buffer mode  [D81 Data buffer enable * * When handshaking is configured (refer to 5.3.4), this setting is ignored and Data Buffer Mode is disabled. PR-11 User's Manual...
Page 60: Code Options
These settings do not affect the reading of the 1D menu codes. *Refer 9.3 Sample codes for the codes. 6.1 Setting of Readable Codes 6.2 Setting of Code Common Options 6.3 Setting of Code Specific Option 6.4 Setting of Number of Characters PR-11 User's Manual...
Page 61: Setting Of Readable Codes
 IATA  MSI/Plessey  UK/Plessey  Telepen  Code 11 [BLB [BLC [BLA  Matrix 2 of 5 [DDL * GS-128 will reads as Code 128. Refer to 6.2.1 for convert GS1-128 to GS1 and read. PR-11 User's Manual...
Page 62: Postal Code
“ENTER” PLANET [DG2 [DG3 [DG4 USB-COM Japan Postal [D5R [D5P [D5Q RS-232C “CR” Netherland KIX Code [D5M [D5K [D5L Australian Postal [D6O [D6M [D6N UK Postal (Royal mail) [DG7 [DG8 [DG9 4-State Mailmark Barcode [DGS [DGT [DGU PR-11 User's Manual...
Page 63: Gs1 Databar
• UPC-A CC-A • UPC-A CC-B • UPC-E CC-A • UPC-E CC-B * Refer to 6.2.1 for convert GS1 and read. * When composite EAN or composite UPC is enabled, EAN or UPC only cannot be read. PR-11 User's Manual...
Page 64: Codes
*1 PDF417, Codablock F, QR Code, Data Matrix(ECC 200), Maxi Code, MicroPDF417, Aztec Code, Composite code, Aztec Runes, Micro QR and Chinese-sensible code *2 When ‘ALL 2D codes’ is enabled, a link flag will be enabled, and UPC/EAN cannot be read. PR-11 User's Manual...
Page 65: Ocr
* ICAO travel document can be read regardless of the image direction because the format is fixed. OCR free edit To free edit standard OCR font and read, refer to 6.2.6 OCR free edit. For advanced setting, please check the separate sheet “Data Edit Programing Manual”. PR-11 User's Manual...
Page 66: Setting Of Code Common Options
GS1 Convert GS1 DataBar Composite GS1 Data Matrix [X/4 Enable GS1 conversion GS1 QR Code ■ To process and output GS1 conversion data within the reader. Our application tool “UniversalConfig” enables processing and outputting GS1 symbol data. PR-11 User's Manual...
Page 67: Positive And Negative Image Of Barcodes (1D Code Common)
Decode positive bar codes only. Negative [DLA Decode negative bar codes only. Image of Barcodes Decode positive bar codes and negative bar codes. * It is strongly recommended to enable only the required codes and options for best reading performance. PR-11 User's Manual...
Page 68: Redundancy (1D Code Common)
• EAN/JAN 2digits / 5 digits add-on and GS1 composition symbol. Item Command Command description Initial Setting Add-on standby mode invalid Add-on standby mode 0.25 seconds Add-on waiting time Add-on standby mode 0.5 seconds  Add-on standby mode 0.75 seconds PR-11 User's Manual...
Page 69: Eci Protocol Output
QR Code, Data Matrix, Aztec Code, Maxi Code Output example) Output: ]Q2\000001test\\test Not output: ]Q1test\test *Back-slash: ’\’ Setting command are as follows; Item Command Description Default  [DLE Not output ECI protocol ECI protocol output setting [DLF Output ECI protocol PR-11 User's Manual...
Page 70: Ocr Free Edit
Numerical value / alphabet / symbol of up to 40 digits and 2 rows can be set. * For advanced setting, please check the separate sheet “Data Edit Programing Manual”. * Please contact to the sales offices for the items cannot set. PR-11 User's Manual...
Page 71: Setting Of Code Specific Options
This allows you to set whether or not to transmit CD (check digit) and a leading “0”. The 13 digits transfer data format that transfer a leading “0” and CD, the format becomes compatible with JAN / EAN-13. PR-11 User's Manual...
Page 72 This allows you to set whether or not to transmit CD (check digit) and a leading “0”. The 8 digits transfer data format that transfer a leading “0” and CD, the format becomes compatible with JAN / EAN-8. Convert UPC-E to UPC-A format and transfer Transfer setting to UPC-A format is possible. PR-11 User's Manual...
Page 73 7 digits zero CD UPC-E , Leading zero, not transmit CD, transmission UPC-E transfer digits 7 digits UPC-E , No leading zero, not transmit CD, transfer digits 6 digits  Transmit UPC-E UPC-A, E conversion Transmit as UPC-A PR-11 User's Manual...
Page 74: Ean/Jan
CD 1 digit Add-on 2 digits Transfer data format (EAN/JAN -13 Add-on 5 digits) Data 12 digits CD 1 digit Add-on 5 digits EAN/JAN -13 CD transfer Whether to transfer EAN/JAN-13 CD (check digit) or not is configurable. PR-11 User's Manual...
Page 75 ISMN conversion will convert a leading 4 digits to “M” and outputs it in 10 digits. When ISMN conversion is disabled and ISBN conversion is enabled, EAN-13 with a leading “9790” will be converted to ISBN format. Example) ISMN conversion of EAN-13 “9790230671187”; converts it to “M230671187” and outputs it. PR-11 User's Manual...
Page 76 CD 1 digit Add-on 2 digits Transfer data format (EAN/JAN-8 Add-on 5 digits) Data 7 digits CD 1 digit Add-on 5 digits EAN/JAN -8 CD transfer Whether to transfer EAN/JAN-8 CD (check digit) or not is configurable. PR-11 User's Manual...
Page 77 Add-on Add enable EAN/JAN-8 Add-on 2 digits 2 digits EAN/JAN-8 [X4M Disable EAN/JAN-8 Add-on 2 digits Singly enable EAN/JAN-8 Add-on 5 digits Add-on Add enable EAN/JAN-8 Add-on 5 digits 5 digits [X4O Disable EAN/JAN-8 Add-on 5 digits PR-11 User's Manual...
Page 78: Code 39 And It. Pharm (Code 32)
When not adapting to Italian Pharmaceutical, it will not be sent. When possible Italian Pharmaceutical: This setting convert converts Code39 data to Italian Pharmaceutical format. When not adapting to Italian Pharmaceutical, it will be send with standard Code39 etc. PR-11 User's Manual...
Page 79 (Code 32) Full ASCII Code 39 if possible It. Pharmaceutical only It. Pharmaceutical if possible It. Pharm  Not transmit leading A for It. Pharm Transmit leading A for It. Pharm  Disable concatenation Concatenation Enable concatenation PR-11 User's Manual...
Page 80: Codabar
Whether to transfer CD (check digit) or not is configurable. Start / Stop code transfer Whether to transfer start / stop code or not is configurable. Also, it can convert the code and transfers when transferring start / stop code. PR-11 User's Manual...
Page 81 Start / Stop code: <DC1><DC2><DC3><DC4> /<DC1><DC2><DC3><DC4>  Disable space insertion Space insertion Enable space insertion  Enable only Codabar normal mode Enable only ABC code ABC, CX conversion Enable only CX code Enable Codabar / ABC and CX PR-11 User's Manual...
Page 82: Interleaved 2 Of 5 And S-Code
Disable space check for Industrial 2 of 5 S-Code Space check  Enable space check for Industrial 2 of 5  Not transmit S-Code as Interleaved 2 of 5 S-Code conversion Transmit S-Code as Interleaved 2 of 5 PR-11 User's Manual...
Page 83: Code128
The maximum number of character that can be concatenated at a time is 400 characters. Following are the Code 128 optional setting. Code Item Command Description Default  Disable GS1-128 GS1 conversion Enable GS1-128 only Code 128 Enable GS1-128 if possible  Disable concatenation Concatenation Enable concatenation PR-11 User's Manual...
Page 84: Iata
Disable space insertion UK/ Plessey Space insertion Enable space insertion  Conversion A -> X disable X conversion Conversion A -> X enable 6.3.10 Telepen Code Item Command Description Default  Numeric mode Conversion Telepen output mode ASCII mode PR-11 User's Manual...
Page 85: Code 11
Code Item Command Description Default CD transmit CD transmission  Not transmit CD Korean  Transmit dash Postal Transmit dash Authority Not transmit dash code Upside down reading enabled Upside down reading  Upside down reading disabled PR-11 User's Manual...
Page 86: Gs1 Databar
AI “01” Data (13 digits) CD (1 digit) Transfer data format (GS1 DataBar Expanded) Data (1-74 digits) ● Setting items GS1 conversion Disable / Enable GS1 DataBar’s GS1 conversion is configurable. Refer to 6.2.1 for setting detail. PR-11 User's Manual...
Page 87: Composite Gs1 Databar
1D data (1-74 digits) Composite data (1-338 digits) Transfer data format (CC-C) 1D data (1-74 digits) Composite data (1-2361 digits) ● Setting item GS1 conversion Disable/enable GS1 conversion of Composite GS1 DataBar by setting. Refer to 6.2.1 for details. PR-11 User's Manual...
Page 88: Pdf 417
Number of code words for error correction is fixed by the symbol and cannot (MicroPDF417) be changed. Transfer data format Data (variable length) ● Setting item MicroPDF417, default is invalid. To enable the setting, refer to 6.1.5. PR-11 User's Manual...
Page 89: Qr Code
● Setting item GS1 conversion Disable/enable GS1 QR code conversion by setting. Refer to 6.2.1 for setting detail. ECI protocol output Enable/disable output of QR code ECI protocol data by setting. Refer to 6.2.5 for setting detail. PR-11 User's Manual...
Page 90 Version M4: 17 x 17 module – Reed Solomon error correction 3 steps (L, M, Q) Negative barcode, Negative and mirror printed QR code are readable mirror printing Transfer data format Data (variable length) ● Setting item None in particular PR-11 User's Manual...
Page 91: Data Matrix
● Setting item GS1 conversion Disable/enable GS1 Data Matrix conversion by setting. Refer to 6.2.1 for setting detail. ECI protocol output Enable/disable output of Data Matrix ECI protocol data by setting. Refer to 6.2.5 for setting detail. PR-11 User's Manual...
Page 92: Aztec Code
The selectable error correction level is 5% to 95% of the data area. Transfer data format Data (variable length) ● Setting item ECI protocol output Enable/disable output of Aztec Code ECI protocol data by setting. Refer to 6.2.5 for setting detail. PR-11 User's Manual...
Page 93: Setting Of Number Of Characters
Clear minimum length for Interleaved 2 of 5 <ESC>[DB4<CR> Set maximum length for Code39 to 12 digits <ESC>[DA1Q1Q2<CR> Clear max length for Code39 <ESC>[DA1<CR> Set max length for PDF417 to 20 digits and QR code 125 digits <ESC>[DALQ2Q0[DAJQ1Q2Q5<CR> PR-11 User's Manual...
Page 94: Command List: Fixed Length On/Minimum/Maximum Length
[DC5 [DB5 [DA5 UK/Plessey [DCA [DBA [DAA Matrix 2 of 5 / Chinese Post [DC6 [DB6 [DA6 Telepen [DC9 [DB9 [DA9 Codablock F [DCO [DBO [DAO Code 11 [DCE [DBE [DAE Chinese Sensible Code [DCN [DBN [DAN PR-11 User's Manual...
Page 95: String Options
Chapter-7 String Options 7 String Options This chapter describes the alterations which can be made to the transmitted data string. The configurations available are: 7.1 Case Conversion 7.2 Prefix / Suffix PR-11 User's Manual...
Page 96: Case Conversion
Convert to lower case abcd Exchange case aBcD Upper case and Lower case can be set from following commands. Items Command Description Default  No case conversion Convert to upper case Case Conversion Convert to lower case Exchange case PR-11 User's Manual...
Page 97: Prefix / Suffix (Appending Character Function)
Prefix Suffix (*1) Preamble Postamble for each code for each code Decoded Data Max 8 digits Max 4 digits Max 4 digits Max 8 digits *By default, <CR> is added to suffix with all codes “RZ” command. PR-11 User's Manual...
Page 98 ● ASCII (Refer to 7.2.3) All 128 characters ● Code identification The code identification is transmitted in OPTICON ID, ISO15424 standard or AIM-ID. ● Code length The code length is the number of characters after the output format that is configured with options in “6.3 Setting of Code Specific Options”.
Page 99: Set Prefix / Suffix
• Clearing the default suffix CR is possible by scanning the RZ menu code (Set suffix for all codes) without codes for the suffix or the PR menu code (Clear suffix). • When the number of configured prefix / suffix characters exceeds the maximum limit (4 digits), the configuration will be ignored. PR-11 User's Manual...
Page 100: Command List: Settings Of The Prefix / Suffix
Tri-optic Codabar Industrial 2 of 5 Interleaved 2 of 5 S-Code Matrix 2 of 5 Chinese Post Matrix 2 of 5 IATA MSI/Plessey Telepen UK/Plessey Code 128 GS1-128 [XMX [XOX Code 11 [BLD [BLE Korean Postal Authority PR-11 User's Manual...
Page 101 Machine Readable Visas-B [DJL [DJR Official Travel Documents 1 [DJM [DJS Official Travel Documents 2 [DJN [DJT ISBN [DJO [DJU To add to preamble / postamble, use the following command. Code Preamble Command Postamble Command Preamble / Postamble PR-11 User's Manual...
Page 102: Ascii (Prefix / Suffix Values)
^O (SI) ^P (DLE) ^Q (DC1) < ^R (DC2) ^S (DC3) > ^T (DC4) ^U (NAK) ^V (SYN) ^W (ETB) ^X (CAN) ^Y (EM) ^Z (SUB) ^[ (ESC) ^\ (FS) ^] (GS) ^^ (RS) ^_ (US) (ASCII127) PR-11 User's Manual...
Page 103: Code Id
The code identifier is transmitted in ISO 15424 format. ]cm • ] is ASCII value, decimal 93 • c is code character • m is modifier character Example) Add “<OPTICON Code ID>” to the all codes prefix. Configuring with Command: <ESC>RY$2<CR> 7.2.5 Code Length For 1D codes the code length is transmitted as 2 digits, excluding prefix and suffix characters.
Page 104: Read Options
Chapter-8 Read Options 8 Read Options This chapter describes the read options for the reader. 8.1 Read Setting 8.2 Auto Trigger Setting PR-11 User's Manual...
Page 105: Read Setting
Setting a time of 0 seconds means that sleep mode is disabled. Default Item Command Description (valid range) Auto trigger Transition time to sleep mode [EBW sleep mode (1000a+100b+10c+d) [s] (0-9999) PR-11 User's Manual...
Page 106: Read Time
* When auto trigger with “Y0”, read time is automatically set by the image processing. The time to end the auto trigger scanning can be adjusted. Item Command Description Default [EFH Long time Auto trigger read time  [EFI Normal adjustment [EFJ Short time PR-11 User's Manual...
Page 107: Batch Reading
The UniversalConfig utility has some support for Data Editing, but it is an advance language and may need extra support. Please contact technical support or your sales office for more information on this. PR-11 User's Manual...
Page 108: Appendix
Chapter-9 Appendix 9 Appendix This chapter lists the reference data. 9.1 Code ID Table 9.2 PR-11 Specification Overview 9.3 Sample Codes PR-11 User's Manual...
Page 109: Code Id Table
Chapter-9 Appendix Code ID Table Following are the Code ID to be added to the prefix / suffix. 9.1.1 Opticon Code ID prefix / suffix value Code Code ID Code Code ID UPC-A Code 11 UPC-A +2 Code 128 UPC-A +5...
Page 110: Code Option Aim / Iso15424 Code Id Prefix / Suffix Value
Industrial 2 of 5 Aztec Interleaved 2 of 5 S-Code QR Code Matrix 2 of 5 Micro QR Code Chinese Post Maxi Code IATA PDF417 MicroPDF417 MSI/Plessey “*” are described differently depend on code type, please refer below. PR-11 User's Manual...
Page 111 Interleaved 2 of 5 option AIM/ISO15424 Code ID : I* Not check CD (G0) Not check CD (G0) Transmit CD (E0) Not Transmit CD (E1) Check CD (G1) Check CD (G1) Transmit CD (E0) Not Transmit CD (E1) PR-11 User's Manual...
Page 112 Check 2CDs (BLH) or Not check CD (BLF) Check auto 1 or 2CDs (BLI) Not transmit CD (BLJ) (length > 12) Transmit CD (BLK) Codablock F option AIM/ISO15424 Code ID : O* FNC1 not used FNC1 in 1st position PR-11 User's Manual...
Page 113 Maxi Code option AIM/ISO15424 Code ID: U* Symbol in mode 4 of 5, Symbol in mode 4 of 5 ECI protocol implemented Symbol in mode 2 of 3, Symbol in mode 2 of 3 ECI protocol implemented PR-11 User's Manual...
Page 114: Specification Overview
Chapter-9 Appendix PR-11 Specification Overview PR-11 specifications overview is as follows. 9.2.1 Common Specification Overview Item Specification Note CPU：ARM Cortex-A7 Core：800 MHz LPDDR2 RAM 1G bits DDRCLK：400 MHz Flash ROM 1G bits Flash Memory RS-232C 300 bps to 115200 bps...
Page 115 Range of output image Select top/bottom (column) and left/right (row) Resolution of output image Full,1/2, 1/4 Interface of output image RS-232C, USB-COM USB-COM (full speed) About 12 sec Baud rate Resolution: Full RS-232C About 160 sec (baud rate: 115200 bps) PR-11 User's Manual...
Page 116 Black model: Approx. 545 g, Weight Excluding the cable White model: Approx. 575 g Housing color Black / White Anti-microbial ISO 22196 equivalent White model only Pencil hardness: 6 H to 7 H Scan window Mohs hardness : 4 equivalent PR-11 User's Manual...
Page 117: Technical Specifications
Note: The depth of field is a determined while using the OPTOELECTRONICS test chart PCS 0.9, without specular reflection and at room temperature and room humidity. Reading depth of field 100 75 75 100 UPC/EAN QR Code [Unit: mm] PR-11 User's Manual...
Page 118: Detailed View
Approx. 109 (D) × 141.4 (W) × 128.8 (H) mm Weight Black model: approx. 545 g, White model: approx. 575 g (excluding cable) Mechanical Drawing Function Key 141.4 Product Label Security Lock Hole 128.8 (3×7 mm / Depth: 3.5 mm) (Scan Area) [Unit: mm] PR-11 User's Manual...
Page 119: Product Label
Chapter-9 Appendix 9.2.4 Product Label Example of label attached to the reader is shown below. 6-digit Serial Number PR-11 User's Manual...
Page 120: Accessories
Mechanical Drawing as following drawing 1800 ± 45 Unit: mm 69.0 ± 1 <AC plug for exchanging> <DC output side> The polarity of the center of DC jack is plus (+). EIAJ Electrode classification 2 (EIAJ#2) Unit: mm PR-11 User's Manual...
Page 121: Sample Codes
Chapter-9 Appendix Sample Codes 9.3.1 1D Code UPC-A UPC-A +2 UPC-E UPC-A +5 UPC-E +5 UPC-E +2 PR-11 User's Manual...
Page 122 Chapter-9 Appendix EAN/JAN EAN/JAN-13 EAN/JAN-13 +2 EAN/JAN-13 +5 EAN/JAN-8 EAN/JAN-8 +2 EAN-8 +5 PR-11 User's Manual...
Page 123 Appendix Code 39 Code 39 Code39 Italian Pharmaceutical Code 39 Full ASCII Tri-Optic Codabar Codabar Codabar ABC Codabar CX Industrial 2 of 5 / Interleaved 2 of 5 Industrial 2 of 5 Interleaved 2 of 5 S-Code PR-11 User's Manual...
Page 124 Chapter-9 Appendix Code 128 Code 93 IATA MSI/Plessey IATA MSI/Plessey UK/Plessey Telepen UK/Plessey Telepen 02468 Code11 Matrix 2 of 5 Code11 Matrix 2 of 5 98765430 9 8 7 6 5 4 3 0 98765430 PR-11 User's Manual...
Page 125: Postal Code
Chapter-9 Appendix 9.3.2 Postal Code Chinese Post Matrix 2 of 5 Korean Postal authority Intelligent Mail Barcode POSTNET PLANET Japan Postal Netherland KIX Code Australian Postal UK Postal(Royal mail) 4-State Mailmark Barcode PR-11 User's Manual...
Page 126: Gs1 Databar
Chapter-9 Appendix 9.3.3 GS1 DataBar GS1 DataBar Omnidirectional GS1 DataBar Truncated GS1 DataBar Stacked GS1 DataBar Stacked Omnidirectional GS1 DataBar Limited GS1 DataBar Expanded GS1 DataBar Expanded Stacked PR-11 User's Manual...
Page 127: Gs1 Composite Code
Chapter-9 Appendix 9.3.4 GS1 Composite Code CC-A CC-B Limited CC-A Limited CC-B Expanded CC-A Expanded CC-B Composite GS1-128 CC-A CC-B CC-C PR-11 User's Manual...
Page 128 Chapter-9 Appendix Composite EAN EAN-13 CC-A EAN-13 CC-B EAN-8 CC-A EAN-8 CC-B Composite UPC UPC-A CC-A UPC-A CC-B UPC-E CC-A UPC-E CC-B PR-11 User's Manual...
Page 129: Code
Chapter-9 Appendix 9.3.5 2D Code PDF417 MicroPDF417 Codablock F QR Code Micro QR Data Matrix(ECC 200) Aztec Code Aztec Runes Chinese-sensible code Maxi Code PR-11 User's Manual...
Page 130: Ocr Font (Machine Readable Travel Document)
OCR Font (Machine Readable Travel Document) ICAO Travel Documents Machine readable Passports P<JPNABCDEFG<<HIJKLMN<OPQRSTU<VWXYZ<<<<<<<<< L898902C< 3JPN4209247M16092711234567890<<<<78 Machine readable Visa-A V<UTOERIKSSON<<ANNA<MARIA<<<<<<<<<<<<<<<<<<< L8988901C4XXX4009078F96121096ZE184226B<<<<<< Machine readable Visa-B V<UTOERIKSSON<<ANNA<MARIA<<<<<<<<<<< L8988901C4XXX4009078F9612109<<<<< <<< Official Travel Documents 1 I<UTOD231458907<<<<<<<<<<<<<<< 7408122F1204159UTO<<<<<<<<<<<6 ERIKSSON<<ANNA<MARIA<<<<<<<<<< Official Travel Documents 2 I<UTOERIKSSON<<ANNA<MARIA<<<<<<<<<<< D231458907UTO7408122F1204159<<<<<<<6 PR-11 User's Manual...
Page 131: Ocr Font (Free Ocr Edit)
Chapter-9 Appendix 9.3.7 OCR Font (Free OCR Edit) OCR-A OCR-B OCR-A Free Edit OCR-B Free Edit Enable Enable 345678 4567890 0123456789012 89012345678 FGHIJKLMN DEFGHIJ 56789012ABCD 23456CDEFGH Free Edit Disable PR-11 User's Manual...

Opticon PR-11 User Manual

Quick Links

Troubleshooting

Need help?

Questions and answers

Related Manuals for Opticon PR-11

Summary of Contents for Opticon PR-11

Table of Contents
