Summary of Contents for Peraqua iQntrol DOS-NET

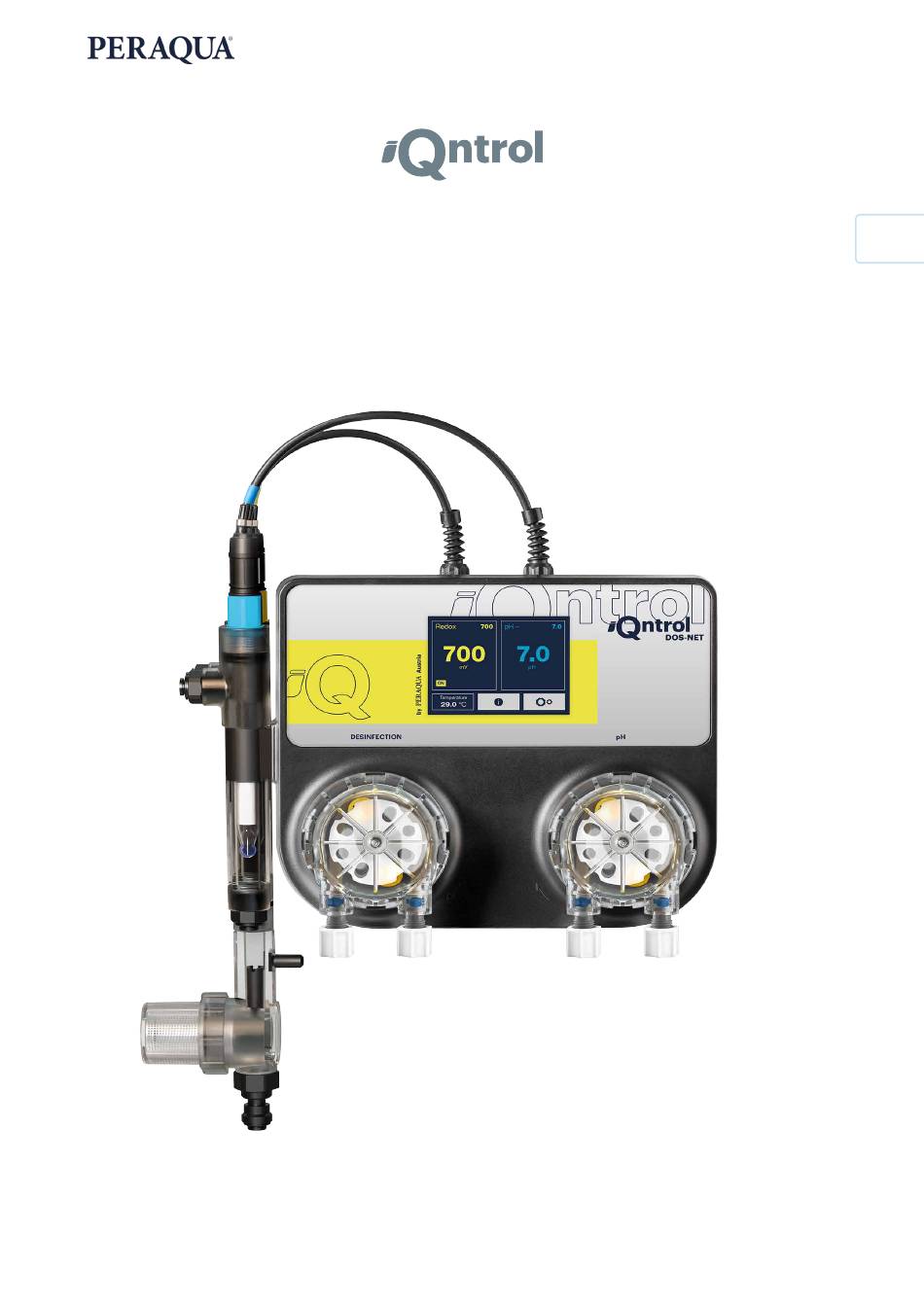

Page 1 User Manual DOS-NET CLF, Redox SMART POOL MANAGEMENT SYSTEM www.peraqua.com...
Page 3: General Safety Information
General safety information This user manual contain basic information that should be observed during assembly, start-up, operation, and maintenance. Therefore, this user manual must be read by installers and operators prior to assembly and start/up, and must be accessible to every user of this unit.
Page 4 Use of new functions Because of the continued development, a DOS-NET® unit may contain functions, which are not completely described in this version of the user manual. The use of such new or extended functions without a profound and secure understanding by the operator may result in malfunctions and severe problems.
Page 5 What’s in the box pH probe Long Life iQntrol DOS-NET CLF probe Peristaltic pumps Redox probe Long Life Flowmeter Thermometer with filter (only for DOS-NET) Injection valve 2 pcs Suction tube weight 2 pcs Thermometer holder 1 pcs Water valves 2 pcs (only for DOS-NET) PE Tube 1/4”...
Page 6: Available Optional Accessories
Available optional accessories Inserting DN50 plug 1/4” threaded External touch screen for easy installation (only for DOS-NET) pH 7.00 Buffer Aquastar® Easy 2 Lovibond® Scuba3s incl. pressure sensor Multiparameter Pool Tester Redox Buffer ASEKO original chemical solution Volume 20l CHLOR PURE # 12075 pH MINUS #12130 Volume 5l CHLOR PURE #12059...
Page 7 About DOS-NET DOS-NET gives you pool clean and sparkling water with the minimum amount of chemicals. By directly measuring and controlling the free chlorine content or redox potential of your pool water with advanced CLF (free chlorine) or redox probe. DOS-NET tunes your pool water using the minimum amount of chlorine, eliminating the smell and burning of overtreated pools.
Page 8 DOS-NET installation DOS-NET is to be wall mounted in dry and dust-free environment with temperature ranging from +5 °C to +40 °C. The location must be selected so that there is at least 30 cm of free space on all sides and a height above the floor 40 °C was max.
Page 9: Probe Installation
Probe installation Probe wrench Carefully insert the CLF or Redox probe into the well on the left. Tighten by hand or with the included plastic probe wrench. Connect the connector (marked in yellow) Carefully insert the pH probe into the well on the right. Tighten by hand or with the included plastic probe wrench.
Page 10 AQUASTAR® E ASY 2 PR AHER 2-WAY BALL OCE AN® INVER IQ300 FILTER VALVE EO510...
Page 11 Pool Water Connection Water valve fitting The pool water to be measured must be brought to the DOS-NET probes. We place the shut-off valve in the plug D = 50 with thread G1 / 4 “, glued to the T-piece. Tighten by hand only. Do not use pliers or other tools. Plug with D = 50 with thread 1/4“...
Page 12 AQUASTAR® E ASY 2 PR AHER 2-WAY BALL OCE AN® INVER IQ300 FILTER VALVE EO510...
Page 13 Pool Chemicals Connection Plug with Screw the injection valves into the plug D = 50 with thread G1 / 4 “, glued to D = 50 with the T-piece. Tighten by hand only. Do not use pliers or other tools. thread 1/4“...
Page 14: Power Supply
Power Supply Connection to the mains: Connect the 230 V / 50 Hz main cable to DOS-NET . The mains socket outlet must be protected by a residual current device (RCD). Filter pump After device has been switched on, the display will come on and the DOS-NET starting screen will appear.
Page 15: Installation Test
Installation Test Before commencing the operation, test DOS-NET installation. Most problems result from incorrectly performed installation. Test In the “Test of Outputs” menu, gradually start all the pumps and while they are running, check tightness of all the PE tube connections. Check the injecting valves for blockage and air bubbles in the PE tube.
Page 16: Control Principles
Control principles Home screen The home screen displays measured, required values and status information. E.g. click on the Chlorine tab to enter the setting of the required chlorine value in pool water. Required value Measured value mV output signal from the CLF probe The disinfection pump doses Water temperature...
Page 17 Settings Configuration - pool volume, pool type, water hardness Pool volume - set pool volume Calibration - pH probe, CLF probe, thermometer Chose the type of probe - Chose the type of desinfection probe Dosing test - test pump and manual dosing Language - Set the language of the DOS-NET Setting pool parameters Each pool is unique.
Page 18: Setting Values
Choosing the disinfection probe CLF free chlorine probe Free chlorine measurement, CHLOR PURE dosing Redox probe of the RX potential Measurement of redox potential, CHLOR PURE dosing DOSE ml/m time dose per hour Without a probe Setting Values Commissioning procedure SWIMMING POOL WATER DOS-NET must be installed on fresh water reated by INORGANIC superchlorination agent (SUPERCHLOR).
Page 19 4. Wait at least 1 hour. Optimally up to 24 hours. Before opening the water supply to the probes, the water must be clean and the chlorine concentration measured by the colorimeter or Pool Tester must be within the range 0.3 to 1.2 mg/l. If the concentration is lower, repeat superchlorination.
Page 20 If you use the CLF probe For the correct functionality of the CLF probe you must observe the following conditions: pH of the pool water The ideal pH value should be between 6.8 and 7.5. The pH of the pool water must be stabilized. If the pH value fluctuates, the value of the chlorine in pool water changes accordingly.
Page 21 If you use the Redox probe For the correct functionality of the REDOX probe, you must observe the following conditions: pH of the pool water The ideal pH value should be between 6.8 and 7.5. The pH of the pool water must be stabilized. If the pH value fluctuates, the value of the Redox changes accordingly.
Page 22 If you use time dosing without probe Your DOS-NET is already installed, connected to pool water and to chemical agents. • Set up the sanitation dosing volume on 5 ml/m3 per hour if you use the chlorine sanitation agent. • Set up the pH value to 6,8 Fine tune •...
Page 23 CLF Probe calibration Do not calibrate the probe until the water in the pool is thoroughly mixed and the value on the DOS-NET display is stable. This may take several hours. Calibration is performed by entering the manually measured value of chlorine concentration (using a photometer) in the CALIBRATION menu.
Page 24: Probe Testing
Water thermometer calibration If water temperature is different from temperature shown by DOS-NET Home, calibrate the thermometer in the water thermometer calibration menu. Probe testing Testing the pH probe If the probe meet following qualifications, it can be used in the system and it is pH - Buffer 7,00 functional: Probe has no visible mechanical damage.
Page 25 DOS-NET maintenance To ensure the optimum efficiency, perform visual checks and maintenance of DOS-NET on a regular basis. Pump Hose Replacement To prevent the pump from failing, it is recommended to replace the hose every 24 months. In doing so, proceed as follows: •...
Page 26 DOS-NET internet connection The LAN connector is to be connected to the domestic router. Data are sent in the intervals of 10 seconds to the address pool.aseko.com, the line must not be blocked by the firewall. Connection of DOS-NET to your LAN is not complicated. You just need some basic IT skills.
Page 27 Connect DOS-NET with LAN cabel Home network INTERNET Router INTERNET LTE Router Wifi extender INTERNET Router Powerline via 230 V 230 V socket outlet INTERNET Router...
Page 28 Aseko Web Services Pool Live The internet connection allows you to use the Pool Live mobile application and monitor your pool on mobile devices wheresoever the internet connection is available. After you connect the DOS-NET to the internet download the Pool Live application to your smartphone.
Page 29 https://pool.aseko.com The web application for detailed monitoring of the pool water quality by means of well-arranged graphs. It shows all the measured parameters as well as DOS- NET Net actions up to 30 days back. This application is giving you the detailed information of the pool status and detailed review of all events, taken actions and act levels of monitored items up to 30 days back.
Page 30 DOS-NET error messages After 30 doses After 10/15/25 of chlorine doses of pH agent agent without without probe probe response response displays displays this error this error message. message. Error messages: The agent has run out. Water does not flow to the probes. •...
Page 31 Too Rapid pH Change Too rapid change of pH is usually caused by refilling water directly to the skimmer. If such rapid change of pH occurs, DOS-NET stops controlling pH for two hours. This limitation can be manually disabled. After pH has been stabilized or two hours have elapsed, DOS-NET changes over to the normal mode.
Page 32 Externes Touchscreen Display Showing measured values of your pool water, humidity and temperature of the pool room where the display is installed and you can also change setup value of pH and chlorine. You can also chose which parameters you want to see on the display.
Page 33: Ersatzteile Und Zubehör
Ersatzteile und Zubehör ITEM NO. PRODUCT 7301689 REDOX electrode Long Life 7301690 pH electrode Long Life 7301691 CLF electrode 7301693 Replacement rubber injection valve 7301695 Peristaltic hose set 7301696 Storage liquid for pH and REDOX probes 7301698 Replacement electrolyte for CFL electrode 7301699 Replacement membrane for CLF electrode 7301733...
Page 36 USER MANUAL DOS-NET...
