Summary of Contents for FULLY WIRED ELECTRONICS Mini Quad Mute
- Page 1 Fully Wired Electronics - Mini Quad Mute User Manual...
-
Page 2: Table Of Contents
Fully Wired Electronics - Mini Quad Mute User Manual v1.0 Contents: Limited Warranty………………….................2 Installation and Safety………..................3 Foreword…........................4 Module Overview…………………………………………………….........5 Additional Functions………………………………………………………………………………….7 User Configurable Layout…………………………………………………………..7 User Configurable Status LEDs…………………………………………………...8 Technical Specifications....................9... -
Page 3: Limited Warranty
Fully Wired Electronics deems to be at the fault of the user are not covered by this limited warranty. Normal service rates will be applied. -
Page 4: Installation And Safety
Fully Wired Electronics - Mini Quad Mute User Manual v1.0 Installation and Safety: Prior to installing and uninstalling this product, please ensure that your Eurorack power supply is turned OFF. Installing or uninstalling this product without doing so is potentially dangerous, running the risk of causing damage to your equipment and electrocuting yourself. -
Page 5: Foreword
User Manual v1.0 Foreword: Thank you for purchasing the Fully Wired Electronics - Mini Quad Mute. We value all of our customers for their support. Your purchase is greatly appreciated! Special thanks to everyone who was involved during the development and... -
Page 6: Module Overview

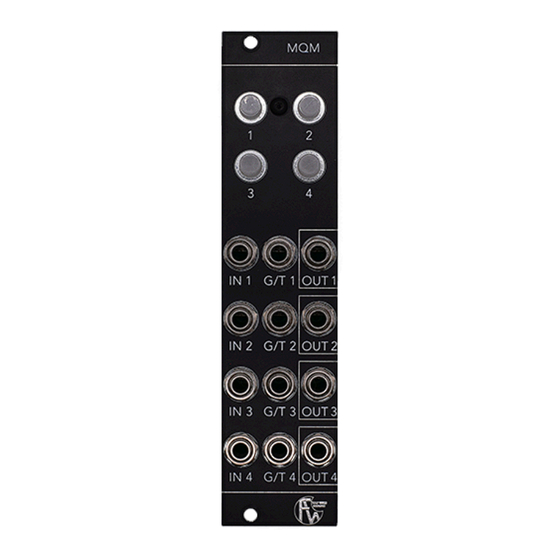

User Manual v1.0 Module Overview: The Fully Wired Electronics - Mini Quad Mute is a 4 channel 6HP user configurable vactrol based mute module, which features four cascaded mono signal paths. MQM is perfect for muting any signal types found within a Eurorack System that utilise a TS cable such as audio, CV, and Gate and Triggers. - Page 7 Fully Wired Electronics - Mini Quad Mute User Manual v1.0 1. Channel Buttons - Each of the 4 “Channel Buttons” correspond to one of the 4 associated channels. All 4 buttons feature the ability to latch or momentary switch between a ‘Muted’ or ‘Unmuted’ state. When short pressed, the associated channel will latch between the two states.
-
Page 8: Additional Functions
Fully Wired Electronics - Mini Quad Mute User Manual v1.0 Additional Functions: User Configurable Layout: The MQM features two user configurable layout orientations (Orientation A and Orientation B). When received, your MQM will be in the Orientation A configuration, where the “Channel Buttons” are present at the top of the module, and the input and output jack sockets will be at the bottom. -
Page 9: User Configurable Status Leds
Fully Wired Electronics - Mini Quad Mute User Manual v1.0 User Configurable Status LEDs: The DIP switch on the rear of the unit (located near the power header) is used to select how the module conveys each channel state. By default, when the switch is in... -
Page 10: Technical Specifications
Fully Wired Electronics - Mini Quad Mute User Manual v1.0 Technical Specifications: ● Module Format: 3U ● Module Width: 6HP ● Module Depth: 32mm ● Power: ● +12v current draw: 48mA ● -12v current draw: 11mA ● +5v current draw: 0mA...
