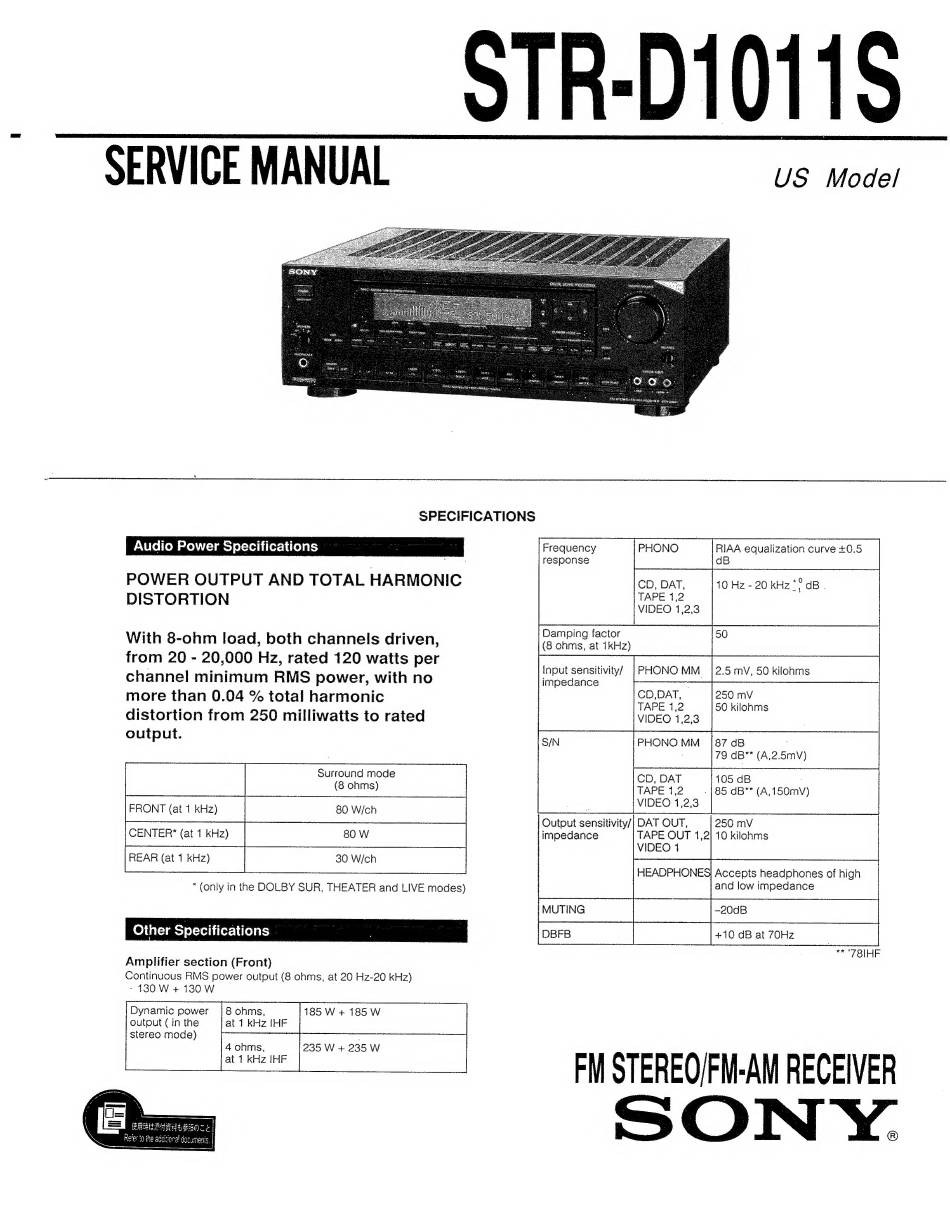

Sony STR-D1011S Service Manual

STR-D1011$
SERVICE MANUAL
US Model
SPECIFICATIONS
Audio Power Specifications
POWER OUTPUT AND TOTAL HARMONIC
DISTORTION
With 8-ohm load, both channels driven,
from 20 - 20,000 Hz, rated 120 watts per
channel minimum RMS power, with no
more than 0.04 % total harmonic
distortion from 250 milliwatts to rated
output.
FRONT (at 1 kHz) 80 W/ch
REAR (at 1 KHz) 30 W/ch
* (only in the DOLBY SUR, THEATER and LIVE modes)
Surround mode
(8 ohms)
Other Specifications
Amplifier section (Front)
Continuous RMS power output (8 ohms, at 20 Hz-20 kHz)
- 130 W + 130 W
Dynamic power |8 ohms,
output (in the
stereo mode)
4 ohms,
at 1 kHz IHF
185 W + 185 W
235 W + 235 W
Frequency
response
CD, DAT,
TAPE 1,2
VIDEO 1,2,3
Damping factor
(8 ohms, at 1kHz)
Input sensitivity) | PHONO MM 42.5 mV, 50 kilohms
impedance a
CD,DAT, 250 mV
TAPE 1,2 50 kilohms
VIDEO 1,2,3
PHONO MM_ [87 dB
79 dB** (A,2.5mV)
CD, DAT 105 dB
TAPE 1,2 -|85 dB** (A, 150mvV)
VIDEO 1,2,3
Output sensitivity/} DAT OUT,
impedance TAPE OUT 1,2] 10 kilohms
HEADPHONES) Accepts headphones of high
and low impedance
= dB
Bra — _ dB at 70Hz
™* "78IHF
FM STEREO/FM-AM RECEIVER
SONY.
