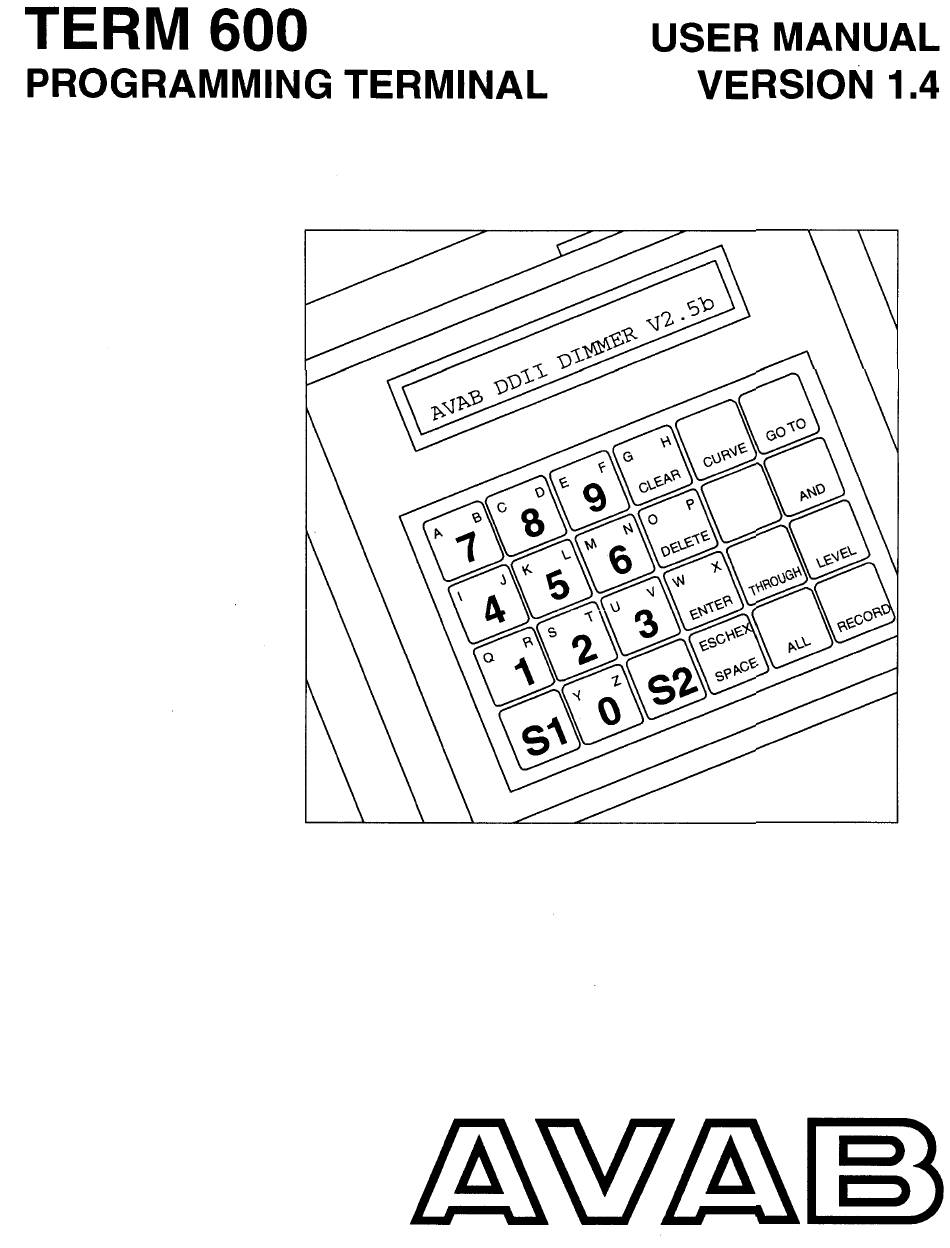

AVAB TERM 600 User Manual

Programming terminal
Hide thumbs

Advertisement

Table of Contents

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TERM 600 and is the answer not in the manual?

Questions and answers

Summary of Contents for AVAB TERM 600

  • Page 2 Terminal receptacle or into any of the DB-25 connectors located on the front panel of the Dimmer's Trigger Card. In the case of the AVAB Smartie, the front cover must be removed to access the DB-25 connector if no external terminal receptacle is provided.

  • Page 3: Using The Keypad

    3 3 <AND> 7 selects channels 3 and 7 3 <THROUGH> 7 selects channels 3 through 7 3 <THROUGH> 7 <AND> 13 selects channels 3 through 7 and 13 selects all channels <ALL> Page 3 ©1993 AVAB America Inc.
  • Page 4 Integer between 1 and 255, inclusive. A value of 1 is assumed if none entered, or ignored if not required. These <FUNCTIONS> are used in conjunction with <variables> to form command sequences. See below for proper command sequences. Page 4 ©1993 AVAB America Inc.

  • Page 5: Command Sequences

    The terminal issues a Record Preset command to the microprocessor(s) on the trigger card(s) installed in the dimmer pack(s). Each microprocessor records it's dimmer's levels into the <preset> specified, with the fade-in <time> as specified. The microprocessor(s) then respond to the terminal: Page 5 ©1993 AVAB America Inc.
  • Page 6 Preset 13-24 Back-up Control Console Presets 1 - 12 You may use the Terminal to record and playback these special presets. Refer to "ANALOG INPUT MODE" in the AVAB SOFTWARE documentation for further details and alternate configurations. To play back a preset: <preset>...
  • Page 7 Create preset 13 that will change channels 5 through 10 to full, but leave all other channels their current levels. <ALL> <LEVEL> <ENTER> (Clear the "look") <ALL> <LEVEL> U <ENTER> (Set all channels to "Unaffected") 5 <THROUGH> 10 <LEVEL> 100 <ENTER> (Set the "look") 13 <RECORD> <ENTER> (Record the "look") Page 7 ©1993 AVAB America Inc.

  • Page 8: Terminal Configuration

    APPENDIX A: TERMINAL CONFIGURATION The AVAB TERM-600 is a multi-purpose data terminal for use with many different types of equipment. As such, it must be configured for use with the appropriate AVAB dimmers prior to use. Once it has been configured, the settings are saved in permanent memory, even when the terminal is turned off.
  • Page 9 (Setup mode may normally be accessed even if the terminal is "locked out" of dimmer control functions.) DO NOT DISABLE SETUP MODE IF YOU INTEND TO USE THE TERMINAL WITH BOTH AVAB DDII AND AVAB SMARTIE DIMMING SYSTEMS. Page 9...
