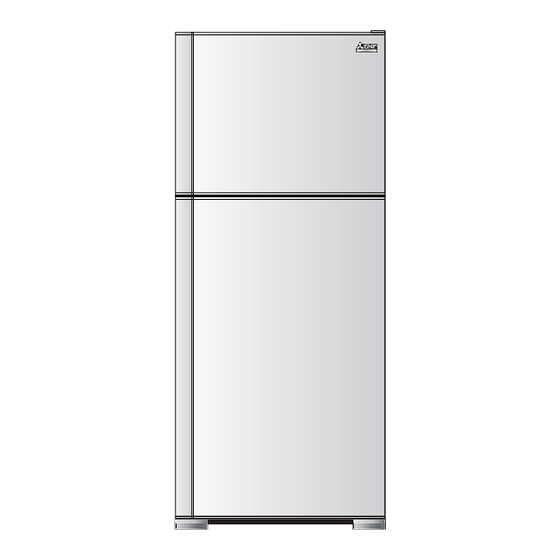

Refrigerator-Freezer
OPERATING INSTRUCTIONS
SERIES MODEL
系列 型號
MR-F55ET
MR-F62ET
Non-Freon Refrigerators
This refrigerator uses non-Freon refrigerant (isobutane) and non-Freon foam insulation (cyclopentane).
These materials are harmless to the environment, which does not affect the ozone layer and global warming.
.
Maintenance work shall only be carried out at workshop by well-trained maintenance worker.
.
Please read this manual carefully and follow the information contained within. In particular, be sure to read the safety precautions before using this refrigerator.
.
Be sure to receive your copy of the warranty from the retailer and confirm that the purchase date and retailer name are written on the warranty.
.
Store this operating instructions manual and the warranty in a safe place.
.
This refrigerator was manufactured for refrigerating and freezing of foods in general households. For commercial use, please use a commercial refrigerator-freezer.
.
The principal plastic components indicate the material name to facilitate recycling.
.
Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
.
This appliance is intended to be used in household application only.
.
WARNING - When positioning the appliance, ensure the supply cord is not trapped or damaged.
.
WARNING - Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
.
WARNING - Just in case of having damaged the refrigerant circuit, do not use electric items or fire equipments near by, and open the window to ventilate
the room. And contact the retail store at which you purchased it or the following MITSUBISHI ELECTRIC SERVICE CENTRE.
.
WARNING - Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
.
WARNING - Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
.
The user manual should be handed over to any person who would use or handle the refrigerator whenever the refrigerator would be transferred to another
location and delivered to a recycling plant.
.
This refrigerator uses flammable foaming gas for insulation. Please deliver the unit to specialized industrial waste dealer when you do away it.
Please follow the rules in your country.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
冷藏冷凍雪櫃
Contents
操作指引
Safety Precautions
爲了安全請務必遵守
Components
部件名稱
Installation
冰箱安裝
Electrical Connections
接線
Operation
冰箱操作
Maintenance
保養
What to do in these situations
安全建議
Troubleshooting
消除故障
目錄
Page
2 - 3
4
5
5
6 - 8
8
9
9 - 10
頁碼
Advertisement
Related Manuals for Mitsubishi Electric MR-F55ET
Summary of Contents for Mitsubishi Electric MR-F55ET
- Page 1 WARNING - Just in case of having damaged the refrigerant circuit, do not use electric items or fire equipments near by, and open the window to ventilate the room. And contact the retail store at which you purchased it or the following MITSUBISHI ELECTRIC SERVICE CENTRE.
- Page 2 If the power cord is damaged call CAUTION on the door-l i n er of the refri g erator compartment. ) Mitsubishi Electric Service Centre Using an extension cord or plugging for a technician to replace power cord. in too many power cords into the...
- Page 3 WARNING About using your refrigerator Do not put any vessels, jars, etc. that Do not use electrical products inside Do not store volatile products that contain water on top of the refrigerator. the refrigerator unit. can easily ignite. If water gets onto If the refrigerant (gas) is leaking Benzine, cosmetics and electrical parts, it...
- Page 4 Door Gasket Drain Pan Vegetable Case Bottle Pocket LED Light (Vitamin Factory) Toe Grille Leveling Legs This illustration shows series models MR-F55ET Freezer Compartment Shelf (Small) Freezer Compartment Shelf (Large) Ice Tray Freezer Pocket Ice Cube Box Door Gasket Sliding case...
- Page 5 2. Installation Install on a completely flat and rigid surface. Using the two front adjustable feet, ensure that the refrigerator is positioned firmly and level on the floor. Now open the doors approximately half way, and extend the front adjustable feet equally until the doors close by themselves. Toe Grille Leveling Leg To ensure adequate ventilation for your refrigerator,...
- Page 6 4. Operation 1. Temperature Control Both the freezer compartment and the refrigerator Temperature Control of compartment have a temperature control. the Freezer Compartment “MID” is recommended for normal usage. Turn the dial to “COLDER” when storing a large quantity of frozen foods, ice cream etc., in the freezer compartment. Turn the dial to “FREEZER”...
- Page 7 Storage Advice Wrap fruit and vegetables in foil or plastic before storage in the refrigerator in order to keep them fresh. Preserve vegetables in transparent containers or wrap in transparent plastic. Place vegetables so that they are directly exposed to the LED light. Photosynthesis will occur and increase vitamin C levels as long as the vegetables are green (contain chlorophyll).
- Page 8 8. Flexible glass shelf To storage large or tall item 1 Remove all food items from the Flexible shelf. 2 Press down the Rear Shelf then pull the Front Shelf out, which the Front Shelf can be separated from the Rear Shelf. (If you have a difficulty for pulling the Front Shelf out, please press on the edge of the Rear Shelf and pull the edge of the Front Shelf out, then the Front Shelf can be easily to pull out.)
- Page 9 6. What to do in these situations When there’s a power failure. Minimize opening/closing of doors and avoid putting in more food. Water discharge outlet When not in use for a long time. Clean the Ice cube box and Ice tray, clean the interior after unplugging the refrigerator, and keep the door open for 2 - 3 days to let it get dry.
- Page 10 CAUTION 1. This appliance is designed for use in ambient temperature listed below. MODEL NAME AMBIENT TEMPERATURE RANGE CLIMATIC CLASS MR-F55ET, F62ET-P C ~ 43 MR-F55ET, F62ET-ML C ~ 43 MR-F55ET, F62ET-H C ~ 38...
- Page 11 MITSUBISHI ELECTRIC BUILDING SINGAPORE 159943 Head Office: Tel. (65) 6473-2308 SOLE AGENT in Malaysia MITSUBISHI ELECTRIC SALES MALAYSIA SDN. BHD. (CO.NO.:11098W) LOT 11, JALAN 219, PO BOX 1036, 46860, PETALING JAYA, SELANGOR DARUL EHSAN, MALAYSIA. Head Office: Tel. (603) 7955-2088 (10 lines)
