Summary of Contents for PureTools PT-C-HDUSB

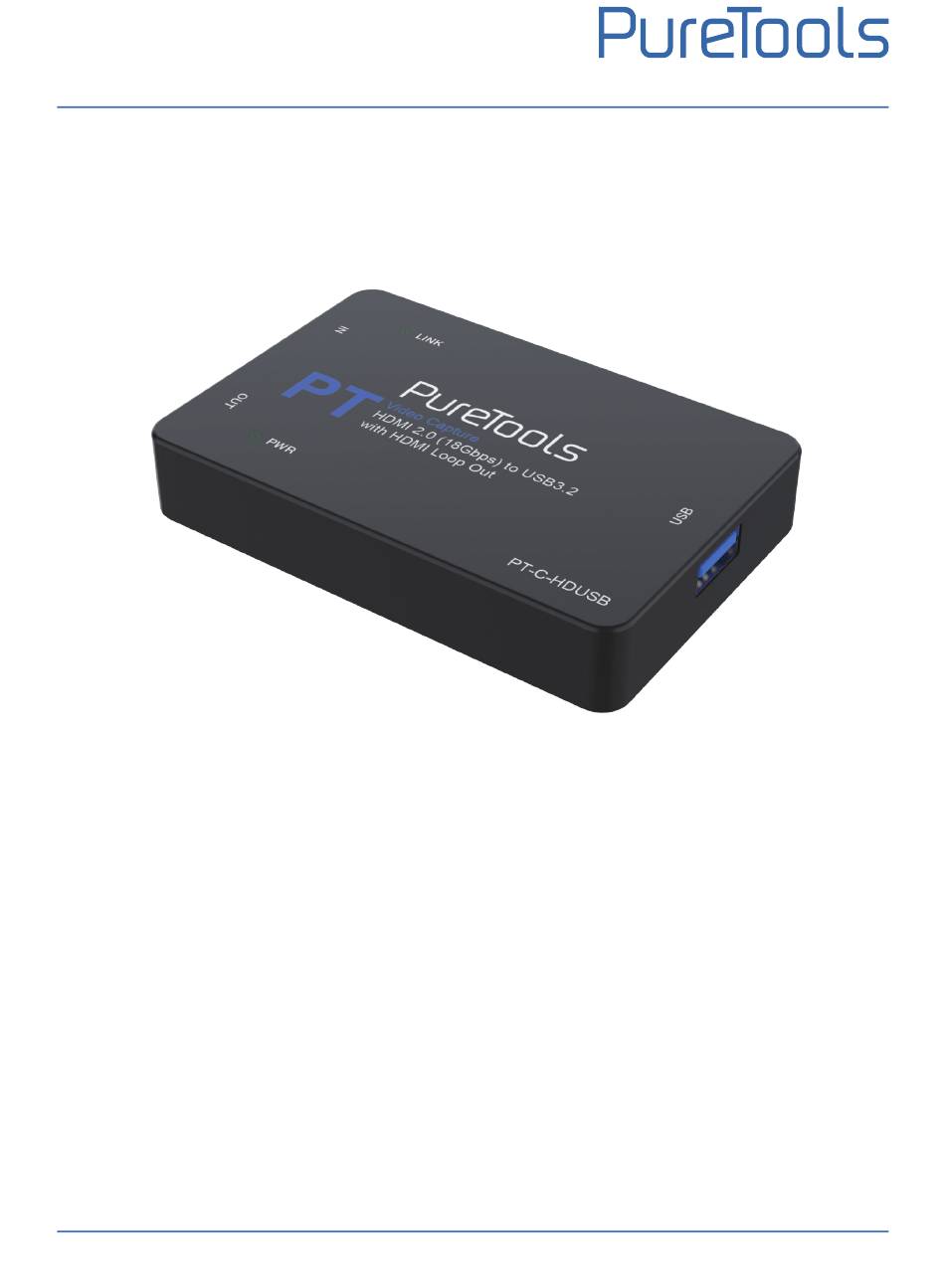

- Page 1 User Manual PT-C-HDUSB User Manual HDMI to USB 3.0 Video Capture Dongle Model PT-C-HDUSB Designed in Germany Version V1.0 © 2023 PureLink GmbH All rights reserved.
- Page 2 User Manual PT-C-HDUSB Preface Read this user manual carefully before using this product. Pictures shown in this manual are for reference only. Different model layouts and specifications are subject to the physical product. This manual is for operation instructions only, not for any maintenance usage.
- Page 3 PT-C-HDUSB REACH | 1907/2006/EU ROHS | 2011/65/EU PureLink hereby declares that this product PureTools PT-C-HDUSB complies with Directives 1907/2006/EU und 2011/65/EU. EMC / LVD (Electro Magnetic Compatibility / Low Voltage Directive) PureLink GmbH hereby declares that this product PureTools PT-C-HDUSB complies with Directives 2014/30/EU and 2014/35/EU.
- Page 4 User Manual PT-C-HDUSB SAFETY PRECAUTIONS To ensure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. ⚫ Unpack the equipment carefully and save the original box and packing material for possible future shipment.
-
Page 5: Table Of Contents
User Manual PT-C-HDUSB Content 1. Product Introduction....................2 1.1 Introduction......................2 1.2 Features........................2 1.3 Package List......................2 2. Panel Description.......................3 3. Specification.......................4 4. OBS Operation Instructions..................5 5. System Diagram.......................10 6. After-Sales Service....................11 Asking for Assistance....................12... -
Page 6: Product Introduction
User Manual PT-C-HDUSB 1. Product Introduction 1.1 Introduction This HDMI to USB video capture dongle has 1 HDMI INPUT, 1 HDMI LOOP OUT and 1 USB OUTPUT. The HDMI INPUT supports resolutions up to 4K60. The USB OUTPUT can be used to power the device and capture videos with resolution up to 1080P60. -
Page 7: Panel Description
User Manual PT-C-HDUSB 2. Panel Description LINK HDMI to USB3.0 Video Capture Dongle Name Function Description HDMI input port, connected to a source device HDMI IN via the HDMI cable. HDMI loop out port, connected to a display HDMI OUT device such as TV via the HDMI cable. -
Page 8: Specification
User Manual PT-C-HDUSB 3. Specification Technical HDMI Compliance HDMI 2.0b HDCP Compliance HDCP 2.2 Video Bandwidth HDMI: 18 Gbps; USB: 5Gbps Video Resolution Up to 4K2K@60Hz 4:4:4 Video will be in YUV2 with no compression if Video Compression output via a USB 3.0 port; Video will be Standards compressed in MJPEG if output via a USB 2.0 port... -
Page 9: Obs Operation Instructions
User Manual PT-C-HDUSB Mechanical Housing Plastic Enclosure Color Black Dimensions 90mm(W) × 60mm(D) × 16mm(H) Weight Power Supply USB 5V / 900mA Power Consumption 3.5W (Max) Operation Temperature 32 ~ 104°F / 0 ~ 40°C Storage Temperature -4 ~ 140°F / -20 ~ 60°C... - Page 10 User Manual PT-C-HDUSB Step 3: Click “+” at the right- bottom corner on the Source window, select “Video Capture Device”, and then click “OK” to select a source video as shown in figure. S t e p 4 : S e l e c t “ F H D V i d e o - USB3.0”...
- Page 11 User Manual PT-C-HDUSB Step 5: On entering the setting page, click the “Audio” tab, then choose “48Khz” as the Sample Rate and “USB3.0 Capture Digital Audio” for “Mic/Auxiliary Audio Device”. After that, click “Apply” and “OK” in turn to save the audio settings.
- Page 12 User Manual PT-C-HDUSB Step 7: On entering the setting page, click the “Video” tab, then you can set “Base Resolution” and “OUTPUT Resolution”. After that, click “Apply” and “OK” in turn to save the Video settings. Step 8: On entering the setting page, click the “OUTPUT”...
- Page 13 User Manual PT-C-HDUSB Step 9: When all settings have b e e n co m p l e t e d , c l i c k “ S t a r t Recording” to start video capture. Clicking it again, the video capture will be stopped.
-
Page 14: System Diagram
User Manual PT-C-HDUSB 5. System Diagram Usage Precaution ⚫ Make sure all components and accessories included before installation. ⚫ System should be installed in a clean environment with proper temperature and humidity. ⚫ All of the power switches, plugs, sockets, and power cords should be insulated and safe. -
Page 15: After-Sales Service
User Manual PT-C-HDUSB 6. After-Sales Service If there appear some problems when running the product, please check and deal with the problems referring to this user manual. Any transport costs are borne by the users during the warranty. 1) Product Limited Warranty: This product will be free from defects in materials and workmanship for three years (The purchase invoice shall prevail). -
Page 16: Asking For Assistance
User Manual PT-C-HDUSB Asking for Assistance Technical Support: Phone: +49 5971 800299 - 0 Fax: +49 5971 800299 – 99 Technical Support Hours: 8:30 AM to 5:00 PM Monday thru Thursday 8:30 AM to 4:00 PM Friday Write to: PureLink GmbH Von-Liebig-Straße 10...
