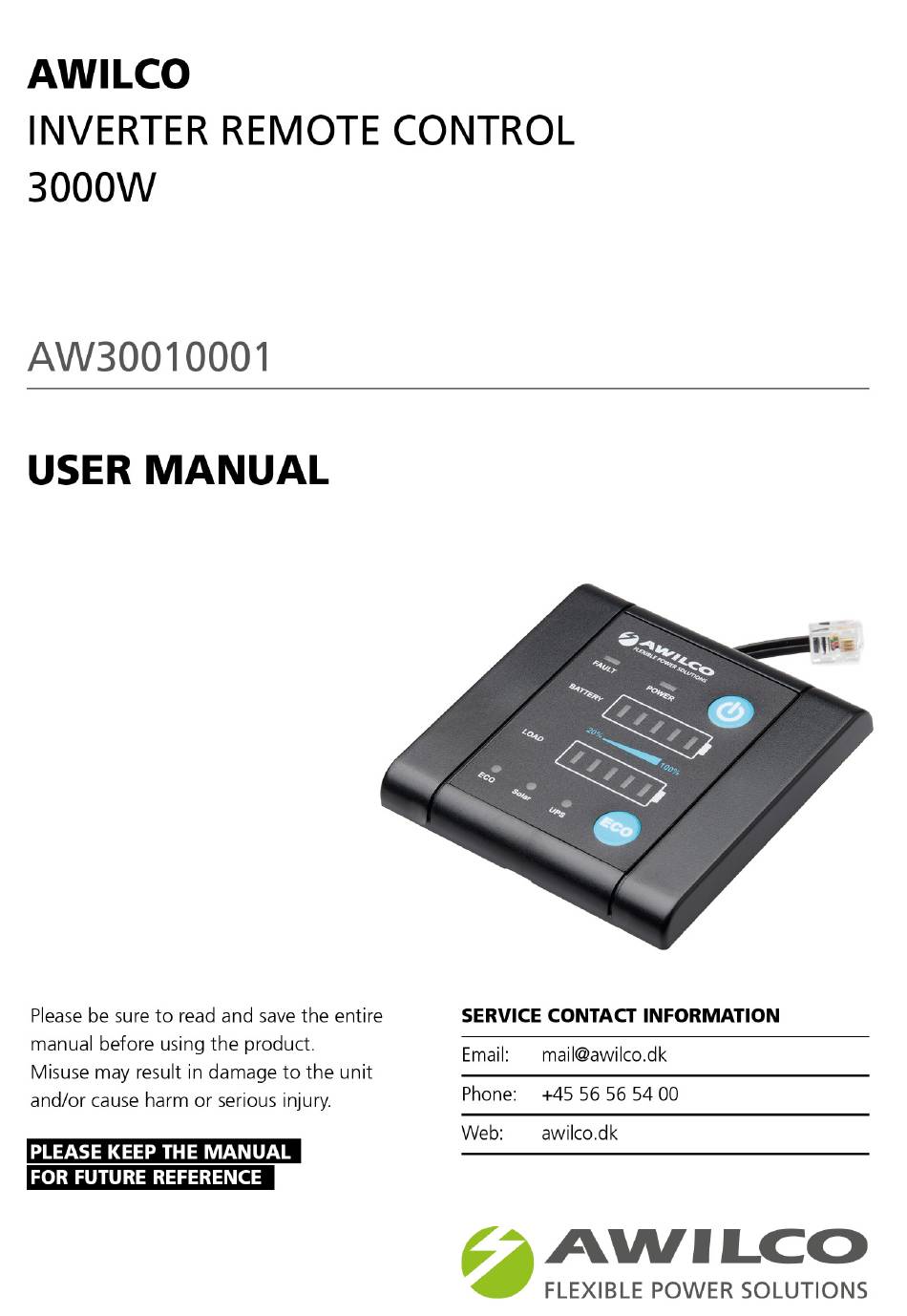

Summary of Contents for AWILCO AW30010001
- Page 2 WARNING Read all instructions before operating. Failure to follow all instructions may result in electric shock, fire and/or serious injury. ● AVOID DANGEROUS ENVIRONMENTS. Don't use in damp or wet locations. ● KEEP CHILDREN AWAY. Keep away from children. This is not a toy! ●...
-
Page 3: Installation
INSTALLATION 1. Mount the Remote There are two ways to mount the Remote. ① If there is 86 type bottom box in the vehicle ● Use crowbar or screwdriver to separate the front plate of the Remote from its main body. ●... -
Page 4: Operation
OPERATION ON/OFF switch is used to turn on or turn off the inverter. If the inverter is already turned on, Remote will be turned on automatically after connection; If the inverter is originally closed, then after connection, long press the ON/OFF button to turn on the inverter and all the indicators light up for 3 seconds. -
Page 5: Troubleshooting
REFERENCE: 1. Indicated input voltage range of “Battery” LEDs: ① Input voltage range: 10.50~11.20V, the LEDs indicate 20%. ② Input voltage range: 11.20~11.85V, the LEDs indicate 40%. ③ Input voltage range: 11.85~12.30V, the LEDs indicate 60%. ④ Input voltage range: 12.30~12.80V, the LEDs indicate 80%. ⑤... -
Page 6: Specification
Indicaton Fault Correction Over-tempera- Turn off the inverter and unplug your appliances. The 3rd “LOAD” ture. The fans Leave the inverter for cooling and wait until the indicator lights up malfunction or temp below 60°C, then restart your inverter and “FAULT” LED ambient manually flashes...
