AsiaRF ARFHL-AP User Manual

Wi-fi halow mesh gateway
Hide thumbs Also See for ARFHL-AP:
Table of Contents

Advertisement

Quick Links

Download this manual

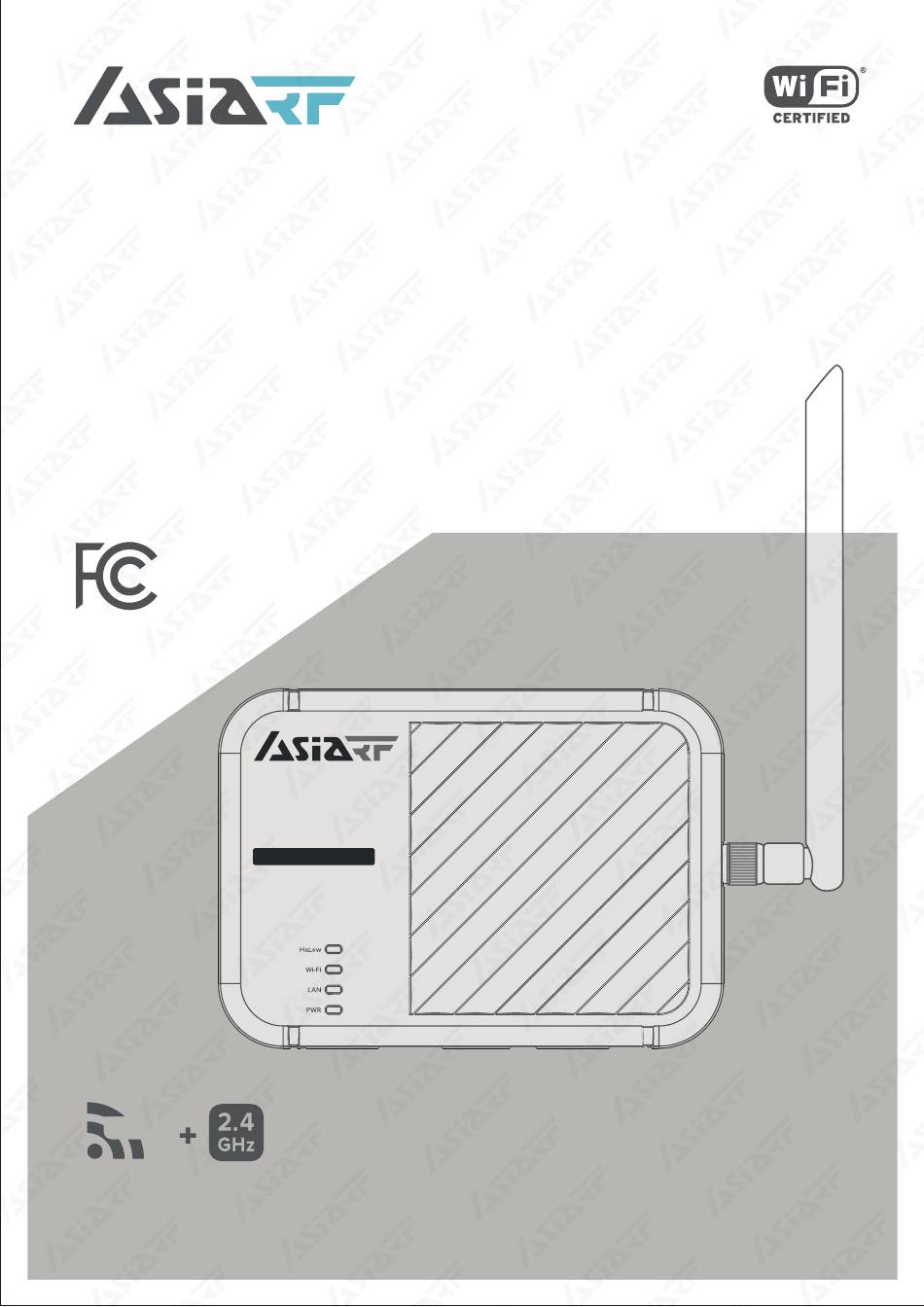

Wi-Fi HaLow MESH
Gateway
PN: ARFHL-AP
Federal
Communications
Commission
HaLow
IEEE 802.11ah and IEEE 802.11b/g/n
Dual-band Integration
Wi-Fi HaLow
Gateway
MESH Network Support
Dual-band Integration
ARFHL-AP
User Manual V.1
http://www.asiarf.com/
http://www.asiarf.com/

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ARFHL-AP and is the answer not in the manual?

Questions and answers

Related Manuals for AsiaRF ARFHL-AP

Summary of Contents for AsiaRF ARFHL-AP

  • Page 1 Wi-Fi HaLow MESH Gateway PN: ARFHL-AP Federal Communications Commission Wi-Fi HaLow Gateway MESH Network Support Dual-band Integration ARFHL-AP HaLow User Manual V.1 IEEE 802.11ah and IEEE 802.11b/g/n Dual-band Integration http://www.asiarf.com/ http://www.asiarf.com/...

  • Page 2: Table Of Contents

    CONTENT PN: ARFHL-AP User Manual Getting to Know Your HaLow MESH Gateway - ARFHL-AP 1.1 Package Contents ............................P2 1.2 Your HaLow Gateway ............................ P3 1.3 LED Indicators ..............................P3 1.4 Long range, Low power Wi-Fi® for IoT ...................... P4 1.5 AsiaRF®...

  • Page 3: Package Contents

    • The MAC address information is printed on the label on the back of the gateway. • If any of the accessories listed above are damaged or missing, please contact AsiaRF technical support as soon as possible. You can refer to the AsiaRF technical support hotline:...

  • Page 4: Your Halow Gateway

    PN: ARFHL-AP User Manual 1.2 Your HaLow Gateway ARFHL-AP is a Wi-Fi HaLow CERTIFIED, small-sized 11.8(L) x 8.66(W) x 3.5(H)cm, Dual-Band Wi-Fi 2.4GHz and Wi-Fi HaLow MESH gateway, ideal for warehouses, factories, retail stores, and other large campus environments. Distance > 1km...

  • Page 5: Long Range, Low Power Wi-Fi® For Iot

    1.5 AsiaRF® Wi-Fi HaLow Technology AsiaRF Wi-Fi HaLow operates on sub-1GHz frequency bands, specifically ranging from 850 to 950 MHz, which enhances material penetration and extends connectivity range. It o ers flexible band- width choices of 1, 2, 4, and 8 MHz, adapting to various deployment needs.

  • Page 6: Wi-Fi Halow Mesh Network Settings

    3. Connecting and Configuring: With the system ready, connect a PC or mobile device to the router and ARFHL-AP using Wi-Fi. This connection allows you to configure the gateway and start using the network services provided by the ARFHL-AP.

  • Page 7: Halow Mesh Network Architecture

    PN: ARFHL-AP User Manual 2.2 HaLow Mesh Network Architecture The HaLow Mesh Network Architecture leverages the unique capabilities of Wi-Fi HaLow technology, which is designed for long-range, low-power wireless communication. This architecture typically consists of various types of nodes, such as Mesh Points (MP), Mesh Access Points (MAP), and Mesh...

  • Page 8: Halow Mesh Network Setting

    PN: ARFHL-AP User Manual 2.3 HaLow Mesh Network Setting Use PC or mobile phone connect to the Wi-Fi. (SSID: AsiaRF_Halow-xxxx, Password: 12345678). Open your browser and enter "192.168.3.3", the default factory IP address, into the address bar. Click on “Login” (there is no password by default). If you encounter issues accessing the settings webpage, refer to FAQ &...
  • Page 9 PN: ARFHL-AP User Manual Press the 'MESH' button, and then enter your ‘MESH ID’ and ‘Password’. For example: Set the network SSID to "Test_MESH" and configure the password, which by default is "12345678". Test_MESH Remember, our default IP address is “192.168.3.3,” with the default Wi-Fi 2.4 GHz SSID being “AsiaRF_HaLow-xxxx”...
  • Page 10 PN: ARFHL-AP User Manual IP Settings Considerations: • Within the same Mesh network, di erent HaLow Mesh Devices must be assigned unique IP addresses. • In a Mesh network where only one HaLow Mesh Device has internet access and other devices also require internet functionality, set the Gateway to the IP address of the HaLow Mesh Device with internet capability.
  • Page 11 PN: ARFHL-AP User Manual Ensure that the bandwidth channel settings are consistent. When setting up devices in the HaLow MESH Network, it's crucial to ensure consistency across key parameters. Make sure that the Mesh ID and password entered in the "Basic Wireless" section match, and that the settings for "Region,"...

  • Page 12: Connect To Your Wi-Fi Halow Gateway As Ap

    3. Connecting and Configuring: With the system ready, connect a PC or mobile device to the router and ARFHL-AP using Wi-Fi. This connection allows you to configure the gateway and start using the network services provided by the ARFHL-AP.
  • Page 13 PN: ARFHL-AP User Manual Bridge Mode scenario Ethernet Wi-Fi HaLow Single Network Segment Wi-Fi 2.4GHz 192.168.8.X Management Management Bridge Bridge IP. 192.168.3.3 IP. 192.168.3.5 Mode Mode DHCP Server Ex. 192.168.8.1 End Device 192.168.8.X 192.168.8.X 192.168.8.X In Bridge Mode scenario, the use of HaLow is transparent to the rest of the devices on the network.

  • Page 14: Bridge Mode Access Point (Ap) Setting

    PN: ARFHL-AP User Manual 3.2 Bridge Mode Access Point (AP) Setting Use PC or mobile phone connect to the Wi-Fi. (SSID: AsiaRF_Halow-xxxx, Password: 12345678). Open your browser and enter "192.168.3.3", the default factory IP address, into the address bar. Click on “Login”...
  • Page 15 PN: ARFHL-AP User Manual Press the 'Access Point' button, and then enter your ‘Wi-Fi HaLow SSID’ and ‘Password’. Remember, our default IP address is “192.168.3.3,” with the default Wi-Fi 2.4 GHz SSID being “AsiaRF_HaLow-xxxx” and the password “12345678.” Disable NAT in the "Tra c Management"...
  • Page 16 PN: ARFHL-AP User Manual In the "Advanced - Wireless" settings, the region you initially selected will be displayed. If you wish to change the region, you can do so here. Remember to click “Save” after making any adjustments. 03. Wi-Fi HaLow Bridge Mode Settings...

  • Page 17: Managing Bridge Mode Halow Gateways

    PN: ARFHL-AP User Manual 3.3 Managing Bridge Mode HaLow Gateways In the bridge mode of a HaLow Gateways, under Static are not available for IP address allocation. This necessitates manual configuration of IP addresses for devices to ensure they are on the same network segment for access.
  • Page 18 PN: ARFHL-AP User Manual Use PC or mobile phone connect to the Wi-Fi. (SSID: AsiaRF_Halow-xxxx, Password: 12345678). Click the 'Properties' button to access the settings screen. Click “Edit” button in “IP assignment” to set static IP. 03. Wi-Fi HaLow Bridge Mode Settings...
  • Page 19 PN: ARFHL-AP User Manual Choose “Manual”. Turn on the IPv4 radio button. Enter an IP address that belongs to the same network segment (192.168.3.x), input '255.255.255.0' as the Subnet mask, and finally, click 'Save' to apply the settings. By adhering to the steps provided, you should be able to e ectively manage the Bridge Mode HaLow Gateway.

  • Page 20: Bridge Mode Client (Cli) Setting

    Wi-Fi HaLow Client Bridge Mode Setup a. Connect the DC adaptor to the ARFHL-AP to power it on, which will illuminate the 'PWR' LED. b. Plug the Ethernet cable into both the PC and the ARFHL-AP. This will enable the “LAN” LED on the ARFHL-AP, signifying a successful connection.
  • Page 21 PN: ARFHL-AP User Manual Open the browser and type “192.168.3.3”. Click “Login” (No password in default). Click on 'HaLow Configuration' in the 'HaLow' tab, then set your 'Region' and click 'Save'. Click the “Client” mode and press ‘Scan’ botton. It will automatically select a Wi-Fi HaLow AP nearby, or you can manually choose one from the list.
  • Page 22 PN: ARFHL-AP User Manual To activate bridge mode, choose a static IP setting and adjust your IP address accordingly. For optimal management in conjunction with the Access Point (AP), it is recommended to select an IP from the 192.168.3.x range.

  • Page 23: Ghz Wi-Fi Managing

    PN: ARFHL-AP User Manual 3.5 2.4GHz Wi-Fi Managing Use PC or mobile phone and connect to the Wi-Fi 2.4 GHz. (SSID: AsiaRF_Halow-xxxx, Password: 12345678) Open your browser and enter "192.168.3.3", the default factory IP address, into the address bar. Click on “Login”...
  • Page 24 PN: ARFHL-AP User Manual Change the ESSID in the 'General Setup' section of the Interface Configuration to your new name. Click “Wireless Security” and choose one of the encryption types. Ex. “WPA-PSK/WPA2-PSK Mixed Mode (medium security)” Input your Wi-Fi password in “Key” field and don’t forget it.
  • Page 25 PN: ARFHL-AP User Manual Click the “Save & Apply” button to save the configuration. The above settings will reset your Wi-Fi interface. 03. Wi-Fi HaLow Bridge Mode Settings...

  • Page 26: Switching The Bridge Mode To Router Mode

    PN: ARFHL-AP User Manual 3.6 Switching the Bridge Mode to Router Mode 1. Perform a factory reset by pressing and holding the reset button for more than 5 seconds, until you see the "HaLow", "Wi-Fi", and "PWR" LEDs flash briefly, then release the button.

  • Page 27: Connect To Your Wi-Fi Halow Gateway As Ap

    3. Connecting and Configuring: With the system ready, connect a PC or mobile device to the router and ARFHL-AP using Wi-Fi. This connection allows you to configure the gateway and start using the network services provided by the ARFHL-AP.
  • Page 28 PN: ARFHL-AP User Manual Router Mode scenario Ethernet Wi-Fi HaLow Multiple Network Segments Wi-Fi 2.4GHz Network Segment B Network Segment A 192.168.8.X 192.168.3.X Router Mode Bridge Mode DHCP Server DHCP Server Ex. 192.168.8.1 Ex. 192.168.3.3 End Device 192.168.3.X Management Ex. 192.168.3.5 In Router Mode, the router is used to connect di erent IP network segments together, with each segment having its own range of IP addresses and subnet mask.

  • Page 29: Router Mode Access Point (Ap) Setting

    PN: ARFHL-AP User Manual 4.2 Router Mode Access Point (AP) Setting Use PC or mobile phone connect to the Wi-Fi. (SSID: AsiaRF_Halow-xxxx, Password: 12345678). Open your browser and enter "192.168.3.3", the default factory IP address, into the address bar. Click on “Login”...
  • Page 30 PN: ARFHL-AP User Manual Press the 'Access Point' button, and then enter your ‘Wi-Fi HaLow SSID’ and ‘Password’. Remember, our default IP address is “192.168.3.3,” with the default Wi-Fi 2.4 GHz SSID being “AsiaRF_HaLow-xxxx” and the password “12345678.” Enable NAT in the "Tra c Management"...
  • Page 31 PN: ARFHL-AP User Manual In the ‘Advanced - Wireless’ settings, the region you initially selected will be displayed. If you wish to change the region, you can do so here. Remember to click “Save” after making any adjustments. 04. Wi-Fi HaLow Router Mode Setup...

  • Page 32: Router Mode Client (Cli) Setting

    PN: ARFHL-AP User Manual 4.3 Router Mode Client (CLI) Setting The HaLow Gateway Client configuration is identical in both Router Mode and Bridge Mode. For setup instructions, please see Section 2.4, "Bridge Mode Client (CLI) Setting." 4.4 2.4GHz Wi-Fi Managing The HaLow Gateway 2.4GHz Wi-Fi configuration is identical in both Router Mode and Bridge...

  • Page 33: Firmware Upgrade

    PN: ARFHL-AP User Manual Firmware Upgrade 5.1 First, confirm your current firmware version. This section provides guidance on how to determine your current firmware version. Please follow the instructions provided below. Should you encounter any issues with our product, please provide us with your firmware version to ensure the most e ective after-sales service.
  • Page 34 PN: ARFHL-AP User Manual Click “Overview” in the “Status” tab. Then, you can determine your firmware version. For example, it could be listed as "AsiaRF AP7688 WHM 22.03.5 SDK222-master-55-d274ef3b." Please refer to the screenshot below for further clarification. 05. Firmware Upgrade...

  • Page 35: Upgrade Your Firmware Version

    PN: ARFHL-AP User Manual 5.2 Upgrade your Firmware version To ensure you have the best experience with our product, follow the instructions in this chapter to upgrade your device whenever new firmware becomes available. Connect to the Wi-Fi 2.4 GHz network using a PC or mobile phone. Look for the SSID "AsiaRF_Ha- low-xxxx"...
  • Page 36 PN: ARFHL-AP User Manual Click ‘Flash Firmware’ in the “System” tab, then Click ‘Flash image’. Click on 'Browse' to select the firmware you need. Choose the desired version and then click 'Open' to proceed. AsiaRF-AP7628-V2-xxxx-xxxx-xxxxxxxxxxx AsiaRF-AP7628-V2-xxxx-xxxx-xxxxxxxxxxx.bin 05. Firmware Upgrade...
  • Page 37 PN: ARFHL-AP User Manual After selecting the firmware, it will be displayed on your screen. Click 'Upload' to proceed, and the system will automatically verify if the version is compatible. AsiaRF-AP7628-V2-xxxx-xxxx-xxxxxxxxxxx.bin Once your firmware upload is successful, you'll see a screen like the one in the image. The default setting will have the option "Keep settings and retain the current configuration"...

  • Page 38: Faq & Troubleshooting

    “AsiaRF_HaLow-xxxx” and the password “12345678.” 2. If access remains blocked, try resetting the device. 3. If the issue persists, please contact the AsiaRF technical support hotline at +886 2 2940-7880, extension 18, or contact our sales team via email at sales@asiarf.com.

  • Page 39: Issue: The Ap Ssid Does Not Appear In The Scan List

    SSID appear in your configuration screen. 3. If the issue still isn't resolved, consider resetting your device. 4. If the issue persists, please contact the AsiaRF technical support hotline at +886 2 2940-7880, extension 18, or contact our sales team via email at sales@asiarf.com.
