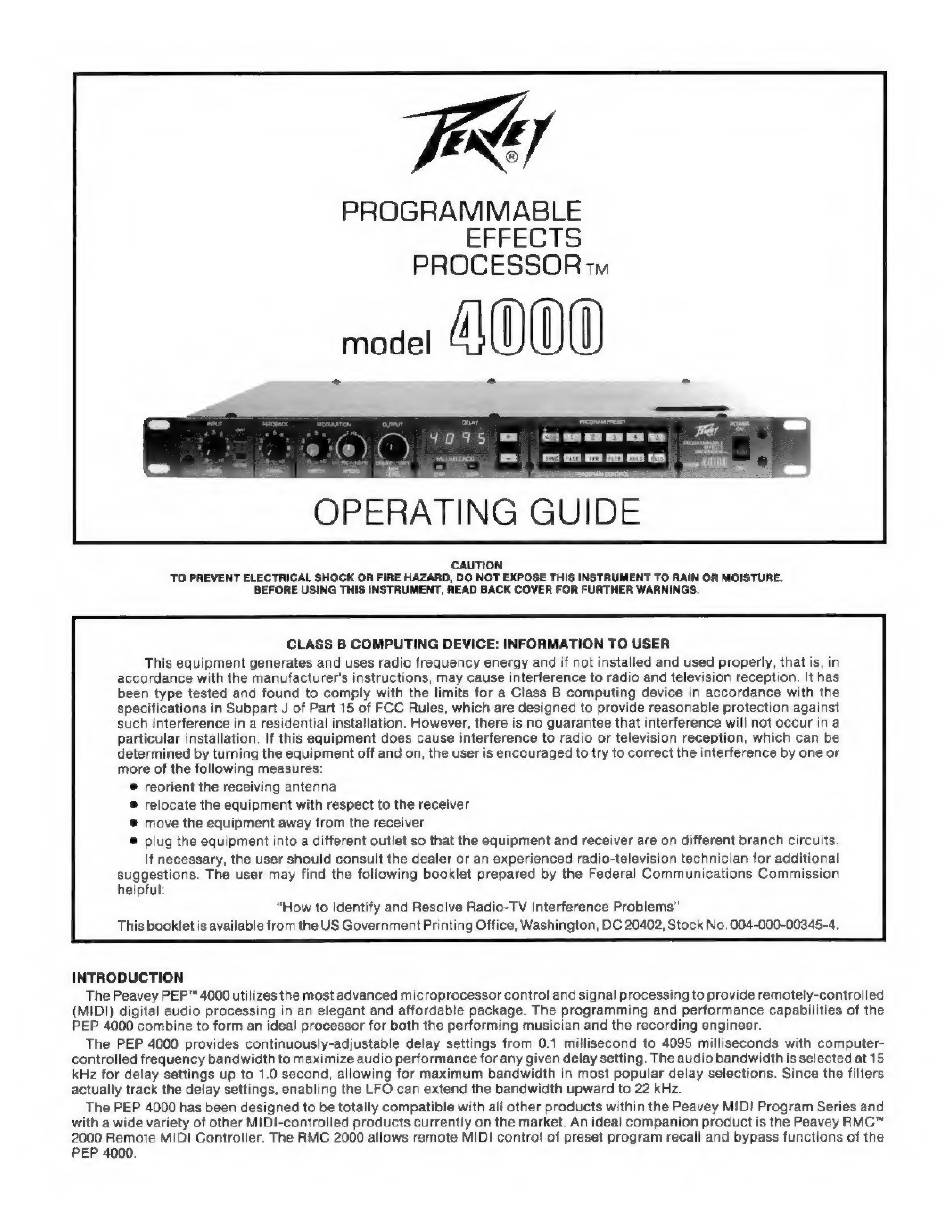

Peavey PROGRAMMABLE EFFECTS PROCESSOR 4000 Operating Manual

Rey
PROGRAMMABLE
EFFECTS
PROCESSOR m
model ADOD
40 95 in mm aa me ea aa
mases o E n EEO D
= Amcor.
OPERATING GUIDE
CAUTION
TO PREVENT ELECTRICAL SHOCK OR FIRE HAZARD, DO NOT EXPOSE THIS INSTRUMENT TO RAIN OR MOISTURE.
BEFORE USING THIS INSTRUMENT, READ BACK COVER FOR FURTHER WARNINGS,
CLASS B COMPUTING DEVICE: INFORMATION TO USER
This equipment generates and uses radio frequency energy and if not installed and used properly, that is, in
accordance with the manufacturer's instructions, may cause interference to radio and television reception. It has
been type tested and found to comply with the limits for a Class B computing device in accordance with the
specifications in Subpart J of Part 15 of FCC Rules, which are designed to provide reasonable protection against
such interference in a residential installation. However, there is no guarantee that interference will not occur ina
particular installation. If this equipment does cause interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
© reorient the receiving antenna
© relocate the equipment with respect to the receiver
@ move the equipment away from the receiver
© plug the equipment into a different outlet so that the equipment and receiver are on different branch circuits
If necessary, the user should consult the dealer or an experienced radio-television technician for additional
suggestions. The user may find the following booklet prepared by the Federal Communications Commission
helpful
"How to Identify and Resolve Radio-TV Interference Problems"
This bookletis available from the US Government Printing Office, Washington, DC 20402, Stock No. 004-000-00345-4.,
INTRODUCTION
The Peavey PEP™ 4000 utilizes the most advanced microprocessor control and signal processing to provide remotely-controlled
(MIDI) digital audio processing in an elegant and affordable package. The programming and performance capabilities of the
PEP 4000 combine to form an ideal processor for both the performing musician and the recording engineer.
The PEP 4000 provides continuously-adjustable delay settings from 0.1 millisecond to 4095 milliseconds with computer-
controlled frequency bandwidth to maximize audio performance for any given delay setting. The audio bandwidth is selected at 15
kHz for delay settings up to 1.0 second, allowing for maximum bandwidth in most popular delay selections. Since the filters
actually track the delay settings, enabling the LFO can extend the bandwidth upward to 22 kHz.
The PEP 4000 has been designed to be totally compatible with all other products within the Peavey MIDI Program Series and
with a wide variety of other MIDI-controlled products currently on the market. An ideal companion product is the Peavey RMC™
2000 Remote MIDI Controller. The RMC 2000 allows remote MIDI contro! of preset program recall and bypass functions of the
PEP 4000.
