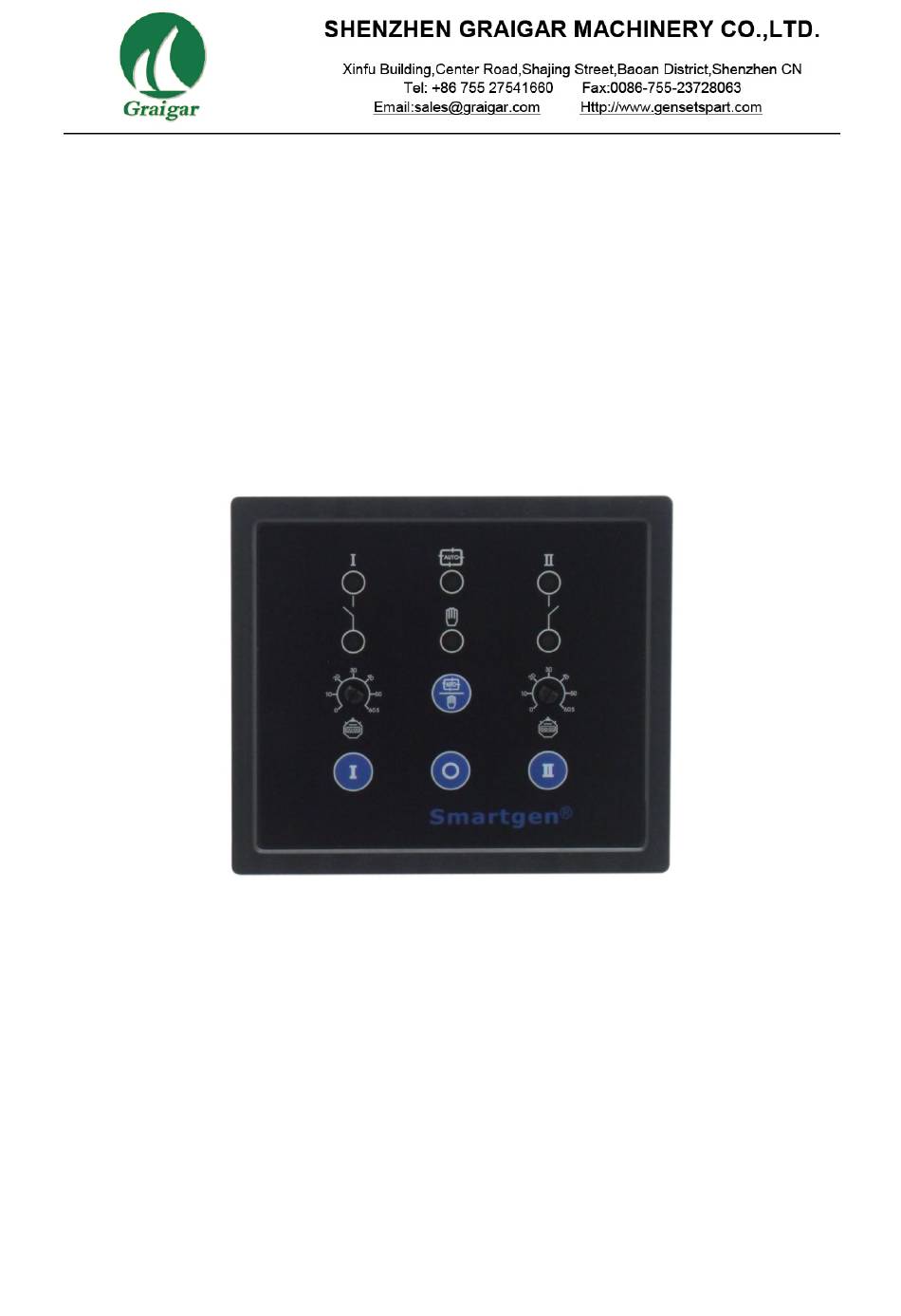

  • Page 1 HAT260 ATS (Automatic Transfer Switch) Controller USER MANUAL Smartgen Technology...

  • Page 2: Table Of Contents

    CONTENT OVERVIEW ......................4 PERFORMANCE AND CHARACTERISTICS ............4 SPECIFICATION ....................5 PANEL DESCRIPTION ..................6 PANEL OPERATION AND CONNECTIONS ............6 Delay Adjustment .................... 6 Control Setting ....................6 TERMINALS DESCRIPTION ................9 TYPICAL APPLICATION ..................10 CASE DIMENSIONS ................... 12 FAULT FINDING ....................

  • Page 3: Overview

    1 OVERVIEW HAT260A ATS controller using microprocessor as its core can precisely monitor 2-way 3 phase voltage, make accurate judgment on abnormal voltage (loss of power, over voltage, under voltage, loss of phase) and control ATS to transfer after delay. When #1 power is abnormal, the controller will send signal to start genset.

  • Page 4: Specification

    3 SPECIFICATION ♦ Power supply input AC power supply: AC230V±30% (50 Hz/60Hz) (from A phase and N phase of #I and #II) DC power supply: DC(8～35)V between VIN and GND Measured voltage: rated line voltage 400V; 50 Hz/60Hz; 3 phase 4 wire. NOTE: Other measured voltage class, please consult before ordering.

  • Page 5: Panel Description

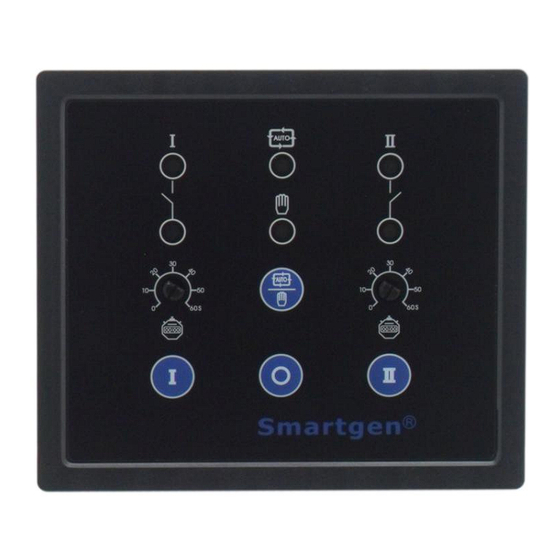

    4 PANEL DESCRIPTION 5 PANEL OPERATION 5.1 Delay Adjustment #I normal delay potentiometer: can set output delay after #I power supply normal. #II normal delay potentiometer: can set output delay after #II power supply normal. 5.2 Control Setting a) Auto Mode: Press , automatic indicator will light while manual indicator will extinguished.
  • Page 6 button: In Manual mode, press key, load will be transferred to #I power supply. It is invalid in auto mode. *1 button: In Manual mode, press the button will disconnect the power supply. It is invalid in auto mode. (the button is invalid for SOCOMEC VS ) button: In Manual mode, press key, load will be transferred to #II power supply.
  • Page 7 Press key, #I power indicator Restore illuminates, which means the default factory default value is restored. Abnormal delay of #I and #II power supply is 5s by default. “#I delay” After adjusting normal potentiometer, press key, automatic Start delay status indicator illuminates, which...

  • Page 8: Terminals Description

    HAT260 ATS Control Module Press key, #I closing Indicator Detect closing status illuminates; which means detection of #I and #II closing input is enabled. *1 Note: Once the controller is powered on, its priority can be judged by the following three conditions.

  • Page 9: Typical Application

    ♦ Terminal GS (GNESET START): Genset start relay (active contactor, capacity: 3A, Output GND is active.) ♦ Terminal LO, NO: It is the power supply for ATS. LO/NO separately comes from A and N phase of #I and #II power. When A phase and N phase of #I or #II power is normal, the two terminals will output power (capacity is AC5A/230V).
  • Page 10 SOCOMEC ATySM3s Type Switch SOCOMEC ATyS3e Type Switch...

  • Page 11: Case Dimensions

    HAT260 ATS Control Module SOCOMEC ATyS3s Type Switch Note: 81, 84: #I closing N/O auxiliary contact of ATyS3s switch; 91, 94: #II closing N/O auxiliary contact of ATyS3s switch; The SOCOMEC ATyS3s switch has not marked the closing auxiliary contact. Please refer to the wiring diagram for the specific position.

  • Page 12: Fault Finding

    9 FAULT FINDING Symptoms Possible remedy Check DC power supply; Controller inoperative Check connections of #I and #II power; Check the fuse of #I and #II power. Check ATS mechanism. Switch is not activated Check the connection between ATS and controller. #I or #II normal indicator Check if 3-phase voltage is normal.(over/under voltage, flashes.
