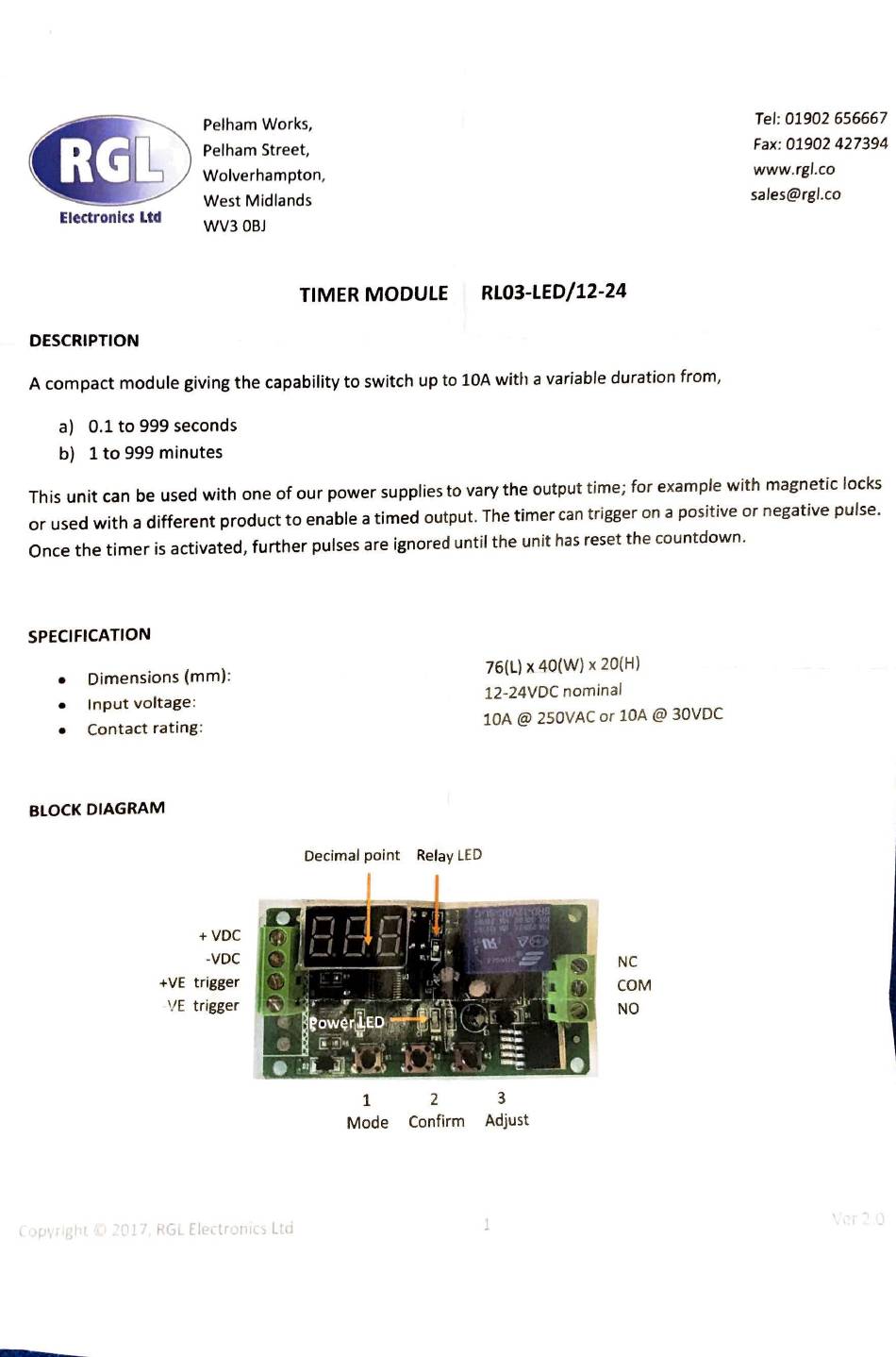

RGL RL03-LED/12-24 Manual

Electronics Ltd
DESCRIPTION
Pelham Works,
Pelham Street,
Wolverhampton,
West Midlands
WV3 OBJ
TIMER MODULE
RL03-LED/12-24
A compact module giving the capab ility to switch up to 10A with a variable duration from,
a) 0.1 to 999 seconds
b) 1 to 999 minutes
Tel:
01902 65666 7
Fax:
01902 427394
www.rgl.co
sales@rgl.co
This unit can be used with one of ou r power supplies to vary the output time; for example wit h magnetic locks
or used with a different product t o enable a timed output. The timer can trigge r on a posit ive or negative pulse.
Once the timer is activated, further pulses are ignored until the unit has reset the countdown.
SPECIFICATION
• Dimensions (mm) :
• Input voltage:
• Contact ra ti ng:
BLOCK DIAGRAM
l
f.'
+VDC
-VDC
+VE
trigger
VE
trigger
KGL
fledr_lllL,
Ltcl
Decimal point Relay
LED
76(L)
x
40(W)
x
20(H)
12-24VDC
nominal
10A
@
250VAC
or
10A@ 30VDC
NC
COM
NO
1 2 3
Mode Confirm Adjust
