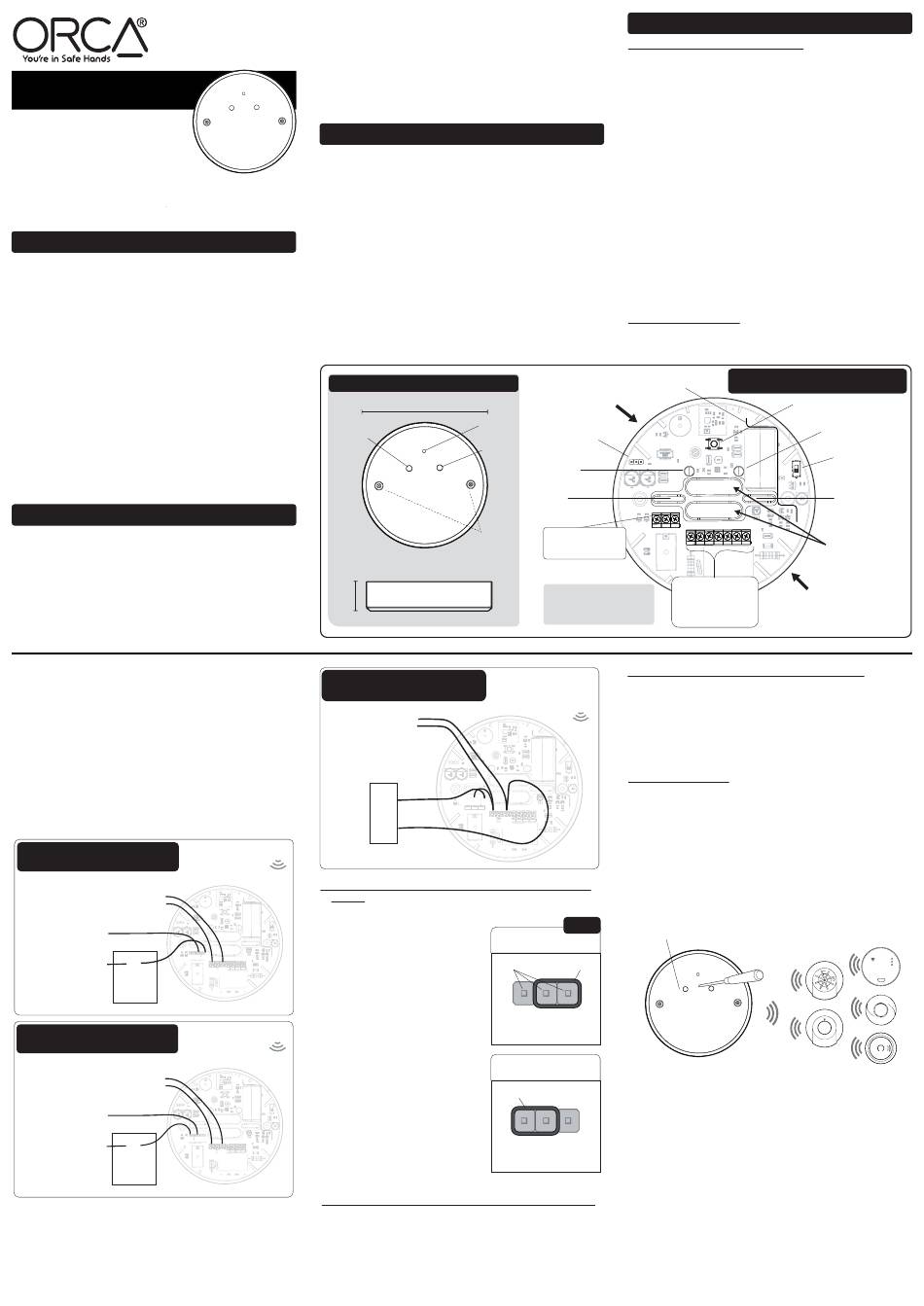

Orca OM866RB-10RF User Manual

User Manual
Model: OM866RB-10RF
RF & Relay Base
SPECIFICATION
Product Life: 10 years
Supply Voltage: 230V AC
Backup Battery: 3V Lithium Battery (Sealed)
Battery Consumption: 0.8W (standby)
Contact Rating: 220-240V a.c., 5A resistive
Continuous or Pulse mode
Output: One volt free contact (NO/NC)
Visual Indicator: Green - Bright: Power Present
Red - Flashing: Low Battery
Red - Illuminated: RF Pairing Mode
Red - Illuminated: Fire/CO Triggered
Wireless Interconnection:
Radio Frequency [868MHz]
max 20pcs RF devices
Indoor max 50m / outdoor max 80m
Hardwire Interconnection:
max 40pcs devices in 150metres
Operating/Storage Temperature: -10 o C to 40
Operating/Storage Humidity: 15% to 95% Relative Humidity
Plastic Material: ABS
Approval: CE
INTRODUCTION
Please carefully read and retain this manual for the entire duration of
the device's use, as it contains vital information on the installation
and operation of the OM866RB-10RF Pairing Relay Base. The
manual should be considered an integral part of the product, and if
you are installing the device, it is mandatory to provide a copy of the
manual to the homeowner and any subsequent users.
The OM866RB-10RF Pairing Relay Base is a versatile device that
switches a relay upon receiving a wireless alarm signal from a
compatible Red RF smoke alarm. The electrically isolated contacts
1. Connect the power supply wires (Live & Neutral) to the mains
terminal block according to Fig.2. (Screw tightening torque: max
0.5Nm (5.1kgf.cm)).
Note: Do not connect a green/yellow or copper earth wire to any
terminal, as the unit must not be earthed.
2. Connect the L (Live) wire from the power supply of the auxiliary
device to the COM (Common) terminal.
3. Connect either the NC or NO contact of the relay (depending on
what is required for controlling the auxiliary device) to the auxiliary
device.
• If the relay is used to cut out a boiler in case of alarm, use NC.
(see Fi.g 4)
• For a Beacon that should only be on in case of alarm, use NO.
(see Fig. 5)
Fig. 4 Relay used to cut out a
boiler in case of alarm
Power Supply
(230V AC)
P C
L
Auxiliary Device
Power Source
(230V or Low
N N
Voltage)
Auxiliary
Device
Fig. 5 Beacon that should only
be on, in case of alarm
Power Supply
(230V AC)
P C
L
Auxiliary Device
Power Source
(230V or Low
NC COM
N N
Voltage)
Auxiliary
Device
4. Alternatively, if the auxiliary device is powered from the same
circuit as the relay (i.e. 230VAC), insert a link wire between the L
(Live) terminal and the C (Common) terminal of the relay. Then,
connect either the NC or NO contact of the relay (depending on
what is required) to the auxiliary device. Connect the N (Neutral)
terminal from the relay to the auxiliary device as shown in the
diagrams below. (see Fig. 6)
of the relay can be used for numerous applications, such as
Issue: Mar 2024
signaling and turning on lights. The OM866RB-10RF is specially
designed to operate with Orca Gen 2 RF devices.
The OM866RB-10RF Pairing Relay Base is powered by the 230V
AC mains and features Lithium backup cells. By default, the relay
operates continuously, meaning it switches on when one of the
smoke alarms detects fire and switches off when the alarm condition
ceases.
IMPORTANT SAFETY NOTES
• The installation of mains-powered OM866RB-10RF Pairing Relay
Base should be performed by a qualified electrician in accordance
with the relevant local Regulations for Electrical Installations.
Incorrect installation may expose the user to shock or fire hazards
and damage the product. This unit is not waterproof and must not be
exposed to dripping or splashing.
• It is mandatory to incorporate an all-pole mains switch into the
electrical installation of the building.
• For connecting the pattress to Alternative Energy Sources – (Wind,
solar, UPS, etc.) - This product is designed to be connected to a
Pure or True Sine Wave 230V AC supply. If you plan to connect it to
a power source that utilizes an inverter, such as a PV solar panel,
ensure that the Total Harmonic Distortion (THD) is less than 5%. If
you are unsure, please consult the inverter manufacturer. The same
applies to battery-powered UPS (Uninterruptible Power Supply)
inverters.
• The relay base must not be powered from a light dimmer circuit.
Fig. 1 Product Dimension
Red LED
Indicator
o C
25mm
Fig. 6 Auxiliary device powered
from same circuit as relay
Power Supply
(230V AC)
Auxiliary
RF Signal Trigger
3. SET UP RELAY OPERATION TO EITHER CONTINUOUS OR
PULSE
1. To set up the relay operates
continuously or pulse, find the location
ON
OFF
PIN cap and the 3 PINs.
By default, a black pin cap should be
NC COM NO
COM NO fitted to 2 pins at the right side, that
L IC N N IC L E
means the relay operates continuously
L N
in which it will switch on when one of
the smoke alarms detects fire and
switches off when the alarm condition
ceases.
2. If momentary (pulse) relay operation
RF Signal Trigger
is required, carefully remove the black
pin cap and fit it into the "P" position
(see Fig. 7).
This is commonly used with warden call
systems where only momentary short
circuit signaling is required. Do this
ON before connecting the mains power or
OFF
activating the lithium cells.
NC COM NO
3. With the switch in the "C"
L IC N N IC L E
(Continuous) position, the alarm signal
N
L
will switch the latching relay until a
cancel signal is received.
4. SET UP LITHIUM BATTERY STATUS FROM "OFF" TO "ON"
1. Turn on the lithium cells by gently sliding the switch to the "ON"
position (see Fig. 2). This switch must be in the 'ON' position to
ensure correct operation.
2. Fit the cover to the module pillars and screw it in place using the
two screws supplied.
110mm
RF Pairing
Button
Green LED
Indicator
COVER
ATTACHMENT
SCREWS
RF SignalTrigger
P C
Device
L
NC COM NO
NC COM NO
L IC N N IC L E
L N
N
Default Setting:
Continuous Operation
PINs PIN Cap at right
P
(Pulse)
Alternative Setting:
Pulse Operation
PIN Cap at left
P
(Pulse)
INSTALLATION INSTRUCTION
1. BEFORE WIRING THE RF PATTRESS
NOTE: USER IS STRONGLY RECOMMANDED TO READ THE
MANUAL AND FOLLOW THE STEPS IN CHRONOLOGICAL
ORDER TO COMPLETE THE SET UP OF RF RELAY PATTRESS.
Carefully read and follow these instructions:
1. Disengage the mains from the circuit before installing the
apparatus to ensure safety.
2. To prevent injury, securely attach the apparatus to the ceiling or
wall according to the installation instructions. Choose a suitable
mounting position near the mains supply and the device to be
connected to the relay.
Note: Keep the apparatus away from metal surfaces or large metal
objects that may interfere with the RF signal range.
3. If the incoming wiring is on the surface of the wall/ceiling, use
appropriately sized trunking/conduit to mate with the unit. Remove
the material from the knockout with a sharp knife, ensuring that
there is no gap when mated with the trunking/conduit. There is one
suitable surface cabling knockout
Note: the other two surface entries are not recommended as the
wiring will reduce the antenna signal). There is one rear entry
knockout. Refer to Fig.2 for details.
2. WIRING INSTRUCTION
At this point, the OM866RB-10RF module should already been
screwed
to the wall/ceiling and there is a house wires out bringing through it.
RF Antenna [868MHz]
Surface Conduit
Cable Entry
PIN & PIN Cap
P C
Red LED
Indicator
Screw
Mouting Holes
NC COM NO
L IC N N
C - Common
NC - Normally Closed
NO - Normally Open
CONNECT MAINS
USE THIS TERMINAL TO LOOP TO TERMINAL BLOCK
L - LIVE
MAINS POWER AND
N - NEUTRAL
INTERCONNECT LINE TO
IC - INTERCONNECT
ANOTHER ALARM OR DEVICE
E - Earth / E-Loop
5. TESTING THE RELAY PATTRESS POWER STATUS
1. Engage the mains power to activate the OM866RB-10RF Relay
Base.
2. Check if the green light is on. If the green light is not present,
check if the wires have been connected correctly (see Fig. 2).
Note: The green LED will be on whenever AC power is present.
Switch on the backup battery to ensure that the battery power has
been charged.
ON
OFF
6. RF PAIRING SET UP
1. PROGRAM THE RF PAIRING
Find the RF Pairing Button on the RF Relay Pattress.
1.1 Press and hold the RF Pairing switch through the hole in the
cover using a small screwdriver (see figure 1a) until the Red LED
is illuminated. The Red LED Light will stay illuminated for 150
seconds.
1.2 RF Code all other RF Alarms and devices in the network.
Consult the instruction manuals on how to RF Pair the Alarms and
devices. Ensure that each individual Alarm/device is put into RF
network in its final location.
Red LED bright
Fig. 7
for 150 sec
C
(Continuous)
1.3 To complete the commissioning, the RF network must exit RF
Pairing mode.
1.4 The OM866RB-10RF will automatically exit RF Pairing mode
after 150 seconds. To manually exit RF Pairing mode, press the
RF Pairing button again on the OM866RB-10RF one time. The Red
C
LED indicator will lights off and the system will return to standby
(Continuous)
mode.
Note: If some devices continue to flash amber/red, consult their
instruction manual to manually exit RF Pairing mode. Check that
the RF indicators have stopped flashing on all devices.
Note: Once RF network is made, the system will not communicate
with any other RF Alarms and RF devices outside of RF paired
group.
Wiring details for connecting to a
Fig. 2
low voltage or voltage free device
RF Pairing Button
Green LED
Indicator
Backup-Battery
On/off Switch
ON
OFF
Screw Mounting
Holes
IC L E
Rear Entry Knockout
Or
Surface Conduit
Cable Entry
Surface
Conduit Cable
Use screw driver to
press the RF Pairing
Button
