- Page 1 BSK NOTUS HV 4” Touch Display User Guide...
-
Page 3: Table Of Contents
Table of Contents Preface ......................1 Standby Screen ....................2 Home Screen ....................3 Connection Icons ..................4 Status icons ....................4 Fan Speeds ....................5 Manual Boost & Heater ................6 Set Temperature ..................7 Device Monitor ....................8 Device Monitor Icons .................. - Page 4 Device Settings ..................15 Display settings ..................15 Modbus settings ................... 16 Date & Time ..................17 Service Settings ..................18 VNT Fan Speed settings ................ 18 ASP Fan Speed settings ................ 19 Other settings..................20 Bypass damper ................20 Free-cooling mode ..............
-
Page 5: Preface
By choosing BSK units, you are investing in a solution that seamlessly combines efficiency and ease of use, offering you unparalleled control over your indoor environment. -
Page 6: Standby Screen

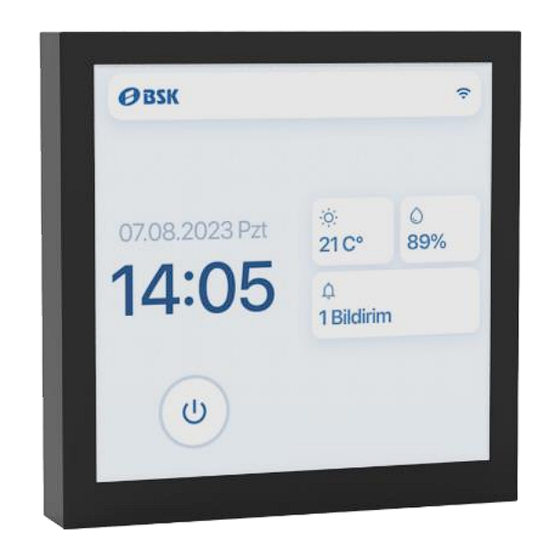

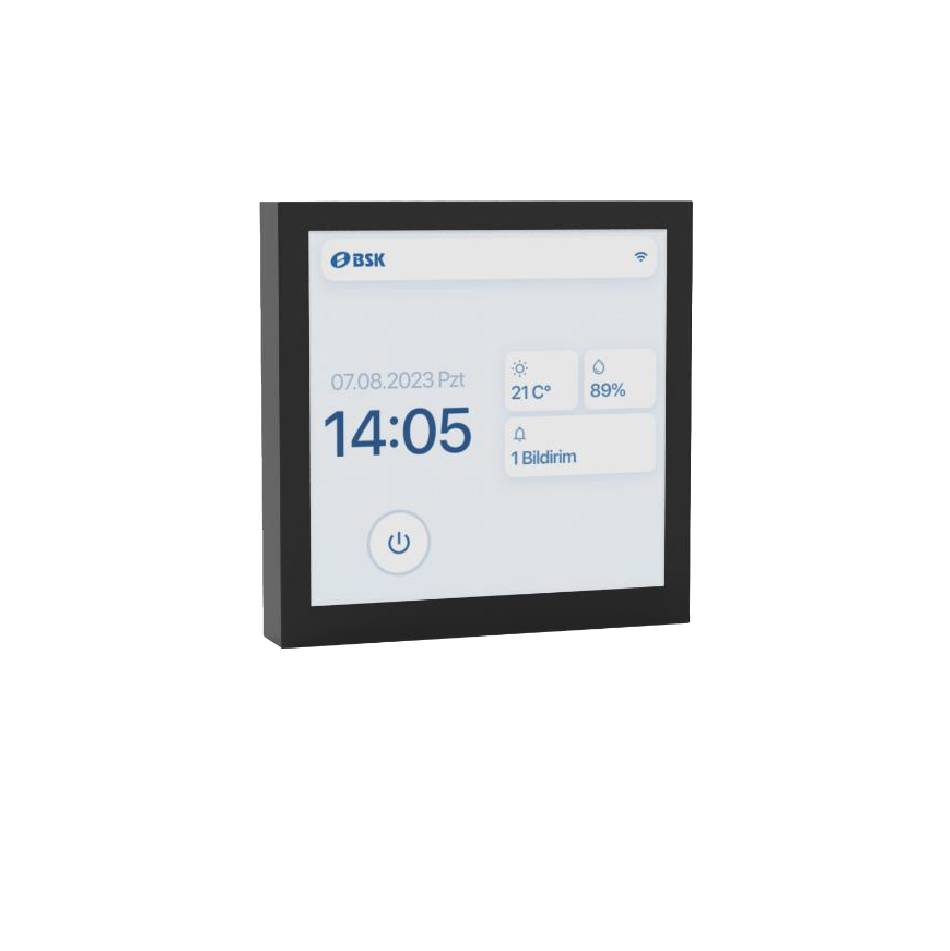

Standby Screen Standby Screen: When the unit is turned off, the standby screen is displayed. Powering On: To turn on the device, press the power button located on the bottom left corner of the screen. Time & Date Display: The current time and date are prominently displayed on the left side of the screen for your convenience. -
Page 7: Home Screen
Home Screen Time & Date Status Icons Internal temperature External and humidity temperature and humidity After heater ON/OFF Manual Boost ON/OFF Fan speed Temperature presets Device Power OFF Settings button Monitor Button... -
Page 8: Connection Icons
Connection Icons No WiFi connection WiFi Connected (Signal Strength) WiFi Connected, No Internet (Signal Strength) Bluetooth Active Mesh Connection Successful Mesh Connected, No Internet Status Icons Free Cooling Mode Active External Boost Mode Active Humidity Boost Mode Active Manual Boost Mode Active Defrost Mode Active Pre-heater Activated... -
Page 9: Fan Speeds
Fan speeds Access Fan Speed Options: Navigate to the home screen and tap either the VNT or ASP fan speed icon. Select Fan Level: A pop-up menu will appear. Choose your desired fan speed from the available presets: Sleep, Low, Mid, High, or Boost. Customize Speed Settings: If you prefer a specific fan speed percentage, access the settings menu for further customization. -
Page 10: Manual Boost & Heater
Customize Settings: Fine-tune your experience by adjusting fan speeds and boost time. Refer to page 12 for detailed instructions. After Heater Control: After Heater Accessory: If a BSK electrical or water after heater accessory is installed and connected to the unit: Toggle After Heater: Use the "HEATER"... -
Page 11: Set Temperature
Set Temperature Access Set Temperature: Use the "SET TEMP." button to initiate the set temperature adjustment. Enter Desired Temperature: Upon clicking, a numpad will appear, allowing you to enter your desired temperature within the range of 15-35°C. Automatic Free-Cooling Mode: In AUTO free-cooling mode, if the set temperature is within +-2°C of the outside temperature, the device will automatically engage free- cooling mode by opening the bypass damper. -
Page 12: Device Monitor
Device Monitor Navigate to Device Monitor: Click on the bottom-left button to access the Device Monitor page. View Sub-System Status: On the Device Monitor page, you can check the real-time status of your unit's sub-systems. Troubleshooting and Validation: Utilize this page for troubleshooting and ensuring the proper functioning of your device. -
Page 13: Device Monitor Icons
Device Monitor Icons The meaning of several device monitor icons are as follows; Filters Fans Damper Heaters Unavailable Default Warning Error These icons help users quickly assess the status of different components, making troubleshooting and system monitoring more intuitive. -
Page 14: Settings Page
Settings Page Navigate to Settings: Click the bottom-left button to enter the Settings page. Select Setting Groups: Within the Settings page, choose the specific group of settings you want to configure. Return to Home Page: Press the Home button in the middle to easily return to the main home page. -
Page 15: Weekly Program
Weekly Program settings. Future Update for Local Weekly Program: Please note that the local weekly program feature will be added in a future update. To set your Weekly Programs on your mobile device, download and use the "BSK Connect" app. -
Page 16: Boost Settings
Manual Boost Adjust Fan Speeds: On the Manual Boost Settings page, modify the VNT and ASP fan speeds to your preference when the device enters Manual Boost Mode. Set Timer: Additionally, set the timer for the Manual Boost Mode. The device will operate at the adjusted fan speeds for the specified duration. -
Page 17: Humidity Boost
Humidity Boost Adjust Fan Speeds: On the Humidity Boost Settings page, customize the VNT and ASP fan speeds for when the device enters Humidity Boost Mode. Set Humidity Level: Specify the desired humidity level that triggers the activation of Humidity Boost Mode. Automatic Activation: When the indoor relative humidity exceeds the set level, Humidity Boost Mode will activate automatically. -
Page 18: External Boost
External Boost Adjust Fan Speeds: On the External Boost Settings page, customize the VNT and ASP fan speeds for when the device enters External Boost Mode. Activation Mechanism: External Boost Mode is activated when the external boost port of the unit is connected to a switch, such as a kitchen hood or a simple wall switch. Connection Guidelines: Ensure the boost port connection is a dry contact. -
Page 19: Device Settings
Display Settings Accessing Display Settings: In the Device Settings page, navigate to the Display tab to modify settings related to your BSK Touch Display. Adjust Screen Brightness: Use the display brightness slider to customize the screen brightness according to your preference. -
Page 20: Modbus Settings
Modbus Settings Accessing Modbus Settings: Navigate to the Device Settings page, and under the Modbus tab, customize various settings related to the Modbus connection. Modify Modbus Device Address: Adjust the Modbus Device Address to suit your configuration requirements. Baud Rate Configuration: Change the connection baud rate to optimize the Modbus connection speed. -
Page 21: Date & Time
Date&Time Settings Accessing Date & Time Settings: Visit the Device Settings page, and under the Date & Time tab, adjust the clock and calendar settings for your device. Modify Date: Change the DAY / MONTH / YEAR to update the device's date. Modify Time: Adjust the HOUR : MINUTE to set the accurate time for your device. -
Page 22: Service Settings
VNT Fan Speeds Accessing VNT Fan Speed Settings: In the Service Settings page, navigate to the VNT Fan Speed tab to modify the 5 preset fan speed values for the ventilator fan. Adjusting Fan Speed: To change the default ventilator fan speed settings, select the desired fan level. -
Page 23: Asp Fan Speed Settings
ASP Fan Speeds Accessing ASP Fan Speed Settings: In the Service Settings page, navigate to the ASP Fan Speed tab to modify the 5 preset fan speed values for the ventilator fan. Adjusting Fan Speed: To change the default ventilator fan speed settings, select the desired fan level. -
Page 24: Other Settings
Other Settings Bypass Damper: ON: The bypass damper will permanently stay open, activating Free Cooling mode continuously. OFF: The bypass damper will permanently stay closed, deactivating Free Cooling mode continuously. AUTO: Free Cooling mode will be controlled automatically based on the set temperature. -
Page 25: Set Filter Pressure
Activates for 5 minutes every 1 hour. Pre-heater Installed Toggle: If a BSK PFC Electrical heater is installed and connected, toggle ON to deactivate Defrost Mode and control the pre-heater automatically. -
Page 26: General Warnings
GENERAL WARNINGS By adhering to these guidelines, you contribute to the safe and efficient operation of the Touch Screen Controller for the heat recovery device. Installation and Commissioning: Ensure the installation and commissioning of the Touch Screen Controller are exclusively carried out by qualified personnel to guarantee optimal performance. - Page 27 Operating Environment: Do not expose the Touch Screen Controller to extreme environmental conditions such as heated swimming pools or cold storage rooms. Ensure it operates in environments with consistent humidity and temperature levels. Avoid Corrosive and Flammable Environments: Do not use the Touch Screen Controller in corrosive environments (acids, oil mist, paint, toxic gases, etc.) or in flammable media containing explosive gases.
-
Page 28: Warranty
2 years from the date of the customer's invoice. Damage resulting from unauthorized repairs, modifications, or replacement of parts without written permission from BSK or an authorized service is not covered by the warranty. Failures related to structural flaws, material defects, or manufacturing problems, as well as faults in the touchscreen, control systems, or electronics, are eligible for repair or exchange during the warranty period. - Page 29 To enhance your overall experience, ensure ease of use, and receive seamless software updates, we recommend downloading our mobile app, BSK Connect. Simply pair it with your device for a unified and feature-rich user experience. Stay connected and enjoy the latest software updates...
