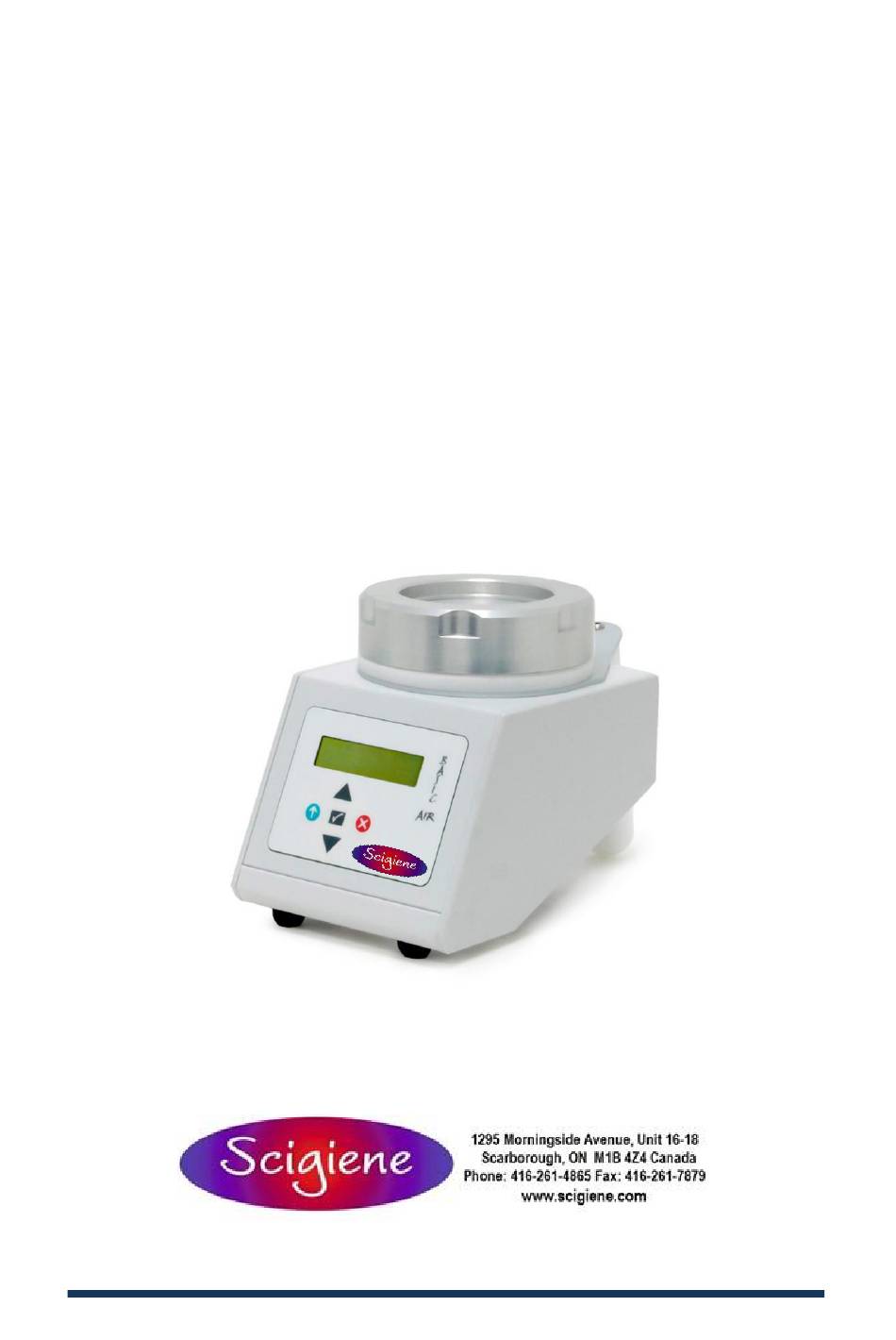

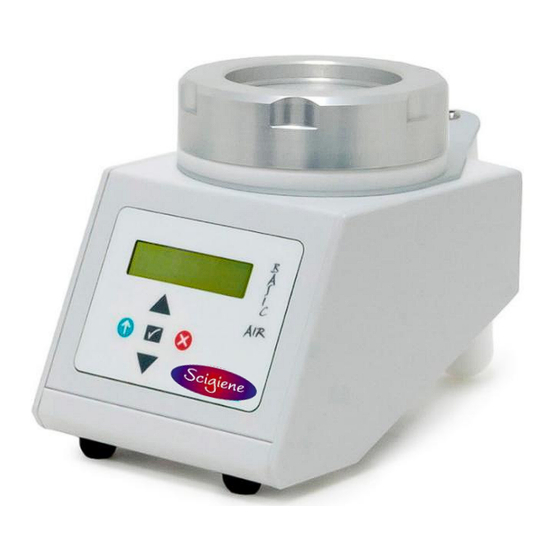

- Page 1 Spin Air Basic – Air Sampler Manual MC-90005532/ MC-90005535...
-
Page 2: Table Of Contents
Indication of the Introduced Modifications ........4 1. Introduction ................1.1. Intended Use of the Spin Air Basic ........5 1.2. Device Description ............. 5 1.3. General Information ............6 1.3.1. Scope of Delivery ..................1.3.2. Technical Assistance ................1.3.3. Policy Statement .................. - Page 3 Installation ................17 4.1. Unpack the Device ............17 4.2. Site Requirements ............17 4.3. Power Cable Connection ..........17 Operating Procedures ............18 5.1. Charging Battery .............. 18 5.2. Sampling ................18 5.3. Advanced Menu ..............20 Calibration ................21 7.
-
Page 4: Indication Of The Introduced Modifications
INDICATION OF THE INTRODUCED MODIFICATIONS If it’s the first time that you use Spin Air Basic, please read the entire document carefully. If it’s not the first time that you use Spin Air Basic and you use it before, in the table below you can read the indication of the introduced modifications. -
Page 5: Introduction
1. Introduction Thank you for choosing the Spin Air Basic. We are confident that this instrument will become an integral part of your laboratory. Before using the Spin Air Basic, it is essential that you read these Instructions for Use carefully. -
Page 6: General Information
This information is helpful to other customers as well as to the researchers at Scigiene. We, therefore, encourage you to contact us if you have any suggestions about product performance or new applications and techniques. -
Page 7: Policy Statement
1.3.3. Policy Statement It is the policy of Scigiene to improve products as new techniques and components become available. Scigiene reserves the right to change the specifications of products at any time. To produce useful and appropriate documentation, we appreciate your comments on these Instructions for Use. -
Page 8: Safety Information
2. Safety Information Before using the Spin Air Basic, it is essential that you read these Instructions for Use carefully. Following the instructions and safety information in this Instructions for Use will ensure safe operation and maintain the system in a safe condition. The following types of safety information appear throughout the Spin Air Basic Instructions for Use. -
Page 9: Electrical Safety
If the operation of the Spin Air Basic is interrupted in any way (e.g., due to interruption of the power supply or a mechanical error), first switch off the instrument using the power button, then unplug the power cord from the power outlet. Contact Scigiene or IUL’s Partner Technical Service after such an incident. - Page 10 The instrument has been stored under unfavourable conditions for a prolonged period. • A different external power supply is used other than the one provided by Scigiene . Risk of electric shock WARNING In case of replacement or loss of the external power supply or the power cord, these must be replaced only with the external power supply or power cords listed on the “Appendix A: Ordering Codes”...
-
Page 11: Environment
2.3. Environment Operating conditions CAUTION Explosive atmosphere The Spin Air Basic is not designed for use in an explosive atmosphere. CAUTION Overheating risk Do not cover gaps and slots that ensure the ventilation of the Spin Air Basic. 2.4. Biological Safety Use safe laboratory procedures as outlined in publications such as Biosafety in Microbiological and Biomedical Laboratories, HHS: https://www.cdc.gov/labs/pdf/CDC-BiosafetyMicrobiologicalBiomedicalLaboratories-... -
Page 12: Chemicals
2.5. Chemicals Hazardous chemicals Some chemicals used with the Spin Air Basic may be hazardous. Always wear safety glasses, gloves, and a lab coat. The responsible person(s) (e.g., laboratory manager) must take the WARNING necessary precautions to ensure that the workplace is safe and that the instrument operators are suitably trained and not exposed to hazardous levels of toxic substances (chemical or biological), as defined in the applicable Safety Data Sheets (SDSs) or OSHA,... -
Page 13: Symbols On The Spin Air Basic Device
2.8. Symbols on the Spin Air Basic Device Symbol Location Description Waste Electrical and Electronic Equipment Type plate on the (WEEE), see “Appendix D: Waste Electrical bottom of the device. and Electronic Equipment (WEEE)”. Type plate on the bottom of the device. Appendix I: EU Declaration of Conformity. -
Page 14: General Description
See “Appendix A: Ordering Codes” for more information. NOTE: Use only the AC Adapter supplied by Scigiene to charge the Spin Air Basic. When the device shows a “blank screen” and it is not possible to switch on the device either start the charging process, do the following: Connect the charger, wait 10 seconds, and then push the “Reset”... -
Page 15: Control Panel
3.2. Control Panel ACTION > 3 sec CONTINOUS RUN a program ON (if stopped) STOP running a program Instrument SWITCH OFF STEP BACK in any menu ONE STEP FORWARD. STEP UP quickly With Barcode Scanner connected reads it Change Menu. CHANGE workflow ACCEPT parameter. - Page 16 Risk of malfunction or harmful interference CAUTION Conformity to 2014/30/EU and FCC rules could be compromised by the use of an AC adaptor or power cord not provided by Scigiene see “Appendix A: Ordering Codes” and “Appendix E: RoHS Statement”.
-
Page 17: Installation
4. Installation 4.1. Unpack the Device The packaging of the Spin Air Basic can be stored for reuse. 4.2. Site Requirements Place the Spin Air Basic device on a stable surface, far away from powerful lights and near an earthed/grounded electrical outlet. If a surface is not available, connect the Spin Air Basic to a tripod. -
Page 18: Operating Procedures
5. Operating Procedures 5.1. Charging Battery The instrument works properly during the charging battery process. In this case, the display will show the normal parameters. Low battery indicator Connect power supply > 5 min Battery charged after 5 hours approx. 5.2. - Page 19 2.1 Adjust the volume (10 to 9900L). 2.2 Adjust the minutes of delay before starting the sampling (60 minutes divided in seconds). 2.3 Adjust the rotation speed (0 to 4 rpm). 3. Run the program by pushing The hourglass on the left screen will blink while the program is running: The remaining and the elapsed time will be indicated as is shown below: 4.
-
Page 20: Advanced Menu
5.3. Advanced Menu Push the tick key ( ) for more than 2 seconds to access the advanced menu: To return one step back push the cross key Page 20 of 38... -
Page 21: Calibration
6. Calibration The instrument calibration is valid for 2 years or 1 million air liters. When the instrument reaches one of these situations it shows a message to every operation notifying about that. The calibration must be performed by a trained operator, and it is compulsory to use an anemometer manufactured for this specific purpose. -
Page 22: Troubleshooting
7. Troubleshooting Symptom Probable cause Recommended action Plug the power supply unit. Wait 5 seconds. If the battery icon doesn’t appear then press the The unit cannot turn ON. Battery discharged. RESET button. unit switches The mains cord is unplugged Plug the mains supply and let spontaneously. -
Page 23: Maintenance
8. Maintenance 8.1. Cleaning Procedure To clean the Spin Air Basic device use a damp brush or cloth moistened with a solution of hot water and soap. The stainless steel and aluminum heads can be autoclavable or clean with an alcohol solution (70%). CAUTION Damage to the device. -
Page 24: Appendix A: Ordering Codes
APPENDIX A: ORDERING CODES Spare Parts Product Contents Cat. # Power cord (UK) 1 unit MC-90002497 Power cord (Argentina) 1 unit MC-90002499 Power cord (EU/Schuko) 1 unit MC-90002495 Power cord (China/Australia) 1 unit MC-90002498 Power cord (Japan/USA) 1 unit MC-90002496 Adapter AC 1 unit MC-90001566... - Page 25 Product Contents Cat. # Plastic head and lid for 90 mm Petri 1 unit MC-90005525 dishes Plastic head and lid for 60 mm Petri 1 unit MC-90005526 dishes (RODAC) INOX head and lid for 90 mm Petri 1 unit MC-90005527 dishes Tripod base 1 unit...
-
Page 26: Appendix B: Technical Data
APPENDIX B: TECHNICAL DATA SCIGIENE reserves the right to change specifications at any time. Specifications Airflow 100 l/m (90 mm plate) 60 l/m (55-60 and Rodac plate) controlled by microprocessor 10 – 9900 L Air Total Volume The parameter of total air volume must be referred to sea-level pressure... - Page 27 Overvoltage category Air temperature 10 ~ 40ºC (50ºF ~ 104ºF) Relative humidity 10 ~ 75 % (non-condensing) Atmospheric Pressure 1 atm ± 5% (101.3 kPa) Place of operation For indoor use only Pollution level Energy efficiency level Transportation Conditions 10 ~ 40ºC (50ºF ~ 104ºF) In manufacturer’s packaging Air temperature Relative humidity Maximum 75 % (non-condensing)
-
Page 28: Appendix C: Warranty
APPENDIX C: WARRANTY The SCIGIENE instrument has a 12-month warranty period. The warranty is void when misuse of the equipment can be proved. Damage or faults caused by impacts, chemical or corrosive products, liquids, dampness, or other external factors, such as radiation, fire, or inadequate transport are not included. -
Page 29: Appendix D: Waste Electrical And Electronic Equipment (Weee)
APPENDIX D: WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT (WEEE) This section provides information about the disposal of waste electrical and electronic equipment by users. The crossed-out wheeled bin symbol (see below) indicates that this product must not be disposed of with other waste. The product must be disposed to a certified treatment facility or a recycling collection point, according to local legislation. -
Page 30: Appendix E: Rohs Statement
APPENDIX E: ROHS STATEMENT The following information has been made available to comply with The Restriction of Hazardous Substances Directive, (RoHS2 & RoHS3), short for Directive on the restriction of the use of certain hazardous substances in electrical and electronic equipment. -
Page 31: Appendix F: Statistical Corrections When Sampling Without Disk Rotation
This is because a motionless system only uses 5% of the total surface of the agar. The Scigiene Spin Air has a unique rotation motion device combined with a distinctive distribution of the holes that covers 100% of the agar surface. -
Page 32: Appendix G: Table Of Statistical Corrections For Sampling Using A 55/60 Mm Dish
APPENDIX G: TABLE OF STATISTICAL CORRECTIONS FOR SAMPLING USING A 55/60 MM DISH (USE ONLY IN CASE SAMPLES TAKEN WITHOUT ROTATION) Total number of holes: N = 240 Colony number counter: r Colony number estimated: PR Page 32 of 38... - Page 33 Page 33 of 38...
-
Page 34: Appendix H: Table Of Statistical Corrections For Sampling Using A 90 Mm Dish
APPENDIX H: TABLE OF STATISTICAL CORRECTIONS FOR SAMPLING USING A 90 MM DISH (USE ONLY IN CASE SAMPLES TAKEN WITHOUT DISH ROTATION) Total number of holes: N = 400 Colony number counter: r Colony number estimated: PR Page 34 of 38... - Page 35 Page 35 of 38...
-
Page 36: Appendix I: Eu Declaration Of Conformity
APPENDIX I: EU DECLARATION OF CONFORMITY Distributor Name: SCIGIENE Distributor Address: 1295 Morningside Ave., Unit 16-18, Scarborough, ON Declares that the product Name: Spin Air Basic Part Number: MC-90005500 Conforms the Council Directives: • Directive 2014/30/EU of the European Parliament and of the Council of 26 February 2014 on the harmonisation of the laws of the Member States relating to electromagnetic compatibility (recast). -
Page 37: Appendix J: Certificate Of Compliance En 17141:2020
APPENDIX J: CERTIFICATE OF COMPLIANCE EN 17141:2020 Scigiene Corporation Page 37 of 38... - Page 38 Notes Page 38 of 38...
