Summary of Contents for TOV Katti

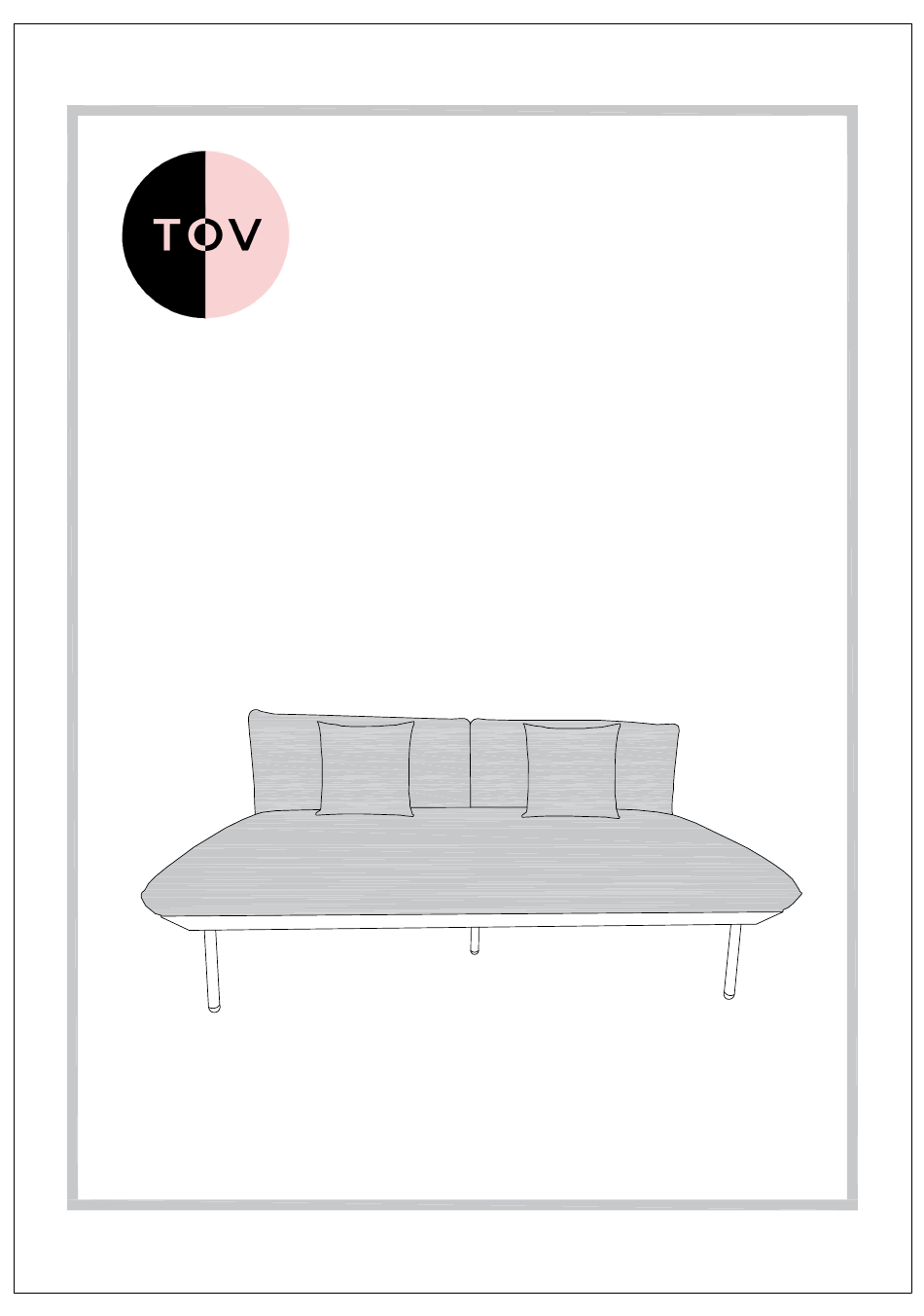

- Page 1 Katti Outdoor Loveseat Katti ASSEMBLY INSTRUCTIONS...
-
Page 2: Seat Cushion
PARTS LIST LABEL PICTURE DESCRIPTION LEFT BACK CUSHION RIGHT BACK CUSHION SEAT CUSHION PILLOWS... -
Page 3: Description Qty
PARTS LIST LABEL PICTURE DESCRIPTION SEAT FRAME BACK FRAMES LEGS MIDDLE LEG BRACKET... - Page 4 HARDWARE LABEL PICTURE DESCRIPTION F-BOLT 6.00x15.00 F-BOLT 6.00x40.00 PLAIN WASHER Ø14x1 LOCK NUT 6.00x6.00 ALLEN KEY SPANDER 10.00x76.00 F-BOLT 6.00x20.00 PLAIN WASHER Ø18x1...
-
Page 5: Assembly Steps
ASSEMBLY STEPS 100% STEP 1 Fully tighten the Bolts. STEP 2 100% Fully tighten the Bolts. - Page 6 Do not fully tighten at this point STEP 3 STEP 4 Do not fully tighten at this point...
- Page 7 Do not fully tighten at this point STEP 5 Fully tighten all Bolts. STEP 6 100% 100%...
- Page 8 STEP 7 Affix the back cushions to the frame with the built-in velcro strips STEP 8 Affix the velcro straps of the seat cushion to the metal frame...
- Page 9 STEP 9 STEP 10 Levelers can be adjusted as necessary to ensure stability...
