NICOLAZZI MODENA ARENA Z3306-K Manual

Single-hole kitchen sink mixer
Hide thumbs

Advertisement

Quick Links

Download this manual
Specifications
• Handmade in Italy since 1960
• ¼ Turn valves handmade at
Nicolazzi Factory
• Lead Free Brass Compliant to
AZ/NZS 3718
• Suitable even and uneven
pressure
• Handles are interchangeable
Further information Phone (03) 9761 4603
Single-Hole Kitchen Sink Mixer
Art: Z3306—K
MODENA ARENA
WM22315
AS/NZS3662
Canterbury Sink & Tap Co.
Max/Min Operating
Pressure: 100/500kPa
sales@sinkandtap.com.au
Available replacement
handles:

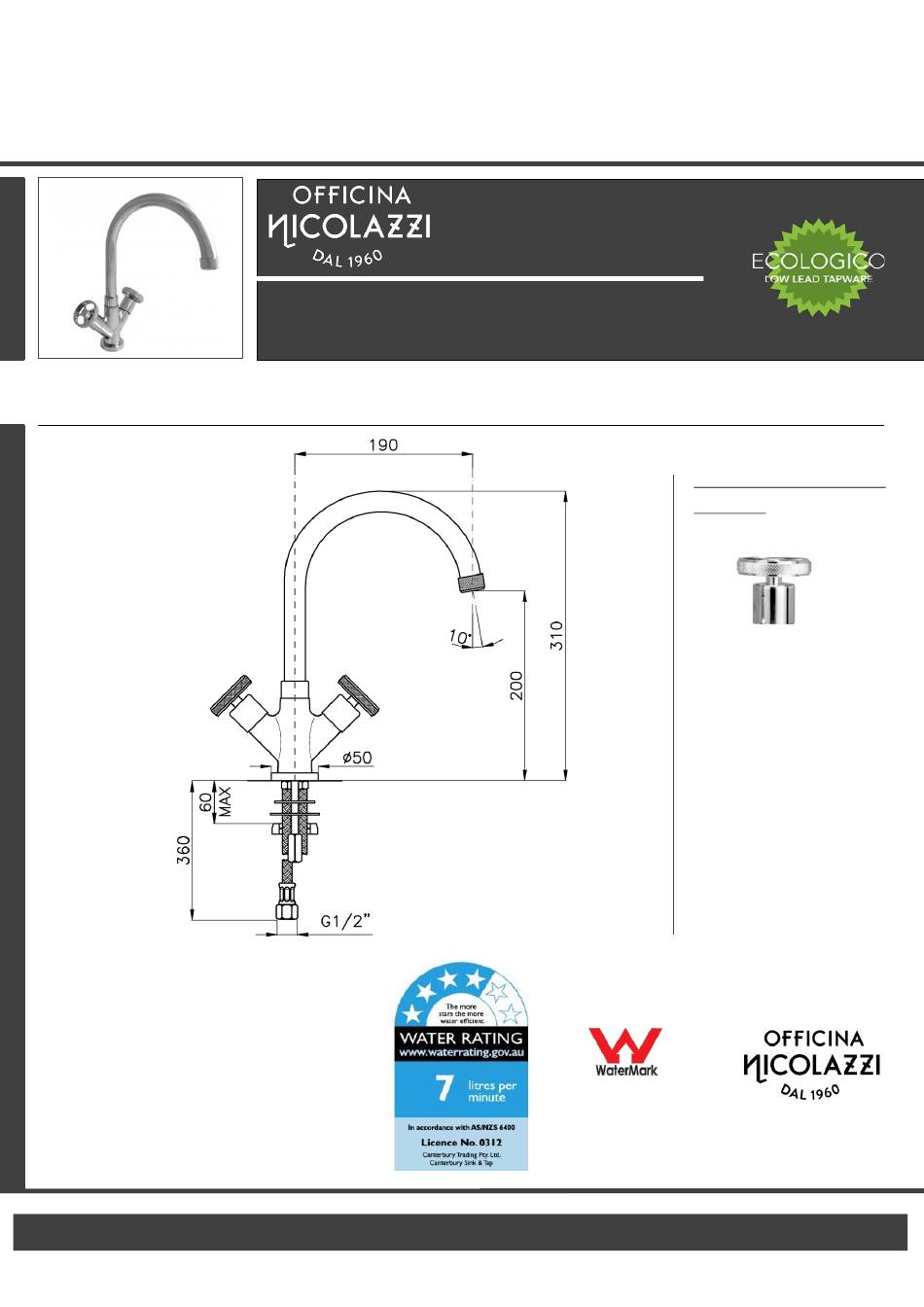

BLANK IMAGE
--44 Handle
PLACEHOLDER

Advertisement

loading
Need help?

Need help?

Do you have a question about the MODENA ARENA Z3306-K and is the answer not in the manual?

Questions and answers

Summary of Contents for NICOLAZZI MODENA ARENA Z3306-K

  • Page 1 Available replacement handles: BLANK IMAGE --44 Handle PLACEHOLDER • Handmade in Italy since 1960 • ¼ Turn valves handmade at Nicolazzi Factory • Lead Free Brass Compliant to AZ/NZS 3718 • Suitable even and uneven WM22315 pressure AS/NZS3662 Canterbury Sink & Tap Co.
  • Page 2 420 kPa or less pressure than 270 kPa may affect the diverting action in side spray tap ware. Do not use any Nicolazzi tap ware with sulphurous water. The minimum temperature for all tap ware is 10 degrees Celcius . Below 10 degrees Celcius will void the warranty.

  • Page 3: Installation Instructions

    Installation Instructions Model : Z3306--K ❶ Preparation  Flush out the pipework to remove any foreign matter.  Tap cut out hole sizes : Maximum 33mm diameter.  Under side clearance : Maximum 60mm ❷ ❸  Install the water supply hoses 3, into the ...
  • Page 4 Installation Instructions Model : Z3306--K  Feed the O-ring 5, over the water supply hoses. ❺  ❹ Install the supplied mounting stud 4, and  Insert the tap into mounting hole. Feed the verify it is securely installed. water supply hoses carefully through the hole ensuring that they are not bent or kinked, as this could result in permanent damage or leakage.
  • Page 5 Installation Instructions Model : Z3306--K ❽  Connect hot and cold water supplies to flexi tail hoses.  Ensure all connections are firmly tightened. Before use  Turn on the Hot and Cold supplies to the tap.  Maximum temperature for Hot water supply to the tapware is 62 °C. ...
  • Page 6 Spare Parts list Model : Z3306--K Further information Phone (03) 9761 4603 sales@sinkandtap.com.au...
  • Page 7 Care and Maintenance Instructions Model : Z3306--K Removing and replacing a handle MODEL SHOWN :Z3306 ❶  ❷  Loosen and unscrew the retaining flange Once totally loose, simply remove the A, from the tap body. handle from cartridge spline. ...
  • Page 8 Care and Maintenance Instructions Model : Z3306--K MAINTENANCE FOR ONE HOLE/TWO LEVER TAP WARE WITH TWO LEVER DESIGN INSTRUCTIONS FOR REPLACEMENT OF THE HOT OR COLD CARTRIDGE Do not replace the cartridge if there is low flow or no flow. Low flow or no flow is caused by obstruction or kinking of supply hoses.
  • Page 9 Care and Maintenance Instructions Model : Z3306-K LOW FLOW OR NO FLOW TROUBLESHOOTING INSTRUCTIONS Current kitchen taps have a max flow rate of 7 Litres per minute from the aerator and the hand spray. If you are experiencing low flow from the spout: Do not change the cartridge •...
  • Page 10 Care of external finishes Nicolazzi products are all authentic finishes that have not been coated with any product. After each use, pat the fixture down to remove any excess water. This will prevent any water spotting or mineral build-up. Use only soft liquid soap and water to clean the surface.
