Pulsar LT User Manual

For gm lt l5p 2020+
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
GM LT L5P 2020+

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LT and is the answer not in the manual?

Questions and answers

Related Manuals for Pulsar LT

Summary of Contents for Pulsar LT

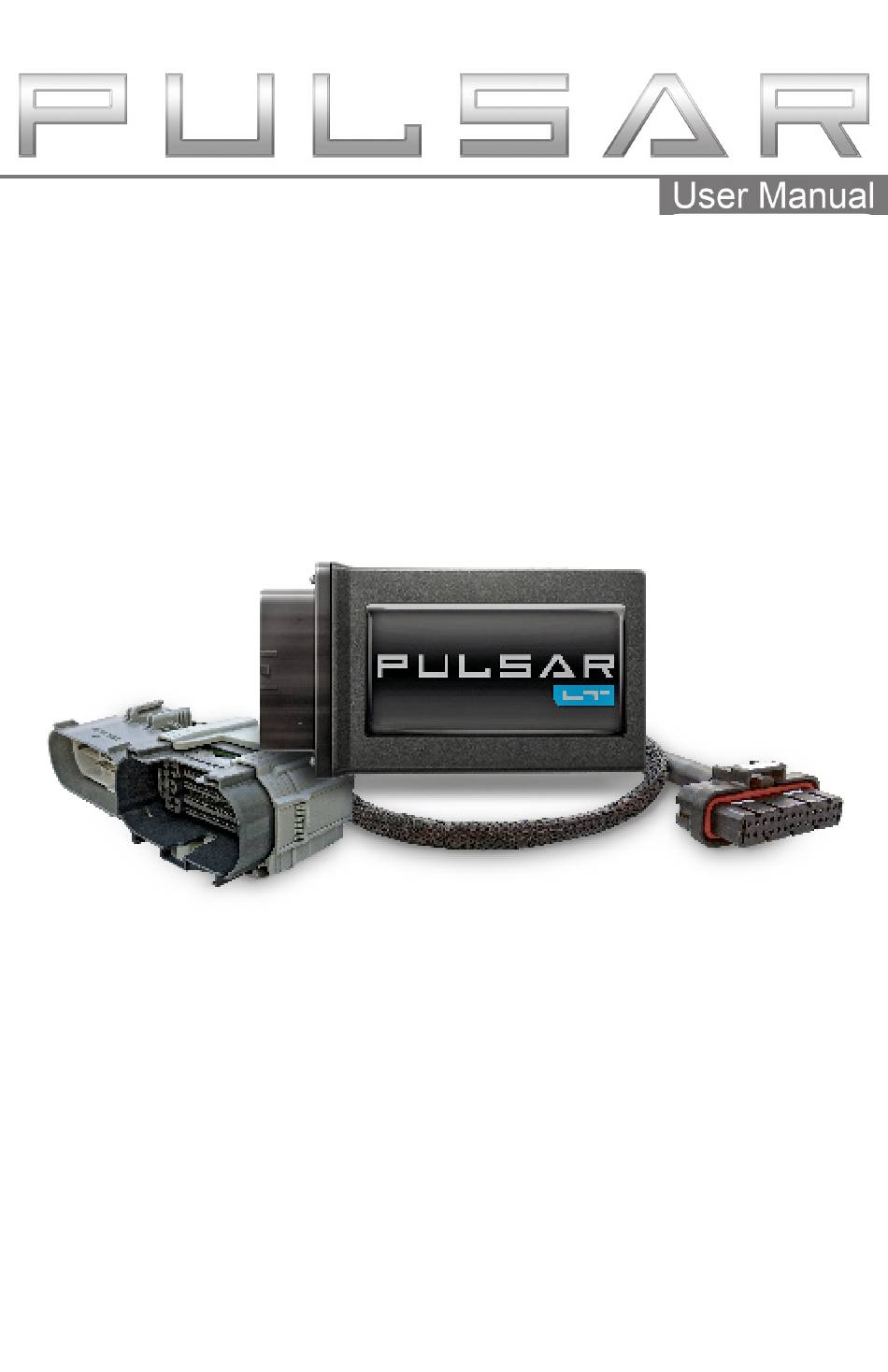

  • Page 1 GM LT L5P 2020+...

  • Page 2: Table Of Contents

    Table of Contents Read Me Safety Warning & Caution Safety Guidelines Installation L5P 2020+ Materials Required Tools Pulsar Installation Controls Steering Wheel Controls Speedometer Levels Explained Power Levels Levels Explained Changing Power Levels High Idle Control How to Activate and Adjust High Idle...

  • Page 3: Read Me

    Read Me Safety Warning & Caution Throughout this User Manual you will see important messages regarding your safety or the protection of your vehicle. These messages are designated by the words WARNING, CAUTION, or NOTICE. WARNING A WARNING indicates a hazardous situation which, if not avoided, will result in death or serious injury.

  • Page 4: Safety Guidelines

    Safety Guidelines WARNING Before using device, read and understand the user manual, including these additional safety instructions. Failure to do so could result in DEATH or SERIOUS INJURY. • Do not exceed legal speed limits on public roadways. Violating traffic laws is dangerous and could result in injury or vehicle damage or both.

  • Page 5: Installation L5P 2020

    Installation L5P 2020+ Materials Pulsar LT Module Zip Ties Velcro Strips Harness Required Tools Plastic Pushpin Puller / Flat Head Screwdriver T-15 Torx Bit...

  • Page 6: Pulsar Installation

    NOTE: The Pulsar LT connector can plug into two locations in the fender well, so make sure you are connected to the one shown in Pic A.
  • Page 7 Pulsar Installation Cont’d STEP 5 - Route the Pulsar LT harness up towards the engine bay. With the Pulsar LT module disconnected, feed the Pulsar LT harness between the coolant reservoir and the brake booster as shown. STEP 6 - Using the...
  • Page 8 Pulsar Installation Cont’d STEP 7 - Clean the top of the fuse box lid, then mount the Pulsar LT to the fuse box using the supplied Velcro strips. STEP 8 - Reinstall the fender liner. STEP 9 - Reconnect batteries.

  • Page 9: Controls

    Controls Steering Wheel Controls Pulsar power levels and Option menus are navigated using the left-side steering wheel buttons. Refer to the information below to better understand how these buttons are utilized. Cruise Control On/Off Function Cancel Level Up RES+ Level Down...

  • Page 10: Power Levels

    STEP 1 - Start the engine. NOTE: Cruise Control cannot be active during power level changing. If Cruise Control is active, the left keypad cannot control the Pulsar module. STEP 2 - Press the Cancel button on the left keypad, the speedometer spindle...

  • Page 11: High Idle Control

    High Idle Control How to Activate and Adjust High Idle The 2020-2021 Pulsar allows the engine to idle at adjustable RPM levels between 700 RPM to 1500 RPM. STEP 1 - Start the engine and leave the vehicle in PARK.

  • Page 12: Programmable Features

    Programmable Features Programming Menu NOTE: To access the programming menu of the device, cruise control must be turned off. The vehicle has to be running to turn off cruise control. Access the Programming Menu Seven modes can be accessed through the programming menu. The speedometer (MPH) gauge is used to display the modes and programming inputs.

  • Page 13: Speed Limiter

    STEP 6 - Press the cancel cruise control button to select the mode. STEP 7 - The speedometer gauge will sweep and then stop at the current programmed conditon. (The stock input will be displayed if not previously adjusted.) Speed Limiter WARNING: Removal / adjustment of the factory speed limiter is intended for use in a close-circuit, legally sanctioned racing environment.

  • Page 14: Tpms - Tire Pressure Monitor System

    TPMS - Tire Pressure Monitor System After adjusting the TPMS inflate to number, the min and max values automatically adjust. This mode reprograms the vehicle ECM. STEP 1 - Access the Programming Menu. STEP 2 - Using +RES or -SET, select mode 20 (MPH) STEP 3 - Press cancel cruise to select.
  • Page 15 Tire Size Cont’d STEP 4 - Enter Stock Tire Size Example: 33.5” Tire -- Whole Number = 33, Decimal = 5 a. Using +RES or -SET, adjust to the Stock Tire Whole number. b. Press cancel cruise to save the input. c.

  • Page 16: Axle Ratio

    Axle Ratio Input Stock and Modified Axle Ratio. NOTE: The axle ratio adjustment feature is only for vehicles with aftermarket axle ratios that have been physically changed in vehicle. If your vehicle has factory axle ratios, please skip this feature. STEP 1 - Access the Programming Menu.

  • Page 17: Manual Regeneration

    Manual Regeneration Manual regeneration allows you to manually clear out the Diesel Particulate Filter (DPF). Completing a manual regeneration cycle will clear the soot mass in the filter, and lower exhaust back pressure to improve exhaust flow. The engine must be at operating temperature. NOTE: When manually initiating a regeneration cycle, some vehicles will require a drive cycle (i.e you have to drive the vehicle some distance) while others may allow you to initiate Service Regeneration...

  • Page 18: Transmission Relearn

    DPF REGENERATION - If you own a newer diesel powered vehicle, your vehicle is equipped with a Diesel Particulate Filter (DPF). This filter is used in conjunction with a diesel oxidation catalyst. Together they work to reduce the amount of soot and emissions emitted from the tailpipe. As soot builds up in the DPF it will begin restricting flow.

  • Page 19: Update Software

    Update Software Downloading Update Agent 1.0 (Optional) The Update Agent may be used to update the device via the USB connection. The software can be downloaded through the internet. This process currently can only be done on a Windows computer, Mac devices are not supported. NOTE: It is recommended to install Update Agent 1.0 on a laptop computer for best accessibility (you will need to connect the computer to the vehicle’s OBDII port to perform updates).

  • Page 20: Product Updates

    NOTE: The Pulsar must be installed into a vehicle before updating. When updating, you CANNOT use your vehicles Wi-Fi. It will be disabled during the update process. Use an external source such as your home Wi-Fi.

  • Page 21: Frequently Asked Questions

    NOTE: Cruise control can be used as normal, you just can’t change power levels when cruise control is on. Question: Should I remove the Pulsar prior to going to the dealer? Answer: Yes, please remove the Pulsar as to eliminate it from the system so they can perform any updates or services.
  • Page 22 PAGE INTENTIONALLY LEFT BLANK...
  • Page 23 PAGE INTENTIONALLY LEFT BLANK...
  • Page 24 Copyright© 2022 D10027400Rev00 01/26/2022 For additional questions not found in the user guide call: Powerteq Technical Support: 1-888-360-3343 Mon-Fri 8am - 5pm, Sat 8am-2pm MST To expedite your support call, please have your Vehicle Information, Part Number, and Serial Number ready prior to calling Technical Support.
