ALLEN + ROTH and logo design are trademarks or
registered trademarks of LF, LLC. All rights reserved.
Serial Number _______________ Purchase Date _______________
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 909-287-0730, 8 a.m. - 5 p.m. PST, Monday - Friday.
You may also contact us anytime at service@permasteel.life.
SS22045
EMERALD COVE
ATTACH YOUR RECEIPT HERE
1
ITEM #

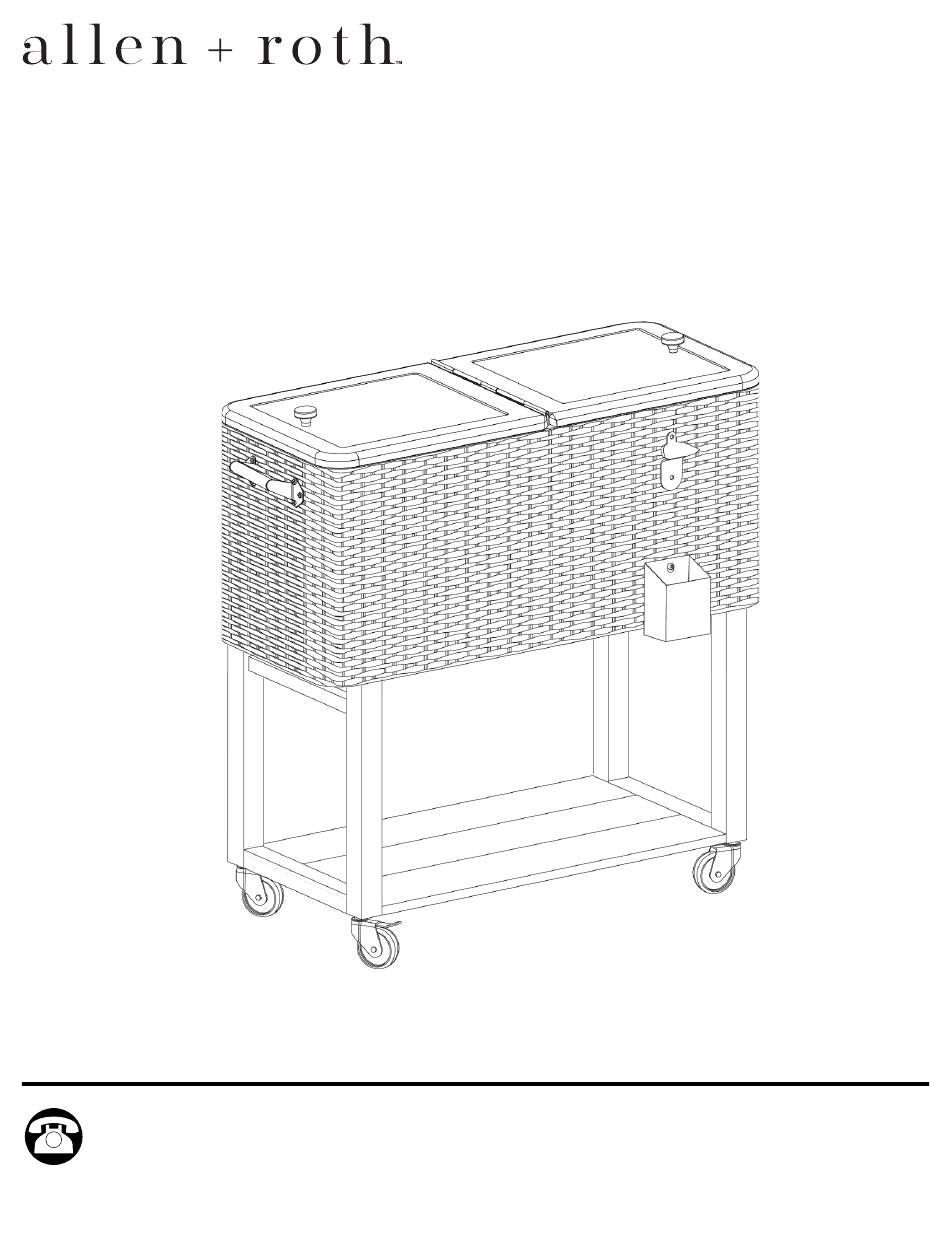

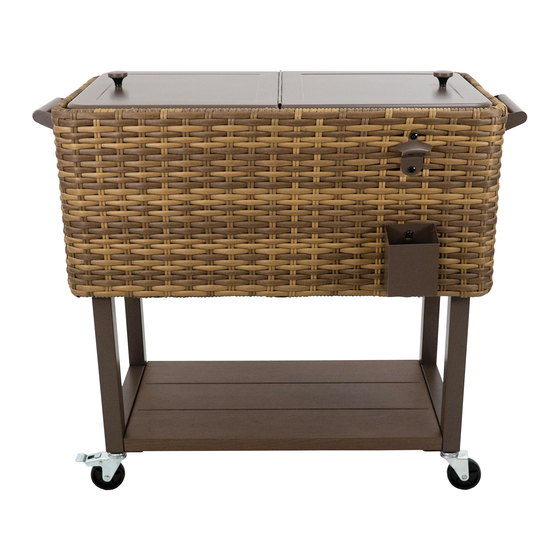

80QT ROLLING
PATIO COOLER
MODEL # PS-217-BR
5203847
Advertisement
Table of Contents
Related Manuals for Allen + Roth PS-217-BR
Summary of Contents for Allen + Roth PS-217-BR
- Page 1 ITEM # 5203847 EMERALD COVE ALLEN + ROTH and logo design are trademarks or 80QT ROLLING registered trademarks of LF, LLC. All rights reserved. PATIO COOLER MODEL # PS-217-BR ATTACH YOUR RECEIPT HERE Serial Number _______________ Purchase Date _______________ Questions, problems, missing parts? Before returning to your retailer, call our customer service department at 909-287-0730, 8 a.m.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Package Contents………………………………………………………………………………………. Hardware Contents.…………………………………………………………………………………….. Safety Information..……………………………………………………………………………………… Preparation..…………………………………………………………………………………………...… Assembly or Installation Instructions………………………………………………………………….. Care and Maintenance.………………………………………………………………………………… Warranty……………………………………………………………………….………………………..PRODUCT SPECIFICATIONS SPECIFICATIONS 37.6in L x 20.6in D x 33.7in H Steel & cane cover construction 80 QT capacity... -
Page 3: Package Contents
PACKAGE CONTENTS ITEM # DESCRIPTION PART # ITEM # DESCRIPTION PART # Body (Basin) PP217BR-A Bottle Opener PP217BR-F PP217BR-B Cap Catcher PP217BR-G Bottom Shelf PP217BR-C Handle PP217BR-H Leg Frame PP217BR-D Caster PP217BR-I Caster with Brake PP217BR-J Knob PP217BR-E... -
Page 4: Hardware Contents
HARDWARE CONTENTS M6 x 13 mm Bolt Qty: 12 M4 x 32 mm (Note: Another Screw 12 bolts are pre-attached to Qty: 2 the body) (Note: Pre-attached to lid knobs) Tools included: Open end wrench Allen wrench... -
Page 5: Safety Information
SAFETY INFORMATION Please read and understand this entire manual before attempting to assemble, operate or install the product. CAUTION • Hand tools only, use of power tools could damage product. • Remove all components, hardware and tools from box before assembly. Inventory and separate each of the hardware and components included. -
Page 6: Assembly Or Installation Instructions
ASSEMBLY INSTRUCTIONS Attach the leg frames (D) to the body (A) using eight M6 x 13 mm bolts. Note: Do not fully tighten the bolts. Leg frames should be loose so that it can be aligned with the holes on the bottom shelf. Hardware Used M6 x 13 mm Bolt Allen wrench... - Page 7 ASSEMBLY INSTRUCTIONS Attach the body handles (H) to body (A) using twelve pre-attached M6 x 13 mm bolts, and tighten with the provided Allen wrench. Note: Do not fully tighten the bolts until the handle is aligned with the holes on the body. Hardware Used M6 x 13 mm Bolt Allen wrench...
-
Page 8: Care And Maintenance
ASSEMBLY INSTRUCTIONS Attach the cap catcher (G) to body (A) by sliding onto the two pre-installed shoulder bolts. CARE AND MAINTENANCE • Cooler must be drained of water and completely dried in and out with a soft-clean cloth after every use.
