Softel SFT3536S User Manual

Encoder modulator dvb-c
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SFT3536S
Encoder Modulator DVB-C User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SFT3536S and is the answer not in the manual?

Questions and answers

Summary of Contents for Softel SFT3536S

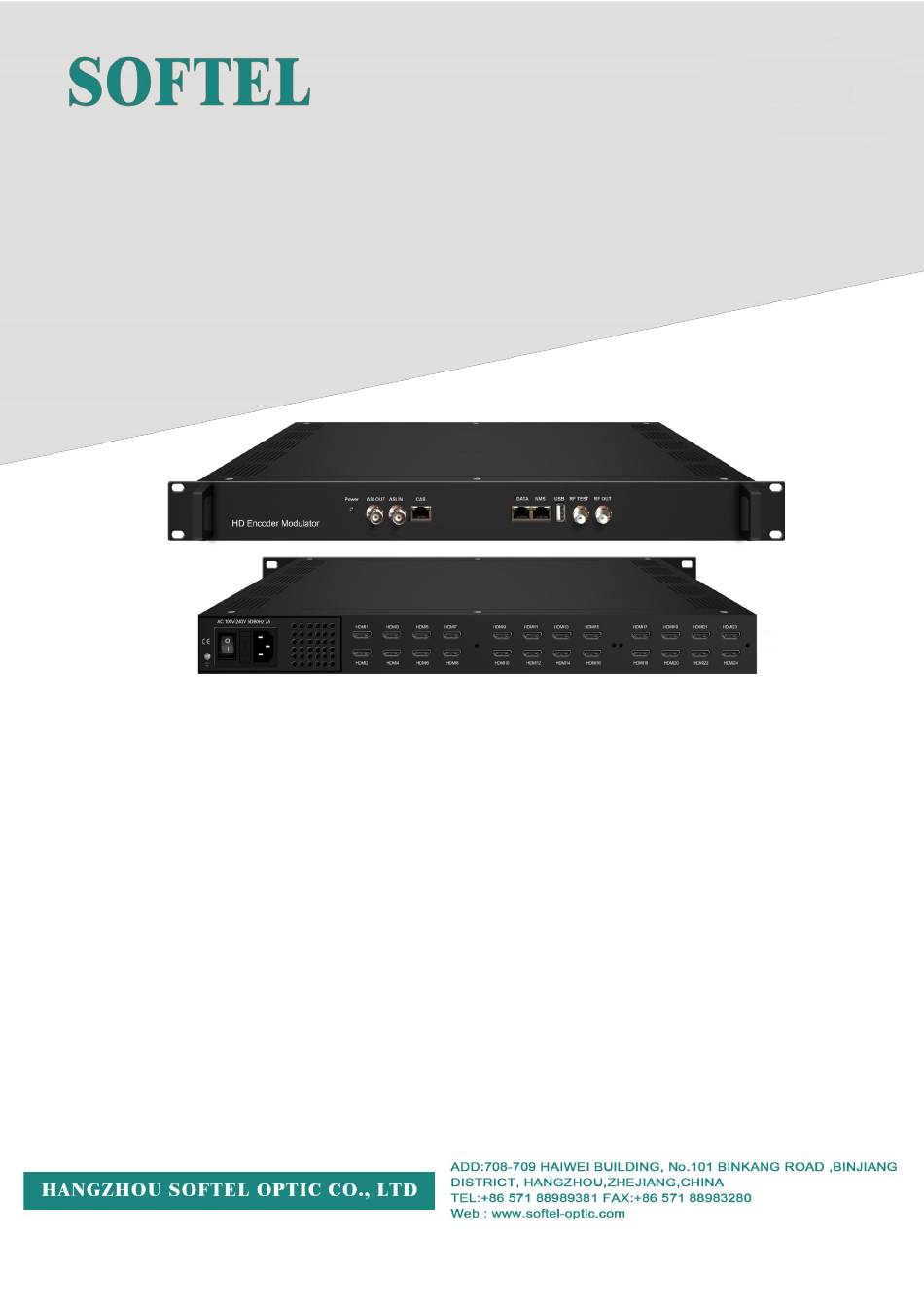

  • Page 1 SFT3536S Encoder Modulator DVB-C User Manual...
  • Page 2 The contents of this document are subject to revision without notice due to continued progress in methodology, design and manufacturing. SOFTEL shall have no liability for any error or damage of any kind resulting from the use of this document.

  • Page 3: Table Of Contents

    SFT3536S Encoder Modulator DVB-C User Manual Directory CHAPTER 1 INTRODUCTION ................错误！未定义书签。 1.1 P ..........................1 RODUCT VERVIEW 1.2 K ............................1 EATURES 1.3 S ............................2 PECIFICATIONS 1.4 P ............................ 3 RINCIPLE HART 1.5 A ......................4 PPEARANCE AND ESCRIPTION CHAPTER 2 INSTALLATION GUIDE ....................

  • Page 5: Chapter 1 Introduction

     8/16/24 HDMI inputs, MPEG-4 AVC/H.264 Video encoding  1 ASI input for re-mux  1 USB Player (Insert the USB Flash drive with “xxx.ts” videos in SFT3536S and play back the content in an easy way; file system FAT 32. ) ...

  • Page 6: Specifications

    SFT3536S Encoder Modulator DVB-C User Manual 1.3 Specifications 8/16/24 HDMI inputs for option 1 ASI in for re-mux Input 1 USB Player input for re-mux 128 IP input over UDP and RTP, GE port, RJ45 1920×1080_60P, 1920×1080_60i, 1920×1080_50P, 1920×1080_50i, Input 1280×720_60P, 1280×720_50P,...

  • Page 7: Principle Chart

    SFT3536S Encoder Modulator DVB-C User Manual 1 ASI output as mirror of one of RF output carriers(Optional) Stream output 12 MPTS output over UDP and RTP/RTSP as mirror of 12 DVB-C carriers, 1*1000M Base-T Ethernet interface, GE port Network management (WEB)

  • Page 8: Appearance And Description

    SFT3536S Encoder Modulator DVB-C User Manual 1.5 Appearance and Description Front and Rear Panel Illustration Power supply and Grounding Pole Power Indicator ASI out (Optional) ASI in HDMI inputs DATA: IP input and output port(GE) NMS (Network management port) USB Port(TS playing)

  • Page 9: Chapter 2 Installation Guide

    SFT3536S Encoder Modulator DVB-C User Manual Chapter 2 Installation Guide This section is to explain the cautions the users must know in some case that possible injure may bring to users when it’s used or installed. For this reason, please read all details here and make in mind before installing or using the product.

  • Page 10: Grounding Requirement

    SFT3536S Encoder Modulator DVB-C User Manual 1.2~1.5m and the distance against wall should be no less than 0.8m. Electric Isolation, Dust Free Volume resistivity ground anti-static material: Machine Hall Floor 1X10 ~1X10 ，Grounding current limiting resistance: 1M (Floor bearing should be greater than 450Kg/㎡) 5~40℃(sustainable )，0~45℃(short time)，...

  • Page 11: Chapter 3 Web Nms Operation

    SFT3536S Encoder Modulator DVB-C User Manual Chapter 3 WEB NMS Operation Users can only control and set the configuration in computer by connecting the device to web NMS Port. User should ensure that the computer’s IP address is different from this device’s IP address;...
  • Page 12 SFT3536S Encoder Modulator DVB-C User Manual Current software version information User can click any item here to enter the corresponding interface to check information or set the parameters. Figure-2 Parameters → Encoder(01-08) From the menu on left side of the web page, clicking “Encoder(01-08)”, it displays the information of each encoding channel from the encoder as Figure-3.
  • Page 13 SFT3536S Encoder Modulator DVB-C User Manual Encoder(01-08) → OSD: Clicking “OSD”, it displays the interface as Figure-4/5/6 where to set Logo/ Caption/ QRCode parameters. Select to configure logo, caption or QRcode Select program1-8 to apply the logo insertion, or you can select “all” to apply all programs...
  • Page 14 SFT3536S Encoder Modulator DVB-C User Manual Put the QRcode everywhere Input the QRcode URL here Browse and select the QR code which has been created Figure-6 Parameters → Encoder(09-16) From the menu on left side of the web page, clicking “Encoder(09-16)”, it displays the information of each encoding channel from the encoder as Figure-7.
  • Page 15 SFT3536S Encoder Modulator DVB-C User Manual Figure-8 Encoder (09-16) → System Under System page, users can check the software version information of the encoder module, save, restore or load factory set the module configuration. Figure-9 Encoder (09-16) → Firmware Under the Firmware page, users can update the software for the encoder module.
  • Page 16 SFT3536S Encoder Modulator DVB-C User Manual Figure-10 Parameters → Encoder(17-24) Encoder (17-24) shares the same configuration steps with encoder (09-16). Figure-11 Parameters → TS Config: From the menu on left side of the webpage, clicking “TS Config”, it displays the interface where users can configure the TS output parameters.
  • Page 17 SFT3536S Encoder Modulator DVB-C User Manual  TS Config→Output TS X: Clicking “Output TS X”, it displays the interface where users can select the TS output carrier (Figure-12) Clicking output TS 1-12 to set program information each output channel. Figure-12 ...
  • Page 18 SFT3536S Encoder Modulator DVB-C User Manual Add the IP input streams Figure-13 Configure ‘Input Area’ and ‘Output Area’ with buttons in ‘Operation Area’. Instructions are as below: : To check source streams locked or not, green means current source streams locked...
  • Page 19 SFT3536S Encoder Modulator DVB-C User Manual box (Figure-14) where users can input new information. Figure-14  TS Config→General: From the TS Config menu on up side of the webpage, clicking “General”, it displays the interface where users can enable PSI/SI table out and insert NIT etc. (Figure-15)
  • Page 20 SFT3536S Encoder Modulator DVB-C User Manual  TS Config → PID Bypass: Users can bypass the wanted PIDs here. Figure-16  TS Config → Event: Users can edit the event information for the selected information as the below picture shows.
  • Page 21 Users can edit the Rating Region options for Event as the below picture shows. Figure-19 Parameters → Modulator: Clicking “Modulator”, it displays the Modulator Configuration screen as Figure-20. SFT3536S supports 12 DVB-C frequencies out. Here user can set modulation parameters, such as level and frequency etc. Page 17 / 28...
  • Page 22 SFT3536S Encoder Modulator DVB-C User Manual Quickly Config Channel Config Figure-20 Page 18 / 28...
  • Page 23 SFT3536S Encoder Modulator DVB-C User Manual Parameters → IP Stream: SFT3536S supports 12 TS to output in IP format through the DATA port under DVB-C modulation. Clicking “IP Stream”, it displays the interface where to set IP out parameters (Figure-21).
  • Page 24 SFT3536S Encoder Modulator DVB-C User Manual Figure-22 When users click “ASI Out” list, users can set one TS out from MPTS 1 to MPTS 12 as the ASI out (ASI out is optional as per the order). Figure-23 Parameters → USB Media: Under USB Media page, user can play the TS files from the USB disk.
  • Page 25 SFT3536S Encoder Modulator DVB-C User Manual Figure-24 Detailed Explanation: Play Mode: User can select a play mode for the *.ts files as needed before playing the *.ts file and specify a video under ‘Single file’ / ‘Single loop’ mode and press “Apply”...
  • Page 26 SFT3536S Encoder Modulator DVB-C User Manual System → Network: Clicking “Network”, it displays the interface as Figure-25 where to set network parameters. Page 22 / 28...
  • Page 27 SFT3536S Encoder Modulator DVB-C User Manual Figure-25 System → Password: Clicking “Password”, it displays the screen as Figure-26 where to set the login account and password for the web NMS. Both the current username and password are “admin”. Figure-26 System → Configuration: Clicking “Configuration”, it displays the screen as Figure-27 where to save/...
  • Page 28 SFT3536S Encoder Modulator DVB-C User Manual Page 24 / 28...
  • Page 29 SFT3536S Encoder Modulator DVB-C User Manual Figure-27 System → Firmware: Clicking “Firmware”, it displays the screen as Figure-28 where to update firmware for the modulator. Figure-28 System→ Date/Time: From the menu on left side of the webpage, clicking “Date/Time”, it will display the screen as Figure-29 where to set date and time for the device.
  • Page 30 SFT3536S Encoder Modulator DVB-C User Manual Figure-29 System→ Log: Clicking “Log”, it displays the log interface as Figure-30 where to check or export the Kernel/System log. Figure-30 Page 26 / 28...

  • Page 31: Chapter 4 Troubleshooting

    Chapter 4 Troubleshooting SOFTEL’s ISO9001 quality assurance system has been approved by CQC organization. For guarantee the products’ quality, reliability and stability. All SOFTEL products have been passed the testing and inspection before ship out factory. The testing and inspection scheme already covers all the Optical, Electronic and Mechanical criteria which have been published by SOFTEL.

  • Page 32: Chapter 5 Packing List

    SFT3536S Encoder Modulator DVB-C User Manual Chapter 5 Packing List SFT3536S Encoder Modulator HDMI Cables 8/16/24pcs Power Cord Ground Lead Page 28 / 28...
