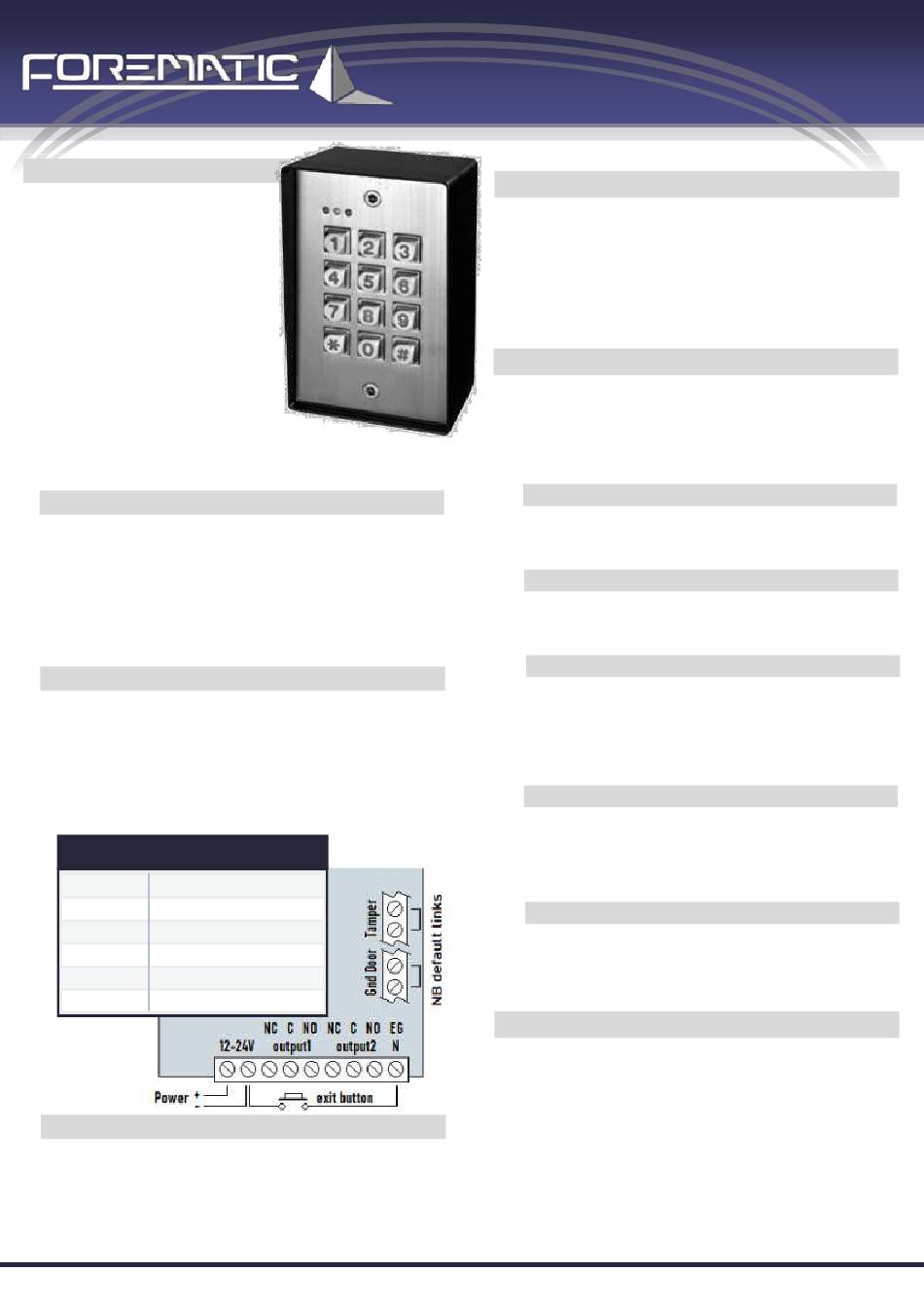

Forematic A-K15 Manual

Features
•
Relay1 - 1000 codes
•
Relay2 - 100 codes
•
Relay time 1sec to 24hrs
•
Hold open on Relay1
•
50 visitor codes
•
Real time clock enable
•
3 settings for key backlight
•
3 special solid state outputs
Left LED - Relay2 red = ON
Centre LED - flashing is standby, prog = ON
Right LED - Relay1 green = ON, red = disabled
Description
K15 is a vandal resistant keypad with real time clock enabling. The
two relays have individual code banks. Relay1 may be disabled for
periods by a 24hr clock. Relay1 may also have visitor codes that self
delete after one use, or remain valid for only (up to) 24 hours. The
stainless steel panel is in a cast aluminium surface housing. Vandal
resistant illuminated keys have positive tactile. An SMP regulator
saves power in standby.
Setup & Admin
All codes can be 4 to 8 digits long. Programming is via admin code.
In simple mode operation one user code may be set for both relays.
In standard operation codes are entered into separate databases
for relay1 and relay2. Codes are assigned to locations 0-999 for
relay1, 0-99 for relay2. Admin keeps a record of location numbers,
codes, and user names. Individual codes can be deleted by knowing
a location number, or you would need to delete all the relay codes.
A-K15 specification
12-24V ac/dc
Power
Iq=12mA, Imax=90mA @12V
Current
Rly1=5A Rly2=1A @24Vdc
Relay rate
4-8 digits plus enter
Codes
-20°C to 70°C IP66
Environm't
125 x 79 x 54mm
Dimension
Hardware
K15 uses a switching power supply to accept a wide range of power
supplies. Both relays have volt free contacts. The exit button is for
relay1 only. Ensure two links are installed. A third solid state 'DU'
output may be used in addition to relay1 or relay2. The solid state
'active keypad' output may be used to turn on a camera or lighting
via a relay. Other terminals are used for airlock door pairs.
www.forematic.com 01491 680501
A-K15 realtime keypad
User instructions
Enter your code followed by #
A beep follows every key press. A long beep means a correct code.
Wrong codes give 5 short beeps. The code determines which relay
operates. Wipe clean. Do not use abrasives or a pressure washer.
1 - User programming
This is the standard operating mode. The default admin code is
0000. Entry & exit keying is included on each line for simplicity, but
several instructions can be inserted between enter & exit. Codes
are shown 4 digits for simplicity (can be up to 8 digit). Enter 12# to
stop the 60 secs of power up tones.
_______________________________________________________________________
- Add a new code
Prog mode Relay
0000  1
0000  2
_______________________________________________________________________
- Delete a new code
Prog mode Relay
0000  1
0000  2
_______________________________________________________________________
- Set the clock & enable times
Prog mode Location
0000  55
Prog mode Location start (hour/min) end
0000  56 1700
In this example the present time is set to 3:25pm. The example disables relay1
codes from 5pm thru to 9am. All days are the same. Relay2 is unaffected.
_______________________________________________________________________
- Set relay ON times
Prog mode Relay
0000  51
0000  52
Factory default is 5 secs. This example sets relay2 to 8 secs. Setting relay1 to 0
makes it toggle. Maximum 'ON' time is 99,999 secs, which is over 24 hours.
_______________________________________________________________________
- Change the admin code
Prog mode change
0000  01
This example changes the admin code from factory default to 3142
_______________________________________________________________________
2 - Simple mode programming
In admin mode, the same admin code can have several functions by adding # then
a single digit function code. These are the user keystrokes.
Momentary relay 1
Momentary relay 2
Toggle relay 1
One day clock disable
Disable all relay 1 codes
The one day clock disable instruction #8 can be entered any time before
or during the start of the disable period. Repeat #8 instruction to rein-
state time clock. Also, repeat #9 instruction to re-instate relay1.
doc
eg 1664 #
add location new code
02 123 1664 #
02 023 1975 #
del location exit
05 123 # ()
05 023 # ()
hour/min enter exit
15 25 # ()
enter exit
0900 # ()
secs enter exit
0 # ()
08 # ()
new admin code exit
3142 # ()
3142 # 1
3142 # 2
3142 # 7
(for hold open)
3142 # 8
(re-enables relay1)
3142 # 9
(holiday mode)
K15
v5
