Safe Fleet FRC CLA101 Series Quick Start Manual

Document Number
XM-CLA101PM-R0A
LIGHTING
PRODUCTS
MODEL CLA101 Series
SAFETY SUMMARY
FRC lighting products are engineered and manufactured with safety in mind. It is critical that FRC lights are installed, maintained,
and operated correctly. Read and understand all instructions before installing, performing maintenance, or operating.
All components, equipment, and installation procedures shall conform to NFPA 1901, Standard for Automotive Fire Apparatus and
NFPA 70 National Electrical Code.
General Safety Precautions
Do not stare directly at LEDs when power is on.
Ensure power is off prior to connecting or disconnecting wires/cables and plugs to a power source or performing maintenance.
Disconnect ground connection from battery marked '-' to avoid accidental short circuits before attempting to connect electrical wires.
Installation Safety Precautions
Connect the LED light to a 12 or 24 volt DC power source.
Ensure an appropriate sized circuit protection device is installed (circuit breaker or fuse). See Power Requirements chart below.
INSTALLATION INSTRUCTIONS
Before mounting, check the identification label on the light for specific voltage and current requirements. Check that the length of the wiring is
correct. Ensure the CLA101 is mounted so that the lens is focusing the light in the desired direction.
Note: Before drilling holes place the light in position to check for fit. Ensure that the light clears all obstructions.
1. To drill the appropriate mounting hole(s), measure and mark the two mounting hole locations. Refer to the chart and drawings on page 2
for the mounting hole dimensions of the light being installed.

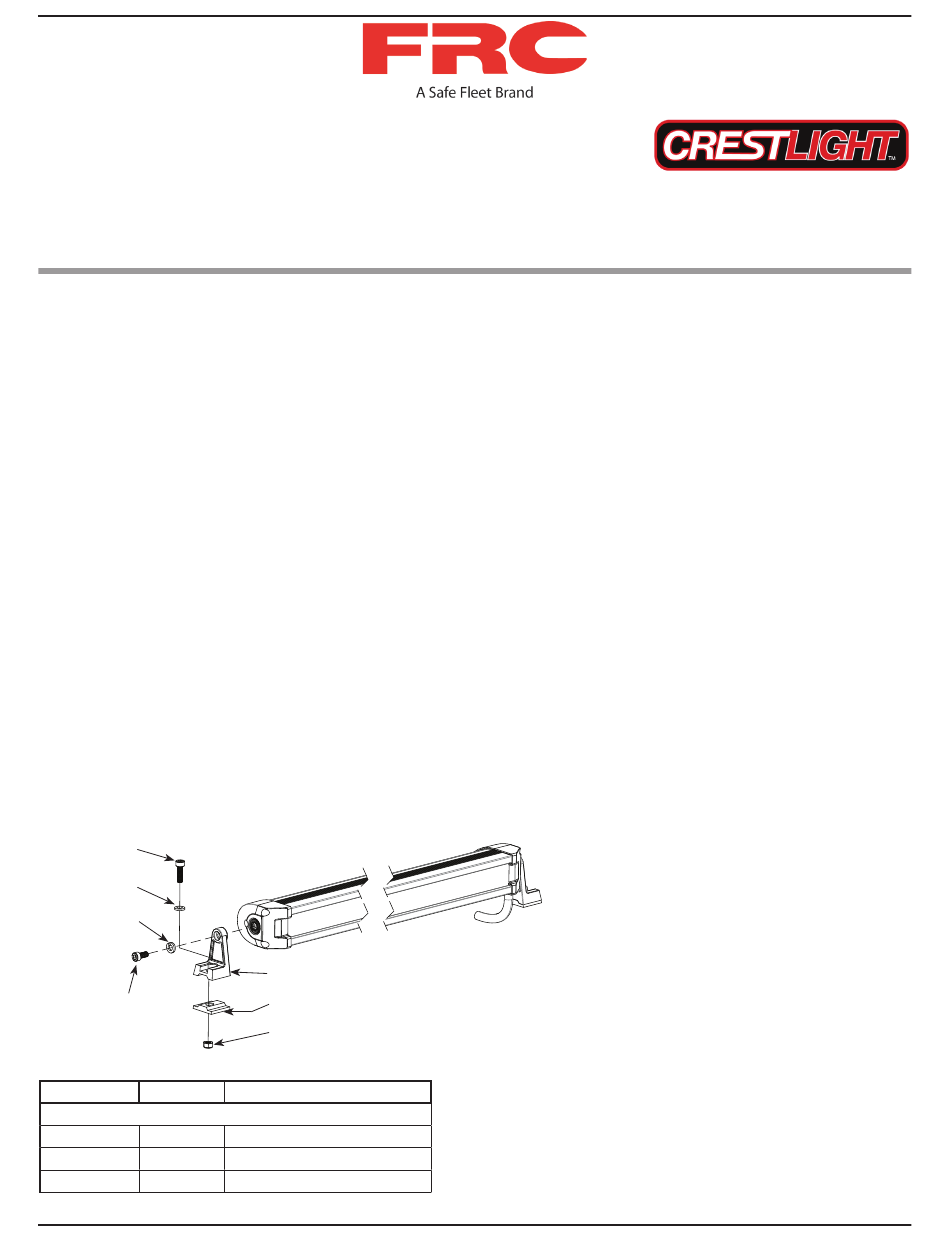

2. Attach the mounting brackets using the provided hardware, as indicated in the drawing below.
3. Mount the LED light by using provided hardware to fasten it to your apparatus. If the M6 fasteners (A) are not long enough to attach to your
apparatus, it is recommended to use longer fasteners, such as longer length M6 or 1/4 inch (not supplied) with the appropriate nut.
A
B
C
D
WIRING
Label Name Wire Color
CLA101-A49, CLA101-A62, CLA101-A68 & CLA101-A28
Negative Black
Narrow Flood Green
Low Beam Red
FIRE RESEARCH CORPORATION
26 Southern Blvd., Nesconset, NY 11767
TEL 631.724.8888 FAX 631.360.9727
TOLL FREE 1.800.645.0074
www.fireresearch.com
E
F
G
Model Number
X
X
X
NOTE: White housing is standard.
Available in Black housing as
model number with "-B".
A. M6 x 20mm Socket Cap Screw
B. M6 Flat Washer
C. M6 Lock Washer
D. M6 x 14mm Socket Cap Screw
E. Mounting Bracket
F. Gasket
G. M6 Nylon Lock Nut
NOTE: Lamphead is supplied with a 32" long cable (3/8" OD)
with 14 AWG wires.
NOTE: See Power Requirements on page 2.
NOTE: Available in Black housing as model number with "-B"
Page 1 of 2
CLA101-Rev230613
