RAYMASTER 490804 User Manual

USER MANUAL
VALID FOR ThE MODEL
PLATE STAND,
FOLDABLE AND ADjUSTABLE
ITEM NO.: 490804
USE OF PARASOL BASE
FOR CONCRETE SLABS
• All Raymaster umbrella base plates are primarily designed and
manufactured for setting up Raymaster umbrellas. Any other
use or usage beyond this is considered improper.
• No alterations to the base plates are allowed without the
manufacturer's approval. Components in an imperfect condition
must be replaced immediately.
• Only original replacement parts specified by the manufacturer
should be used.
• Additional loads on the umbrella frame, such as attached ob-
jects or tensioning with ropes, etc., are not allowed, except for
additional accessories offered by the manufacturer.
• The wind resistance of the deployed umbrellas is limited. An-
choring according to the manufacturer's instructions is always
required. Mobile stands have reduced stability compared to
fixed ground anchoring.
• Raymaster AG assumes no liability for damages resulting from
improper use.
• The product should only be operated in a technically flawless
condition and as intended, with attention to safety and danger
awareness, following this instruction manual. Any malfunctions
that could compromise safety should be addressed promptly.
• Assembly and maintenance work should only be carried out by
qualified professionals.
Important information in the instruction manual is marked
with the following graphics:
ATTENTION!
!
This symbol indicates instructions that may cause dama-
ge to people and materials.
NOTE
Under this symbol, you will find general tips for handling.

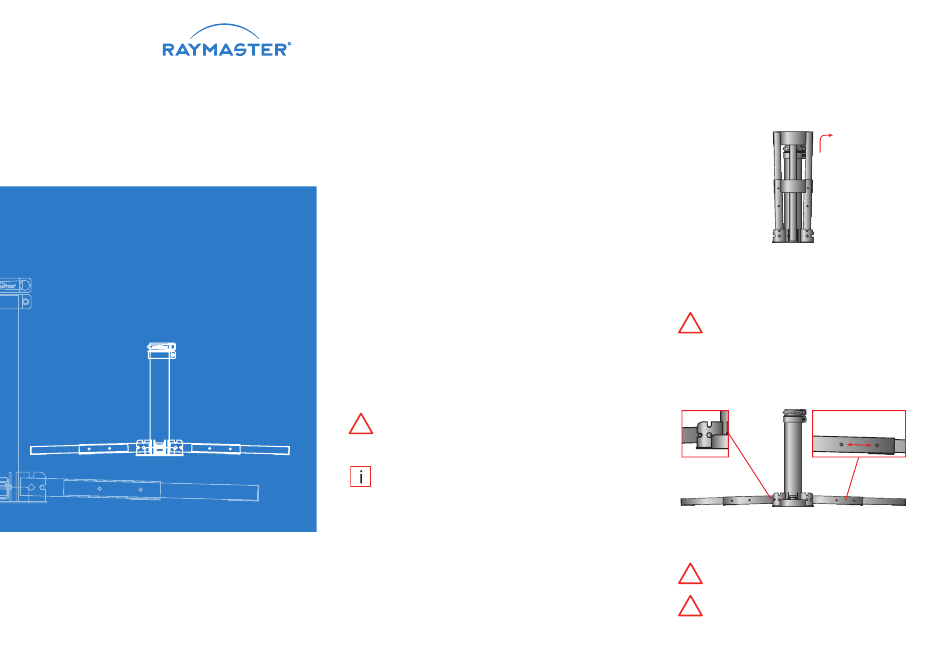

ASSEMBLY INSTRUCTIONS
Step by Step
Step 1
After unpacking the stand, place it at the desired location. Lift
each of the four feet slightly upward and then fold them to the
side.
Ensure a solid and level surface! For surfaces prone to
!
scratches or other damage, it is recommended to use
a firm, protective separation pad!
Step 2
40 x 40
cm
Check that the safety bolts are securely engaged!
The size of the insert fields can be adjusted without tools
using the spring-loaded push buttons.
For umbrella sizes of 300 x 300 cm and larger,
!
we recommend inserting concrete floor plates
of 50 x 50 x 5 cm.
!
Depending on the location and increasing umbrella
size, it is advisable to double up the concrete floor
plates.
50 x 50
cm
