DuBOIS 51007 Instruction Sheet

INSTRUCTION SHEET
Miter Gauge with Fence System
WARNING
For your own safety, read the machine's instruction manual
before using any accessory. Failure to heed these warnings may
result in serious personal injury and damage to the tool and
the accessory.
• Before using the miter gauge and fence system, read and
follow all of the provided instructions and safety information.
• Always keep hands clear of the blade, cutter, sanding disc/belt.
• Before making adjustments to the precision miter gauge
system, turn off the power, allow the blade, cutter or sanding
disc/belt to come to a complete stop and unplug the machine.
• Ensure handle and lock knob are tight before using.
• Before turning on the power after adjustments, ALWAYS verify
there is a safe clearance between the blade and fence.
UNPACKING
NOTE: Check for shipping damage. Check immediately whether
all parts and accessories are included. No additional tools are
needed for assembly.

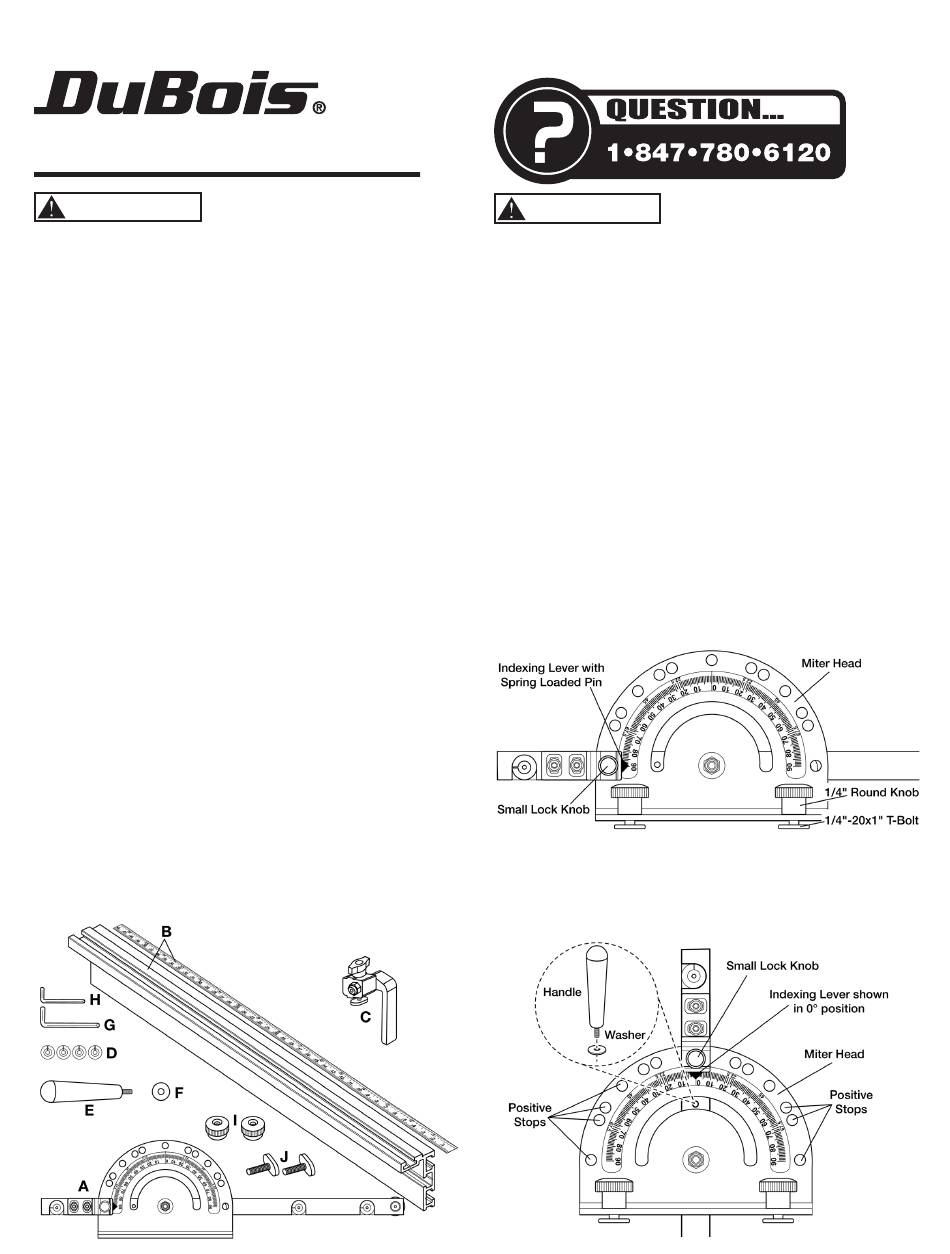

ITEM DESCRIPTION
A
Miter Gauge
B Fence with Right to Left Tape Measure
C 2-1/4" Fence Flip Stop
Extra Expansion Discs
D
(Place in a safe place for future use)
E
Handle
F
Washer
G
3 mm Hex Wrench
H 2.5 mm Hex Wrench
I 1/4" Round Knobs
J T-Bolts 1/4"-20x1"
Figure 1
Refer to Figure 1
WARNING
Risk of accidental starting and serious personal injury. Unplug
the machine before attaching the precision miter gauge system.
Assembly
NOTE: The miter gauge is equipped with a protractor style miter
head with a spring loaded pin. The most common used angles
have positive stops 0°, 22.5°, 30°, 45°, 60°, 67.5° and 90°.
Loosen the handle knob, lift the indexing lever with the spring
loaded pin and rotate it to keep it raised. Move the miter head to
the desired angle. If the desired angle is a positive stop, rotate
the indexing lever to allow the pin to drop into the hole by for
the desired positive stop and tighten the lock knob to secure
into place. If the desired angle is not a positive stop, keep the
spring loaded pin raised and tighten the lock knob when the
desired angle is hit to secure in place.
1. Loosen the small lock knob, lift the indexing lever with
the spring loaded pin and rotate the miter head to the
0° position, allow the pin to drop into the 0° position
positive stop. Tighten lock knob to lock into place.
QTY
Figure 2
1
1
1
4
1
1
1
1
2
2. Place washer onto handle threads and thread the handle
2
onto the guide bar. See Figure 3.
3. Tighten handle.
Figure 3
Model No. 51007
Refer to Figure 2, 3
22-1024
