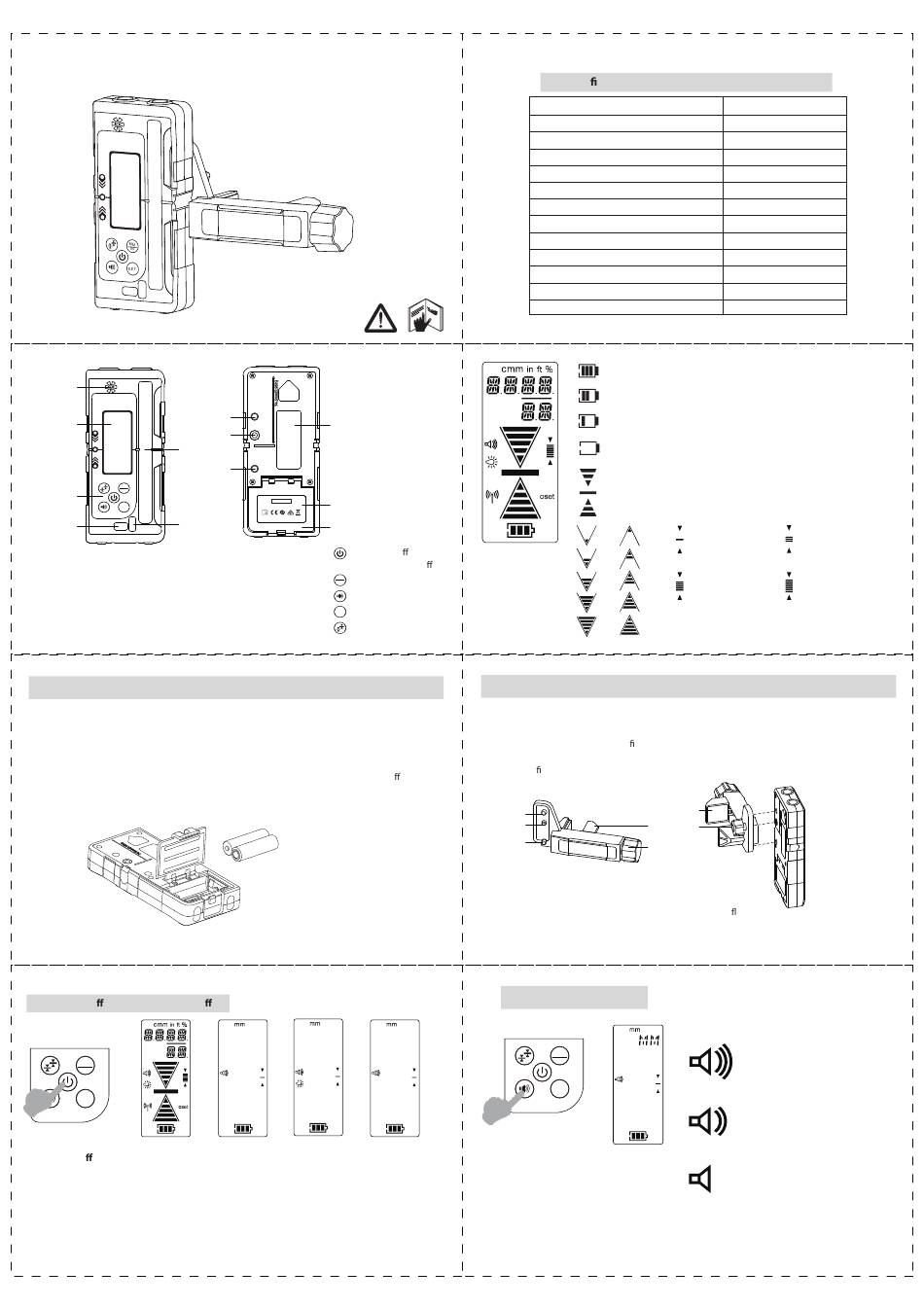

LEVELFIX DLD100GR User Manual

Detector User guide
（1）
（2）
（5）
MM
IN
（3）
SET
（6）
（4）
（1）Beeper output （6） Bubble Vial
（2）Front LED （7）Captive Screw Thread
（8）1/4 insert
（3）Keypad
（4）Bubble Vial （9）Captive Screw Thread
（5） SuperCell Reception Window
Batteries and Power
Battery Installation/Removal
1. Open Battery Cover.
2. Install/Remove batteries. Orient batteries correctly when placing into laser unit.
3. Securely close and lock battery cover.
Warning: Pay close attention to the battery holder's (+) and (-) markings proper battery insertion.
Batteries must be same type and capacity. Do not use a combination of batteries with di erent
capacities remaining.
Operation
Power On/O Illumination On/O
MM
IN
SET
（1）
Power On/O
1. Press Power key to turn detector ON
2. When powered ON, the entire LCD will momentarily display all icons
(this allows a check to ensure that LCD is functioning correctly).
3. Press and hold for ≥3 seconds to turn detector OFF.
NOTE:
The detector will automatically power OFF after 30 minutes of not detecting a laser beam to conserve
battery. To power ON again, press .
Illuminate LCD
1. When detector is ON, press to turn ON/OFF LCD illumination.
NOTE:
The illumination will automatically OFF after 10 minutes of not detecting a laser beam and no operation.
（7）
（10）
（8）
（9）
（11）
Ser.NO.:
Made in China
（12）
Power On/O
Illumination On/O
（10）Back LED
Unit Switch
MM
（11）Serial Number
IN
Speaker Volume key
（12）Battery cover
Zero setting key
SET
Accuracy key
-
+
+
-
（3）
（2）
Note: This product does not contain a laser. However, when working with laser tools, obey the safety
instructions for particular instrument.
Leveling Accuracy (Normal):
Leveling Accuracy (Lowest):
Laser Reception Window Width:
Auto Power Off (with No Signal Detected):
Attention: Working radius depends on the model of laser instrument.
Rod Clamp
Detector can be used in hand or with optional clamp to mount the detector to a measuring rod, pole,
or similar object.
To mount clamp onto detector (See gure ) :
• Guide the clamp towards the detector using the alignment hole.
• Tighten the xing screw.
（1）
（2）
（3）
（1）Alignment Points - help secure and align rod clamp.
（2）Captive Rod Clamp Screw - attaches to the back of detector.
（3）Alignment Points - help secure and align rod clamp.
（4）Reversible Face - slanted face for round and oval rods; at face
for rectangular and square rods.
（5）Clamping Screw Knob - secures clamp to rods by moving the
traveling jaw. Clockwise tightens; Counterclockwise loosens.
Speaker Volume
MM
IN
SET
（4）
Speci cation
Leveling Accuracy (High):
Leveling Accuracy (Low):
Working radius
Bubble Vial Accuracy:
Operation Time: 24h (no Illuminate LCD)
Power Supply: 2 × AA batteries (Alkaline)
IP Rating:
Operating Temperature Range:
Storage Temperature Range:
Battery Power – Solid
Approximate Battery Life as Shown
Battery Power – Blinking
Battery needs to be changed
Higher than Laser Beam. Move the Detector the Direction Shown(Down).
Datum In Line with Laser Beam.
Datum Lower than Laser Beam. Move the Detector the Direction Shown(Up).
or
High Accuracy
or
or
Low Accuracy status
or
or
（4）
（4）
（2）
（5）
When powered ON, LOUD setting is ON by default.
1mm
2mm
5mm
10mm
127mm
≥300M
30'/2mm
30min
IP66
-10℃~50℃
-20℃~70℃
Normal Accuracy
Lowest Accuracy status
Buzzer Volume – Loud
Buzzer Volume – Soft
Buzzer Volume – Mute
