Summary of Contents for Roger RUD-4-DES
- Page 1 Roger Access Control System RUD-4-DES Card Programmer Operating manual Firmware version: v1.2.x Hardware version: v1.0 Document version: Rev. D...
-
Page 2: Product Designation
DESFire (EV1, EV2, EV3) standard proximity transponders. Additionally it allows to read EM 125kHz card codes. RUD-4-DES can be used as an administrator reader in RACS 4 systems (PR Master 4.4.6 and higher required) and RACS 5 systems (VISO). RUD-4 can also be used as a universal card number reader (e.g. - Page 3 OGER EADER PROGRAM Roger MiniReader 1.1 program displays all detected RUD-4-DES readers on the list. Use Read single card and then swipe your card so the card number would be displayed in the program. When Read multiple card is selected then the program displays successively added card numbers on the list.
- Page 4 RACS 5 SYSTEM SUPPORT RUD-4-DES can be applied as administrator reader in RACS 4 and RACS 5 to enter new identifiers in access control system. The software PR Master 4.5 (RACS 4) or VISO (RACS 5) displays detected readers on the list. To read a new card into the system or change an existing one, you can use any of the devices available on the list - including the RUD-7 reader.
-
Page 5: Party Software
HIRD PARTY SOFTWARE Support for RUD-4-DES reader can also be implemented in other programs, in such case, the logic of reader handling depends completely on the program’s author. For integration purposes a RUD-4- DES software SDK has been released. SDK package contains DLL files dedicated for USB HID class RUD-4-DES device, .NET software example and programmer documentation. - Page 6 RUD-4-DES Operating Manual.docx 2024-07-15 Fig. 7 Device configuration window ARD NUMBER WRITE AND READ OPERATIONS Card programming window is dedicated for PCN number programming operation according rules setup from program Configuration window. Required PCN must be entered in the appropriate data format DEC or HEX in the Card Code window box and confirmed with a proper Program Mifare…...
-
Page 7: Device Installation

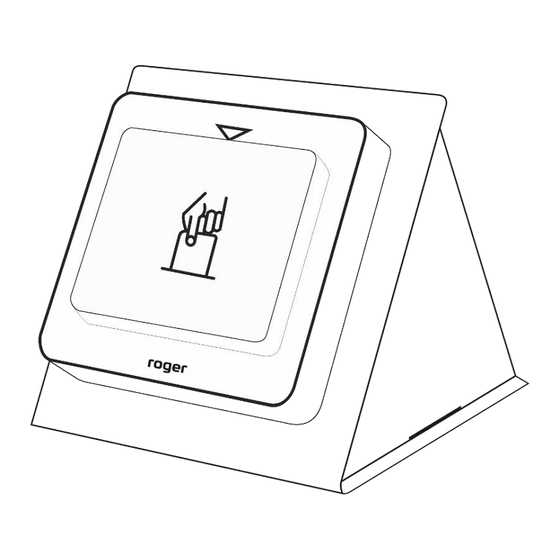

RUD-4-DES reader and present it on the list of available devices. The RUD-4-DES reader can be connected directly to the PCs USB socket or using a cable with magnetic stand provided together with the reader. Using this cable is convenient because when you use a magnetic stand, the reader can be located at computer’s case or any other metallic part... -
Page 8: Technical Data
RUD-4-DES Operating Manual.docx 2024-07-15 Fig. 10 Firmware update with RogerVDM ECHNICAL DATA Technical Data Power supply 5VDC directly from the USB port Average current consumption 80mA Cards - 13.56MHz ISO/IEC 14443A MIFARE® Classic, Plus and DESFire - EM 125kHz, EM 4100/4102 compatible Reading distance - up to 3 cm for MIFARE®... -
Page 9: Product History
Weight of the equipment is specified in the document. Contact: Roger sp. z o.o. sp. k. 82-400 Gościszewo 59 Tel.: +48 55 272 0132 Fax: +48 55 272 0133 Tech.
