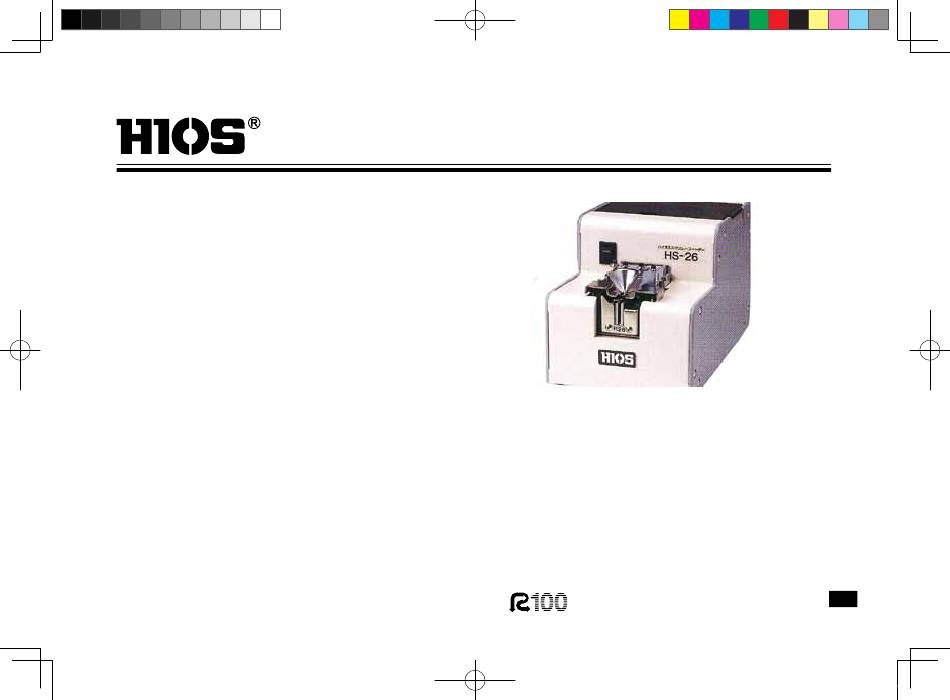

HIOS HS Series Operation Manual

Automatic screw feeder, screw type for jis
Hide thumbs

Advertisement

Table of Contents

Screw type for JIS
HS series
HS-26　HS-30
　HS-40　HS-50　
Operation Manual
Read this manual before using this device.
Current as of March 2015
HIOS Inc.
ET-D003_15A.indd
1
111-6, Akiyama, Matsudo City, Chiba Prefecture, 270-2223
Phone:81-47-392-2001 FAX:81-47-392-7773
Automatic Screw Feeder
Utilizing 100% post-consumer
Operation Manual No. ET-D003
recycled paper pulp
15A
2015/02/17
13:39:57

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HS Series and is the answer not in the manual?

Questions and answers

Summary of Contents for HIOS HS Series

  • Page 1 Automatic Screw Feeder Screw type for JIS HS series HS-26　HS-30 　HS-40　HS-50　 Operation Manual Read this manual before using this device. Current as of March 2015 HIOS Inc. 111-6, Akiyama, Matsudo City, Chiba Prefecture, 270-2223 Phone:81-47-392-2001 FAX:81-47-392-7773 Utilizing 100% post-consumer Operation Manual No. ET-D003 recycled paper pulp ET-D003_15A.indd...

  • Page 2: Important Safety Instructions

    1. Important safety instructions (1) Be sure to keep the feeder away from flammable or explosive gases, heat sources, humidity, static electricity and direct sun- light. Do not use the feeder if the above are present. (2) Set the feeder on a flat and stable place. Otherwise it may fall and cause injuries. (3) Unplug the AC adapter from the electric outlet after use or when the feeder is not used for a long time. (4) Use only the AC adapter supplied with the feeder.
  • Page 3 2. Parts of Names Note: ① The design of bit-guide has been changed form V-type to bowl-type since September,1998. However, the operation method is same as the former V-type , therefore, the descriptions and the drawings for the V- type are still used in this manual. Pleas be careful that the bit type have been changed.(See p.11) ②...
  • Page 4 3. Before use Fig. 2 . Check screw type Before operating HIOS your screw feeder, make sure You can easily replace the rail unit to match the diameter of the screw you wish to use. Check the screw number shown on the front of the rail unit to make sure your using correct diameter screw.
  • Page 5 . Adjustment of the brush Check the height of the brush when it is in a horizontal position, as shown in fig. 3. 手動で刷毛を回転させ刷毛先端 の～　訳を If not horizontal, adjust as follows; (1) Loose two screws from the brush. (2) Adjust the top of the brush and the head of the screw with no room clearance Fig. 4 and don’t too much downward adjusting of the brush. (3) After Adjusting the brush, fasten with two screws. Turn the timing shaft clockwise with the included hexagonal wrench. Put a few screws in the rail to check the height of the brush. Rotate the brush manually within about 120 degrees, as indicated by the arrow in fig. 4 Be careful not to turn the brush forcedly beyond 120 degrees, No adjustment is necessary if there is no gap between the central part of the brush and the heads...
  • Page 6 . Adjustment of the passage plate Fig. 7 Remove the screw bin lid. Passage plate(d) Set screw(a) Place a few screws in the rail and slide them up to the screw passage(b) To check the clearance between the passage plate(d) and the head of the Adjustment screw.
  • Page 7 To adjust height Tilt the feeder so that a screw(a) hits the stopper(b), then loos- en the set screw(c). Turn the bit guide unit adjusting screw(d) until a clearance of 0 to 1 mm is obtained. Be sure to tighten the screw(c) again after the adjustment. Fig. 9 Note: If the shaft of the screw is a bit short, a slight adjust- ment is required.
  • Page 8 The feeder was shipped from the factory with the U funnel on the holding plate(a). U funnel on the bit guide(b) and the center Fig. 11 of the rail ditch(c)in perfect alignment. If, however, the unit was bumped or jarred during shipment, Holding plate(a) Holding plate set screw these crucial parts may have gotten out at alignment, in which...

  • Page 9: Operation

    4. Operation Fig. 13 Follow the procedure below after completing all adjustments Screws for your screw type. Distribute the screws evenly between . Feeding in the screws. both sides of the bin. Open the screw bin lid. If the bin dipper plate is at the lowest Screw dipper plate position, pour in screws until they come to about 3 mm of the Rail top of the rail, as shown in Fig.
  • Page 10 . To pick up screws Bowl type Screw dai. Shape of bit bit-guide No. M2.6 BG-26 H4, H5 #1 ∅ Bits M3.0 M4.0 BG-32 H4, H5 #2 ∅ M5.0 Shaft of stepped Phillips head Fig. 15 Attach a bit to your electric screwdriver to match the head of the screw. ①...
  • Page 11 . How to tilt feeder forward The feeder should normally be set horizontally. However, if it has difficulty Lift the near tip to feeding some types of screws smoothly, slant the feeder toward the front use the wrench direction, as shown in Fig. 16a. Lift the rear of the feeder slightly, loosen the slant screws with the hexagonal wrench and pull out the base bracket (it can be pulled out by about 12 mm). Access hole for tilting Tighten the screws when the desired slant is achieved.

  • Page 12: Troubleshooting

    5. TROUBLE SHOOTING Caution: Be sure to turn off the power switch of the feeder before making any adjustments. Problem Cause Remedy The feeder doesn’t run when turned on. • The feeder is not plugged in. • Check if the AC Adapter is connected. • A screw has not been remover form the • Remove the screw form the stopper stopper fore the set duration.
  • Page 13 Problem Cause Remedy The screw in the rail don’t feed smooth- • The gap between the holding plate and the • Adjust the bit guide unit (Adjust the holding plate.) screw head is too narrow. • Slant the feeder as in 4-4. • A screw with a spring washer, the diameter of •...
  • Page 14 Problem Cause Remedy The feeder stops suddenly. • At the moment of over- load, the screw feed- • Turn the power off, then on again. ing vibrated rail will repeat regular/ reverse • If the feeder stops again. rotations altermal:vely dunning approx. 5 sec. • Over load: Remove some screws. and then anti-overcurrent circuit will stop the •...

  • Page 15: Maintenance

    6. Maintenance Fig. 17 Remove all the screws in the bin and the rail. ① CAUTION: Be sure to turn off the feeder before performing Loosen the rail set screw(through access hole) ② maintenance. Remove all the screws in the bin and the rail. Rail Rail ditch .

  • Page 16: Optional Parts

    . Replacement .Replacement of the rail unit Brush bracket 2 Brush Replacement of the rail unit is recommended, if after Brush bracket 1 Brush unit screws cleaning it as per the instructions in 6-1, screws still don’t flow smoothly due to flaws, etc. Replacement can easily be done. Brush unit ..Replacement of the brush Small screw...

  • Page 17: Specifications

    8. Specifications 1 Slot type Pan head Kind of Length of Screw 1st, 2st feeder shaft Washer Binding Truss Flat with type Sems W-semes head Washer (*):For flat head screw,oval countersunk head screw. HS-26 • Option parts: Changeable rail-unit, 18 mm HS-30 — ○ ○...
