Instructions – Parts List – Service Manual

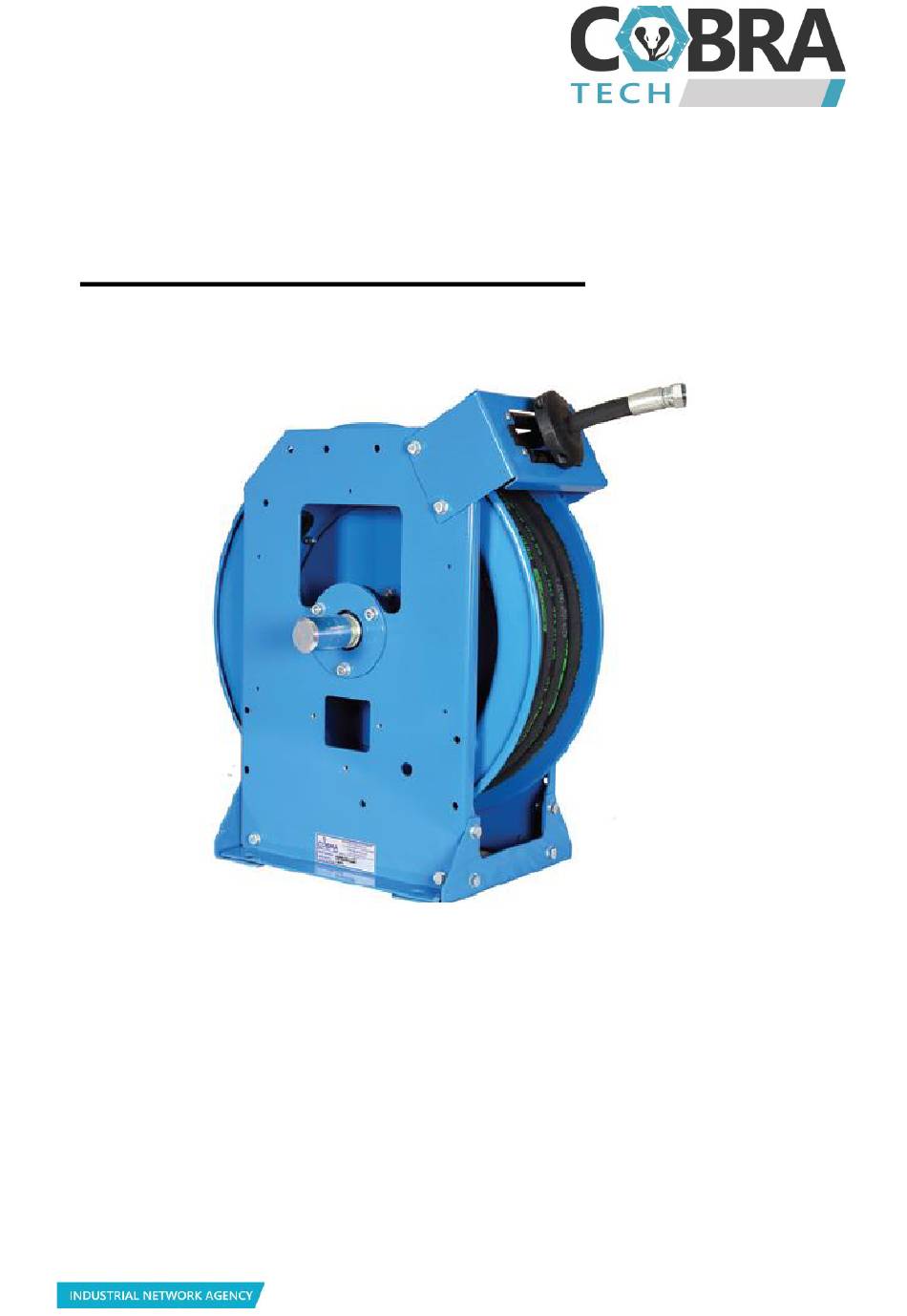

NS 200 Series Hose Reel
(March 2024)
Suitable for dispensing, transfer and evacuation of lubricants, fuels, air & other automotive & industrial
products. To be used in general industry mining & heavy earth moving applications.
Special Features include:
•
Long hose length capacity
•
High strength / ridged frame and drum
•
Compact width & height
•
Capable of handling high pressure
11 Steele Street, Steeledale, 2197, Johannesburg, South Africa | +27 11 568 0732 | info@cobratech.co.za
Advertisement
Table of Contents
Summary of Contents for Cobra NS 200 Series
- Page 1 Instructions – Parts List – Service Manual NS 200 Series Hose Reel (March 2024) Suitable for dispensing, transfer and evacuation of lubricants, fuels, air & other automotive & industrial products. To be used in general industry mining & heavy earth moving applications.
-
Page 2: Table Of Contents
Index • List of Models Pg 3 • Warning Pg 4 • Hose Guide Positioning Pg 5 • Hose Installation Pg 6 • NS 200 Hose Reel Exploded View Pg 7 • Parts List – NS200-AWL-15/08-0B NS200-HPG-15/06-0B Pg 8 • Service & Maintenance Pg 9 •... -
Page 3: List Of Models
List of NS 200 Models Working Hose Length Pressure Model Typical Application & Diameter Bare Hose Reel • General Industry 150 bar max • 1/2” x 15m NS200-AWL-15/08-0B Mining & Heavy Construction for lube • Truck & Bus Servicing oils / fuel •... -
Page 4: Warning
Warning • This equipment contains “Stored Energy”. Stored energy can cause injury & death if not handled in the correct and safe manner & with care. • Read all instructions before operating equipment • Use equipment within specified working range – pressure & hose lengths •... -
Page 5: Hose Guide Positioning
Warning Never allow the hose reel drum to spin freely under spring tension, this could cause damage to the hose reel and cause serious injury or death. Hose Guide Positioning: The N.S. Series of hose reels (Version C) referred to in this document are able to be mounted in various positions to suit working applications. -
Page 6: Hose Installation
Note: Always ensure that the reel does not “Lock Out” on full hose payout Warning To avoid injury, ensure that you always wear non slip heavy duty gloves when installing hose on a hose reel. Hose Installation: Note: It is extremely important to install hose on a hose reel with the correct amount of spring tension: •... -
Page 7: Ns 200 Hose Reel Exploded View
Page | 7... -
Page 8: Ns200-Hpg-15/06-0B
NS200-AWL-15/08-0B & NS200-HPG-15/06-0B PARTS LIST – REFER EXPLODED VIEW Qty per DRW NO Part number Description reel 09-NS200-SPCO-0B NS200 SIDE PLATE CUT-OUT 09-NS200-SPRS-0B NS200 SIDE PLATE RATCHET SIDE 09-NS200-DA-0B NS200 DRUM ASSEMBLEY 09-NS200-BSC-0B NS200 BEARING STOP 09-NSC00-BB-1B NS BEARING BOSS BLACK NYLON 09-NS200-RBKC-0B NS200 ROLLER BRACKET COMPLETE 09-NS200-BB-0B-250... -
Page 9: Service & Maintenance
SERVICE & MAINTENANCE Swivel: Warning – relieve all pressure from the hose reel before working on the equipment. • All models in this range have removable swivels • If the swivel needs replacing or repairing – i.e. leaking or seized up, the following procedure must be followed: Unscrew the swivel from the hose reel shaft by using a wrench on the two flats located on the rear of the swivel spindle... -
Page 10: Trouble Shooting
TROUBLESHOOTING GUIDE Warning – Relieve all pressure from the hose reel before working on the equipment. Diagnosis Likely Cause Solution Hose does not retract fully Insufficient spring tension Adjust spring tension by adding wraps of hose. Pull out approximately 2 meters of hose and latch, hand feed hose back up through the roller bracket assembly. -
Page 11: Dimensional Drawing
Page | 11...
