Summary of Contents for e-Storm 50 / 1270mm

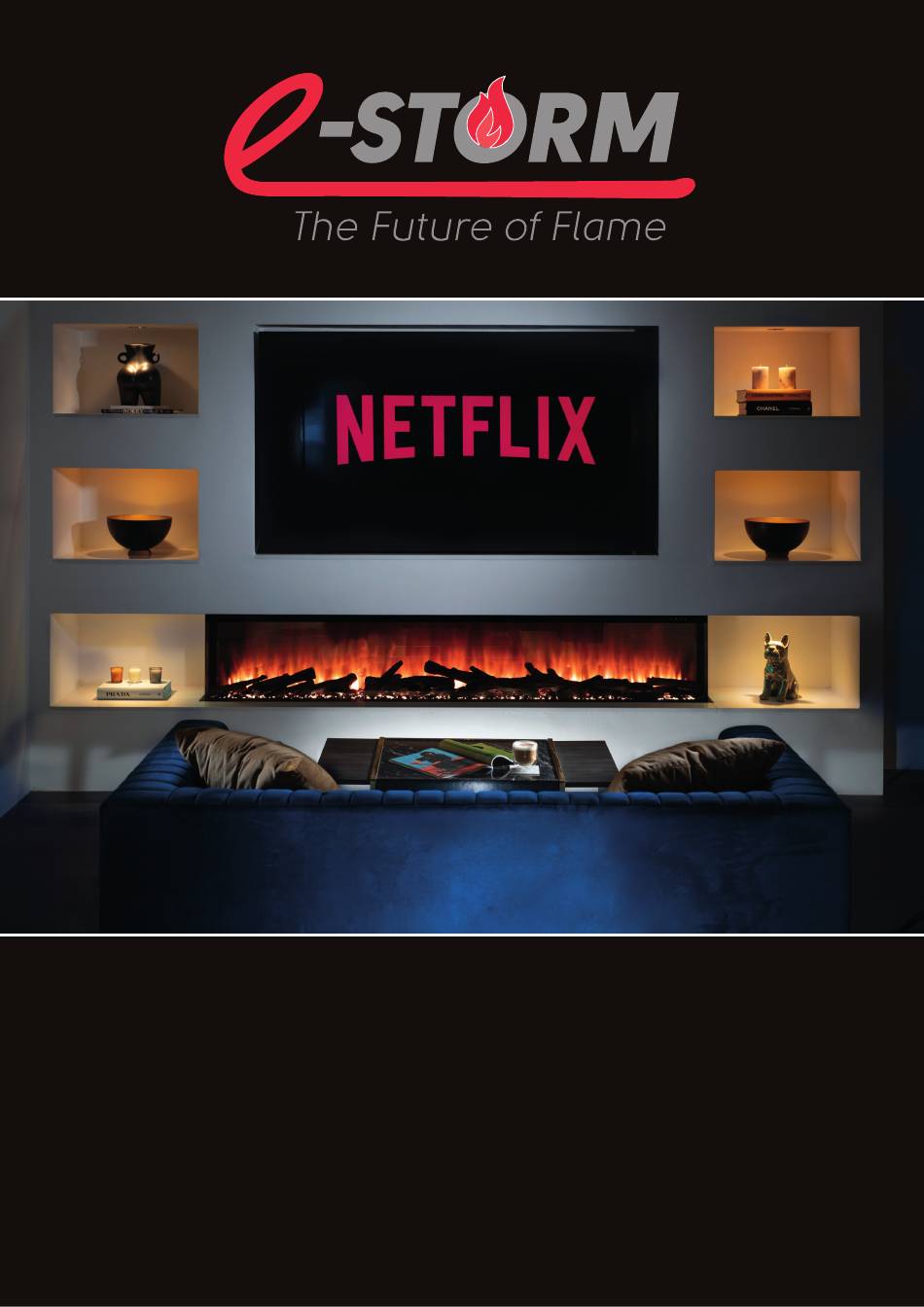

- Page 1 Multi Sided Electric Feature Fireplace e-storm 50 / 1270mm e-storm 60 / 1520mm USER & INSTALLATION MANUAL e-storm 72 / 1830mm e-storm 86 / 2185mm www.estormfires.com...
-
Page 2: Table Of Contents
Read and understand this entire owner’s manual including all safety information, before plugging in or using this product. Failure to do so could result in fire, WARNING electric shock, or serious personal injury. Keep this owner’s manual for future reference. If you sell or give this product away, make sure this manual accompanies this product. -
Page 3: Safety Warning
IMPORTANT SAFETY INFORMATION WARNING • THIS FIREPLACE IS HOT WHEN IN OPERATION AND CAN CAUSE SEVERE BURNS • Do not operate fireplace before reading and understanding operation instructions. Failure to operate fireplace according to operation instructions could cause fire or injury. • Risk of burns. This fireplace is HOT when in operation and heating element is ON. Power to the fireplace should be turned off and the fireplace allowed to cool before servicing. To disconnect power to the fireplace, turn controls to off, then remove plug from outlet. • Do not install damaged or incomplete, or substitute components. • Young children should be carefully supervised when they are in same room with fireplace. Toddlers, young children and others may be susceptible to accidental contact burns. For households with vulnerable individuals, it’s advisable to use a physical barrier as a safety measure. Install an adjustable safety gate to effectively limit access to the fireplace, effectively keeping toddlers, young children, and other at-risk individuals away from potentially hazardous hot surfaces. • Clothing and other flammable material should not be placed on or near the fireplace. • Due to high temperatures, the fireplace should be located out of traffic and away from furniture and draperies. • Ensure that you have incorporated adequate safety measures to protect infants/toddlers from touching hot surfaces. • It is imperative that the control compartments, circulating blower, and its passageway is kept clean. • Under no circumstances should this fireplace be modified. • Do not use the fireplace if any part has been under water. • Do not operate the fireplace with the glass panel removed, cracked or broken. • Keep the packaging material out of the reach of children. As with all plastic bags, these are not toys and should be kept away from children and infants. -
Page 4: Unpacking And Setup
Unpacking and Setup Unpacking Instructions Remove all parts and hardware from the carton and place them on a clean, soft, dry surface. Check the parts list to make sure no parts are missing. If parts are missing, please contact technical support for replacement parts. NOTE: Dispose of plastic bag, as it may cause choking hazard with young children. Do not let children play with plastic bag. When first unpacking the appliance, the remote control and fuel effects are contained INSIDE the fire. To access these, you must take off the front glass by removing the screws and glass retaining bracket. Follow diagram below:... -
Page 5: Wiring
This heater is for use on 220–240 volts. The cord is 1.5m, 3-pin plug as shown. Power Data Model e-storm 50 / 1270mm e-storm 60 / 1520mm e-storm 72 / 1830mm e-storm 86 / 2185mm Voltage 220-240V AC 50Hz 220-240V AC 50Hz... -
Page 6: Installation
Installation Warnings • Due to high temperatures, keep the fireplace out of high traffic locations. • Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 0.9m away from the front of the fireplace. • Never install the fireplace where it may fall into a bathtub or other body of water. • Wear safety gloves and safety glasses for protection during installation. Broken glass may cause injury or harm. • Prevent contact with loose insulation. Do not install the fireplace against a vapor barrier or exposed insulation. • Do not expose the fireplace to the elements (rain, etc). Choosing Installation Location Choosing Wall Location Please take note that this appliance generates warm convected air currents, facilitating the transfer of heat from the surrounding room to the adjacent wall surfaces. When installing this on drywall or timber-framed constructions, ensuring the wall’s integrity and capability to support the appliance is essential. Any damage to the vapor barrier or structural components of the house frame should be avoided. If uncertain about the wall’s suitability to support the appliance or the appropriate wall fixing method to use, seeking professional advice is recommended. Otherwise, considering an alternative location with more secure wall support is advisable. • DO NOT run the supply cable under carpets. • DO NOT site in a position where curtains or drapes could cover the appliance, or other soft materials could cover e.g. below a coat rack. • DO NOT site behind an opening door where mechanical impact / damage could occur. • DO NOT site where the supply cable would become a trip hazard. • DO NOT sit, stand or forcefully pull on the appliance. •... -
Page 7: Preparing The Appliance
Preparing The Appliance ADDING END PANELS AND EDGE TRIMS One-Sided (Hole in wall) The end panels for one sided / hole in wall installation are already fitted to the appliance. Only the edge trims on both sides of the unit need removed. Two-Sided (Corner) On the closed end of a two sided / corner installation the edge trims are to be removed and the end panel secured in place. On the open end the end panel is to be removed and the edge trims refitted. Three-Sided (Panoramic) You must first remove the edge trims and end panels on both sides of the fire. Once the end panels have been removed, re-fit the edge trims. End Panel Edge Trims... -
Page 8: False Chimney Breast
Installing The Appliance False Chimney Breast The false wall / chimney breast must include a header (demonstrated in red). This is to ensure that the weight of the finished wall is not resting on the appliance. For dimensions of all products within the range, see size chart on next page. One-Sided (Hole in wall) Two-Sided (Corner) Three-Sided (Panoramic) -
Page 9: Appliance Dimensions
Appliance Dimensions Overall Size (WxDxH) View Size Insert Size Model Unit Inch 51 5/9 12 3/5 49 4/5 14 5/6 6 2/9 49 8/9 11 6/7 4 1/8 2 1/6 50IN 1309 1265 1268 Inch 61 5/9 12 3/5 59 4/5 14 5/6 6 2/9 59 8/9... -
Page 10: Installing The Appliance
Installing The Appliance Floating Installation It is recommended that the hanging bracket only be used for floating installations. In all other scenarios, the appliance should be adequately supported from the underside. When using the hanging bracket it is crucial that heavy grade fixings are used and that the wall itself is suitable to support the appliance weight. -
Page 11: Operating The Appliance
Operating The Appliance Manual Control Panel Timer Spot Light Flame Display Screen Heater Ember Light Power POWER • Push button to turn ON or turn OFF. • The POWER button supplies power to all the features of the electric insert. This button must be ON for any of the features to work properly. • When the fireplace is first turned on, the Flame/Ember light is Amber, the heater default OFF. • Once turn OFF, all current settings will be stored and then restored at the next power ON ( except Timer). FLAME • This button controls the brightness/colour of flame. • When the first time push simulated flame effect that the flame brightness is on highest set- ting and the flame with Amber, the digital display screen will be shown F01. • Press and long hold the flame button and enter the flame brightness adjustment. The flame button for flashes,There are 5 levels of flame brightness. Display screen will be shown b5- b1-b2-b3-b4, No operation within 10 seconds to exit the brightness adjustment mode. • After switching the flame mode, the flame brightness returns to the brightest, and the flame brightness is not saved after the device is in standby. -
Page 12: Ember Light
EMBER LIGHT • Press to activate the back ember light function, the system will set the amber spot light, the digital display screen will be shown H03. • A.B.C is the colour difference of the same colour. Display Ember Colour White Amber Green A Green B Green C Blue A Display Ember Colour Blue B Blue C Violet A Violet B Violet C Polar SPOT LIGHT •... -
Page 13: Factory Reset
FACTORY RESET:COMBINATION KEYS • The device is powered on and in standby,Press TIMER button and FLAME button 3S, Restore factory settings, The flashes slowly to display screen “888”. DISPLAY • The digital display will show the numbers for the corresponding function of the corresponding operation. The screen flickers during setting operation, exits the setting mode after 10 seconds of no operation, and turns off the screen after another 10 seconds to enter standby. Remote Control The remote control can be used up to 13 feet (4 meters) away from the heater, so long as there are no obstructions between the remote control and the heater. The remote can control all the settings as the control panel does. REMOTE CONTROL BATTERIES Press and slide the battery cover on the rear of the remote and remove the cover. Insert two new AAA 1.5V batteries into the battery compartment. Ensure that the polarity is correct. Batteries are not included in the package due to safety during transportation. Note: Do not mix old and new batteries together in the remote. Do not mix alkaline, standard (carbon-zinc), or rechargeable (NiCad, NiMh, etc.) batteries together. Buttons on the Remote Control have the same functions as those on the Control Panel except FLAME SPEED \ Child Lock \ FLAME BRIGHTNESS - \ FLAME BRIGHTNESS+ \ UP \ DOWN. -
Page 14: Remote Control Diagram
Remote Control Diagram POWER FLAME EMBER LIGHT FLAME SPEED HEATER SPOT LIGHT TIMER FLAME BRIGHTNESS - FLAME BRIGHTNESS + DOWN... -
Page 15: Spare Parts Diagram
Spare Parts Diagram Estorm Fires Spares: 1- Front Glass Panel 9- Heater & Fan Assembly 2- Glass Retaining Bracket 10- PCB 3- Fuel Bed Tray 11- Control Panel 4- Fuel Bed 12- Rotisserie Motor 5- Front LED Light 13- Side Glass Pane 6- Downlight LED 14- End Panel & Edge Trim 7- Rear Glass Panel 15- Insulated Hard-Wired Port 8- Rear LED Light 16- Hanging Rack... -
Page 16: Compliance And Temperature Limiting Control
Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. -
Page 17: Care And Maintenance
CARE AND MAINTENANCE • ALWAYS turn the appliance OFF and unplug the power cord from the outlet before cleaning, performing maintenance, or moving this fireplace. Failure to do so could result in electric shock, fire, or personal injury. • NEVER immerse the product in water or spray with water. Doing so could result in electric shock, fire, or personal injury. • Risk of electric shock! DO NOT OPEN! Replace parts contact our customer service team for help first! The blower motor and the flame motor pre-lubricated for a durable using time and need no further lubrication or maintenance. To remove any accumulation of dust or debris, the soft brush attachment of a vacuum cleaner should occasionally be used to clean the outlet grille of... -
Page 18: Warranty
Limited Warranty This warrant to the original purchaser that this product is free from defects in material and workmanship as of the date of purchase and that it will, under normal use and proper care, remain so for one year from the date of purchase. Missing or initially defective parts will be replaced free of charge during the period of this limited warranty. If parts are unavailable, comparable replacement of refund will be given. The original dated sales receipt is required for all warranty claims. This warranty does not cover damage which has occurred during transport from the point of purchase to the consumer’s home. This warranty does not cover glass, light bulbs, batteries, transportation, labor, or other issues not associated with the manufacture of the product. This product is for the residential use only. Any and all commercial use of this product voids all warranties, and frees the manufacturer from all liability. Read and understand all assembly and operating instructions, and all safety information and warnings, before use. The following will void this warranty: Damage caused from tampering with, modifying, or altering the fireplace insert in any manner; Damage due... -
Page 19: Trouble Shooting Guide
Trouble Shooting Guide WARNING: Turn off the appliance, unplug and let cool for at least 10 minutes before attempting to service. Only a qualified professional should attempt to service or repair the appliance. 1. The remote does not work and the new unit we just got cannot be turned on. 1) Make sure the main power switch on the top right behind the fence is on. 2) There would have a long beep when the main power switch is turned on. 3) If there is no beep, the connectors on the PCB board might be loosen, please contact service team for a checking instruction. 4) If there is a beep and the control panel can be used but the remote is not working, the remote is not working either close or far, please contact service team for help. - Page 20 www.estormfires.com...
