INSTALLATION, OPERATION, AND TROUBLESHOOTING MANUAL
This Pivot RL electrical control panel is designed to operate one (1) sump, sewage, or effluent pump and provide an audible and
visual alarm notification should a high-water condition occur. This panel is intended to operate with three normally-open float
switches (not included). Applicable pumps must be single phase, 120V, 208V, or 240V, and must be rated at or below 20FLA. The
control and alarm circuits require incoming power of 120V single phase.
E
B
C
A
D
I
This panel must be installed and serviced by a licensed electrician in accordance with the National Electric Code NFPA-70, state,
and local requirements/codes.
DO NOT DISCARD THIS MANUAL. It contains important information regarding safe use of this product. This manual should
always be referenced during installation and operation. Please store this manual in a safe location.
This Technical Guide is aimed at professional users and is only intended to provide them guidelines for the definition of an
industrial, tertiary or domestic electrical installation. Information and guidelines contained in this Guide are provided AS IS.
Zoeller Pump Company and its parent company Zoeller Company makes no warranty of any kind, whether express or implied,
such as but not limited to the warranties of merchantability and fitness for a particular purpose, nor assumes any legal liability
or responsibility for the accuracy, completeness, or usefulness of any information, apparatus, product, or process disclosed
in this Guide, nor represents that its use would not infringe privately owned rights. The purpose of this guide is to facilitate
the implementation of International installation standards for designers & contractors, but in all cases the original text of
International or local standards in force shall prevail. Professional installers should adapt these guidelines as required for their
specific circumstances as required for each application and their specific jurisdiction.
®
MAIL TO: P.O. BOX 16347 • Louisville, KY 40256-0347
SHIP TO: 3649 Cane Run Road • Louisville, KY 40211-1961
Tel: (502) 778-2731 • 1 (800) 928-PUMP
PIVOT RL SERIES
PUMP CONTROL PANELS
GENERAL INFORMATION

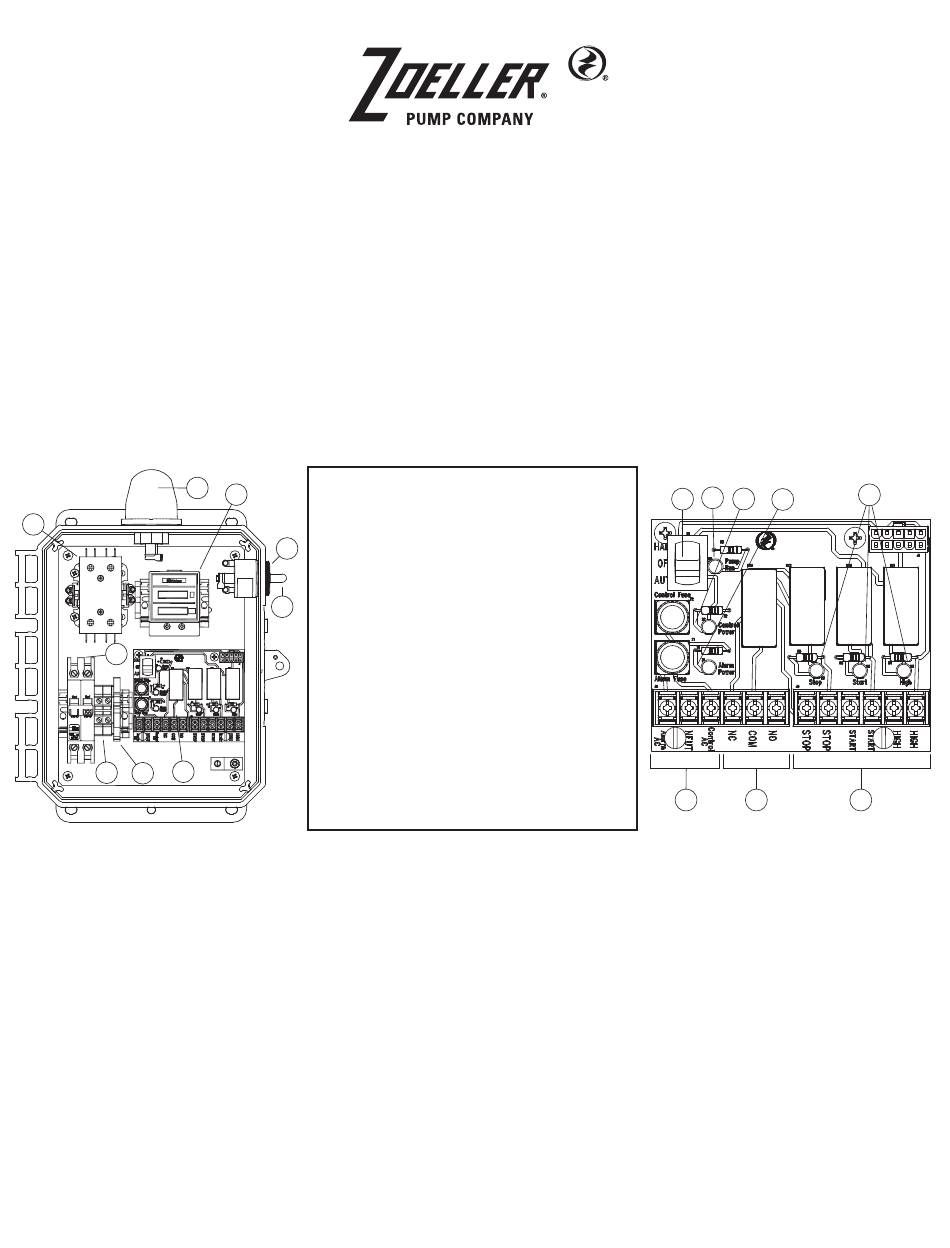

Panel Components
H
(A) Control board
(B) Motor contactor
(C) Pump circuit breaker
F
(D) Pump connection terminals
(E) Beacon
(F) Audible alarm
(G) Test/Silence switch
G
(H) Elapsed time/event counter*
(I) Control/Alarm fused disconnect*
*Available in certain models only
Control Board Components
Control/Alarm power terminals (6)
tsk0100
© Copyright 2023. All rights reserved.
Hand/Off/Auto switch (1)
Pump Run LED (2)
Control Fuse and LED (3)
Alarm Fuse and LED (4)
Float LEDs (5)
Dry contact terminals (7)
Float terminals (8)
1
Supersedes
Visit our website:
zoellerpumps.com
2
1
3
4
6
7
8
FM3480
1223
New
5
tsk0102
