SIEBE Barber Colman 10Q Series Product Information

•
•
'
I
•
ProductlnPorma~on
1261- D B-001-0-00
• Siebe comp.ny

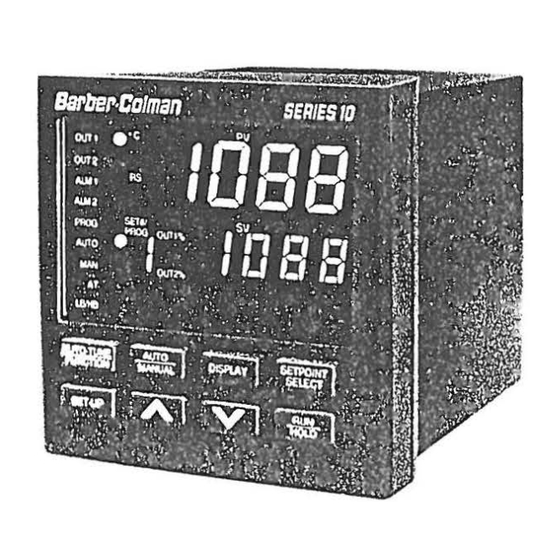

Series 1 OQ
1/4 DIN Process and Temperature Controller
Key Standard Features:
• 0.3% Accuracy
• 300 millisecond Control Response
• Universa/..TC, mVDC, VDC & mADC Input
·A JTM Self· Tune
·Auto Comp™ Sensor Break
·Designed to meet IEC IP65 Sealed Front
·Selectable "Cor °F
·Loop Break
• Setpoint Ramp
·Selectable Decimal Point
·Pass Code--Security
• 8 Large Tactile Feedback Keys
·Second Setpoint and Tuning Constant
·Indicator (no Control Output)
Introduction
The 100 is a versatile microprocessor-based 1/4 DIN
controller which can be used to display and control
temperature, pressure, level and flow variables. Front
panel programming allows a single 100 to meet a wide
variety of plant and test facility applications. Thermo-
couple, mADC , mVDC and VDC inputs can be changed
in the field without the addition of hardware or
recalibration. Universal input including RTD is offered
as an option. Selection of alarm types, scaling,
oc
or °F,
setpoint limits, decimal point location and sensor break
response is ma<;Je from the keypad without having to
locate hard-to-find internal jumpers or switches.
Typical applications Include:
Furnaces
Ovens
Plastics processing machines
Packaging machinery
Food equipment
Solder lines
Printing equipment
Curing, baking and drying equipment
Barber-Colman pioneered control technology by intro-
ducing the first 1/4 DIN single-loop controller with auto-
Copyright rtJ 1994, Barber-Colman Company
OE.~AVL.f ~£c..V~IT'< c:.oDii~
Lt:ll.l -
I
t...fV·~
- ;l
L.£11·~
-
~
L~"·~-
'-i
L-tv'·5-
5
Position Statement
February, 1994
The 100 Is a modern /ow-cost controller with a short
depth (4.2") case, Ideal for OEM's, cost-sensitive
placements and system upgrade applications.
malic tuning. The new Barber-Colman A TTM Self Tune
provides automatic tuning with comp letely hands-off,
no-operator-involved PID tuning at startup. The yellow
AT LED glows steadily to indicate that tuning is occu r-
ring. The LED turns off when tuning is complete or
flashes if tuning is unsuccessful. The AT button can be
pressed to cancel tuning depending on the autotuning
status. Autotuning incorporates an adaptive tuning os-
cillation monitor that automatically retunes the controller
should conditions change. The oscillation mon itor can
be turned off once the desired performance is achieved
or it can be left on to provide continuous adaptive tuning.
The loop break function provides early warning tha t
someth ing in the control loop has failed . If the controller
fails to progress toward setpo int, the LB (loop Break)
LE D turns on. The loop break function can also be
programmed to one of the optional alarms. The ad-
vanced Auto CompTM sensor break function minimizes
process upsets due to sensor break by providing tor the
selection of a preset manual percentage output or the
last stable output when a sensor fails.
The second setpoint function saves setup time by pro-
viding a second setpoint and tun ing constants stored in
memory and available by pressing the setpoint se lect
