Summary of Contents for FiT Supertube FIT 48 V

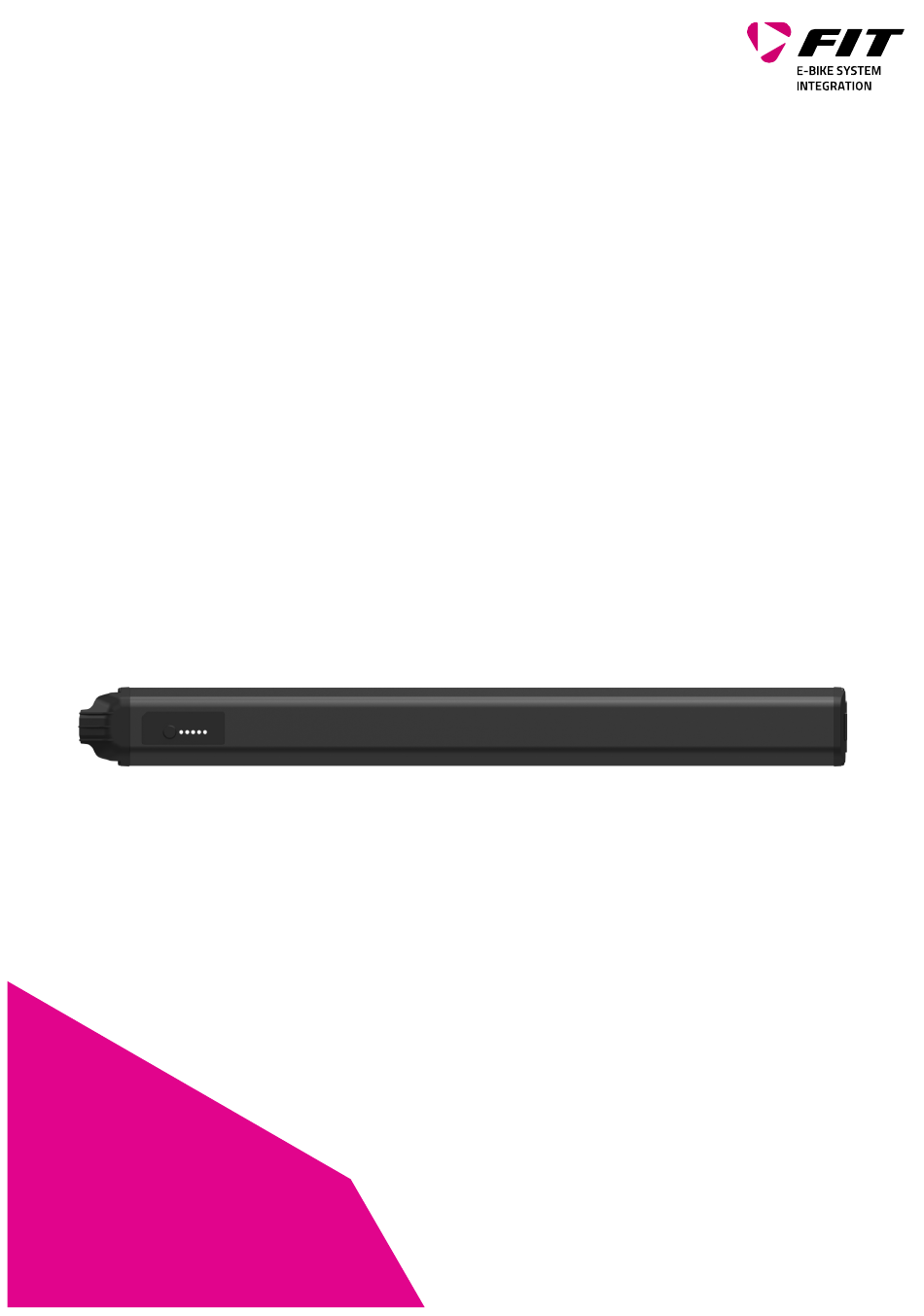

- Page 1 INSTRUCTION MANUAL BATTERY SUPERTUBE FIT 48 V 501167 | 501168 Biketec GmbH Luzernstrasse 84 NETWORKED CH-4950 Huttwil CUSTOMISED T +41 62 959 53 00 INTELLIGENT info@biketec.ch fit-ebike.com...
-
Page 2: Table Of Contents
4 PRODUCT AND TECHNICAL SPECIFICATIONS RECHARGEABLE BATTERY SUPERTUBE FIT 48 V ....... -
Page 3: Preface
1 PREFACE Dear FIT customer, The FIT system offers many useful functions and options and we are pleased that you have decided to choose our system. Please read through the operating instructions carefully to ensure you use the system safely and get off to a quick start. -
Page 4: About These Operating Instructions
INSTRUCTION MANUAL RECHARGEABLE BATTERY SUPERTUBE FIT 48 V 2 ABOUT THESE OPERATING INSTRUCTIONS 2.1 MANUFACTURER Biketec GmbH Luzernstrasse 84 CH-4950 Huttwil fit-ebike.com/en-en/ 2.2 LANGUAGE The original operating instructions are written in German. A translation is invalid without the original operating in- structions. -
Page 5: Safety Instructions
Charge the battery with original FIT chargers only. Risk of fire cannot be ruled out if non-original FIT chargers are used. Use the battery in e-bikes with the FIT system only. This is the only way that the battery will be protected from dan- gerous overloading. -
Page 6: Product And Technical Specifications
The compact design of the battery means it has an extremely high energy density, and despite its small installation space, it has more than enough capacity to easily cover long distances. The battery Supertube FIT 48 V has been perfectly matched to the FIT system and works safely and reliably. 1. Battery level indicator 2. -
Page 7: Transportation And Storage
INSTRUCTION MANUAL RECHARGEABLE BATTERY SUPERTUBE FIT 48 V 5 TRANSPORTATION AND STORAGE 5.1 TRANSPORTATION Exclamat CAUTION There is a risk of injury if the drive system is switched on unintentionally. 5.1.1 TRANSPORTING E-BIKES Never use bicycle racks which use the e-bike’s handlebars or frame to hold the e-bike in an upside-down position. -
Page 8: Break In Operation
INSTRUCTION MANUAL RECHARGEABLE BATTERY SUPERTUBE FIT 48 V 5.3 BREAK IN OPERATION INFO-CIR NOTICE The battery discharges when not in use. This can cause irreparable damage to the battery. The battery must be recharged every 6 months. The battery may become damaged if it is connected permanently to the charger. Never connect the battery to the charger permanently. -
Page 9: Fitting
RECHARGEABLE BATTERY SUPERTUBE FIT 48 V 6 FITTING 6.1 MONTAGE RECHARGEABLE BATTERY SUPERTUBE FIT 48 V The Rechargeable battery Supertube FIT 48 V is permanently installed in the E-Bike and can only be replaced by a specialist dealer. FIT_Manual_Battery_Supertube_48V_V1_en | Version 01 | 04.07.2024... -
Page 10: Operation
INSTRUCTION MANUAL RECHARGEABLE BATTERY SUPERTUBE FIT 48 V 7 OPERATION 7.1 CHARGING THE BATTERY 7.1.1 CHARGING OPTIONS The battery can be charged via the charging socket on the e-bike. The position of the charging socket can be found in the e-bike manufacturer’s original operating instructions. To charge, connect the charger to the e-bike charging socket. -
Page 11: Cleaning And Servicing
INSTRUCTION MANUAL RECHARGEABLE BATTERY SUPERTUBE FIT 48 V 8 CLEANING AND SERVICING 8.1 BASIC CLEANING 8.1.1 CLEANING THE BATTERY Exclamat CAUTION Risk of fire and explosion due to penetration by water The battery is only protected against simple spray water. Penetration by water can cause a short circuit. -
Page 12: Troubleshooting, Fault Clearance And Repair
INSTRUCTION MANUAL RECHARGEABLE BATTERY SUPERTUBE FIT 48 V 9 TROUBLESHOOTING, FAULT CLEARANCE AND REPAIR 9.1 TROUBLESHOOTING AND FAULT CLEARANCE 9.1.1 DRIVE SYSTEM OR DISPLAY DOES NOT START UP If the display and / or the drive system do not start up, proceed as follows: 1. -
Page 13: Repair
INSTRUCTION MANUAL RECHARGEABLE BATTERY SUPERTUBE FIT 48 V Symptom Cause Remedy The assisted The battery does not perform as This does not indicate a problem. journey distance well in winter weather. is too short. The journey distance can be 1. Check battery is charged. -
Page 14: Recycling And Disposal
INSTRUCTION MANUAL RECHARGEABLE BATTERY SUPERTUBE FIT 48 V 10 RECYCLING AND DISPOSAL 10.1 DISPOSAL Mechanical and electrical equipment, accessories and packaging should be recycled in an environmentally sound manner. Don’t throw them in the garbage! Only for EU countries: According to European Directives 2012/19/EU, 2006/66/EC and their transposition into national law, defective or unusable waste electrical and electronic equipment, rechargeable batteries and batteries must be collected separately and recycled in an environmentally sound manner.
