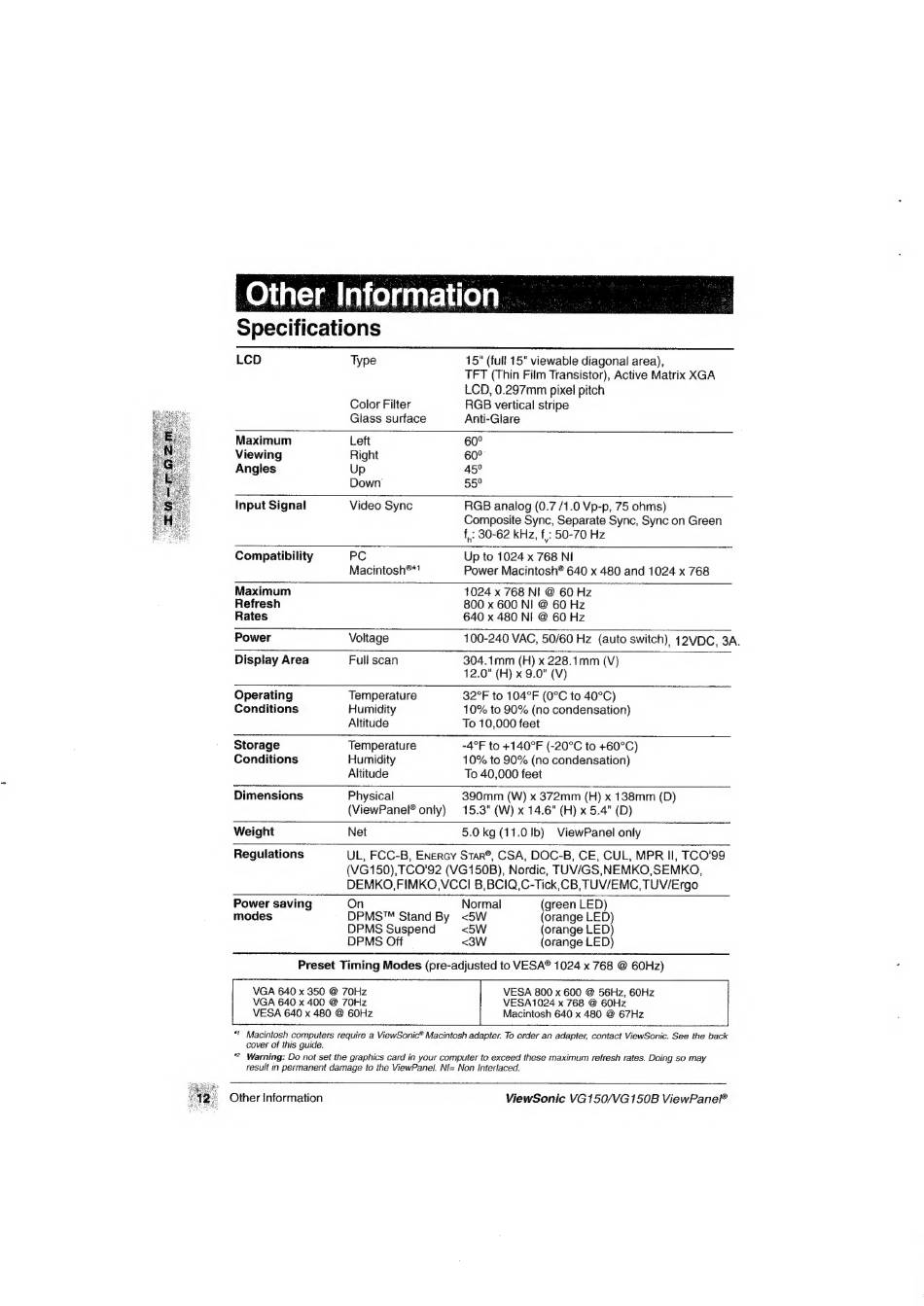

ViewSonic ViewPanel VG150 User Manual page 13

Other Information
Specifications
LCD Type 15" (full 15" viewable diagonal area),
TFT (Thin Film Transistor), Active Matrix XGA
LCD, 0.297mm pixel pitch
Color Filter RGB vertical stripe
Glass surface Anti-Glare
Maximum Left 60°
Viewing Right 60°
Angles Up 45°
Down 55°
Input Signal Video Sync RGB analog (0.7 /1.0 Vp-p, 75 ohms)
Composite Sync, Separate Sync, Sync on Green
f,: 30-62 kHz, f,: 50-70 Hz
Compatibility PC Up to 1024 x 768 Ni
Macintosh®**'
Power Macintosh® 640 x 480 and 1024 x 768
Maximum 1024 x 768 NI @ 60 Hz
Refresh 800 x 600 NI @ 60 Hz
Rates 640 x 480 NI @ 60 Hz
Power Voltage 100-240 VAC, 50/60 Hz (auto switch) 12VDC, 3A.
Display Area Full scan 304.1mm (H) x 228.1mm (V)
12.0" (H) x 9.0" (V)
Operating Temperature 32°F to 104°F (0°C to 40°C)
Conditions Humidity 10% to 90% (no condensation)
Altitude To 10,000 feet
Storage Temperature -4°F to +140°F (-20°C to +60°C)
Conditions Humidity 10% to 90% (no condensation)
Altitude To 40,000 feet
Dimensions Physical 390mm (W) x 372mm (H) x 138mm (D)
(ViewPanel® only) 15.3" (W) x 14.6" (H) x 5.4" (D)
Weight Net 5.0 kg (11.0 !b) ViewPanel only
Regulations UL, FCC-B, Enercy Star®, CSA, DOC-B, CE, CUL, MPR II, TCO'99
(VG150), TCO'92 (VG150B), Nordic, TUV/GS,NEMKO,SEMKO,
DEMKO,FIMKO, VCCI B,BCIQ,C-Tick,CB, TUV/EMC, TUV/Ergo
Power saving On Normal (green LED)
modes DPMS™ Stand By <5W (orange LED)
DPMS Suspend <5W (orange LED)
DPMS Off <3W (orange LED)
Preset Timing Modes (pre-adjusted to VESA® 1024 x 768 @ 60Hz)
VGA 640 x 350 @ 70Hz
VGA 640 x 400 @ 70Hz
VESA 640 x 480 @ 60Hz
VESA 800 x 600 @ 56Hz, 60Hz
VESA1024 x 768 @ 60Hz
Macintosh 640 x 480 @ 67Hz
*!' Macintosh computers require a ViewSonic® Macintosh adapter. To order an adapter, contact ViewSonic. See the back
cover of this guide.
*@ Warning: Do not set the graphics card in your computer to exceed these maximum refresh rates. Doing so may
result in permanent damage to the ViewPanel. Ni= Non Interlaced.
Other Information ViewSonic VG150/VG150B ViewPaneF®
