Summary of Contents for KCS KCSMV5028-10M

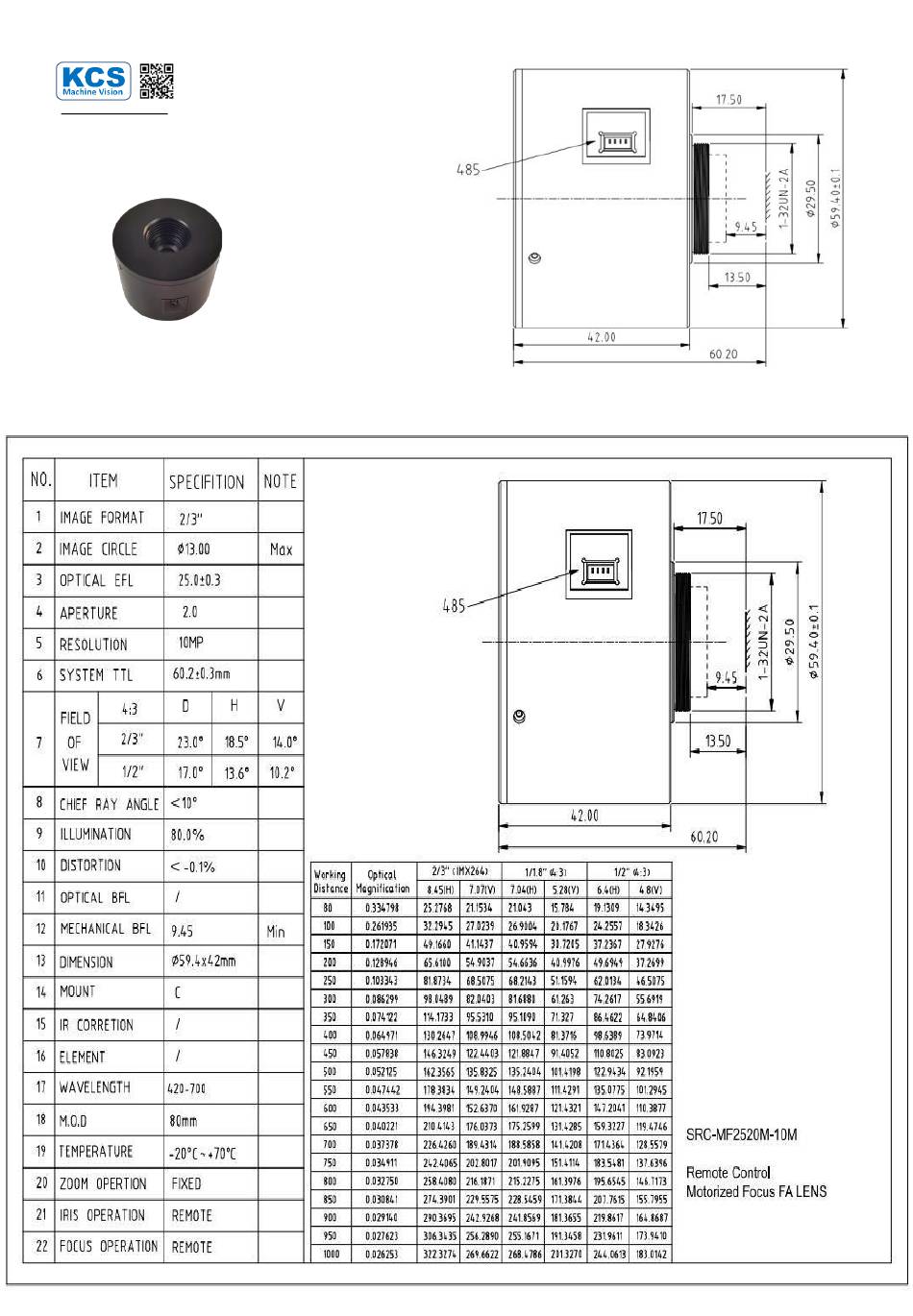

- Page 1 KCSMV5028-10M...
- Page 2 Remote Control Lens V1.0.0 User Manual Please read carefully before using the Manual...
- Page 3 RC-M Packaging List: Lens × 1 USB to 485 × 1 data cable × 1 User Manual × 1 1. Introduction RC-M Serial Lenses key function are motorized focus,Motorize Iris, with Preset characteristic on focus & iris which could find lens address & call lens back to set condition.
- Page 4 RC-M 3、 Interface & function...
- Page 5 RC-M Line order ⚫ ﹣ Black wire power+ red wire power white wire B yellow wire A (remarks: with cable ex-works ) Power input ⚫ The power PCB supply DC6.5-12V, select the appropriate power supply according to the voltage value of the motor. The power wattage must be higher than 500mA.
- Page 6 RC-M “ ” corresponding to the control device A or , B or "-" corresponding to the control device B or "-". Circuit board default baud rate 9600, address 1 4、 Lens installation and architecture Step 1: Insert the data cable with terminal head into the lens 485 interface, and connect the other part to the USB to 485 converter Step 2: Connect the USB to 485 converter to the computer USB interface and install the driver...
- Page 7 RC-M 4. Software debug instructions 4.1 Serial Port Setting ⚫ Prepare a USB to 485 to connect to the circuit board 485 communication port and give power to electricity. Run the debug software, as shown in Figure 4.1. Select the corresponding string slogan (view in the computer device manager) and open the serial port...
- Page 8 RC-M Picture 4.1...
- Page 9 RC-M Serial Port Setting ⚫ Click the "Search" button, and the online device will be displayed in the device information after the search is completed. See picture4.2 Change the address to the baud rate and relative address of the lens that needs to be controlled in "Communication Settings"...
- Page 10 RC-M When first time using, you need to call No. 34 preset position for the lens self -inspection to find zero. During the working process, you can find the preset position error or inaccurate. Control, zoom+, zoom- (not available now), focus+, focus-control ➢...
