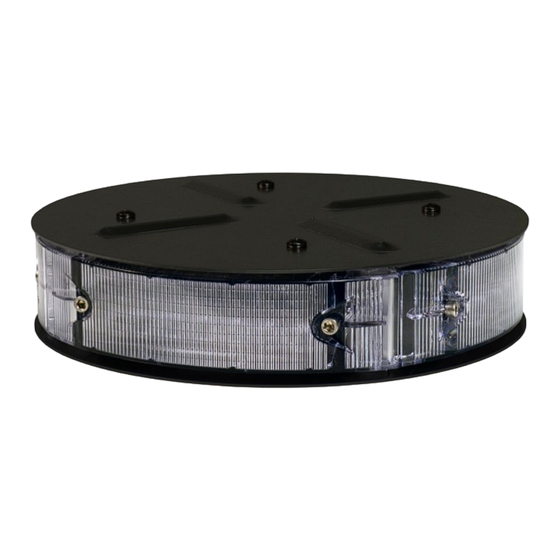

Summary of Contents for Tomar SCORPION 970-BCN-CR1

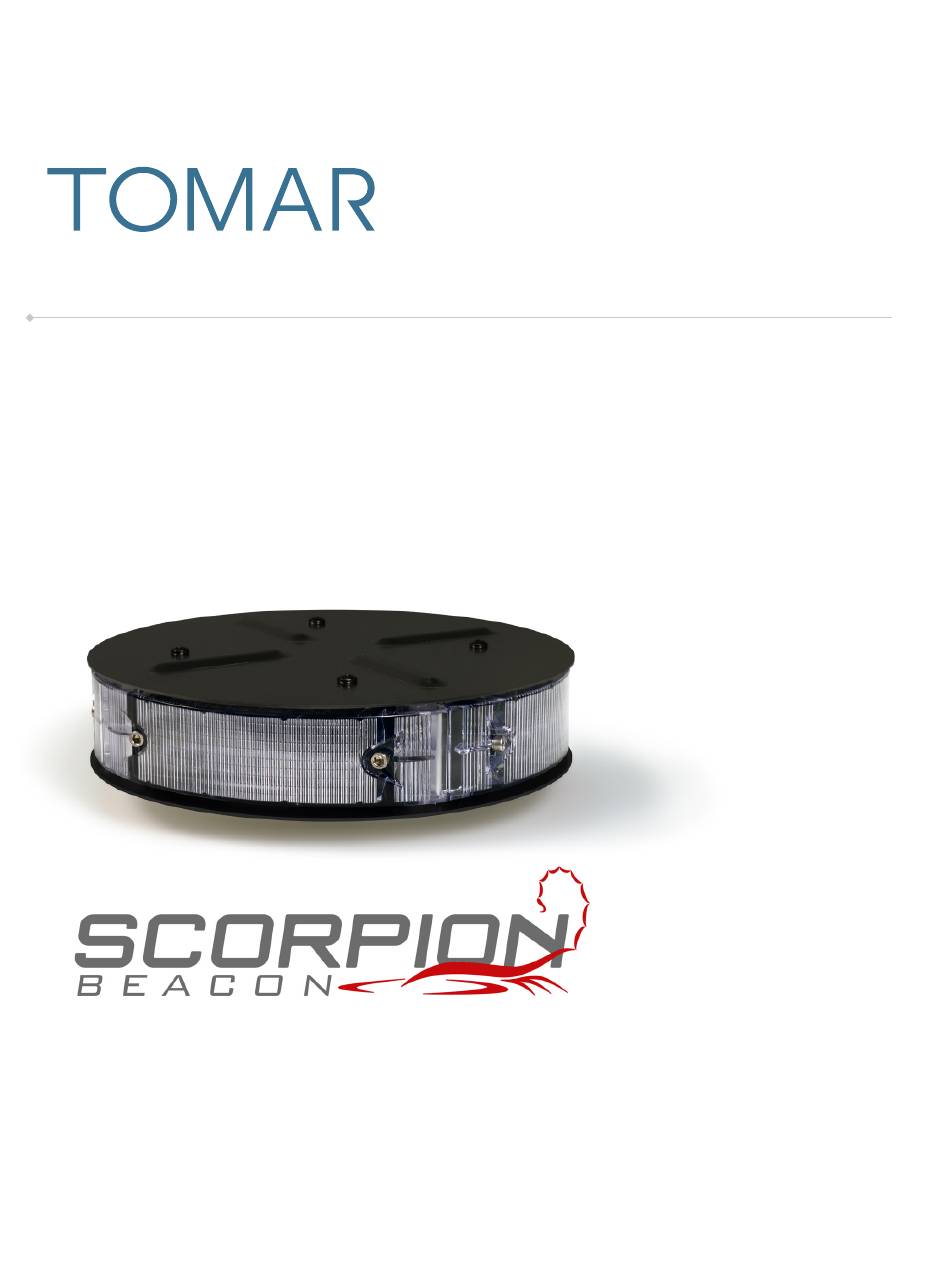

- Page 1 Instruction Manual IS0588-01 04.25.2016 TOMAR Electronics, Inc. 2100 W. Obispo Ave. Gilbert, AZ 85233 USA 800.338.3133 ph 800.688.6627 fax www.tomar.com...
- Page 2 970-BCN-CR1 +12Vdc Black Ground Orange Warning Mode 1 Blue Warning Mode 2 Orange & Blue Warning Mode 3 Red/White Alt Mode 1* Brown/White Alt Mode 2* Red/White & Brown/White Alt Mode 3* Green Intensity Control Brown Steady Burn *Alt modes will override warning modes if both are activated simultaneously...
-
Page 3: Programming Instructions
PROGRAMMING INSTRUCTIONS Entering Programming Mode: To activate programming mode, connect the BLACK Wire to ground then simultaneously attach the GREEN wire and the RED wire to +12 Vdc. Changing Warning Patterns and Flash Rates: Six unique warning patterns can be selected by using different combinations of the ORANGE, BLUE, BROWN/WHITE and RED/WHITE wires. -
Page 4: Flash Rates
WARNING PATTERNS 1) OFF All OFF 2) COMBINATION Pattern 3, Pattern 4, Pattern 10, Pattern 5, Repeat 3) ALL ON Lamps 1,2,3,4 simultaneously on 4) FRONT/REAR Lamps 1,2 Alt with Lamps 3,4 5) ALTERNATING 2 Lamps 1,4 Alt with Lamps 2,3 6) CIRCLE (FILL) Lamps 1/1,2/1,2,3/1,2,3,4/Off 7) CIRCLE (TRAIL) - Page 5 BCN-CR1-CP/MAG Selecting Flash Pattern Cycle Forward With the unit turned on, press the Pattern selection switch once and then release. Continue until the desired pattern is reached. The last pattern selected will become the default pattern. Cycle Backward Press twice in less than 1 second. Repeat until the desired flash rate is selected. Reset to Pattern #1 With the unit turned on, press and hold the Pattern selection switch for more than three seconds.
-
Page 6: Entering Programming Mode
970-BCN-CR2, DUAL COLOR BEACONS Channels 1,2,3,4 are one color, 5,6,7,8 are the second color. +12Vdc Black Ground Orange Warning Mode 1 Blue Warning Mode 2 Orange/Blue Warning Mode 3 Red/White Alt Mode 1* Brown/White Alt Mode 2* Red/White & Brown/White Alt Mode 3* Green Intensity... - Page 7 Alternate Mode Patterns RED/WHT WIRE 1) Alt 1 Dual Color: 1,2 Alt 7,8 2) Alt 2 Dual Color: 1,4 Alt 6,7 3) Cross Dual Color: 1,3 Alt 6,8 4) Dual Alt 1 Dual Color (1,2 Alt 7,8) (1,4 Alt 6,7) BRN/WHT WIRE 1) Alt 1 Dual Color: 3,4 Alt 5,6...
