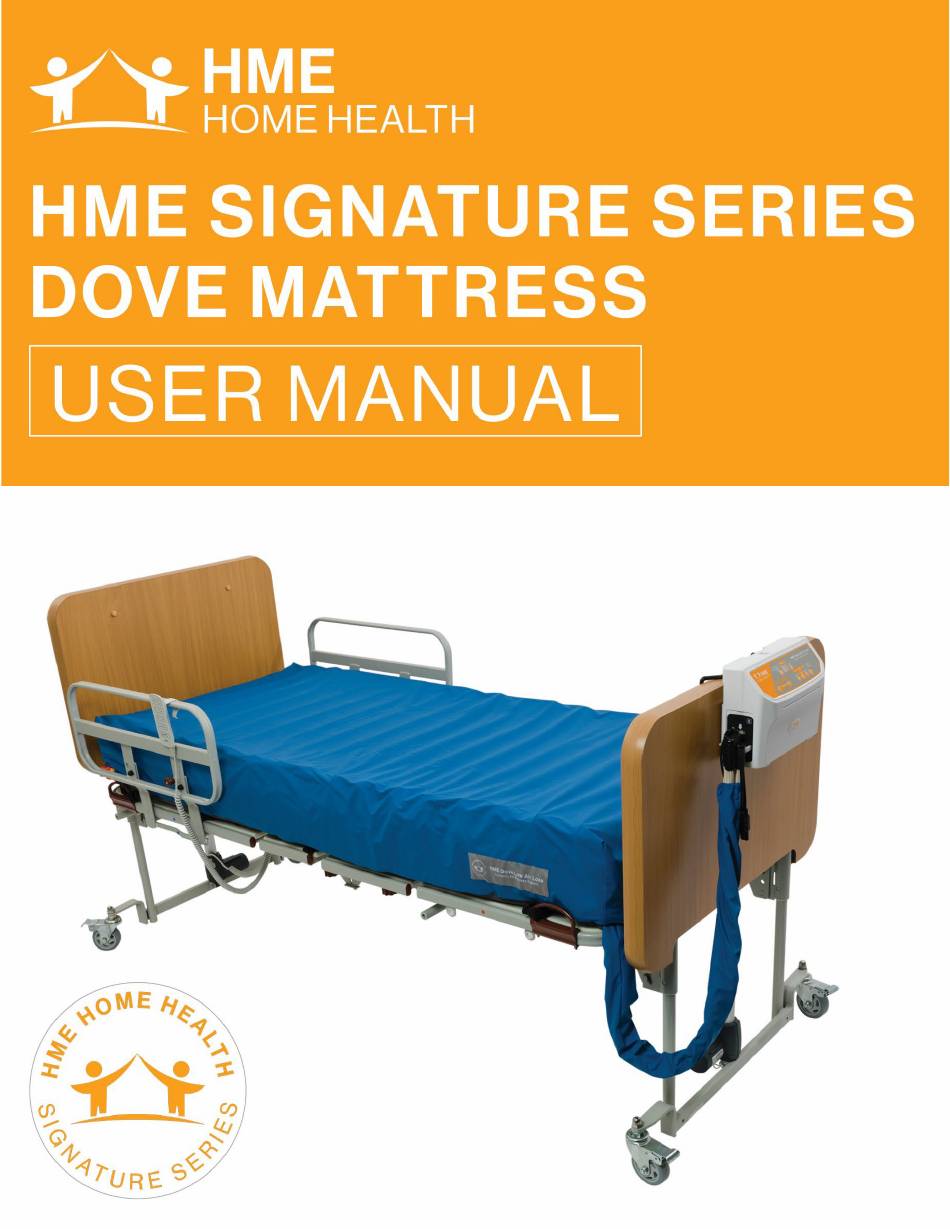

HME SIGNATURE Series User Manual

Dove mattress

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

Table of Contents

Need help?

Do you have a question about the SIGNATURE Series and is the answer not in the manual?

Questions and answers

Summary of Contents for HME SIGNATURE Series

Page 2 The User Manual is based on general product applica�ons. Speciﬁc clinical assessments should be based on individual client physical and func�onal assessments by a healthcare professional. Manufactured By: Air Kine�c Technologies Corp. Distributed By: HME Home Health Ltd. (www.HMEBC.com, Info@hmebc.com) IMPORTANT SAFEGUARDS READ ALL INSTRUCTIONS BEFORE OPERATING THIS DEVICE NOTE - CAUTION AND WARNING STATEMENTS: NOTE –...
Page 3 HANDED OVER TO AN APPLICABLE COLLECTION POINT FOR THE RECYCLING OF ELECTRICAL AND ELECTRONIC EQUIPMENT. UL CERTIFICATION LOGO (COMPLIANCE WITH IEC60601-1) WITH RESPECT TO ELECTRICAL SHOCK, FIRE AND MECHANICAL HAZARDS ONLY IN ACCORDANCE WITH IEC60601-1. HME Home Health Ltd. HME Signature Series Dove Matress 3 | P a g e...
Page 4: Table Of Contents
9. Disposal of Air Matress ............................14 10. Troubleshoo�ng ..............................15 11. Technical Data ..............................16 11.1 Product Speciﬁca�on ........................... 16 11.2 EMC Informa�on (120V) ..........................17 HME Home Health Ltd. HME Signature Series Dove Matress 4 | P a g e...
Page 5: Introduc�On
• The HME Signature Series Dove Micro Low Air Loss Matress System may be used in a variety of se�ngs including, but not limited to an individual in a home care se�ng or a long-term care se�ng who is suﬀering from skin breakdown, or pain management as prescribed by a physician.
Page 6: Product Installa�On Guide
Control Unit. Firmly Step 6 push the hose connector into posi�on and a “click” sound will secure the connec�on. HME Home Health Ltd. HME Signature Series Dove Matress 6 | P a g e...
Page 7 5 minutes for the matress to be inﬂated. Step 7 Disconnect the hose from the Control Unit and put on the hose connector Transport Cap to keep the matress inﬂated. HME Home Health Ltd. HME Signature Series Dove Matress 7 | P a g e...
Page 8: Panel Display & Opera�Onal Guide
Alternate Time Display Alternate cycle �me can be selected from 10-30 minutes by pressing the Cycle buton. HME Home Health Ltd. HME Signature Series Dove Matress 8 | P a g e...
Page 9 ON. The matress pressure can be manually adjusted by pressing the So� or Firm buton if the individual wishes to change the comfort level. HME Home Health Ltd. HME Signature Series Dove Matress 9 | P a g e...
Page 10: Opera�Ng Guide
Note: A power failure alarm will be triggered if the power is switched oﬀ in opera�ng mode (refer to Audiovisual Alarm). Press the power switch to restart the system or press Alarm Mute to turn oﬀ the system (refer to Alarm Mute). HME Home Health Ltd. HME Signature Series Dove Matress 10 | P a g e...
Page 11: Cpr
When more than one alarm is triggered, the alarm will be performed according to the priority level. • Refer to Table 2 Warning Code Reference for priority level. HME Home Health Ltd. HME Signature Series Dove Matress 11 | P a g e...
Page 12 Alarm need to be sec.) replaced FACTORY Calibra�on Not Calibra�on NONE NONE CALIBRATION Completed Unﬁnished MODE FACTORY Calibra�on Calibra�on NONE NONE CALIBRATION Completed Completed MODE HME Home Health Ltd. HME Signature Series Dove Matress 12 | P a g e...
Page 13: Cleaning
40°C. Exceeding the temperature can cause signiﬁcant damage to the matress cover. CAUTION: Do not use phenolic-based products for cleaning. CAUTION: A�er cleaning, dry the matress without direct exposure to sunlight. HME Home Health Ltd. HME Signature Series Dove Matress 13 | P a g e...
Page 14: Storage
Check and replace the air ﬁlter regularly if the environment is dirty. • 9. Disposal of Air Mattress • When the air matress is no longer useable, the matress and the Control Unit may be discarded. HME Home Health Ltd. HME Signature Series Dove Matress 14 | P a g e...
Page 15: Troubleshoo�Ng
Weight and Comfort Level Reference Table) and wait for a few minutes for beter comfort. • Follow the procedures “The low-pressure light is constantly ﬂashing, and the alarm has sounded” for inspec�on. HME Home Health Ltd. HME Signature Series Dove Matress 15 | P a g e...
Page 16: Technical Data
15%RH ~ 93%RH (no condensa�on) ≦ 93%RH (no condensa�on) -25°C ~70°C STORAGE ENVIRONMENT ≦3000m ENVIRONMENT PRESSURE 70 kPa-101.3kPa ENVIRONMENT HORIZONTAL LEVEL WATER AND DUST PROTECTION CLASSIFICATION IP21 HME Home Health Ltd. HME Signature Series Dove Matress 16 | P a g e...
Page 17: Emc Informa�On (120V)
Harmonic emissions IEC Class A the public low-voltage power supply network 61000-3-2 that supplies buildings used for domes�c Voltage ﬂuctua�ons/ﬂicker Compliance purposes. emissions IEC 61000-3-3 HME Home Health Ltd. HME Signature Series Dove Matress 17 | P a g e...
Page 18 ﬁeld IEC 61000-4-8 in a typical commercial or hospital environment. NOTE: UT is the a.c. mains voltage prior to applica�on of the test level. HME Home Health Ltd. HME Signature Series Dove Matress 18 | P a g e...
Page 19 Over the frequency range 150 kHz to 80 MHz, ﬁeld strengths should be less than 3 V/m. HME Home Health Ltd. HME Signature Series Dove Matress 19 | P a g e...
Page 20 At 80 MHz and 800 MHz, the separa�on distance for the higher frequency range applies. These guidelines may not apply in all situa�ons. Electromagne�c propaga�on is aﬀected by NOTE 2: absorp�on and reﬂec�on from structures, objects, and people. HME Home Health Ltd. HME Signature Series Dove Matress 20 | P a g e...
Page 21 No. 3, Gongye 5th Rd., Pingzhen Dist., Taoyuan City 324, Taiwan TEL: +886-3-4194567 www.aktc.com.tw Importer: HME Home Health Ltd. 130 – 4011 Viking Way Richmond, BC V6V 2K9 Canada HME Home Health Ltd. HME Signature Series Dove Matress 21 | P a g e...
