FRAM FRESHBreeze CF10285 Installation Bulletin

Installation Bulletin: CF10285
Bulletin d'installation :
Boletín de Instalación:
Estimated time of installation:
Temps estimé pour l'installation :
Tiempo estimado de instalación:
Application:
Lexus ES350, GS300, GS350, GS430, GS450H, IS
Application:
F, IS250, IS350 | Scion XD | Toyota Avalon, Camry,
Aplicación:
Highlander, RAV4, Tundra, Yaris
For more application specifics,
please refer to our catalog.
Pour obtenir plus d'information
sur les applications, veuillez
consulter notre catalogue.
Para obtener información
específica sobre la aplicación,
consulte nuestro catálogo.
U.S. Product Assistance:
Aide pour les produits aux É.-U. :
Línea de asesoría en EE.UU.
1.800.890.2075
Canada Product Assistance:
Aide pour les produits au Canada :
Línea de asesoría en Canadá.
1.800.243.2323
Mexico Product Assistance:
Aide pour les produits au Mexique :
Línea de asesoría en México:
01.800.715.4135
SOME VEHICLES MAY DIFFER SLIGHTLY. IF YOU HAVE QUESTIONS
REGARDING THIS FILTER, ITS INSTALLATION OR MORE DETAILS
SPECIFIC TO YOUR VEHICLE, PLEASE VISIT
www.framfreshbreeze.com
FOR HOW-TO VIDEOS AND ADDITIONAL INFORMATION.
CERTAINS VÉHICULES PEUVENT PRÉSENTER DES DIFFÉRENCES. SI VOUS
AVEZ DES QUESTIONS CONCERNANT CE FILTRE, SON INSTALLATION OU
DÉSIREZ OBTENIR PLUS DE DÉTAILS CONCERNANT VOTRE VÉHICULE,
VEUILLEZ VISITER LE www.framfreshbreeze.com POUR OBTENIR
DES DÉMONSTRATIONS VIDÉOS ET PLUS D'INFORMATION.
PUEDE VARIAR UN POCO EN ALGUNOS VEHÍCULOS SI TIENE PREGUNTAS
SOBRE EL FILTRO Y LA INSTALACIÓN O DESEA INFORMACIÓN EN DETALLE
PARA SU VEHÍCULO, VISITE www.framfreshbreeze.com, DONDE
ENCONTRARÁ VIDEOS INSTRUCTIVOS E INFORMACIÓN ADICIONAL.
Importado por:
Honeywell Automotive de México, S.A. de C.V.
Avenida Venustiano Carranza No. 2076 Piso #5
Col. Parque España
San Luis Potosí, SLP CP 78250 México
Centro de atención a clientes: 01 800 7154 135
Hecho en China
TOOLS: None required.
LOCATION OF CABIN FILTER: Behind the glove box or inside the glove box.
REMOVE ALL DEBRIS IN AND AROUND FILTER LOCATION.
07-10
15 minutes or less

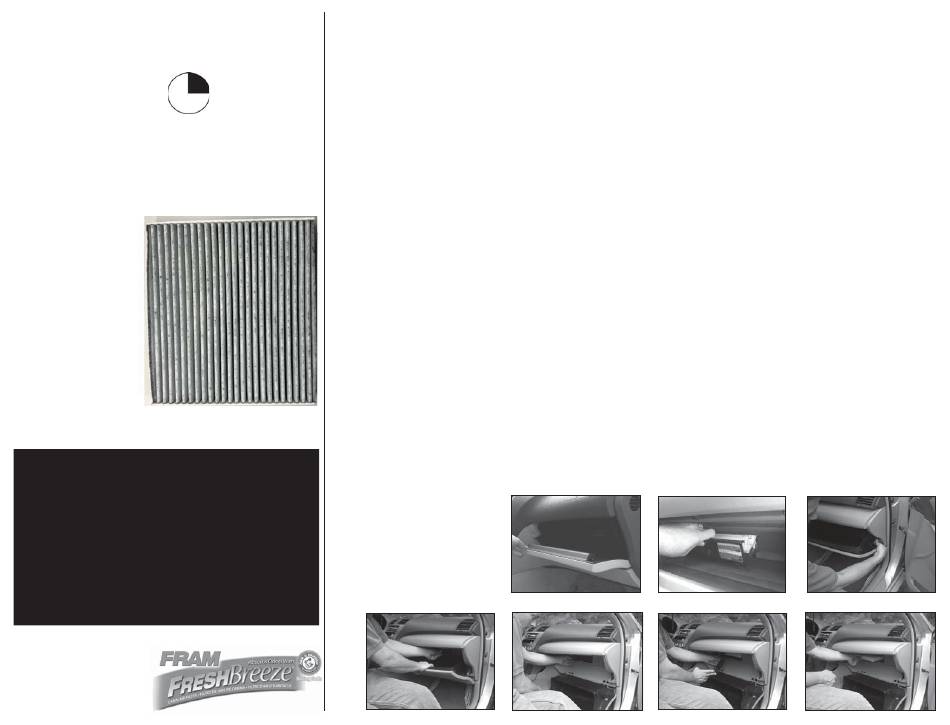

1. Set the air conditioning system in your vehicle to the RECIRCULATING mode. The cabin filter CANNOT be removed with
15 minutes ou moins
the system in the OUTSIDE AIR mode. To do this, you will need to start the vehicle and set your air conditioning system to the
15 minutos máx.
RECIRCULATING mode and turn off your vehicle.
2. With that completed, sit in the passenger side seat and open the glove box. (Fig 1)
3. Once the glove box is open look inside the glove box towards the back and look for a cabin filter access cover. (Fig 2) If one is
present, remove the cabin filter access cover by lifting it up and pulling it out. Skip steps 4 and 5 and go directly to step 6. If you
do not see a cabin filter access cover inside your glove box, continue to step 4.
4. On the right hand side of the glove box you will see a rod connected to the glove box. This is called the dampener rod. Remove
the arm by slightly closing the glove box while pulling the arm slightly forward and off the shaft it is hooked to. (Fig 3)
5. Next, push in on both sides of the glove box or push on the back of the glove box while pulling the front downward until you
disengage the stops on each side of the glove box. You can do this either way you feel more comfortable and in such a way you
feel will not cause damage the glove box. When you are doing this you will be flexing the glove box until the stops that hold
the glove box from opening too far clear the sides of the glove box frame. This will allow the glove box to swing down on
its bottom hinge. (Fig 4)
6. You should now see the cabin filter cover. Open the cabin filter cover by unlatching the two latches on each side of the cover
and remove it. (Fig 5 and 6)
7. Remove the old filter by pulling it straight out (Fig 7)
8. Install the new filter with the air flow indicator arrow printed on the side of the filter pointing down.
9. Reinstall the cabin filter cover and make sure both sides of the cover are latched. If you did not have to remove your glove box
you will simply just need to install your cabin filter access cover by setting the two bottom tabs in place and then sliding it up until
it latches at the top. Then close the glove box and you are finished. If you did not have a cabin filter access door in your glove
box you will need to go to step 10.
10. Pick up the glove box and swing it upward on the bottom hinge like you are closing it and partially close it until the stops on each
side of the glove box re-engage. You may want to squeeze in on the glove box or push out on the back of the glove box until the
stops clear the sides of the glove box frame, if it looks like the stops might damage or scratch the sides of the glove box frame.
11. Now re-install the dampener rod
by sliding it back on the shaft on
the glove box.
12. Close the glove box.
4
1
2
5 6
3
7
